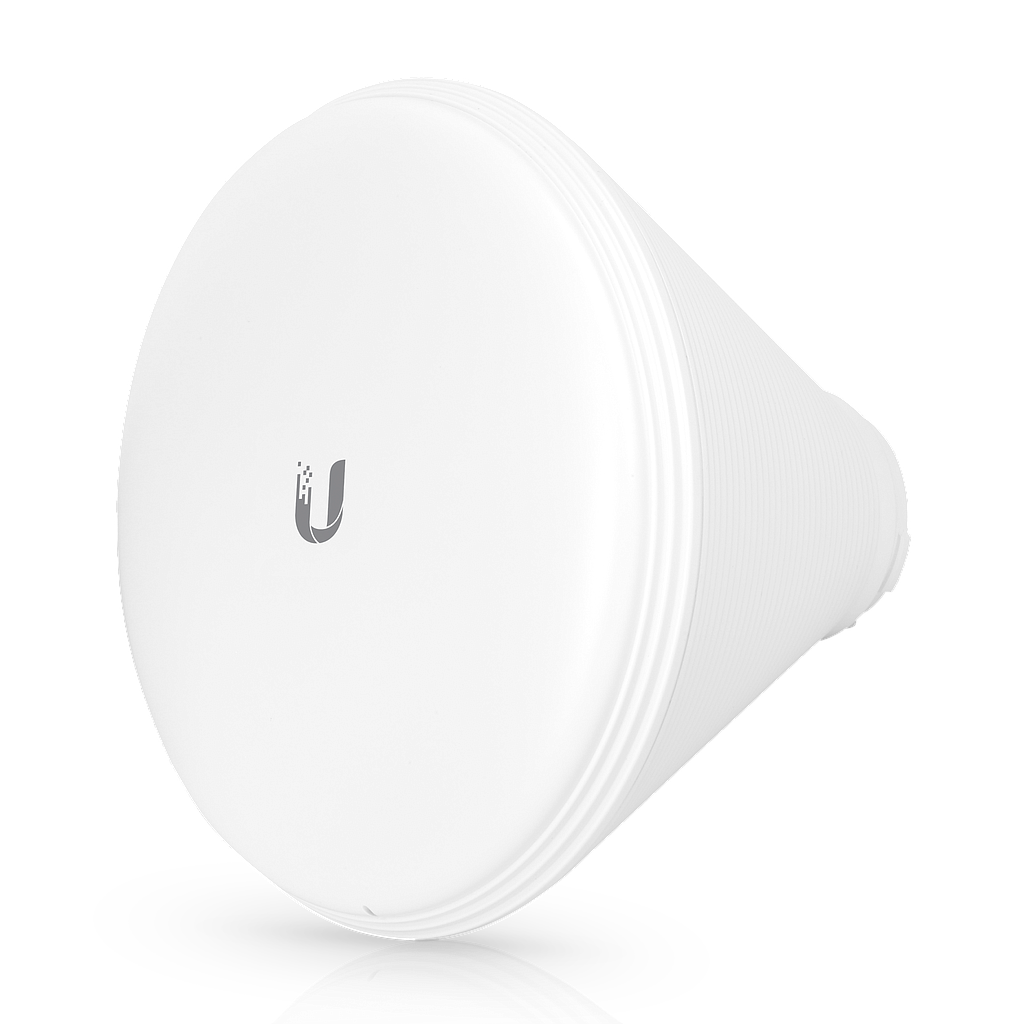

Ubiquiti Horn-5-30 5 GHz PrismAP Antenna 30°
Model # HORN-5-30
-
SKU: HORN-5-30
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ubiquiti Horn-5-30 5 GHz PrismAP Antenna 30° Ubiquiti Networks new generation of airMAX ac beam-width isolation antennas, the PrismAP. With flexible sectorisation for optional antenna beam-widths, the PrismAP antennas are interchangeable and improve beam?shaping for specific deployment and environment needs. The PrismStation 5AC and IsoStations use horn antenna sectors designed for increased co?location performance without sacrificing gain. Symmetrical horn antennas (30° and 45° versions, models PrismAP-5-30 and PrismAP?5?45, respectively) offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology. Asymmetrical horn antennas (60° and 90° versions, models PrismAP-5-60 and PrismAP-5-90, respectively) have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
(HORN-5-30)
Technical Specification Horn-5-30 Dimensions Ø 221.4 x 184.2 mm (8.71 x 7.3") Weight 1.1 kg (2.4 lb) Supported Frequency Range 5.15 - 5.85 GHz Gain 19 dBi HPOL Beamwidth 30° VPOL Beamwidth 30° Elevation Beamwidth 30° Maximum VSWR 1.7:1 Wind Survivability 200 km/h (125 mph) Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph) Polarization Dual-Linear Cross-Pol Isolation 17 dB Horn-5-45 Dimensions Ø 175 x 96 mm (6.9 x 3.78") Weight 1.34 kg (3 lb) Supported Frequency Range 5.15 -5.85 GHz Gain 15.5 dBi HPOL Beamwidth 45° VPOL Beamwidth 45° Elevation Beamwidth 45° Maximum VSWR 1.7:1 Wind Survivability 200 km/h (125 mph) Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph) Polarization Dual-Linear Cross-Pol Isolation 17 dB Horn-5-60 Dimensions 161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73") Weight 720g (1.6 lb) Supported Frequency Range 5.15 -5.85 GHz Gain 16 dBi HPOL Beamwidth 60° VPOL Beamwidth 60° Elevation Beamwidth 30° Maximum VSWR 2:1 Wind Survivability 200 km/h (125 mph) Wind Loading 50 N @ 200 km/h (11.2 lbf @ 125 mph) Polarization Dual-Linear Cross-Pol Isolation 17 dB Horn-5-90 Dimensions 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46") Weight 920 g (2 lb) Supported Frequency Range 5.15 -5.85 GHz Gain 13 dBi HPOL Beamwidth 90° VPOL Beamwidth 90° Elevation Beamwidth 45° Maximum VSWR 2:1 Wind Survivability 200 km/h (125 mph) Wind Loading 46 N @ 200 km/h (10.3 lbf @ 125 mph) Polarization Dual-Linear Cross-Pol Isolation 17 dB
| SKU | HORN-5-30 |
| Barcode # | 817882020060 |
| Brand | UBIQUITI |
| Shipping Weight | 1.1000kg |
