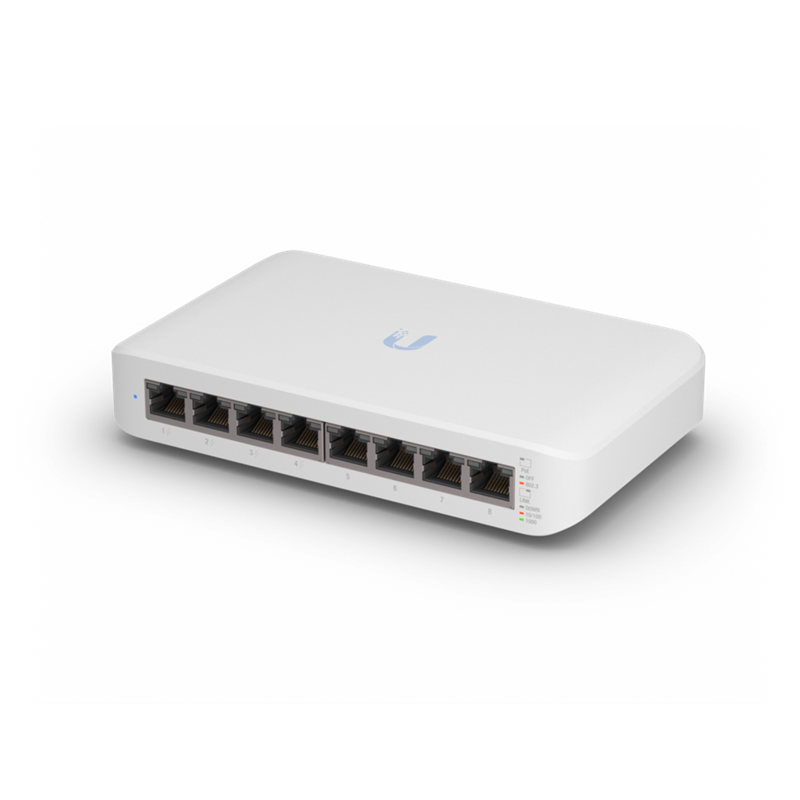

An 8-port, Layer 2 PoE switch supporting silent fanless cooling.

(4) GbE PoE+, (4) GbE ports

52W total PoE availability*

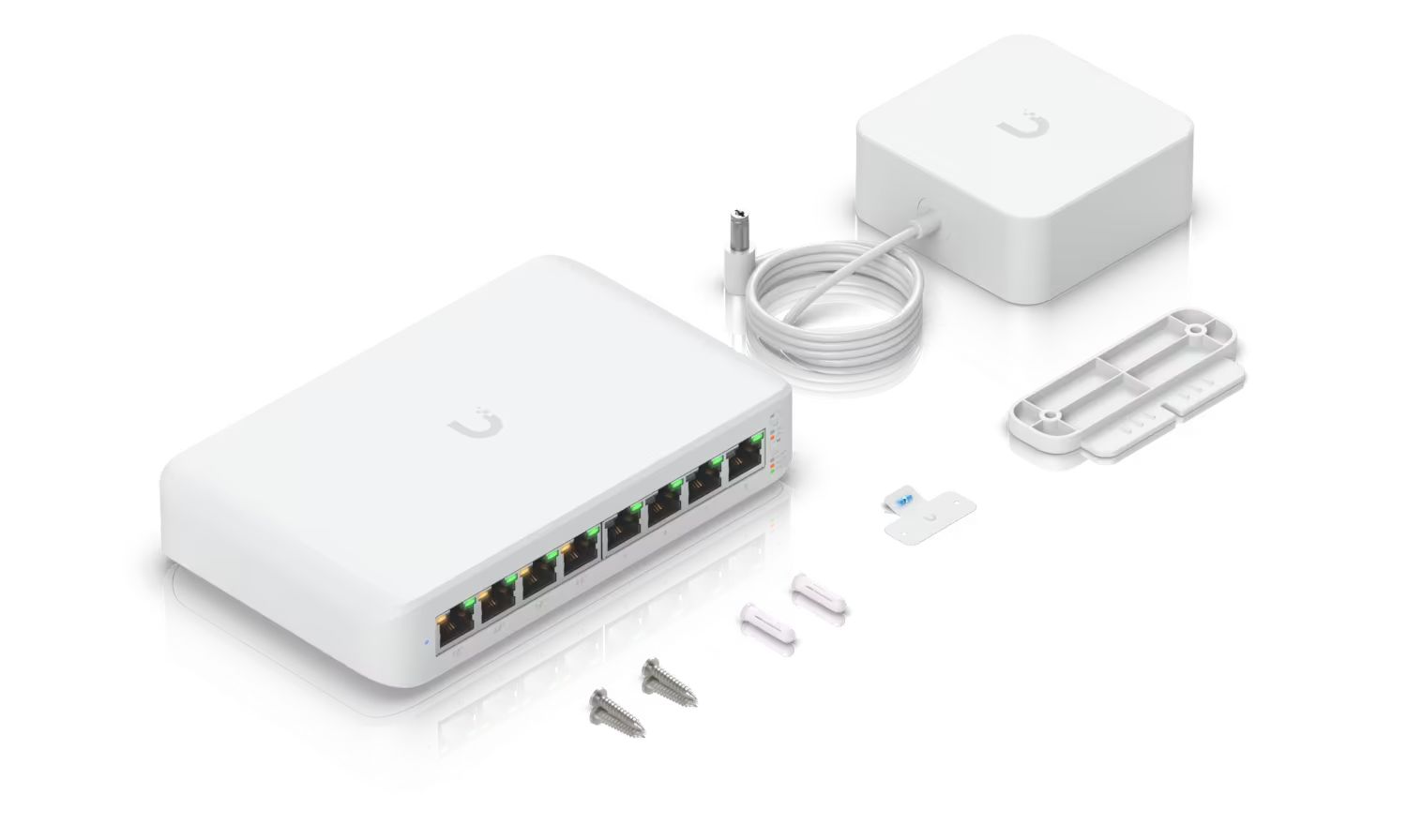

Wall mountable

*With an external 60W power adapter.



(USW-LITE-8-POE)

Mechanical

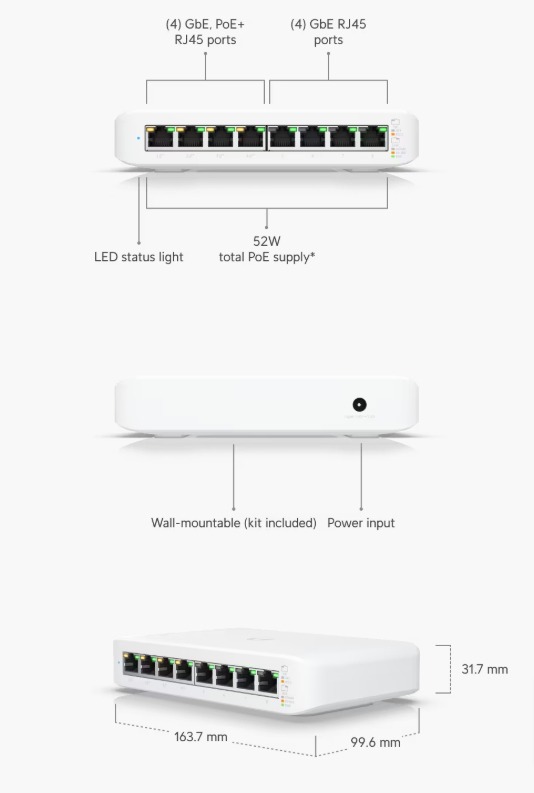

Dimensions 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")
Weight 295 g (10.4 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
PoE interface (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 8 Gbps
Switching capacity 16 Gbps
Forwarding rate 11.904 Mpps
Power method 54V DC, 1.1A power adapter
Power supply 54V, external, 60W
Supported voltage range 50—57V DC
Max. power consumption 8W (Excluding PoE output)
Total available PoE 52W*
*With an external 60W power adapter.
Max. PoE wattage per port by PSE PoE+: 30W
Button Factory reset
Ambient operating temperature -15 to 40° C (5 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features –
LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
SKU USW-LITE-8-POE
Barcode # 810010071309
Brand UBIQUITI
Shipping Weight 0.7000kg
Shipping Width 0.150m
Shipping Height 0.080m
Shipping Length 0.280m

Manufacturer Warranty : 1 Year Manufacturer Warranty
