Ubiquiti Networks UniFi Managed 8-Port 10G SFP Layer 2 Aggregation Switch - Switching Capacity: 160Gbps - Ethernet In-Band - Modes: SMB Layer 2 Gigabit Ethernet Switch - Power Method: Universal AC Input 100-240VAC, 50/60Hz - USW-AGGREGATION

Fully Managed, Layer 2 Switch

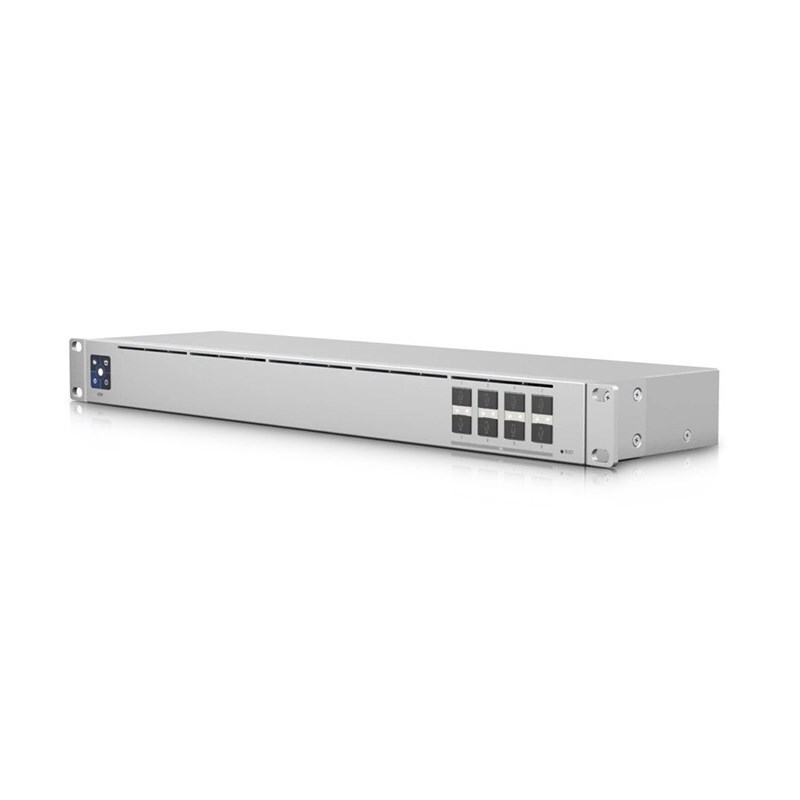

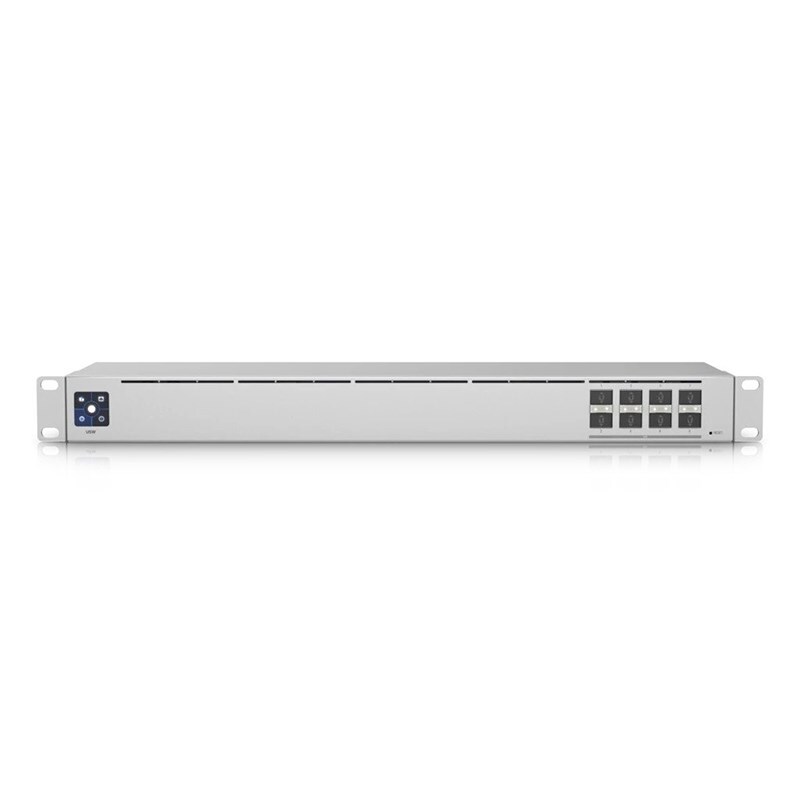

The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3" LCM colour touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7" depth, it's easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.





Works with the UniFi Network Application

  • Centrally manage multiple networks from an intuitive interface
  • Enjoy real-time device insights and deep configuration options
  • Upgrade device firmware remotely
  • Manage network users and guests with ease
  • Personalize the design, architecture, and privacy of guest hotspots
  • Set up devices quickly and manage them on the go with a powerful mobile app

(USW-AGGREGATION)

SPECIFICATIONS

Mechanical

Dimensions

442.4 x 120 x 43.7 mm

Weight

Without Mount: 2.65 kg
With Mount: 2.74 kg

Enclosure materials

SGCC Steel

Hardware

Total Non-Blocking Throughput

80 Gbps

Switching Capacity

160 Gbps

Forwarding Rate

119.04 Mpps

Max. Power Consumption

30W

Power Method

Universal AC Input: 100-240VAC, 50/60 Hz

Power Supply

AC/DC, Internal, 36W

Management Interface

Ethernet In-Band

Modes

SMB Layer 2 Gigabit Ethernet Switch

Max. Number of Supported SFP+ Modules

UACC-OM-MM-10G: 8
UACC-OM-SM-10G: 8
UACC-CM-RJ45-10G: 4

ESD/EMP Protection

Air: ± 16kV, Contact: ± 12kV

Operating Temperature

-5 to 40° C

Operating Humidity

10 - 90% Non Condensing

Certifications

CE, FCC, IC

LEDs

System



(1) Bootup Animation

Bootup in Progress

Firmware Upgrade Icon

Firmware Upgrading

Steady White

Factory Defaults, Awaiting Adoption

Steady Blue

Device is Adopted

SFP+

White: 10G, 1G

SKU USW-AGGREGATION
Barcode # 810010074591
Brand UBIQUITI
Shipping Weight 3.4000kg
Shipping Width 0.130m
Shipping Height 0.240m
Shipping Length 0.520m

Manufacturer Warranty : 1 Year Manufacturer Warranty
