Overview

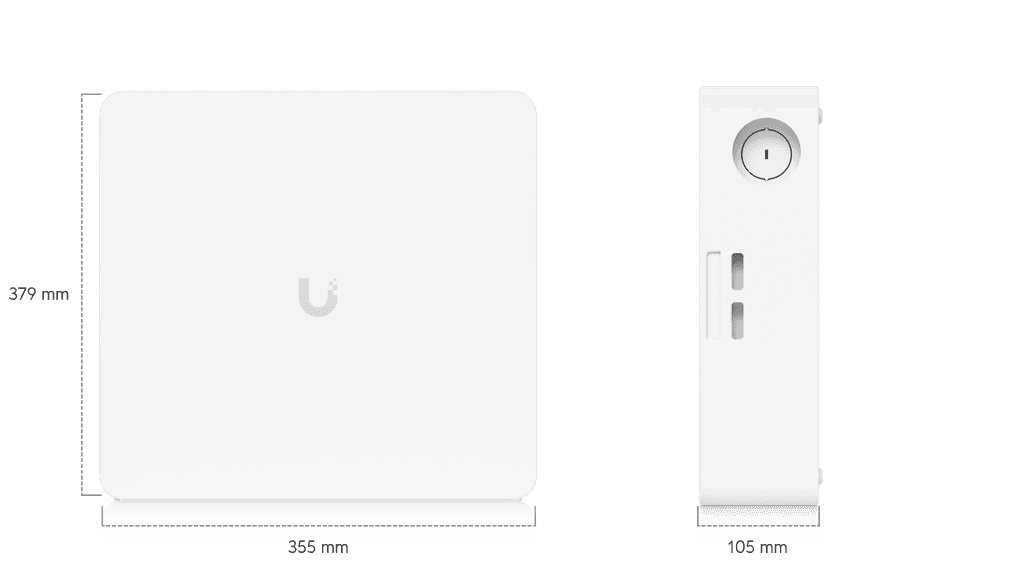

Dimensions

379 x 355 x 105 mm (15 x 14 x 4.1")

Input Terminals

(32) Alarm sensor (1) Emergency

Power Method

PoE++/PoE+++ 12V SLA battery

Power Output Availability

PoE+++ input: 68W PoE++ input: 42W

NDAA Compliant

Mechanical

Weight

Device: 8.3 kg (18.3 lb) Mount: 624 g (1.4 lb)

Enclosure Material

SGCC steel housing with polycarbonate cover

Mount Material

SGCC steel

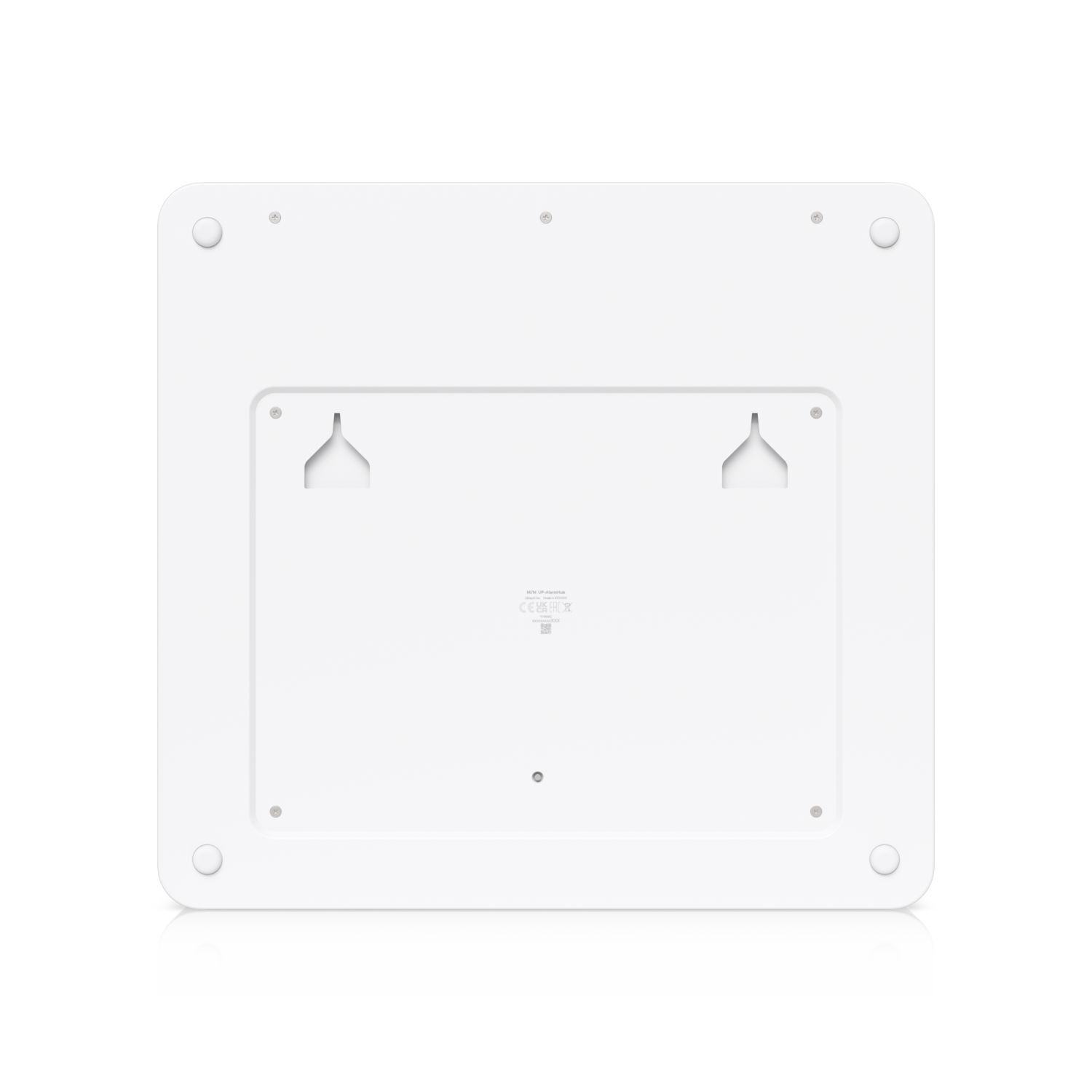

Mounting

Wall

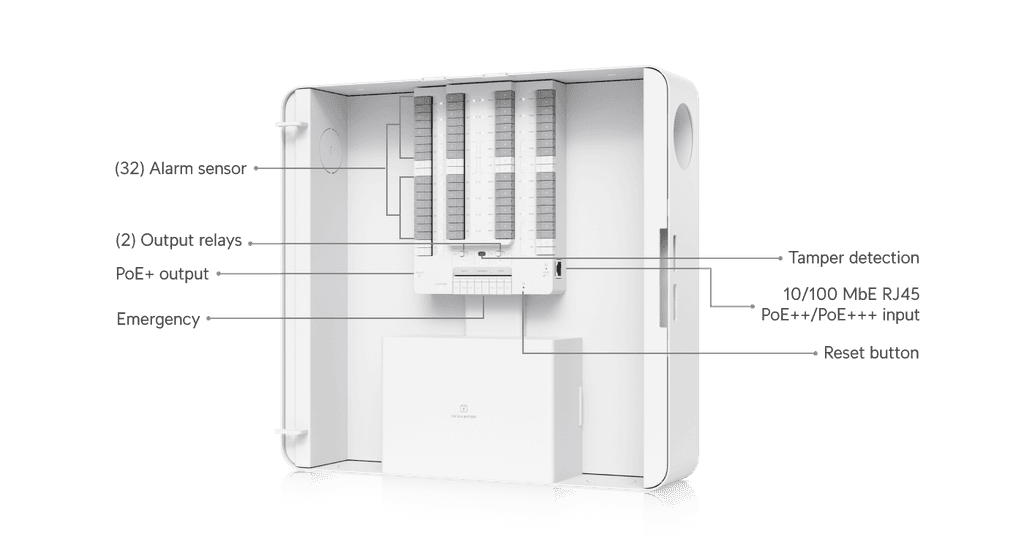

Hardware

Digital Input

(32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) (1) Emergency

Output Relay

(2) Wet/Dry Wet: 12V DC, 1A Dry: 30V DC, 1A

Aux Power Output

For sensor: (3) 12V DC, 1A right side total, (3) 12V DC, 1A left side total

Indoor and Outdoor Use

Indoor only

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Networking Interface

(1) 10/100 MbE RJ45 port

PoE Interface

(1) PoE++/PoE+++ input, 54V DC, 60W/90W (1) PoE+ output, 54V DC, 30W

Max. Power Consumption

90W

Battery Charge

SLA backup battery, 12V, 0.3A

LEDs

W/B Learn More

Buttons

(1) Factory reset (2) Dry/Wet switch

Certifications

CE, FCC, IC

Software

Application Requirements

UniFi Protect

Version 7.0.88 and later

Mobile App

UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later

Manufacturer Warranty: 1 Year Manufacturer Warranty
