Wireless Smoke Alarm > Split-spectrum sensor technology > Test and silence features in one single button > Loud sound output over 85 dB(A) at 3 meters > Low quiescent current consumption > Surface-mount device (SMD) circuit board design > Low battery warning signal

(DHI-HY-SA21A-W2)

Working Principle Collection Type Smoke Sampling Period 10 s Sensor Type Photoelectric Alarm Alarm Type Smoke alarm, fault warning, low battery warning Alarm Volume 85dB–90dB(A) at 3 m (9.84 ft) Alarm Mode Visual and audible alarm Silence Function Yes Silence Duration About 12 min Alarm Response Threshold 0.2 dB/m - 0.3 dB/m Basic Parameters Indicator Light Red and green LED indicator Led Instructions Standby: Green indicator flashes once per minute Alarm: Red indicator flashes once per second Fault: Red indicator flashes once per minute Low battery warning: Red indicator flashes once per minute Coverage Area When the height of the space is less than 8 m (26.25 ft), the protection area of a device is 20 m2–40 m2 Power Supply Battery Life 3 year Operating Voltage 3V CR123A lithium battery (replaceable) Operating Current Monitoring current: ? 35uA Alarm current: ? 35mA Operating Ambient Operating Environment Indoor Operating Temperature -10°C to +55°C (+14°F to +131°F) Operating Humidity ? 95% RH (non condensing) Appearance Color White Casing ABS Dimensions ?98 mm × H43.1 mm (?3.85" × H1.70") Weight 140 g (0.30 lb) Installation Ceiling Mount Certifications Certifications TÜV and CE listed Compliance Standard EN 14604:2005+AC:2008 Wireless Carrier Frequency 433.1 MHz–434.6 MHz Communication Distance Up to 1000 m (3280.84 ft) in an open space Communication Mechanism Two-way Frequency Hopping Yes Encryption Mode AES128
SKU DHI-HY-SA21A-W2
Model # 1.0.01.36.14820-0002
Brand DAHUA
Shipping Weight 0.1400kg
Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

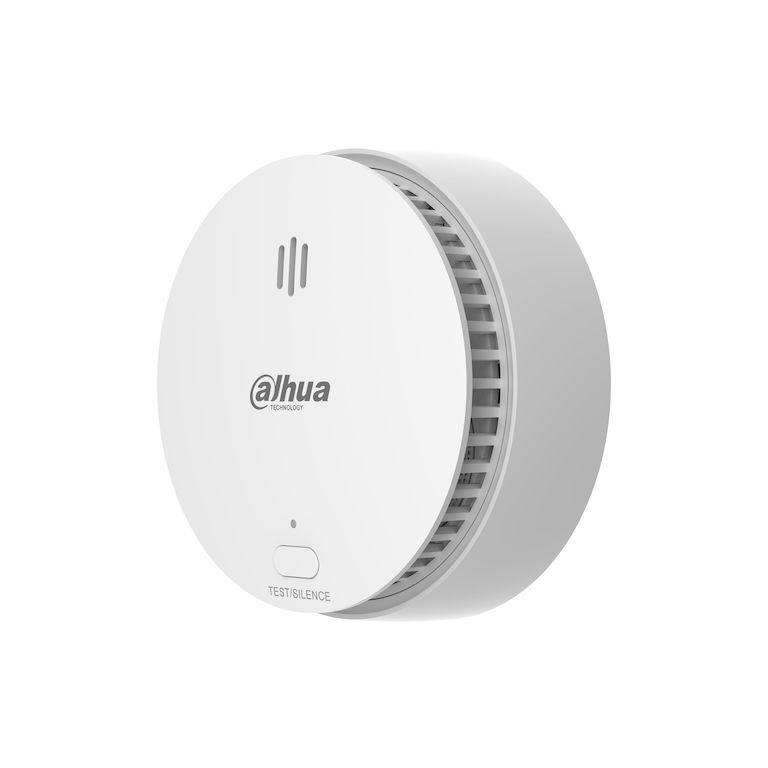

Dahua Wireless Alarm Smoke Alarm Detector - DHI-HY-SA21A-W2

Model # DHI-HY-SA21A-W2

  • SKU: DHI-HY-SA21A-W2

$232.00
Sold Out
ETA: 11/02/26
