Description:

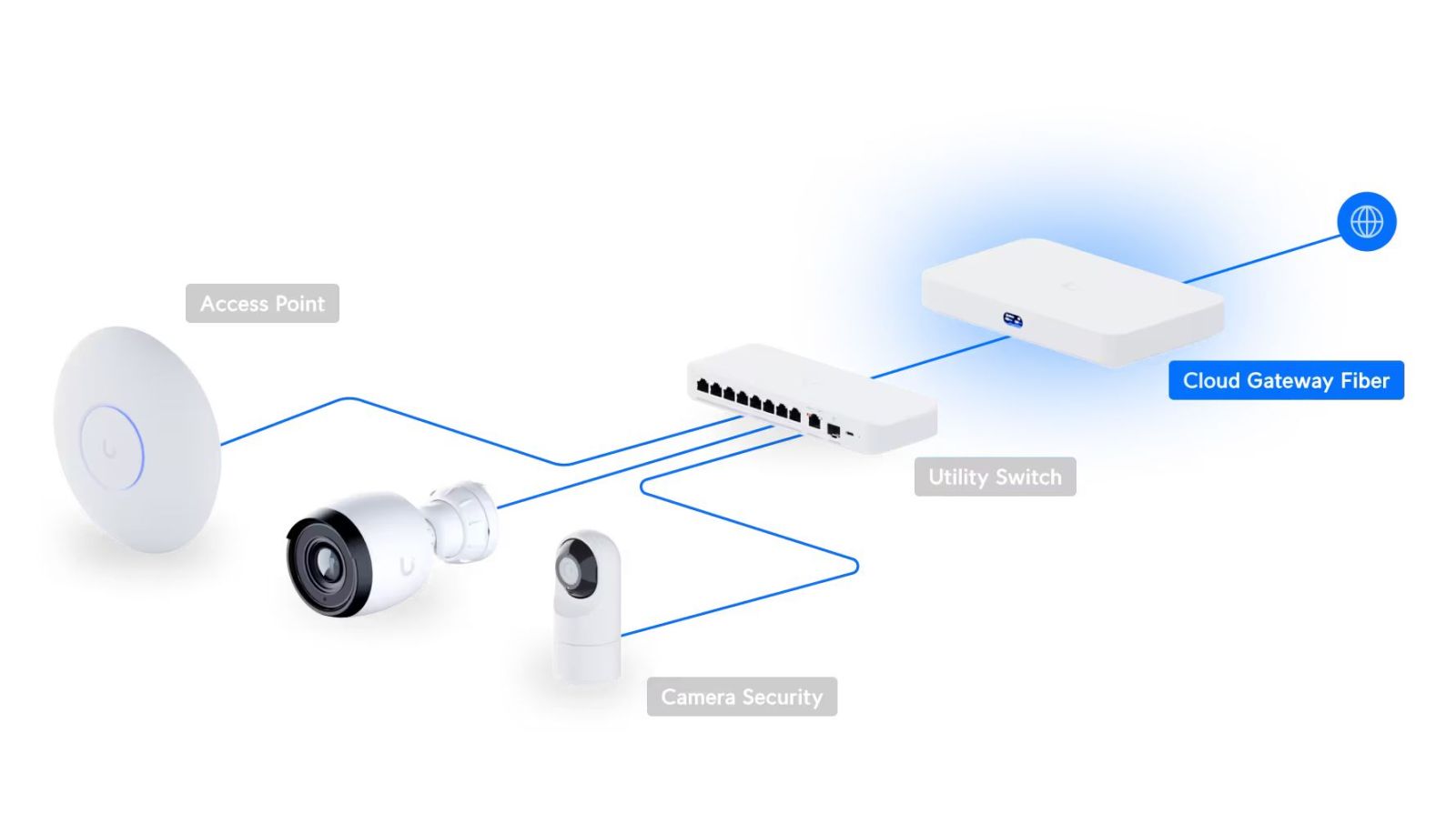

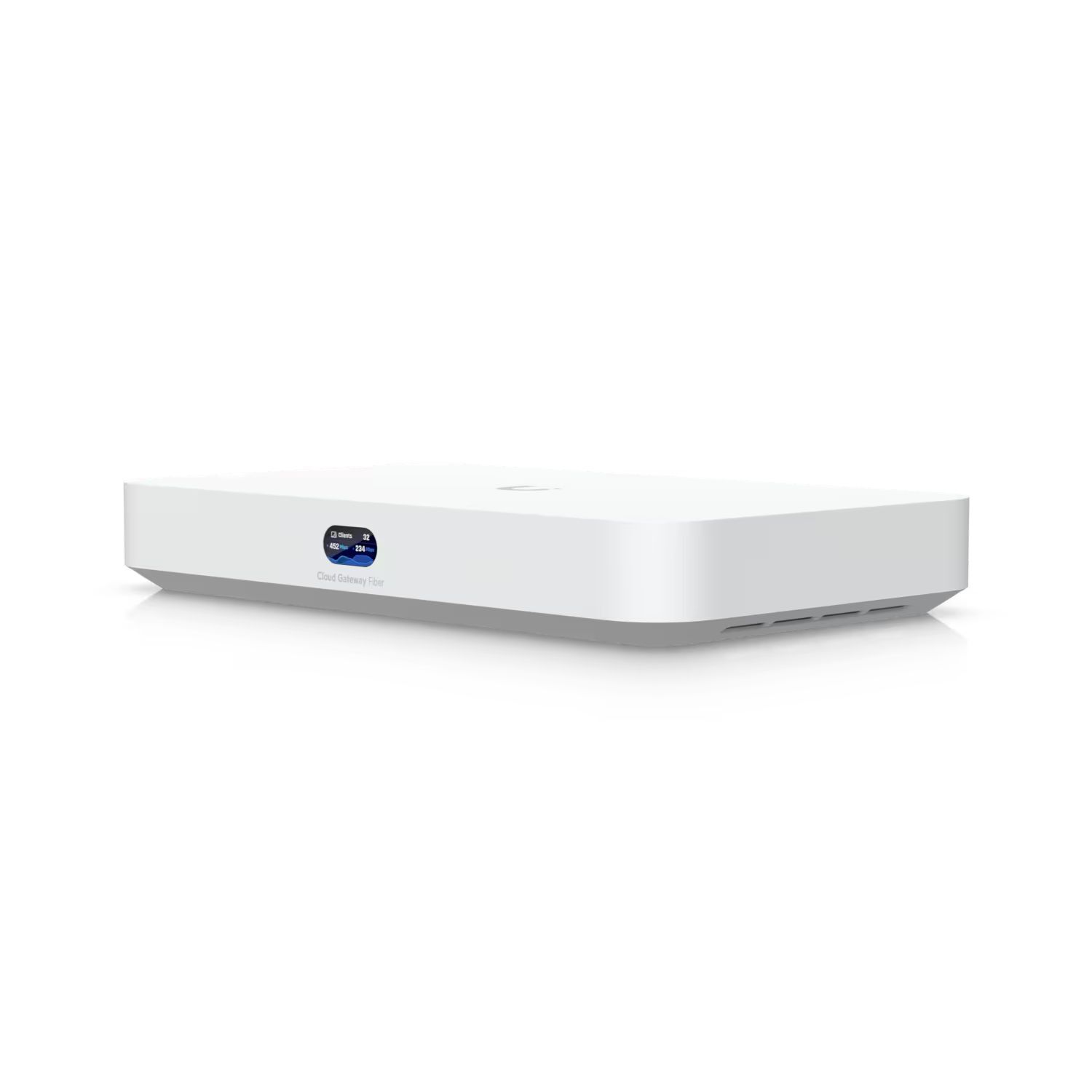

Desktop 10G Cloud Gateway with integrated PoE switch, selectable NVR storage, and full UniFi application support.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•Includes full UniFi application suite for device management
•Manages 50+ UniFi devices and 500+ clients
•5 Gbps routing with IDS/IPS
•(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
•(1) 10G SFP+ LAN port
•Integrated 4-port switch with (1) PoE+ port
•NVMe SSD storage slot*
•*NVMe SSD not included. Third-party SSD installation requires tray accessory.

(UCG-Fiber-30W)

Cloud Gateway Series Cloud Gateway Industrial

Cloud Gateway Industrial

UCG-Industrial

 Cloud Gateway Fiber

Cloud Gateway Fiber

UCG-Fiber

 Cloud Gateway Max

Cloud Gateway Max

UCG-Max

 Cloud Gateway Ultra

Cloud Gateway Ultra

UCG-Ultra
Overview
Dimensions 307.9 x 203.5 x 43.7 mm
Wall/Stand mounted		 212.8 x 127.6 x 30 mm 141.8 x 127.6 x 30 mm 141.8 x 127.6 x 30 mm
UniFi Applications
Protect, Access, Talk, Connect		 ✓ ✓ ✓ —
Managed UniFi Devices 50+ 50+ 30+ 30+
Managed Cameras (15) HD, (8) 2K, (5) 4K (15) HD, (8) 2K, (5) 4K (15) HD, (8) 2K, (5) 4K —
Simultaneous Users 500+ 500+ 300+ 300+
IDS/IPS Throughput 5 Gbps 5 Gbps 2.3 Gbps 1 Gbps
Networking & Ports
Default WAN Ports (1) 10G SFP+
(1) 10 GbE RJ45		 (1) 10G SFP+
(1) 10 GbE RJ45
(1) 2.5 GbE RJ45		 (1) 10G SFP+
(1) 10 GbE RJ45		 (1) 2.5 GbE RJ45
Port Layout: 2.5 GbE 4 (2 PoE+++, 2 PoE+) 4 (2.5G/1G/100M) 5 (2.5G/1G/100M) 1 (2.5G/1G/100M)
Integrated WiFi WiFi 7 (802.11be) — — —
Hardware & Power
NVR Storage 128 GB microSD pre-installed Selectable NVMe SSD (Up to 2TB) Selectable NVMe SSD (Up to 2TB) —
PoE Budget 270W (DC Input) 30W — —
Max. Power Consumption 28W (Excl. PoE) 29.4W (Excl. PoE) 16.1W 6.2W
Power Method DC Input / ATX Power DC Jack (54V) USB-C (5V, 5A) USB-C (5V, 3A)
Processor Quad-core A73 @ 2.2 GHz Quad-core A73 @ 2.2 GHz Quad-core A53 @ 1.5 GHz Quad-core A53 @ 1.5 GHz
Weight 2.4 kg (5.3 lb) ~700 g ~500 g 520 g (1.1 lb)
Certifications CE, FCC, IC CE, FCC, IC, SRRC, Anatel CE, FCC, IC, Anatel, SRRC CE, FCC, IC, Anatel, SRRC

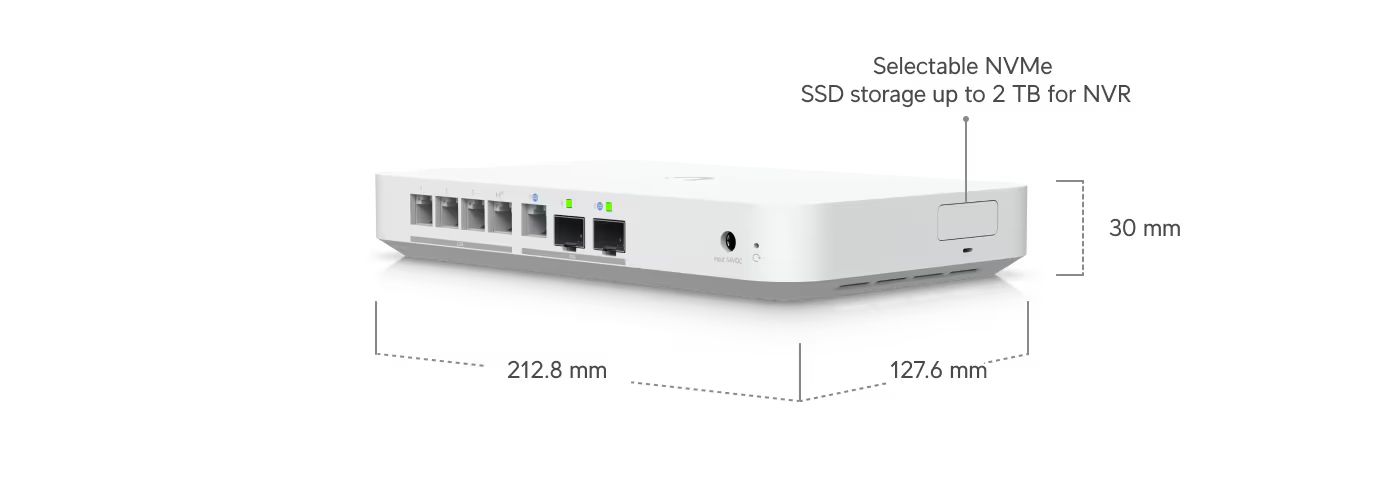

Dimensions
212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5 ")
UniFi Application Suite



Network
✓


Protect
✓


Access
✓


Talk
✓


Connect
✓
Managed UniFi Devices
50+
Managed Cameras
(15) HD (8) 2K (5) 4K
Simultaneous Users Connected
500+
Max. WAN Port Count
6
Default WAN Ports
(1) 10G SFP+ (1) 10 GbE RJ45

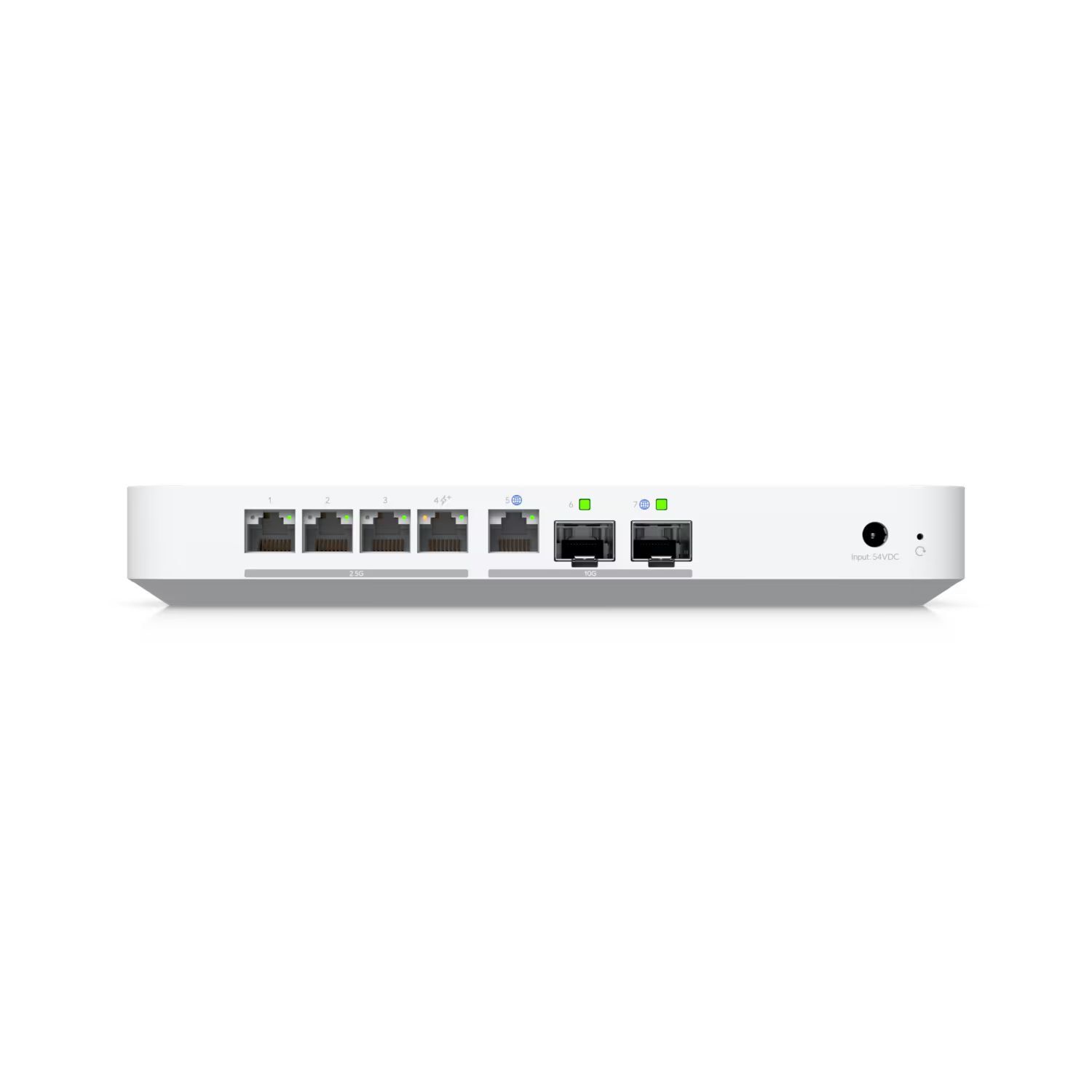

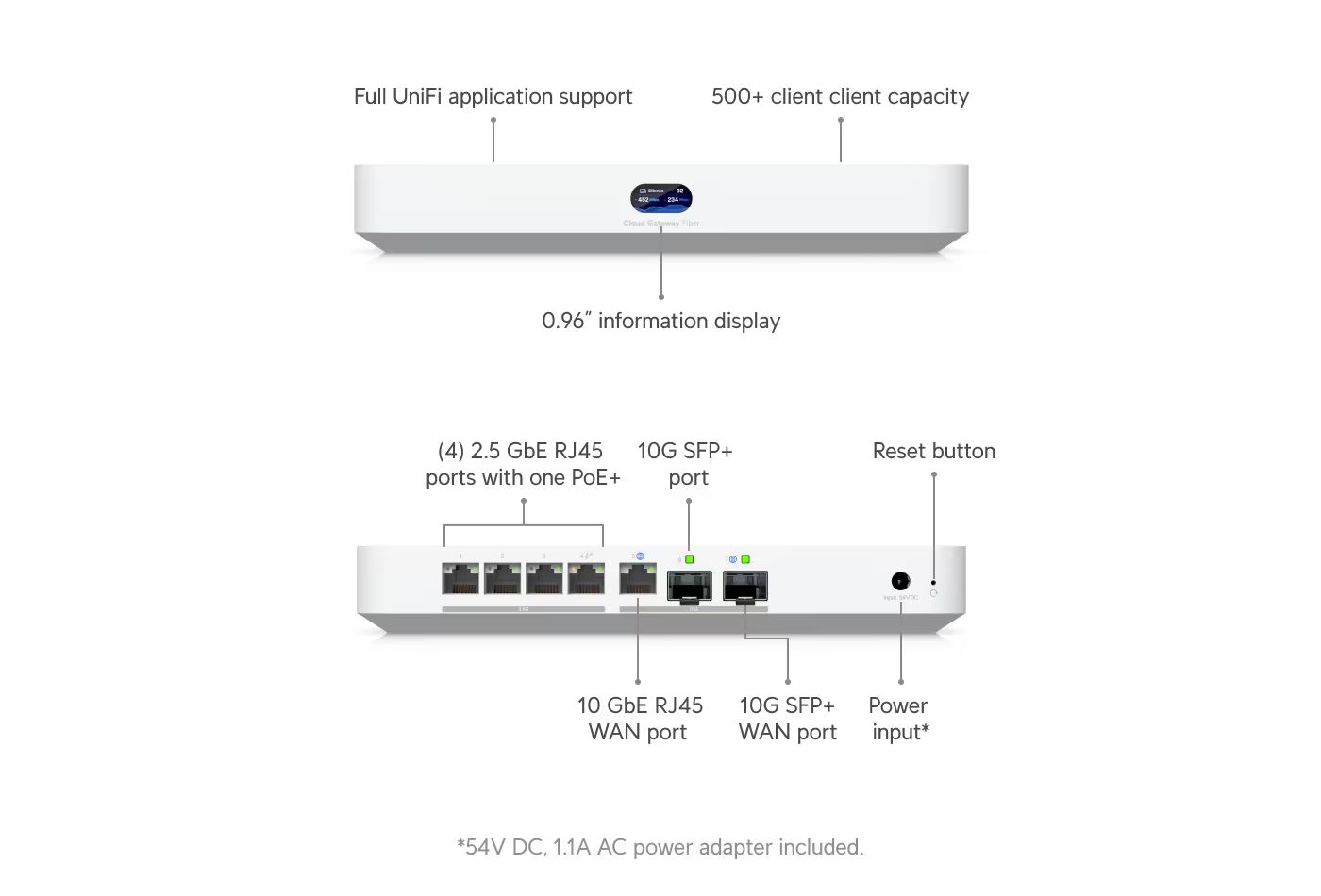

Port Layout



2.5 GbE RJ45
4 (2.5G/1G/100M/10M)


10 GbE RJ45
1 (10G/2.5G/1G)


10G SFP+
2 (10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor
Compact desktop

Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

License-Free SD-WAN
✓
Site-to-Site VPN



Site Magic
✓


IPsec
✓


OpenVPN
✓
VPN Server



Identity Endpoint One-Click VPN
✓


Teleport Zero-Configuration VPN
✓


WireGuard
✓


OpenVPN
✓


L2TP
✓
VPN Client



OpenVPN
✓


WireGuard
✓

Multi-WAN Load Balancing
✓
Dynamic Routing



OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
4,000

NVR Storage
Selectable NVMe SSD up to 2 TB

PoE Budget
30W
Voltage Range PoE Mode
50-57V
Max. Power Consumption
29.4W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)

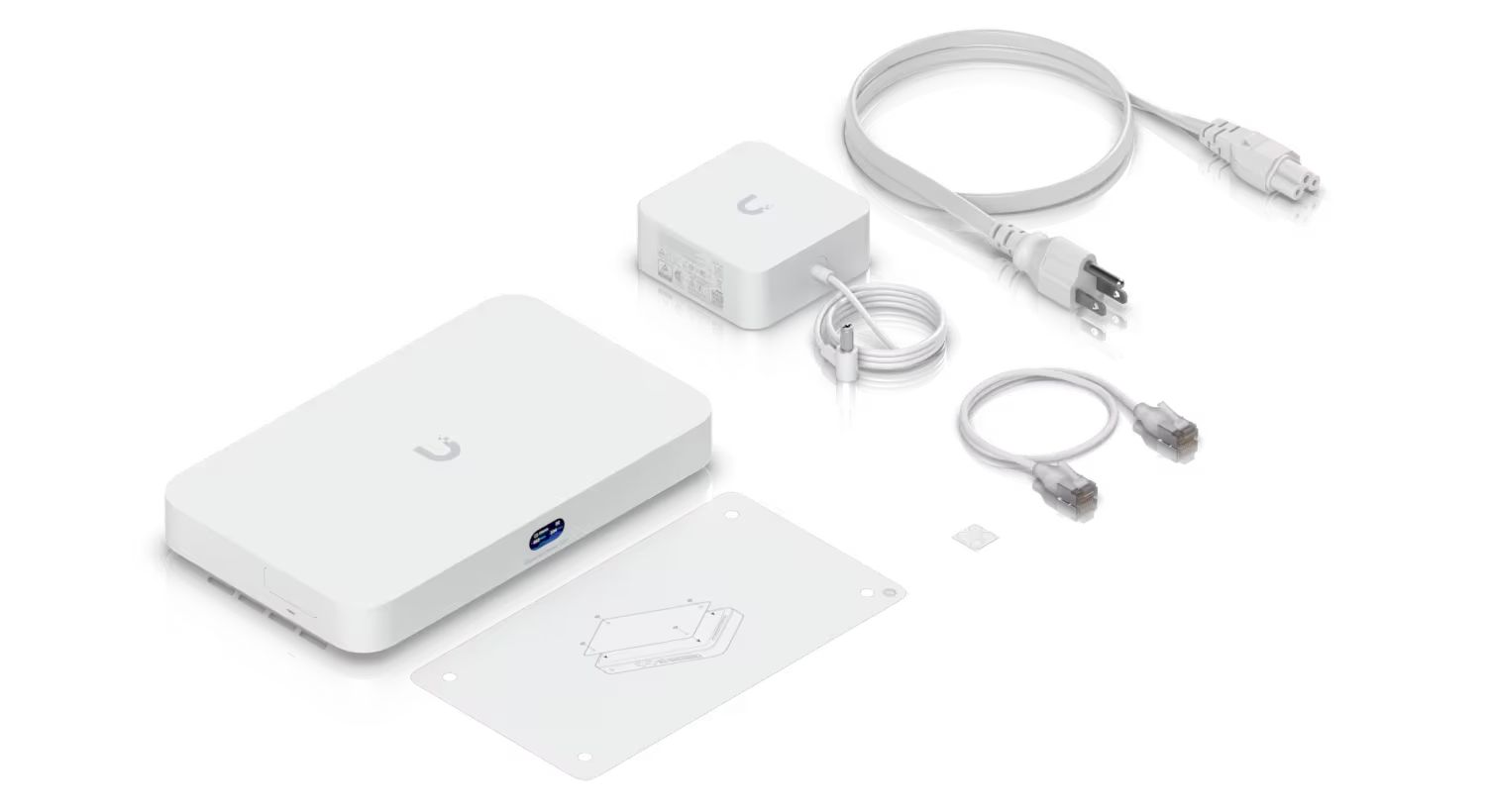

Power Supply
54V DC/1.1A (adapter included)
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
3 GB
Weight
Without SSD: 675 g (1.5 lb) With SSD: 734 g (1.6 lb)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet Bluetooth
LEDs



Ethernet
✓


SFP+
✓
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
SKU UCG-Fiber-30W
Barcode # 810177161387
Brand UBIQUITI
Shipping Weight 1.4000kg
Shipping Width 0.240m
Shipping Height 0.090m
Shipping Length 0.220m
Shipping Cubic 0.004752000m3

Manufacturer Warranty : 1 Year Manufacturer Warranty
