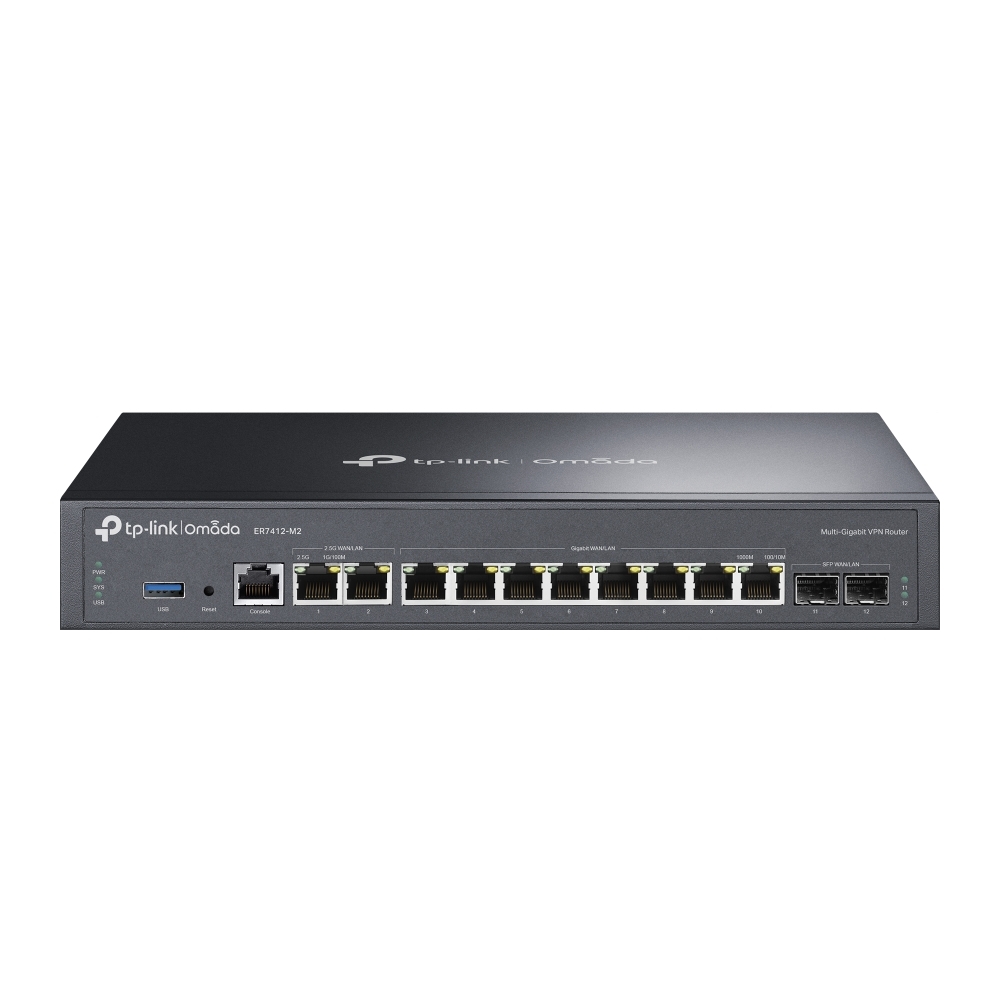

TP-LINK ER7412-M2 Omada Multi-Gigabit VPN Router
- Quad-core @2.0GHz CPU
- 2× 2.5G RJ45 WAN/LAN ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
- Up to 11 WAN ports
- Multi-WAN Load Balancing raises the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app*
- Standalone management via web, CLI, SNMP, and RMON
- DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
(ER7412-M2)
SECURITY | |
---|---|
Access Control | • Source/Destination IP-Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL |
Filtering | • WEB Group Filtering§ • URL Filtering • Web Security§ |
ARP Inspection | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
HARDWARE FEATURES | |
---|---|
Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP |
Interface | • 1× 2.5G RJ45 WAN/LAN Port • 1× 2.5G RJ45 WAN/LAN Port • 2× Gigabit SFP WAN/LAN Ports • 8× Gigabit RJ45 WAN/LAN Ports • 1× RJ45 Console Port • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle) |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5e, 6 cable (Max 100 m) |
Button | Reset Button |
Power Supply | 100–240 VAC, 50/60 Hz |
Flash | 128MB NAND |
DRAM | 1 GB DDR4 |
Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
Protection | 4 kV surge protection |
Enclosure | Steel |
Mounting | • Desktop • Rackmountable |
Max Power Consumption | 18.5W (With USB 3.0 connected) |
PERFORMANCE | |
---|---|
GRE | • Unencrypted: 1153.0 Mbps • Encrypted: 559.2 Mbps |
WireGuard VPN | 771.6 Mbps |
Concurrent Session | 1,000,000 |
New Sessions /Second | 7,000 |
NAT (Static IP) | 2345.71 Mbps / 2351.22 Mbps |
NAT(DHCP) | 2353.41 Mbps / 2353.40 Mbps |
NAT(PPPoE) | 2336.52 Mbps / 2336.08 Mbps |
NAT (L2TP) | 1937.53 Mbps / 1761.82 Mbps |
NAT (PPTP) | 1757.54 Mbps / 2011.33 Mbps |
IPsec VPN Throughput | • ESP-SHA1-AES256: 1125.60 Mbps • ESP-SHA256-AES256: 1133.1 Mbps • ESP-SHA384-AES256: 1126.6 Mbps • ESP-SHA512-AES256: 1132.8 Mbps |
OpenVPN | UDP: 266.2 Mbps |
L2TP VPN Throughput | • Unencrypted: 2724.5 Mbps • Encrypted: 1018.4Mbps |
PPTP VPN Throughput | • Unencrypted: 3035 Mbps • Encrypted: 534.6 Mbps |
SSL VPN Throughput | 263.1 Mbps |
66 Byte Packet forwarding rate | 1833 Mbps / 1835 Mbps |
1,518 Byte Packet forwarding rate | 2461 Mbps / 2461 Mbps |
BASIC FUNCTIONS | |
---|---|
WAN Connection Type | • Static IP/Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port |
MAC Clone | Modify WAN/LAN MAC Address† |
DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
ADVANCED FUNCTIONS | |
---|---|
Advanced Routing | • Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode) |
Bandwidth Control | IP/Port-based Bandwidth Control |
Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
NAT | • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
Session Limit | IP-based Session Limit |
VPN | |
---|---|
GRE | Only in Standalone Mode |
SSL VPN | 80 Tunnels |
IPsec VPN | • 150 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
PPTP VPN | • PPTP VPN Server • PPTP VPN Client (15)** • 150 Tunnels • PPTP with MPPE Encryption |
L2TP VPN | • L2TP VPN Server • L2TP VPN Client (15)** • 150 Tunnels • L2TP over IPSec |
OpenVPN | • OpenVPN Server • OpenVPN Client (11)** • 121 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
AUTHENTICATION | |
---|---|
Web Authentication | • No Authentication • Simple Password* • Hotspot (Local User/Voucher*/SMS*/Radius*) • External Radius Server • External Portal Server* • LDAP |
MANAGEMENT | |
---|---|
Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
Management Features | • Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule* |
OTHERS | |
---|---|
Certification | CE, FCC |
Package Contents | • ER7412-M2 • Power Cord • Quick Installation Guide • Rackmount Kit • RJ45 Console Cord |
System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
Environment | • Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing |
SKU | ER7412-M2 |
Brand | TP-LINK |
Shipping Weight | 1.1000kg |
Manufacturer Warranty : 5 years Manufacturer Warranty
