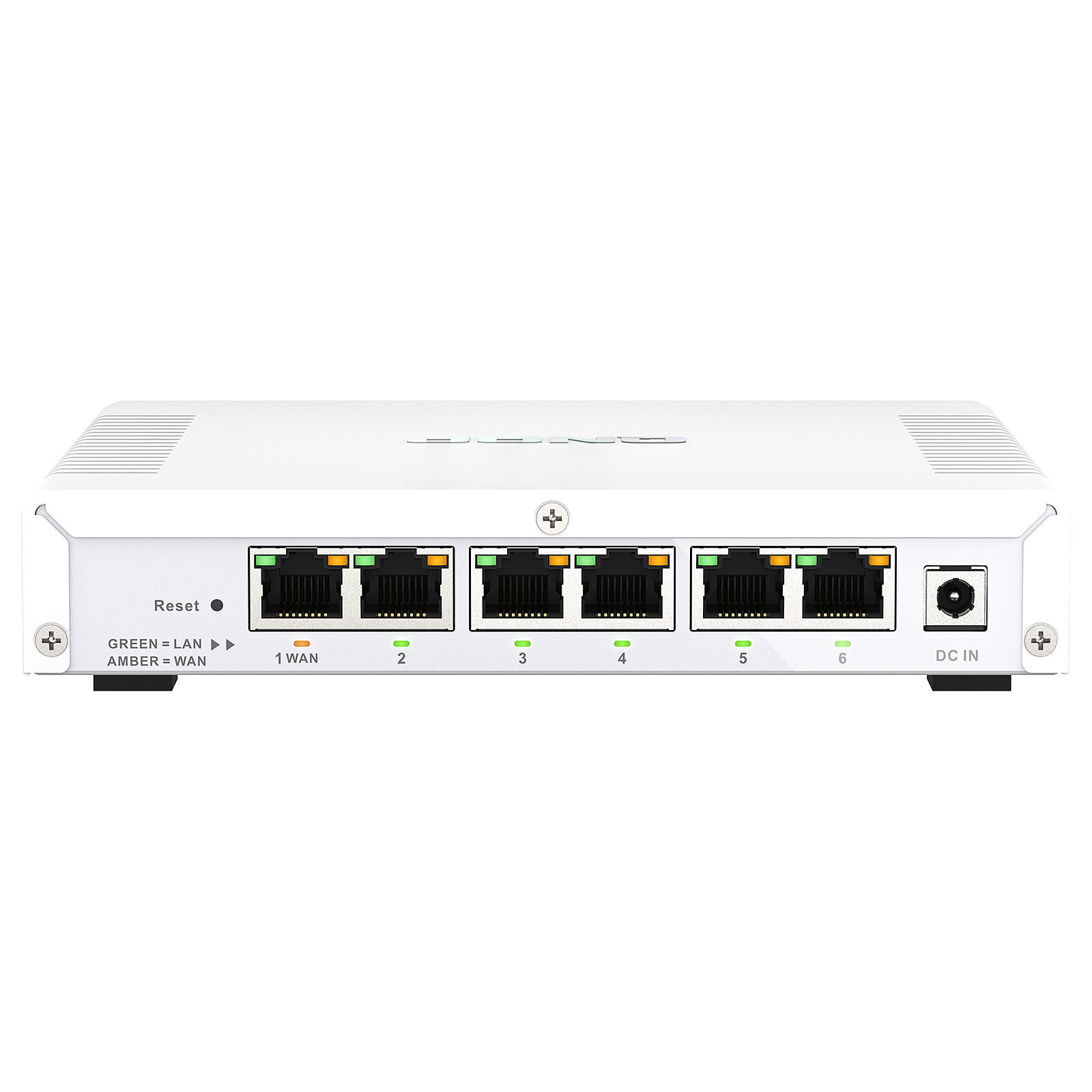

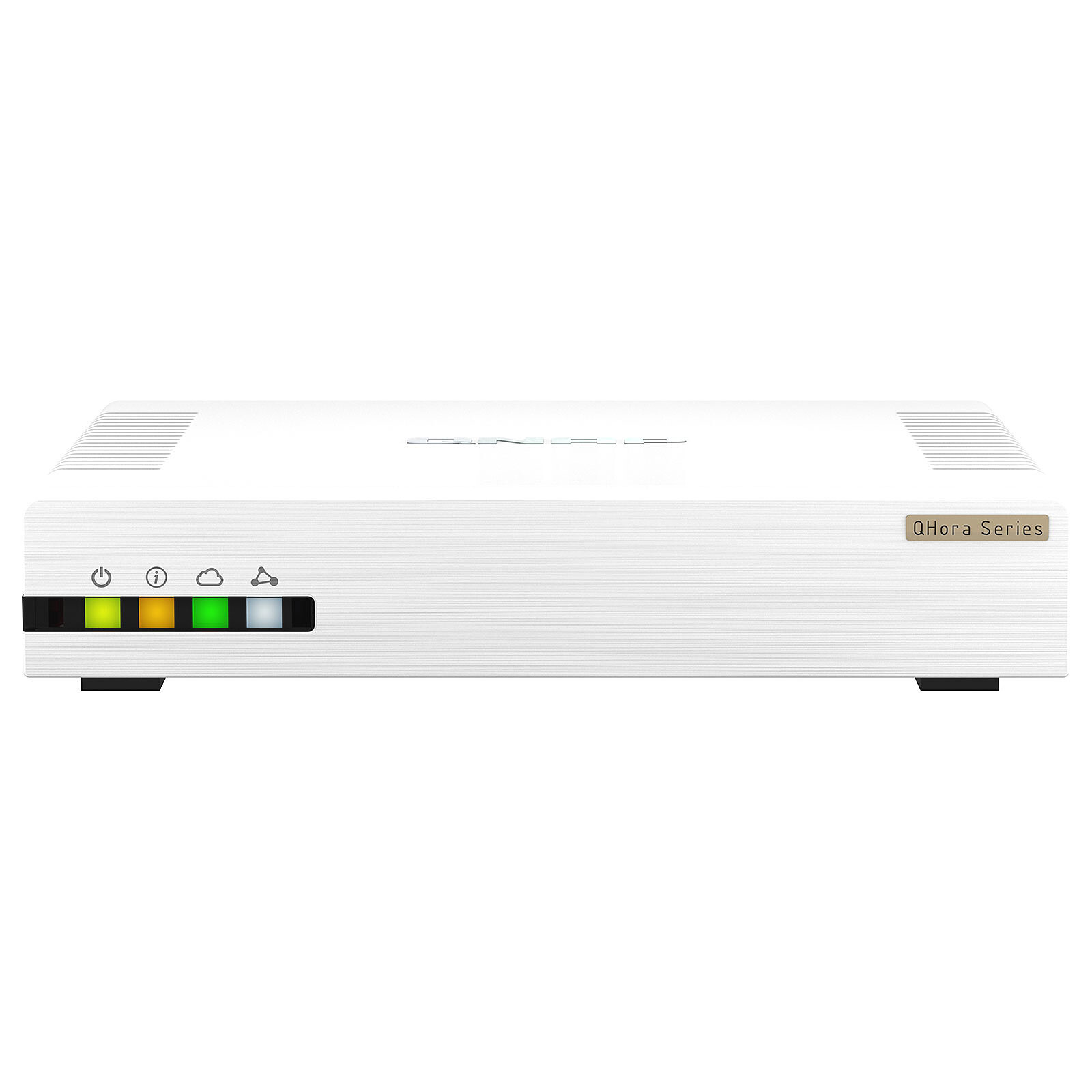

QNAP QHora-321

QNAP QHora-321 Six-Port 2.5GbE QuWAN VPN Router

A wired QNAP QuWAN VPN router with six flexible 2.5GbE ports, QuRouter OS management, Mesh VPN functions and up to 700 concurrent VPN connections as supplied.

Ethernet ports6 × 2.5GbE

Port rates2.5G / 1G / 100M

VPN connectionsUp to 700

ManagementQuRouter OS

Flexible multi-gigabit routing

Each of the six ports supports the supplied 2.5G, 1G and 100M rates. The first port from the left is WAN by default, while ports and network segments are independent by default.

QuWAN, VPN and security functions

QNAP QuWAN with automatic Mesh VPN among supported QNAP devices
OpenVPN, L2TP/IPsec, QBelt and WireGuard
L3 firewall, NAT, port forwarding and VLAN
L7 firewall/DPI
QuWAN Orchestrator for centralised deployment and monitoring

Need help choosing the right NAS?

Compare NAS types, storage planning and buying considerations in the DeviceDeal NAS Buying Guide.

Read NAS Buying Guide

VPN coexistence limitation

The supplied source states that QVPN Client, QVPN Server and QuWAN cannot all be enabled at the same time. QVPN Server and QuWAN can operate together with QBelt or OpenVPN, but not when using L2TP.

Network-design guidance

Plan WAN/LAN assignments, VPN protocols and coexistence requirements before deployment. Actual VPN operation depends on the chosen services, remote endpoints and network design.

Frequently asked questions

Quick answers based on the supplied information for QHora-321.

How many Ethernet ports does the QHora-321 provide?

It provides six 2.5GbE ports, with 2.5G, 1G and 100M rates listed in the supplied data.

Can the ports be assigned for WAN or LAN use?

Yes. Flexible WAN/LAN deployment is listed, while the first port from the left is WAN by default and the ports and segments are independent by default.

What manages the QHora-321?

The router uses QuRouter OS with the supplied web-based management interface.

What is QNAP QuWAN used for?

QuWAN SD-WAN supports centrally managed multi-site networking and automatic Mesh VPN establishment among supported QNAP devices.

How many concurrent VPN connections are stated?

The supplied description states support for up to 700 concurrent VPN connections.

Can QVPN Client, QVPN Server and QuWAN all run together?

No. The source states that all three cannot be enabled at the same time; QVPN Server and QuWAN can work together with QBelt or OpenVPN, but not with L2TP.

(QHora-321)

Features and highlights

QNAP QHora-321 Six-Port 2.5GbE QuWAN VPN Router

Six 2.5GbE ports

Each port supports the supplied 2.5G, 1G and 100M connection rates.

QuWAN Mesh VPN

Supports automatic Mesh VPN establishment among supported QNAP devices.

Up to 700 VPN connections

The supplied description states support for up to 700 concurrent VPN connections.

QuRouter OS management

Provides the supplied web-based interface and QuWAN Orchestrator management.

Key details to check before purchase

Ports: 6 × 2.5GbE with 2.5G, 1G and 100M rates
VPN protocols: OpenVPN, L2TP/IPsec, QBelt and WireGuard
Security and routing: L3 firewall, NAT, port forwarding, VLAN and L7 firewall/DPI
Apply the supplied QVPN and QuWAN coexistence restrictions

QNAP QHora-321 Six-Port 2.5GbE QuWAN VPN Router specifications

Technical information below is organised from the supplied product data.

Specification	Details
Product Details
Brand	QNAP
SKU	QHora-321
Product Type	Wired 2.5GbE QuWAN VPN router
Ethernet
Ethernet Ports	6 × 2.5GbE
Supported Port Rates	2.5G / 1G / 100M
Default Port Behaviour	First port from the left is WAN; ports and network segments are independent by default
Management and SD-WAN
Network Management	QuRouter OS
SD-WAN	QNAP QuWAN with Mesh VPN
Central Management	QuWAN Orchestrator
VPN and Security
Concurrent VPN Connections	Up to 700, as supplied
Supplied VPN Protocols	OpenVPN, L2TP/IPsec, QBelt and WireGuard
Supplied Routing and Security	L3 firewall, NAT, port forwarding, VLAN and L7 firewall/DPI

QVPN Client, QVPN Server and QuWAN cannot all be enabled at the same time according to the supplied source.

QVPN Server and QuWAN can operate together with QBelt or OpenVPN, but not when using L2TP.

SKU	QHora-321
Model #	QHora-321
Brand	QNAP
Shipping Weight	2.9000kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m

QNAPManufacturer warranty

QNAP manufacturer warranty

The QNAP QHora-321 is supplied with the applicable QNAP manufacturer warranty.

No warranty duration was included in the supplied product information. Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
