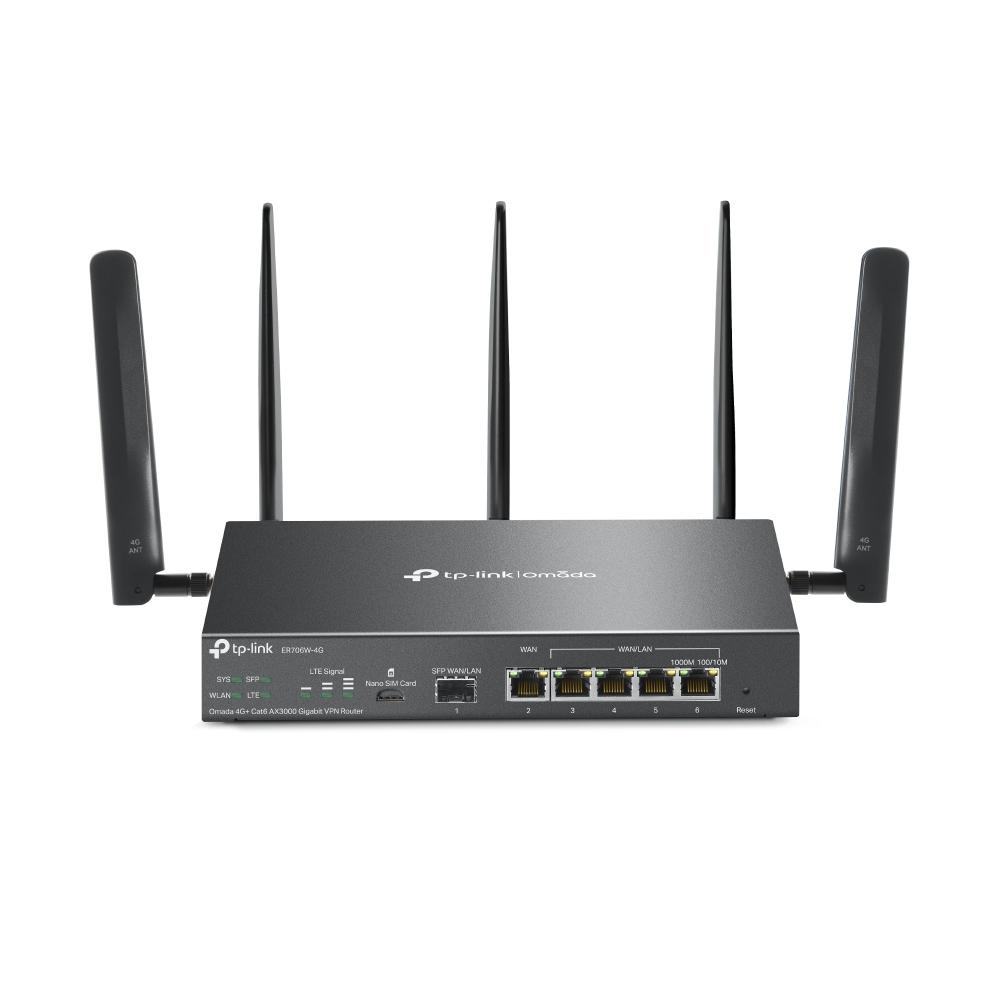

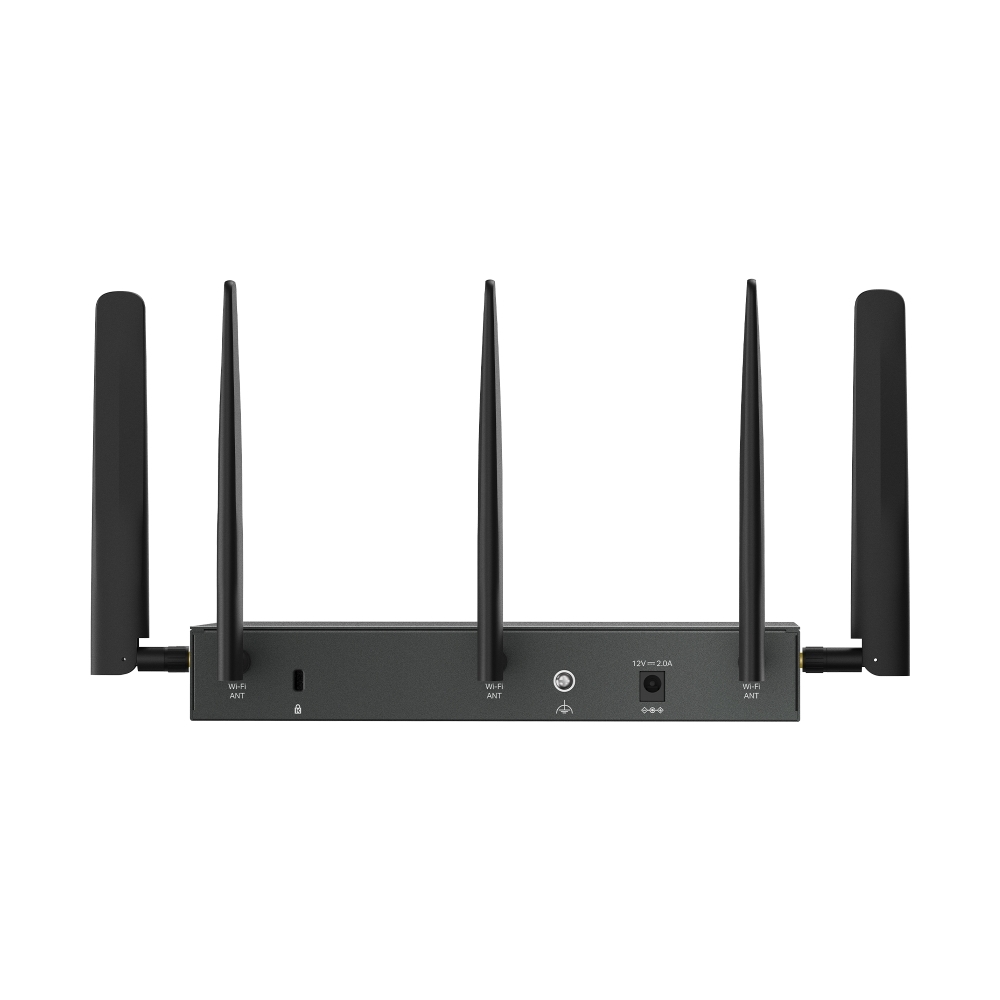

ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Router

Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps.**

AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*

6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.

5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.

Centralized Management: Cloud access and the Omada app for easy management.

Omada Mesh: Seamlessly connects to EAPs that support mesh technology.*△

High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.

(ER706W-4G)

4G
Network Type LTE Band of EU:
• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)

Carrier Aggregation:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
SIM Type 1× Nano SIM Card
Frequency • Downlink: 300 Mbps;
• Uplink: 50 Mbps
SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • Web Group Filtering
• URL Filtering
• Web Security
ARP Inspection • Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Interface • 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
Flash 128 MB NAND
DRAM 512 MB DDR4
LED SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not
included)
Antenna • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting Desktop/Wall-Mounting
Max Power Consumption EU: 17.3W
PERFORMANCE
GRE • Unencrypted: 545.3Mbps
• Encrypted: 282.6Mbps
WireGuard VPN 387.7Mbps
Concurrent Session 150,000
New Sessions /Second 5,100
NAT (Static IP) 947.1Mbps / 940.1Mbps
NAT(DHCP) 949.2Mbps / 941.1Mbps
NAT(PPPoE) 942.6Mbps / 941.1Mbps
NAT (L2TP) 875.4Mbps / 892.0Mbps
NAT (PPTP) 881.2Mbps / 895.8Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 652.2Mbps
• ESP-SHA256-AES256: 654.4Mbps
• ESP-SHA384-AES256: 646.5Mbps
• ESP-SHA512-AES256: 670.5 Mbps
OpenVPN 115.5Mbps
L2TP VPN Throughput • Unencrypted: 990.0Mbps
• Encrypted: 475.0Mbps
PPTP VPN Throughput • Unencrypted: 1177.9Mbps
• Encrypted: 177.4Mbps
SSL VPN Throughput 122.5Mbps
66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81274 pps / 91275 pps
WIRELESS FEATURES
Advanced Functions • Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio)
Guest Network Support
BASIC FUNCTIONS
WAN Connection Type • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
MAC Clone Modify WAN Address
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
SMS Receive / Send SMS
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
• RIP
• OSPF
Bandwidth Control IP-Based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection
NAT • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-Based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10)
• 50 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10)
• 50 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password§
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP
MANAGEMENT
Omada App Yes.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents • ER706W-4G
• Power Adapter
• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

SKU ER706W-4G
Barcode # 840030705267
Brand TP-LINK
Shipping Weight 1.1000kg
Shipping Width 0.240m
Shipping Height 0.070m
Shipping Length 0.320m

Manufacturer Warranty: 5 Years Manufacturer Warranty
