TRM500

Name: Teltonika TRM500 Industrial Cellular Modem, 5G (3.4 Gbps) & 4G (Cat19), with USB Type-C, PSU included
Brand: TELTONIKA
SKU: TRM50000B000
Price: 676 AUD
Availability: InStock

5G MODEM WITH USB TYPE-C

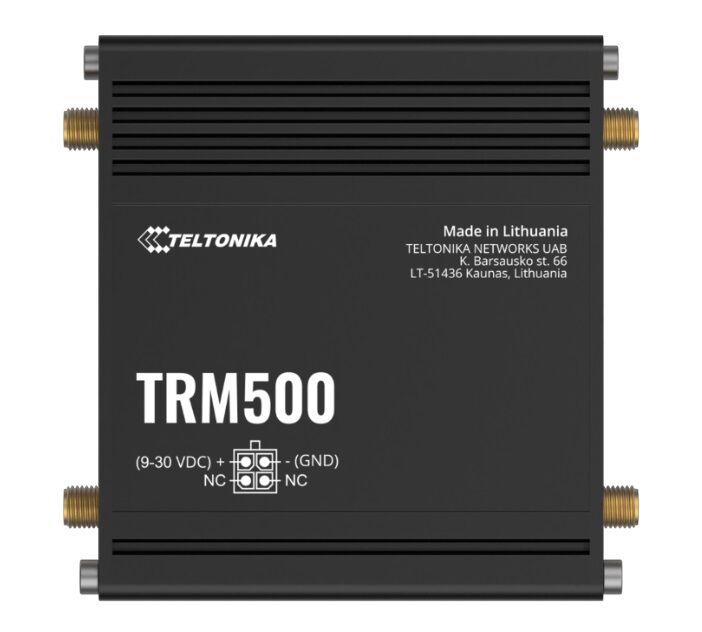

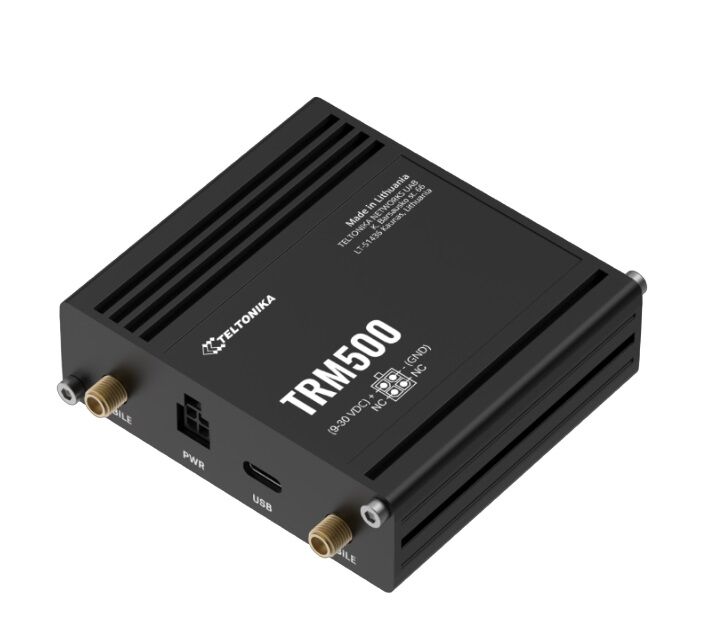

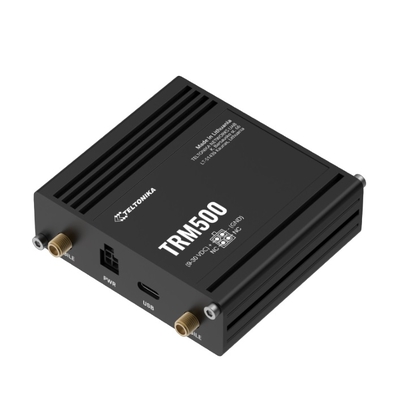

The TRM500 is a compact and lightweight 5G modem with ultra-high cellular speeds of up to 3.4 Gbps. This industrial-grade 5G modem features backward compatibility with 4G (Cat 19) and 3G networks, four SMA antennas for enhanced coverage, DIN rail mounting options, and a USB Type-C interface for simultaneous network data and powering.

Ultra-high cellular speeds of up to 3.4 Gbps

FUTURE-PROOFING

Backward compatible with 4G (Cat 19) and 3G

USB TYPE-C

For simultaneous network data and powering

COMPACT

Small size, easy installation

(TRM50000B000)

Category	Feature	Description
Mobile	Mobile module	5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1.6Gbps DL, Cat 18 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
Mobile	3GPP Release	Release 16

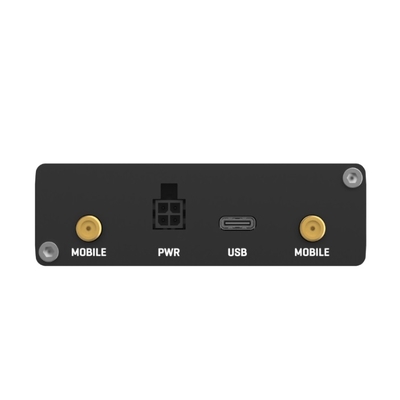

Power	Connector	1 x 4-pin industrial DC power socket1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)
	Input voltage range	4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us maxUSB Type-C: 5 VDC
	Power consumption	Idle: < 5 W, Max: < 12 W

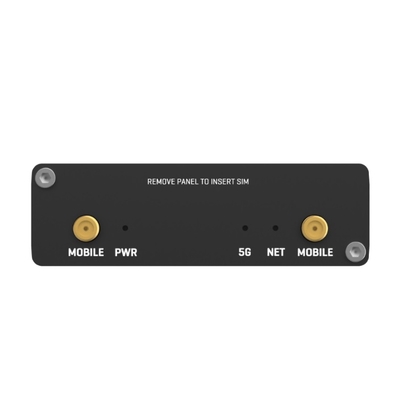

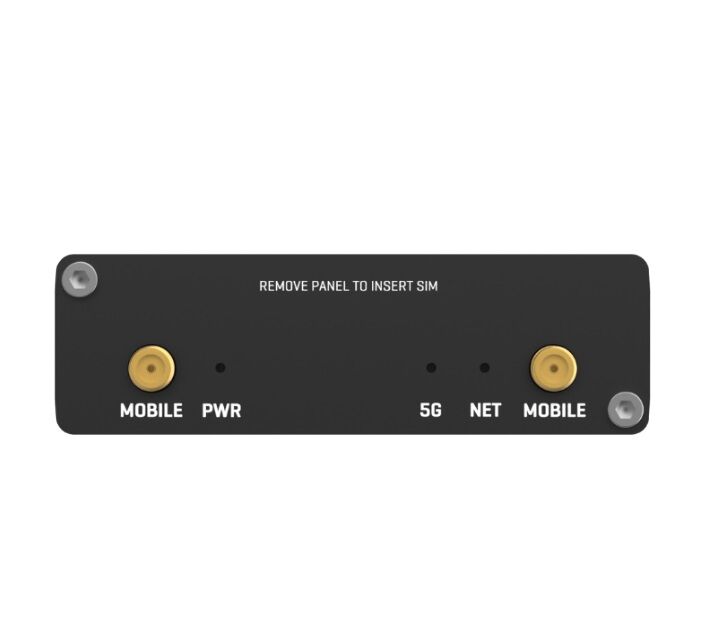

Physical Interfaces	Status LEDs	1 x Power LED, 1 x 5G LED, 1 x Network LED
	SIM	1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
	Power	1 x 4-pin power connector1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)
	Antennas	4 x SMA for Mobile
	Other	1 x Virtual network interface via USB Type-C (For power and network data)
Physical Specification	Casing material	Anodized aluminum housing and panels
	Dimensions (W x H x D)	83 x 25 x 85.4 mm
	Weight	94.5 g
	Mounting options	DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment	Operating temperature	-40 °C to 75 °C
	Operating humidity	10% to 90% non-condensing
	Ingress Protection Rating	IP30
TRM SOFTWARE	Management Software	Windows Connection Manager, Modem Manager (Linux)
	USB Serial Driver	Windows 7/8/8.1/10/11,Linux 2.6~6.3,Android 4.x ~ 13
	GNSS Driver	Android 4.x ~ 13
	RIL Driver	Android 4.x ~ 13
	NDIS Driver	Windows 7/8/8.1/10/11
	MBIM Driver	Windows 8/8.1/10/11, Linux 3.18~6.3
	Gobinet Driver	Linux 2.6/3.x/4.1~4.14
	QMI_WWAN Driver	Linux 3.4~6.3
Regulatory & Type Approvals	Regulatory	CE, UKCA, RCM, CB, WEEE
EMC Emissions & Immunity	Standards	EN 55032:2015+A1:2020EN 55035:2017+A11:2020EN 61000-3-3:2013+A1:2019+A2:2021EN IEC 61000-3-2:2019+A1:2021EN 301 489-1 V2.2.3EN 301 489-52 V1.2.1AS/NZS CISPR 32:2015+A1:2020
	ESD	EN 61000-4-2: 2009
	Radiated Immunity	EN IEC 61000-4-3: 2020
	EFT	EN 61000-4-4: 2012
	Surge Immunity (AC Mains Power Port)	EN 61000-4-5: 2014+A1: 2017
	CS	EN 61000-4-6: 2014
	DIP	EN IEC 61000-4-11:2020
RF	Standards	EN 301 908-1 V15.2.1EN 301 908-2 V13.1.1EN 301 908-13 V13.2.1EN 301 908-25 V15.1.1AS/CA S042.1:2022AS/CA S042.4:2022AS/CA S042.5:2022+A1:2022FCC Part 22Draft EN 301 908-25 V15.1.1_0.0.21
Safety	Standards	CE: EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020RCM: AS/NZS CISPR 32: 2015+A1:2020CB: EN IEC 62368-1:2020+A11:2020
