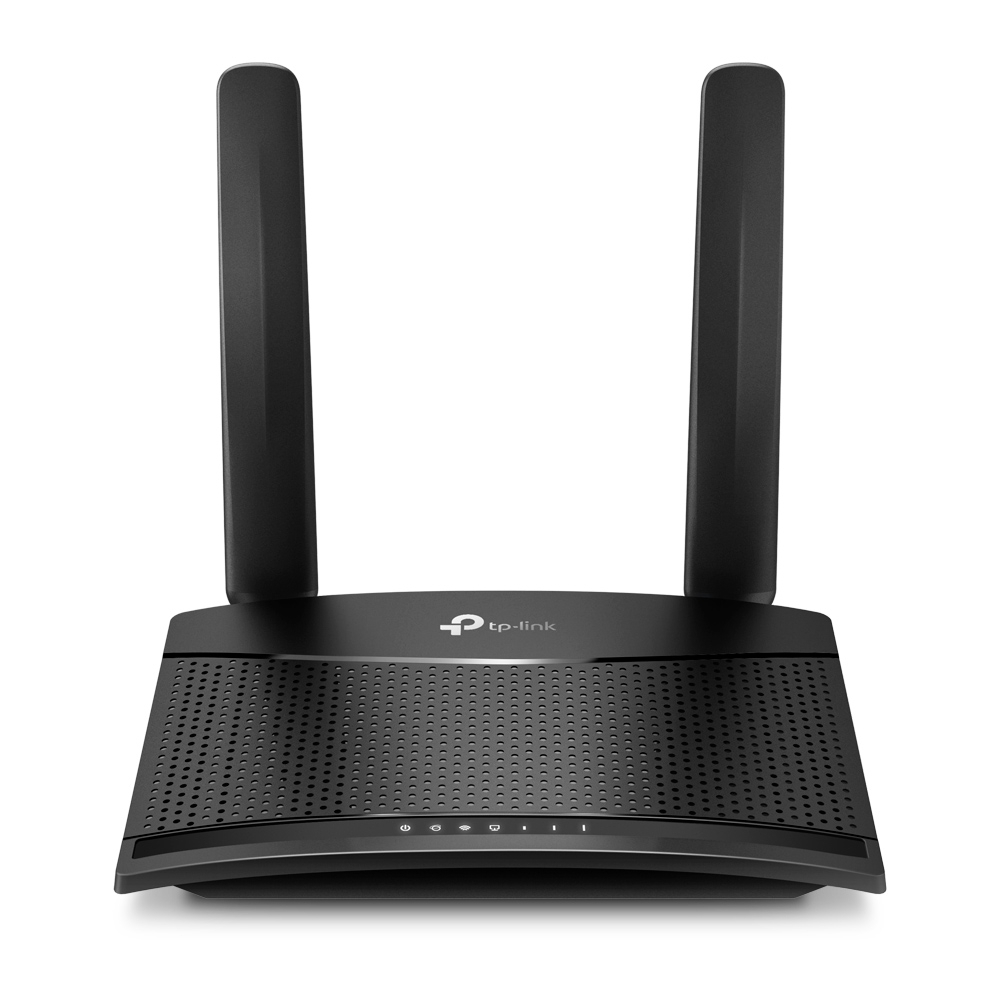

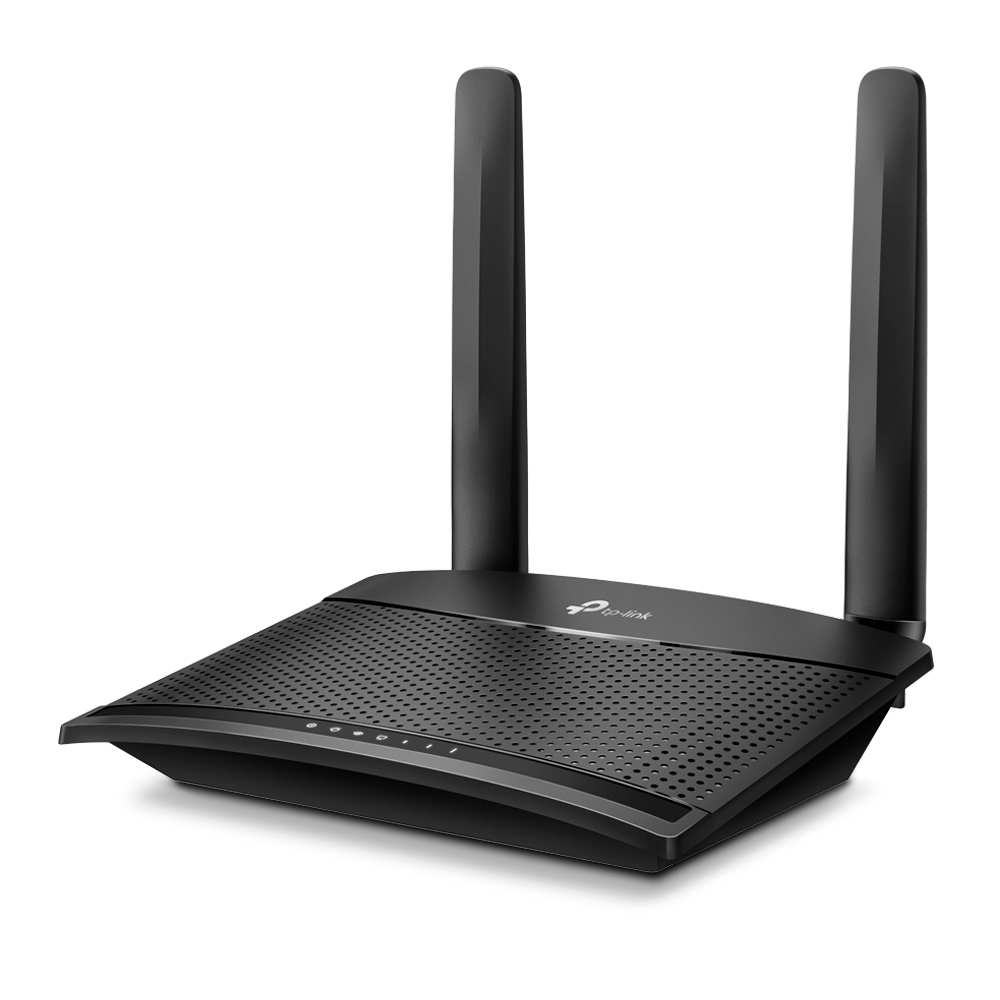

TP-Link TL-MR100 300 Mbps Wireless N 4G LTE Router
(TL-MR100)
| HARDWARE FEATURES |
| Interface |

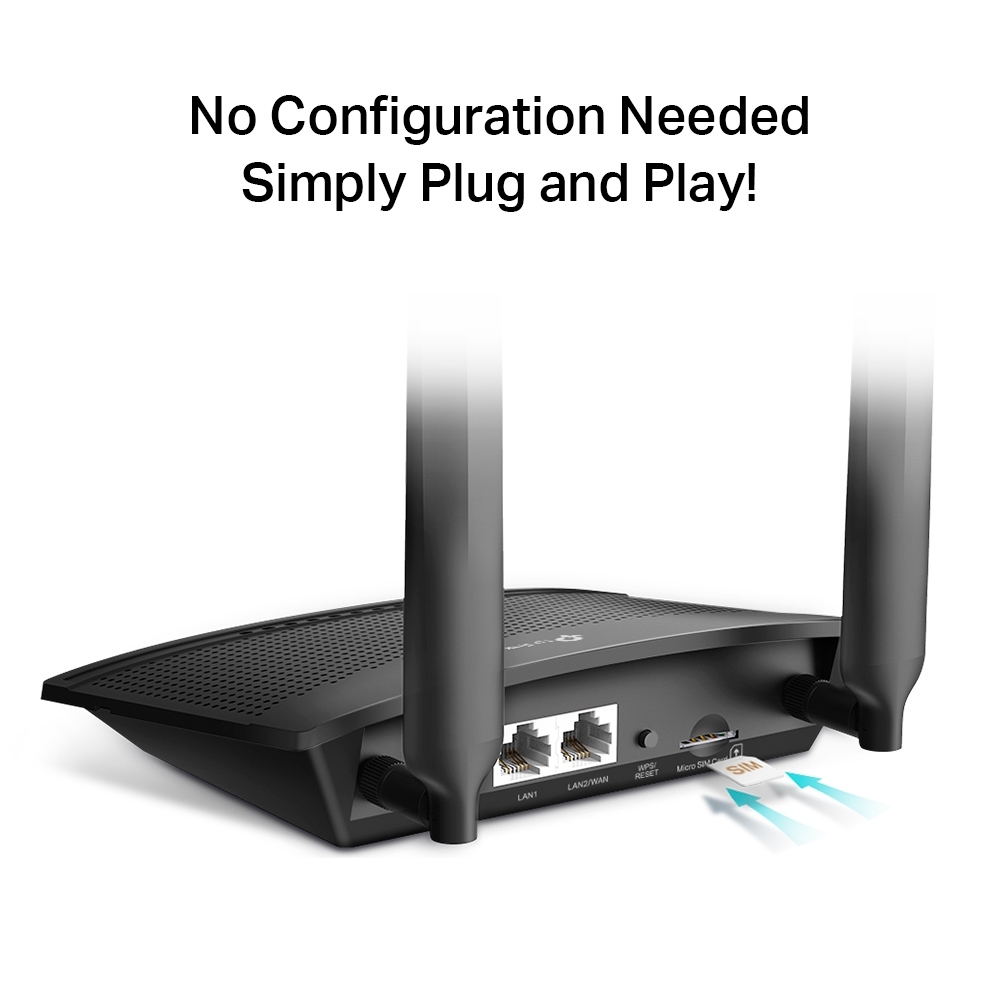

1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,
1 Micro SIM Card Slot |
| Button |
WPS/Reset Button |
| External Power Supply(EU) |
9V/0.85A |
| Dimensions ( W x D x H ) |
6.06×4.49×1.42 in ( 154×114×36 mm) |
| Antenna |
2 Detachable External 4G LTE Antennas |
| Antenna Type |
V3/APAC: 2 Internal 4G LTE Antennas
V4/V2/V1: 2 Detachable 4G LTE Antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11b/g/n |
| Frequency |
2.4 GHz |
| Signal Rate |
300 Mbps |
| Reception Sensitivity |
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm |
| Transmit Power |
< 20 dBm (2.4 GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics |
| WAN Failover |
Yes |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type |
4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| SOFTWARE FEATURES |
| Security |
IPv4 SPI Firewall, IP and MAC Address Binding |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management |
Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network |
| Administration |
Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| OTHERS |
| Certification |
CE, RoHS |
| Package Contents |
300 Mbps Wireless N 4G LTE TL-MR100
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Micro SIM Card |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| SKU |
TL-MR100 |
| Barcode # |
6935364088804 |
| Brand |
TP-LINK |
| Shipping Weight |
0.7200kg |
| Shipping Width |
0.068m |
| Shipping Height |
0.294m |
| Shipping Length |
0.162m |
Manufacturer Warranty: 3 Year Manufacturer Warranty
