View PDF BrochureTP-Link Archer AX55 Pro AX3000 Dual-Band Wi-Fi 6 Router, 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz , 4× Antennas,1× 2.5 Gbps WAN/LAN Port + 1× Gigabi
Model # Archer AX55 Pro
-
SKU: ARCHER-AX55-PRO
- Pick Up Available
- Australian Warranty
- Checkout Securely

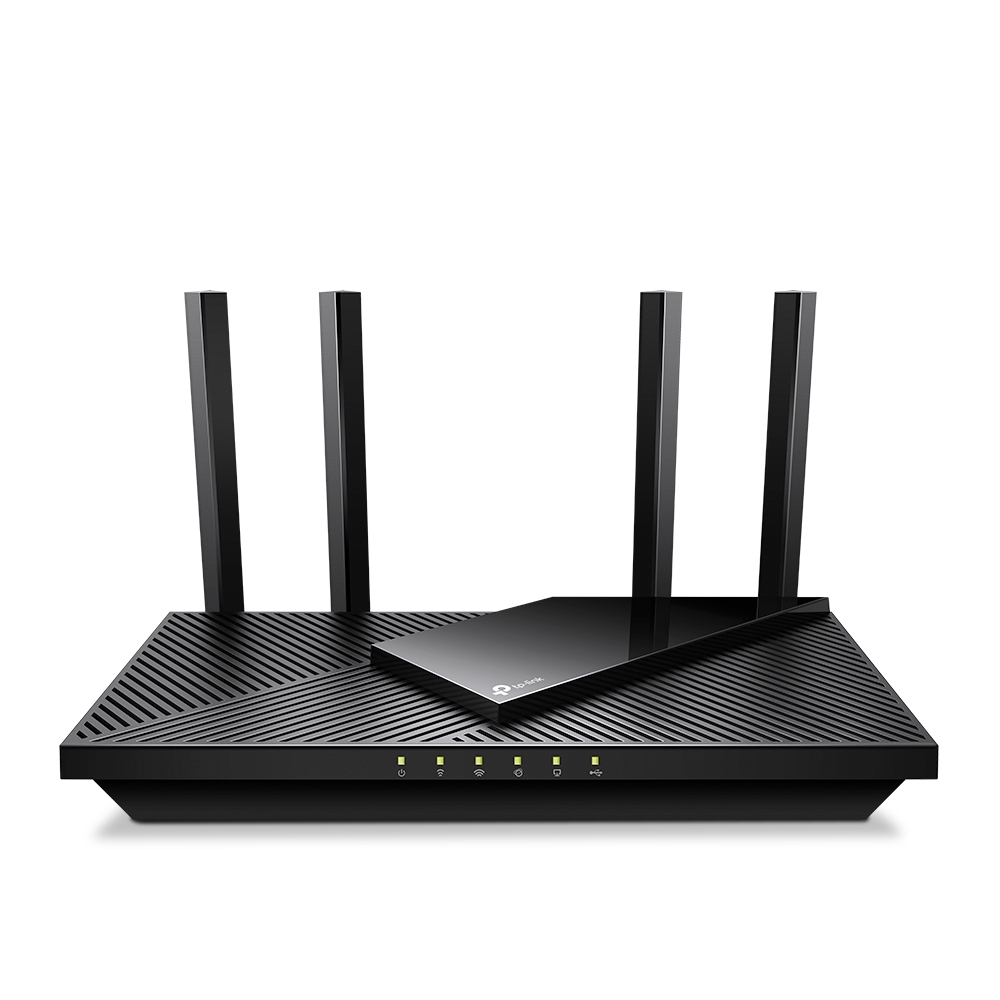

TP-Link Archer AX55 Pro AX3000 Multi-Gigabit Wi-Fi 6 Router with 2.5G Port
- Faster Dual-Band AX3000 WiFi: Up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming and downloading, all at the same time.
- 2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
- Maximised Coverage: Four high-gain antennas equipped with Beamforming ensure vast coverage.
- Connect More Devices: OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.‡
- VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.△
- TP-Link OneMesh Supported: Flexibly Create Whole Home WiFi with Archer AX55 Pro by adding a OneMesh supported Range Extender.
- Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
TP-Link Archer AX55 Wi-Fi 6 IEEE 802.11ax Ethernet Wireless Router - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 4 x Antenna(4 x External) - 375 MB/s Wireless Speed - 4 x Network Port - 1 x Broadband Port - USB - Gigabit Ethernet - VPN Supported - Desktop
-
The New Era of Home Connectivity
AX3000 Dual-Band Gigabit Wi-Fi 6 Router
Archer AX55
160MHZ Bandwidth 2× bandwidth
512 MB RAM Premium WiFi 6
4 High Power FEM
Gigabit Ports
USB 3.0 Port
HomeShield
OneMesh™
Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Incredible Speed
Drastically improved speeds enable streaming, fast downloading, and gaming-all at the same time. 5 GHz with 160 MHz channel support doubles the bandwidth, enabling 8K video without lag.
250% Faster
More Responsive Experiences | Less Loading WheelsEnjoy smooth gaming, video streaming, and live feed simultaneously. OFDMA makes your WiFi stronger by allowing multiple clients to share one band at the same time, which cuts latency and jittering.
Powerful CPU and High Memory | Connect More without Dropping Speed
Behind the Wi-Fi 6 technology structure are the advanced Qualcomm chipset and high memory. Enjoy fast connections with minimal latency even under a heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
Improved Cooling Design Consistent Full Output
No heat ups, no throttles. A larger heat sink and refined case design cool the WiFi 6 system and enable your network to stay at top speed in more versatile environments.
WiFi Coverage Throughout Your Home
4 high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.
TP-Link OneMesh™ Flexibly Create Whole Home WiFi with Archer AX55
Want to build a whole-home Wi-Fi? Archer AX55 supports OneMesh to form seamless whole-home coverage, preventing drops and lag when moving between signals.
TP-Link HomeShield: Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced security features delivering a safe environment that protects your family and network's data and privacy.
Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
Parental Controls
Manage time online and block inappropritate content keeping your family safe online.
Quality of Service
Assign your favorite devices to have the fastest connections for top performance.
Features
- Super-Fast Wi-Fi up to 3000 Mbps
- Broad Coverage with 4 High-Performance Antennas
- Connect More Devices OFDMA
- Easy Sharing with a USB 3.0 Port
(ARCHER-AX55-PRO)
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX3000 • 5 GHz: 2402 Mbps (802.11ax, HE160) • 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses
• 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas • Beamforming Concentrates wireless signal strength towards clients to expand WiFi range • High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | High
• Dual-Band Allocate devices to different bands for optimal performance • OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients • Airtime Fairness Improves network efficiency by limiting excessive occupation • DFS Access an extra band to reduce congestion • 4 Streams Connect your devices to more bandwidth |
| Working Modes | • Router Mode • Access Point Mode |
| HARDWARE | |
|---|---|

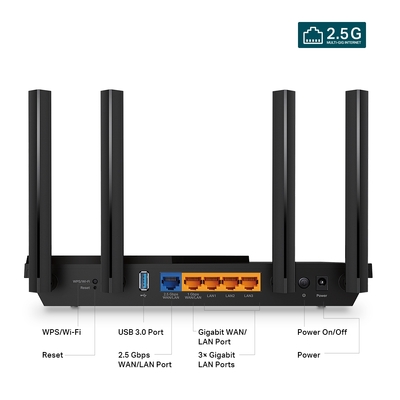

| Ethernet Ports | • 1× 2.5 Gigabit WAN/LAN Port • 1× Gigabit WAN/LAN Port • 3× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | Wi-Fi/WPS Button Power On/Off Button Reset Button |
| Power | • 12 V/ 2 A (US Version) • 12 V/ 1.5 A (EU Version) |
| SECURITY | |
|---|---|
| WiFi Encryption | • WPA3* • WPA2 • WPA • WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN • PPTP • L2TP |
| VPN Client | • OpenVPN • PPTP • L2TP |
| SOFTWARE | |
|---|---|
| Protocols | • IPv4 • IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls
• Custom Profiles • Professional Content Filter Library • Family Time • Bedtime • Off Time • Time Rewards • Family Online Time Ranking • Pause the Internet • Weekly and Monthly Reports |
| WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • OTA Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | • CE: <20dBm(2.4GHz) <23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz) <30dBm (5.47GHz~5.725GHz) • FCC: <30dBm (2.4GHz) <30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz) <24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz) |
| WiFi Reception Sensitivity | • 2.4 GHz: 11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm, 11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm • 5 GHz: 11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm, 11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm, 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm, 11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm) |
| Package Contents | • Wi-Fi Router Archer AX55 Pro • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| SKU | ARCHER-AX55-PRO |
| Barcode # | 4897098686805 |
| Brand | TP-LINK |
| Shipping Weight | 1.0000kg |
