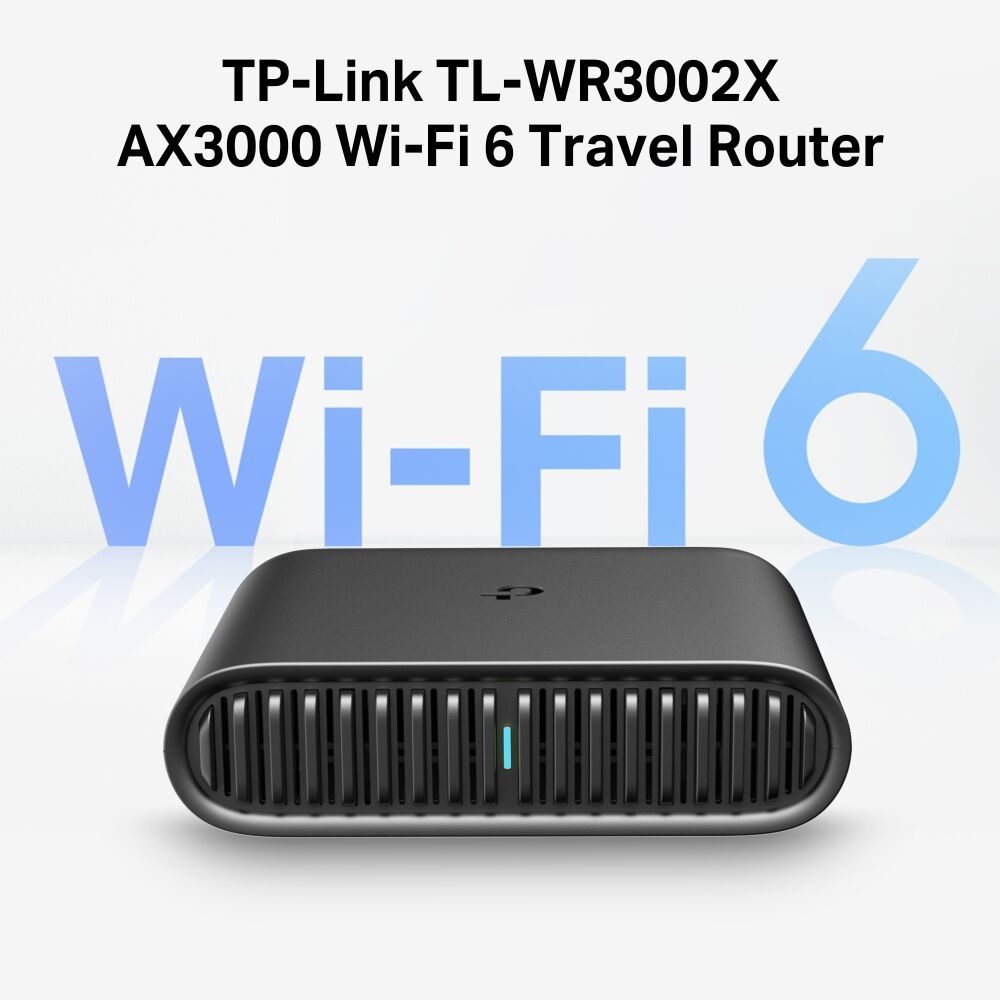

AX3000 Gigabit Wi-Fi 6 Portable Travel Router

AX3000 Dual-Band Wi-Fi 6 Portable Travel Router: Merging Wi-Fi 6 Technology, TL-WR3002X delivers fast wireless speed (2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz) for uninterrupted video streaming, downloading, and online gaming all at the same time.^†‡

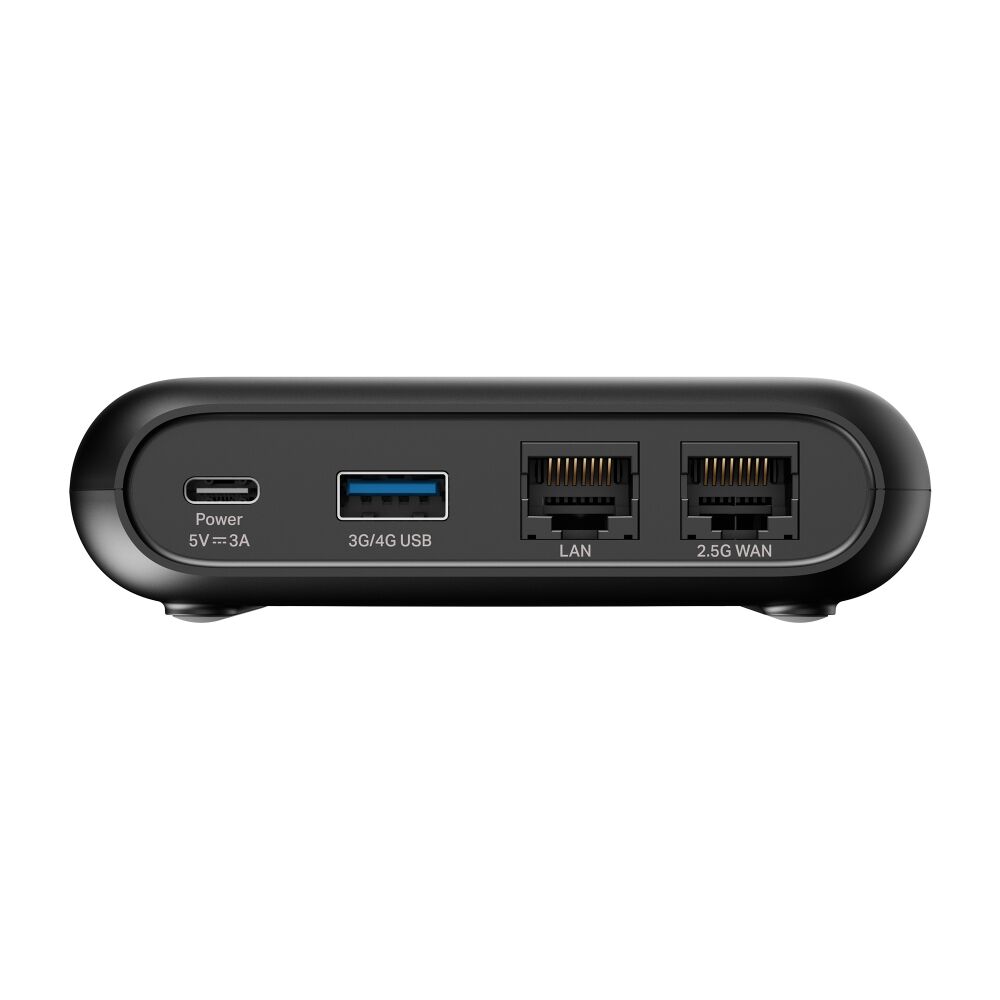

2.5G Multi-Gig Connectivity: 1× 2.5 Gbps WAN port + 1× Gigabit LAN port offer high-speed data transmissions.^△

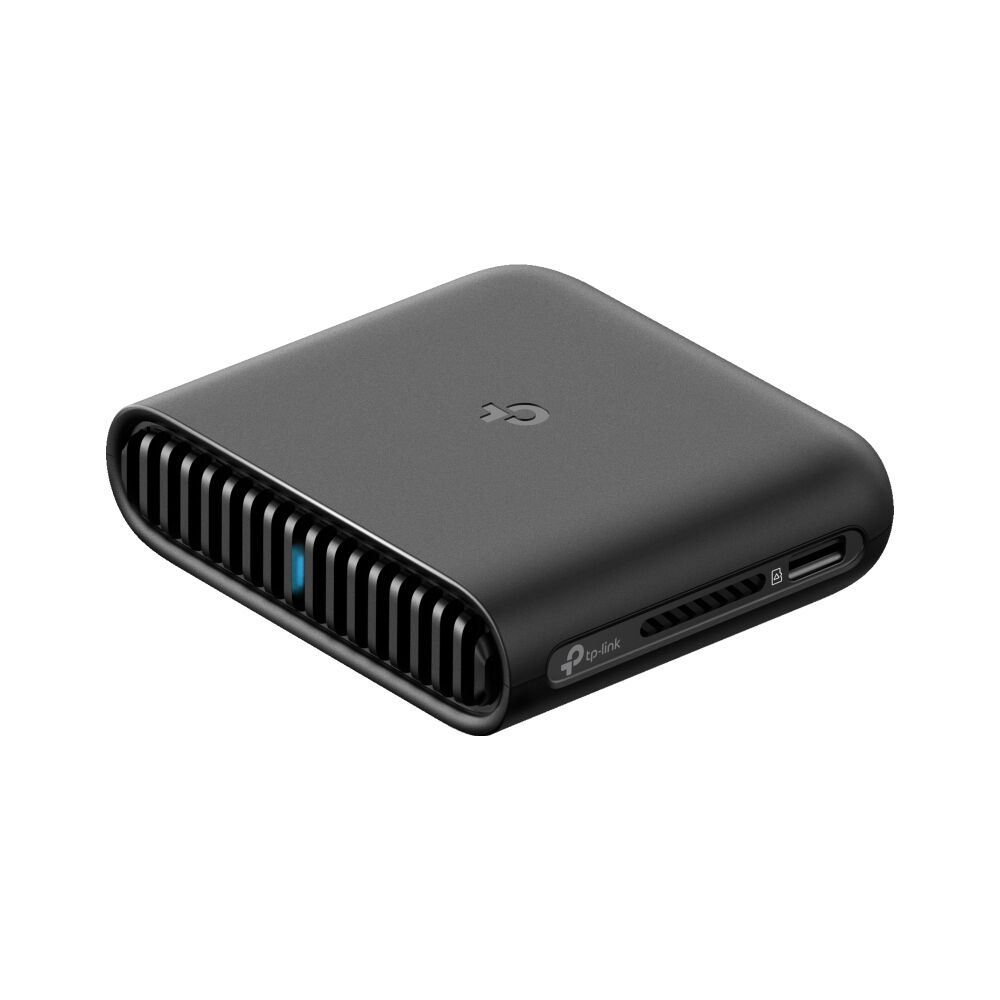

Portable and Durable Design: TL-WR3002X is a pocket-sized travel router compactly designed for your next trip or adventure. Its small size is designed for travel-friendly storage.
Enjoy Reliable Network Anywhere: Supporting multiple modes (Router / USB Tethering / 3G-4G USB Modem / Hotspot / Access Point / Range Extender / Client), TL-WR3002X allows you to create Wi-Fi in various scenarios at home, hotel rooms or on the road. **
Easily Access Your Files From Anywhere: By plugging an external USB hard disc or a TF card into the router, you can easily share files between connected devices.
24/7 Secure Surfing with VPN Encryption: Supporting OpenVPN and WireGuard®, TL-WR3002X can keep your network private and secure from anywhere in the world, whether you‘re working remotely abroad, or browsing on the public Wi-Fi.
Power It with a Power Bank: With a Type-C interface, you can flexibly turn it into a mobile router with a power bank.*

(TL-WR3002X)

WIRELESS
Standards	Wi-Fi 6 IEEE 802.11a/n/ac/ax 5 GHz IEEE 802.11b/g/n/ac/ax 2.4 GHz
WiFi Speeds	AX3000 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Capacity	High Dual-Band Allocate devices to different bands for optimal performance Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth
Working Modes	Router Mode USB Tethering Mode 3G/4G USB Modem Mode Hotspot Mode (WISP Mode) Access Point Mode Range Extender Mode Client Mode

SECURITY
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	• OpenVPN Server • PPTP VPN Server • L2TP VPN Server • Wireguard VPN Serve
VPN Client	Open VPN Client • PPTP VPN Client • L2TP VPN Client • Wireguard VPN Client
WiFi Encryption	WPA2-PSK WPA3-Personal WPA/WPA2-Enterprise

HARDWARE
Ethernet Ports	2.5× Gigabit WAN Port 1× Gigabit LAN Port
USB Support	1× USB 3.0 Port
Buttons	WPS/Reset Button ECO Switch
Power	5V/3A，External DC power adapter

SOFTWARE FEATURES
Quality of Service	QoS by Device
WAN Type	Dynamic IP Static IP PPPoE PPTP L2TP
Management	Tether App Webpage
DHCP	DHCP Server DHCP Client List Address Reservation
Protocols	IPv4 IPv6

OTHER
Certifications	FCC, CE
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity	2.4GHz 11b 1M:-96dBm 11n HT20M MCS7:-73dBm 11n HT40M MCS7:-70dBm 5GHz 11a 6M:-93dBm 11ax HE20M MCS11:-63dBm 11ax HE40M MCS11:-60dBm 11ax HE80M MCS11:-59dBm

PHYSICAL
Dimensions (W×D×H)	4.1 × 3.6 × 1.2 in (105 × 91.3 × 30 mm)
Package Contents	TL-WR3002X Power Adapter RJ45 Ethernet Cable USB Cable Quick Installation Guide Wi-Fi Info card
