| Wireless |
| Standards and Protocols |
IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AXE5400
6 GHz: 2402 Mbps (802.11ax)
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
House with 2 - 3 bedrooms
6× Fixed, High-Power Antennas
Multiple antennas form a signal-boosting antenna system to cover more directions and large areas
Beamforming
Directs the wireless signal towards the client to expand WiFi coverage
High-Power FEM
Improves transmission power for better signal range |
| WiFi Capacity |
Very high
Tri-band
Assign devices to different bands for optimal performance
OFDMA
Communicates with multiple WiFi 6 clients simultaneously
Airtime Fairness
Improves network efficiency by limiting occupancy
DFS
Accesses an additional band to reduce congestion
6 Data Streams
Connect your devices to more bandwidth |
| Working Modes |
Router Mode
Access Point Mode |
| Security |
| Network Security |
SPI Firewall
Access Control
IP & MAC Address Binding
Application Layer Gateway
HomeShield Security
Real-time IoT protection
Blocking of dangerous websites
Intrusion prevention system
Stopping DDos attacks
Home network scanner |
| Guest Network |
1× 6GHz guest network
1× 5GHz guest network
1× 2.4GHz guest network |
| VPN Server |
OpenVPN server
PPTP VPN server
L2TP VPN server |
| VPN Client |
Open VPN Client
PPTP VPN Client
L2TP VPN Client |
| WiFi Encryption |
WPA,
WPA2,
WPA3,
WPA/WPA2-Enterprise (802.1x) |
| HARDWARE |
| Processor |
1.7 GHz quad-core CPU |

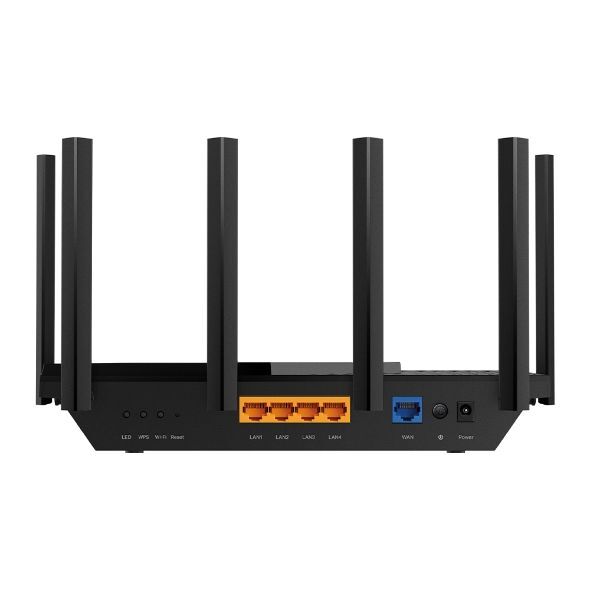

| Ethernet Ports |
1× Gigabit WAN port
4× Gigabit LAN ports |
| USB Support |
1× USB 3.0 port
Supported partition formats:
NTFS, exFAT, HFS+, FAT32
Supported functions:
Apple Time Machine
FTP server
Media server
Samba server |
| Buttons |
On/Off Button Wifi
On/Off Button
On/Off Button LED
WPS Button
Reset Button |
| Power |
12 V ⎓ 2.5 A |
| SOFTWARE |
| Protocols |
IPv4
IPv6 |
| Service Kits |
|
| OneMesh™ |
OneMesh™ Support
OneMesh™ helps you build a more flexible network for whole-home coverage using TP-Link OneMesh™ products. There is no need to replace existing devices or purchase a complete non-WiFi ecosystem.
|
| Parental Controls |
HomeShield Parental Controls
Custom Profiles
Library of Professional Content Filters
Family Time
Bedtime
Shutdown Time
Rewards
Prioritize Online Time
Pause the Internet
Weekly and Monthly Reports |
| WAN Types |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service |
Per-device QoS |
| Cloud Service |
Automatic Firmware Upgrades
TP-Link ID
DDNS |
| NAT Forwarding |
Port Forwarding
Port Triggering
DMZ
UPnP
Virtual server |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
TP-Link
NO-IP
DynDNS |
| Management Features |
Tether app
Online user interface |
| OTHER |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browsers that support JavaScript
Cable or DSL modem (if needed)
Internet service provider subscription (for Internet access) |
| Certifications |
FCC, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing |
| TEST DATA |
| WiFi Transmission Power |
FCC: ≤ 29 dBm (2.4 GHz), ≤ 28 dBm (5 GHz), ≤ 22 dBm (6 GHz)
CE: ≤ 17 dBm (2.4 GHz), ≤ 27 dBm (5 GHz), ≤ 20 dBm (6 GHz) |
| WiFi Reception Sensitivity |
2.4 GHz:
11ax HE20 MCS0: -95 dBm, 11ax HE20 MCS11: -64 dBm
11ax HE40 MCS0: -92 dBm, 11ax HE40 MCS11: -62 dBm
5 GHz:
11ax HE20 MCS0: -94dBm, 11ax HE20 MCS11: -63 dBm
11ax HE40 MCS0: -91dBm, 11ax HE40 MCS11: -60 dBm
11ax HE80 MCS0: -88 dBm, 11ax HE80 MCS11: -57 dBm
11ax HE160 MCS0: -85 dBm, 11ax HE160 MCS11: - 54 dBm
6 GHz:
11ax HE20 MCS0: -93 dBm, 11ax HE20 MCS11: -62 dBm
11ax HE40 MCS0: -90 dBm, 11ax HE40 MCS11: -59 dBm
11ax HE80 MCS0: -87 dBm, 11ax HE80 MCS11: -56 dBm
11ax HE160 MCS0: -84 dBm, 11ax HE160 MCS11: -53 dBm |
| PHYSICAL |
| Dimensions (W×D×H) |
272.5 × 147.2 × 49.2 mm |
| Package Content |

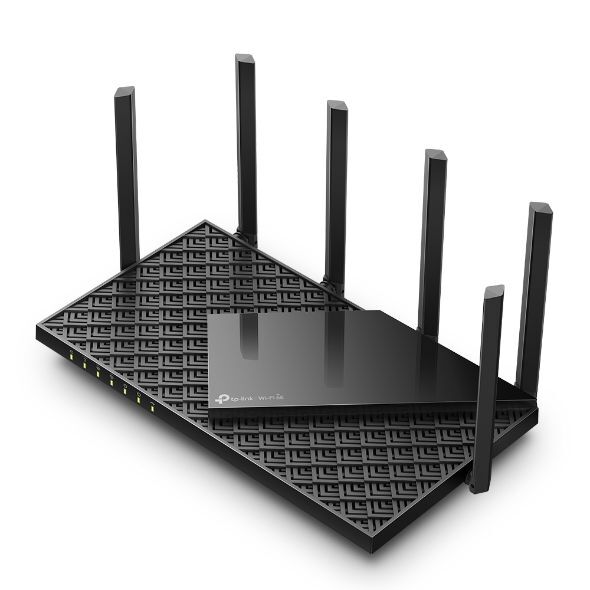

Archer AXE75 Wifi Router
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| SKU |
Archer-AXE75 |
| Barcode # |
4897098687482 |
| Brand |
TP-LINK |
| Shipping Weight |
1.0000kg |
Manufacturer Warranty: 3 Year Manufacturer Warranty
