Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

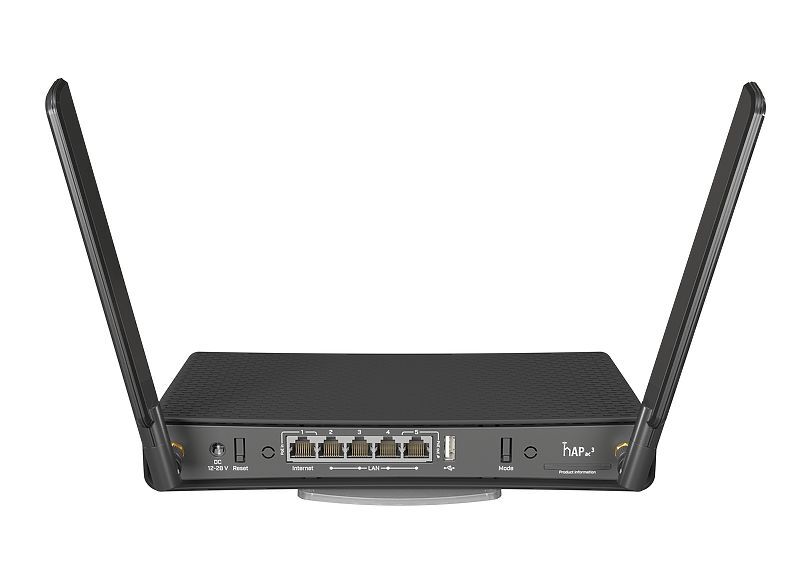

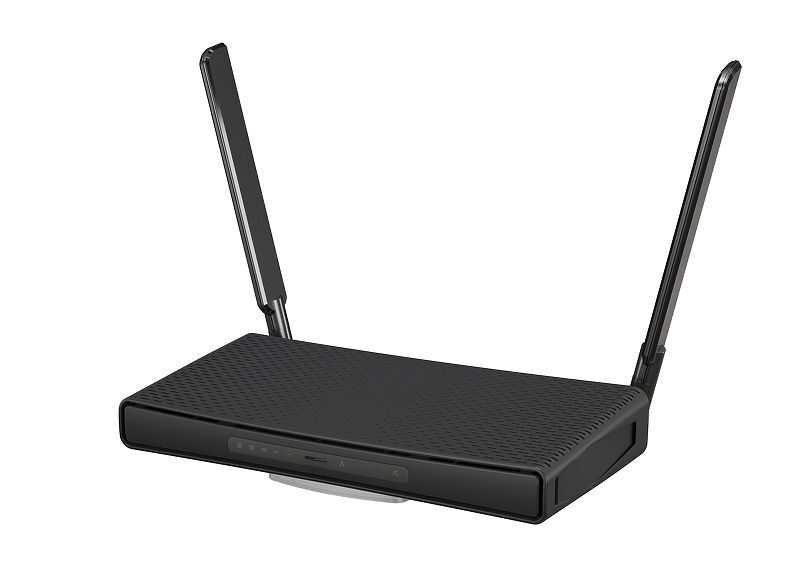

Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on!

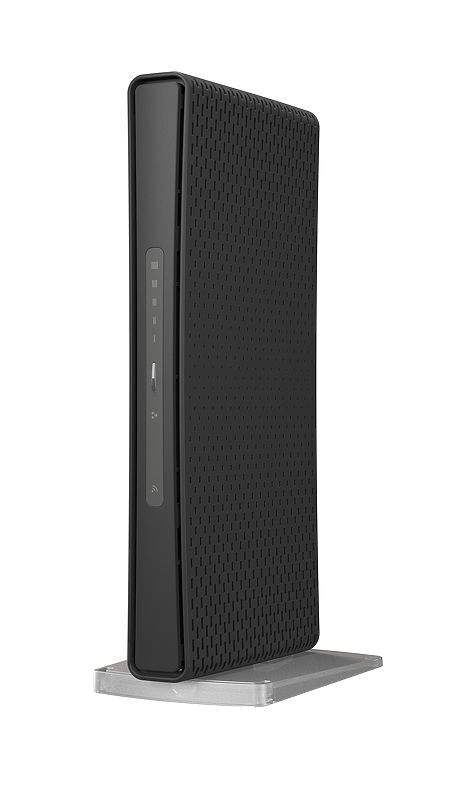

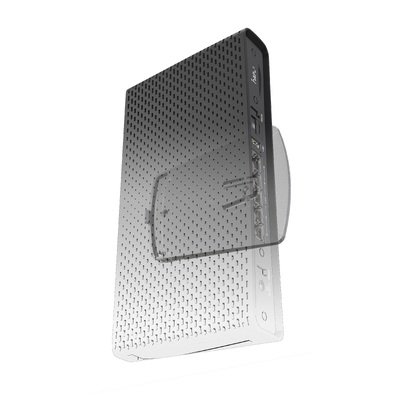

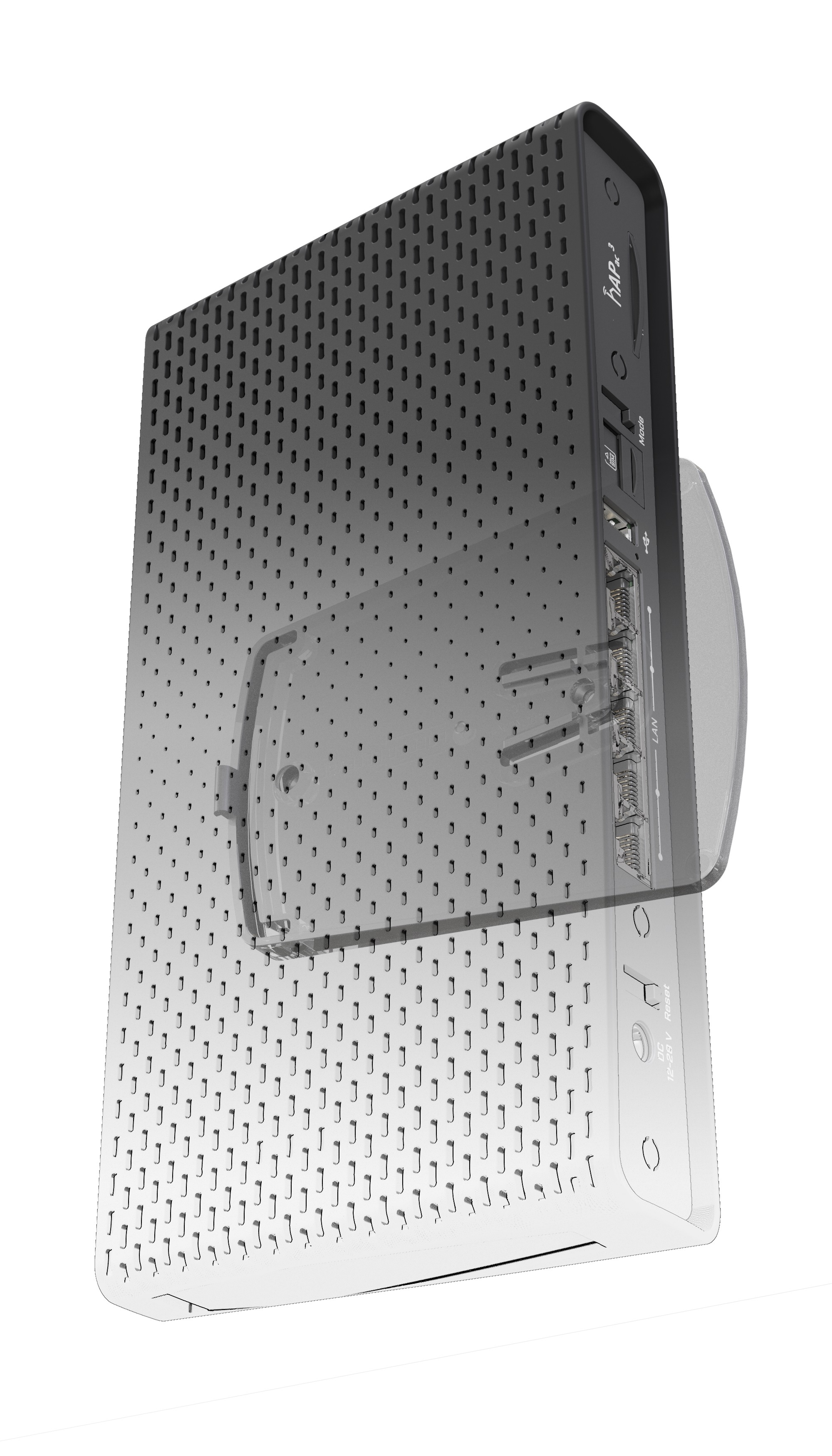

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

Wireless capabilities:

Wireless 2.4 GHz Max data rate: 300 Mbit/s

Wireless 2.4 GHz number of chains: 2

Wireless 2.4 GHz standards: 802.11b/g/n

Antenna gain dBi for 2.4 GHz: 3

Wireless 2.4 GHz chip model: IPQ-4019

Wireless 2.4 GHz generation: Wi-Fi 4

Wireless 5 GHz Max data rate: 867 Mbit/s

Wireless 5 GHz number of chains: 2

Wireless 5 GHz standards: 802.11a/n/ac

Antenna gain dBi for 5 GHz: 5.5

Wireless 5 GHz chip model: IPQ-4019

Wireless 5 GHz generation: Wi-Fi 5

WiFi speed: AC1200

Ethernet:

10/100/1000 Ethernet ports: 5

Number of 1G Ethernet ports with PoE-out: 1

Peripherals:

Number of USB ports: 1

USB Power Reset: Yes

USB slot type: USB type A

Max USB current (A): 1

Powering:

Number of DC inputs: 2 (DC jack, PoE-IN)

DC jack input Voltage: 12-28 V

Max power consumption: 30 W

Max power consumption without attachments: 12 W

Cooling type: Passive

PoE in: Passive PoE

PoE in input Voltage: 18-28 V

PoE-out:

PoE-out ports: Ether5

PoE out Passive: PoE

Max out per port output (input 18-30 V): 0.5 A

Max total out (A): 0.5 A

Certification & Approvals:

Certification: CE, FCC, IC, EAC, ROHS

IP: IP20

Other:

Mode button: Yes

Wireless specifications:

2.4 GHz       Transmit (dBm) Receive Sensitivity

1MBit/s                  25                        -100

11MBit/s         25                        -94

6MBit/s                 26                        -96

54MBit/s         23                        -78

MCS0                 26                        -96

MCS7                 22                        -73

5 GHz       Transmit (dBm) Receive Sensitivity

6MBit/s                 26                         -96

54MBit/s         22                         -80

MCS0                 26                         -96

MCS7                 21                         -75

MCS9                 19                         -70
