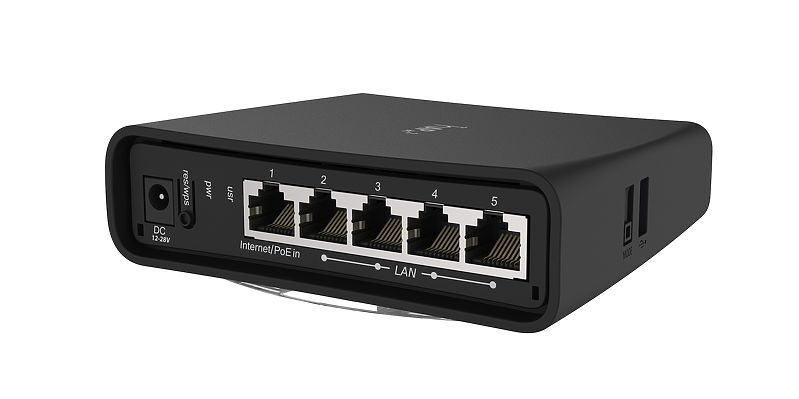

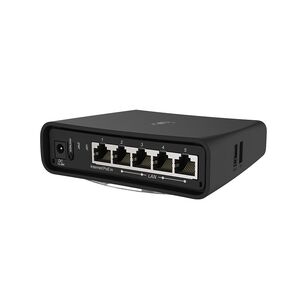

The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, and USB can be used for external storage or 4G/LTE modem. Also IPsec Hardware encryption and dude server package are supported. New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

• Dual chain wireless 2.4 GHz

• Dual chain wireless 5 GHz

• 4 core 716 MHz CPU

• 128 MB of RAM • Five x 10/100/1000 Mbps Ethernet ports

• USB port for 3G/4G modem

• IPsec Hardware encryption

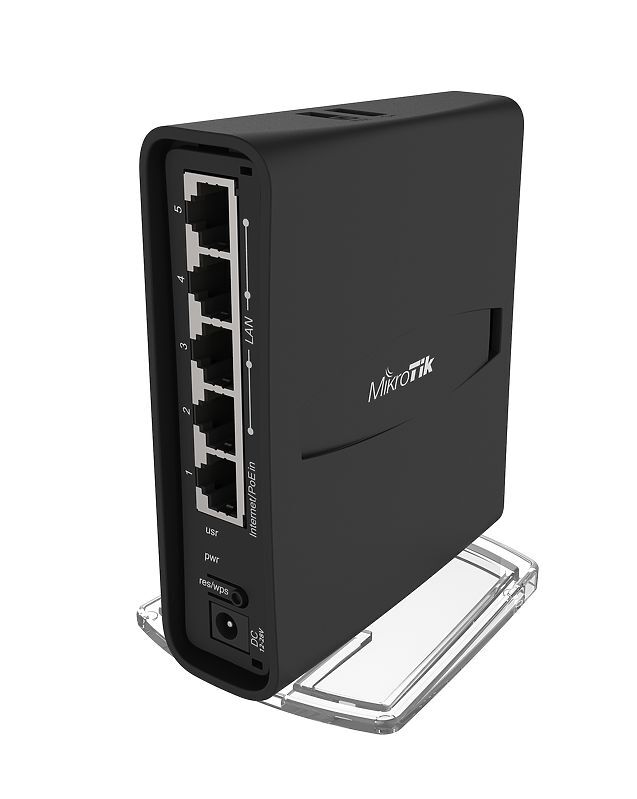

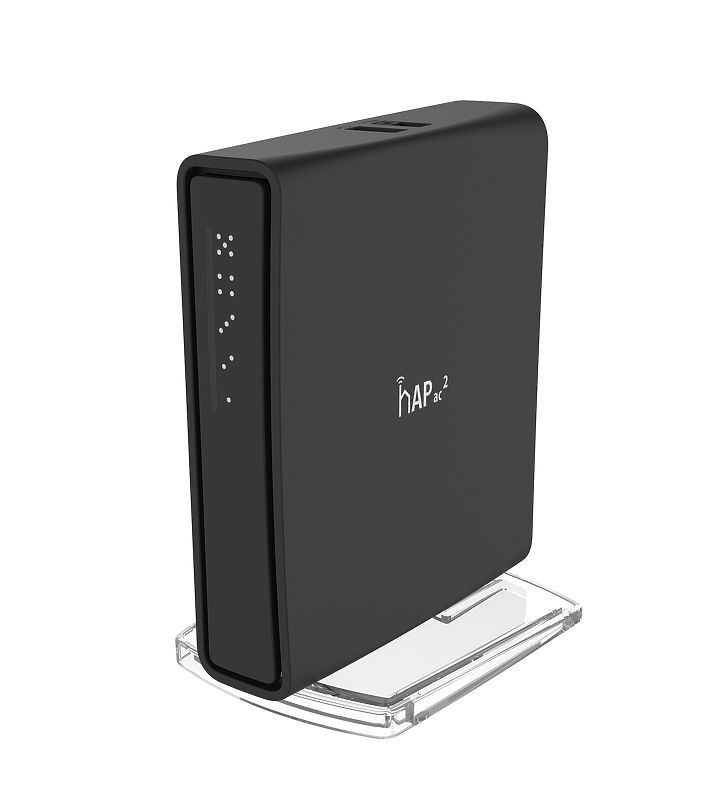

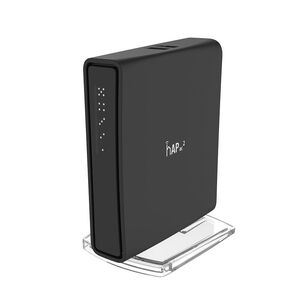

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

There are two versions available.

- hAP ac²-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- hAP ac² (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Wireless capabilities:

Wireless 2.4 GHz Max data rate: 300 Mbit/s

Wireless 2.4 GHz number of chains: 2

Wireless 2.4 GHz standards: 802.11b/g/n

Antenna gain dBi for 2.4 GHz: 2.5

Wireless 2.4 GHz chip model: IPQ-4018

Wireless 2.4 GHz generation: Wi-Fi 4

Wireless 5 GHz Max data rate: 867 Mbit/s

Wireless 5 GHz number of chains: 2

Wireless 5 GHz standards: 802.11a/n/ac

Antenna gain dBi for 5 GHz: 2.5

Wireless 5 GHz chip model: IPQ-4018

Wireless 5 GHz generation: Wi-Fi 5

AC speed: AC1200

Ethernet:

10/100/1000 Ethernet ports: 5

Peripherals:

Number of USB ports: 1

USB Power Reset: Yes

USB slot type: USB type A

Max USB current (A): 1

Powering:

Number of DC inputs: 2 (DC jack, PoE-IN)

DC jack input Voltage: 12-30 V

Max power consumption: 21 W

Max power consumption without attachments: 16 W

Cooling type: Passive

PoE in: Passive PoE

PoE in input Voltage: 18-28 V

Certification & Approvals:

Certification: CE, FCC, IC, EAC, ROHS

IP: IP20

Other:

Mode button: Yes

Wireless specifications:

2.4 GHz      Transmit (dBm) Receive Sensitivity

1MBit/s          27                             -100

11MBit/s  27                             -94

6MBit/s          27                             -96

54MBit/s  24                             -78

MCS0          27                             -96

MCS7          23                             -73

5 GHz      Transmit (dBm) Receive Sensitivity

6MBit/s          26                             -96

54MBit/s  22                             -80

MCS0          26                             -96

MCS7          21                             -75

MCS9          19                             -70
