BE3600 Wi-Fi 7 Travel Router

BE3600 Dual-Band Wi-Fi 7 Portable Travel Router: Merging Wi-Fi 7 Technology, TL-WR3602BE delivers fast wireless speed for uninterrupted video streaming, downloading, and online gaming all at the same time.^†‡

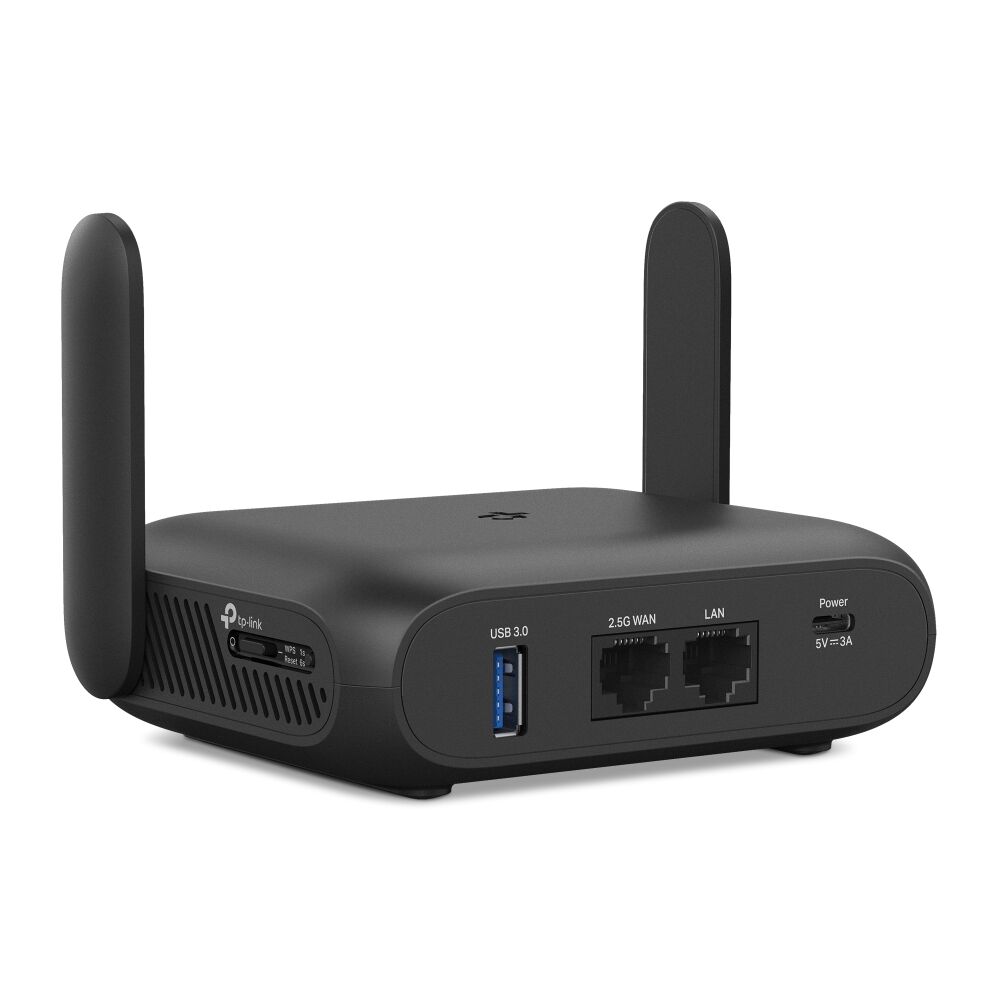

2.5G Multi-Gig Connectivity: 1× 2.5 Gbps WAN port + 1× Gigabit LAN port offer high-speed data transmissions.^△

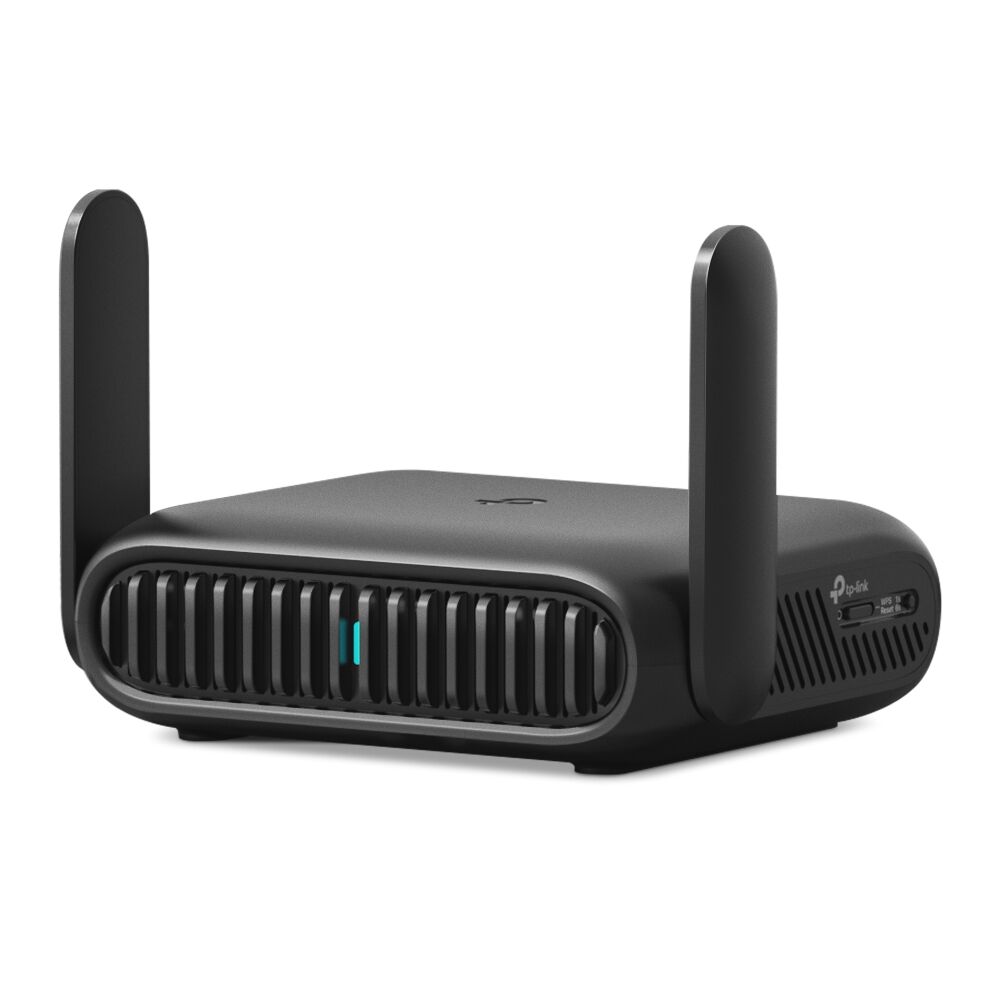

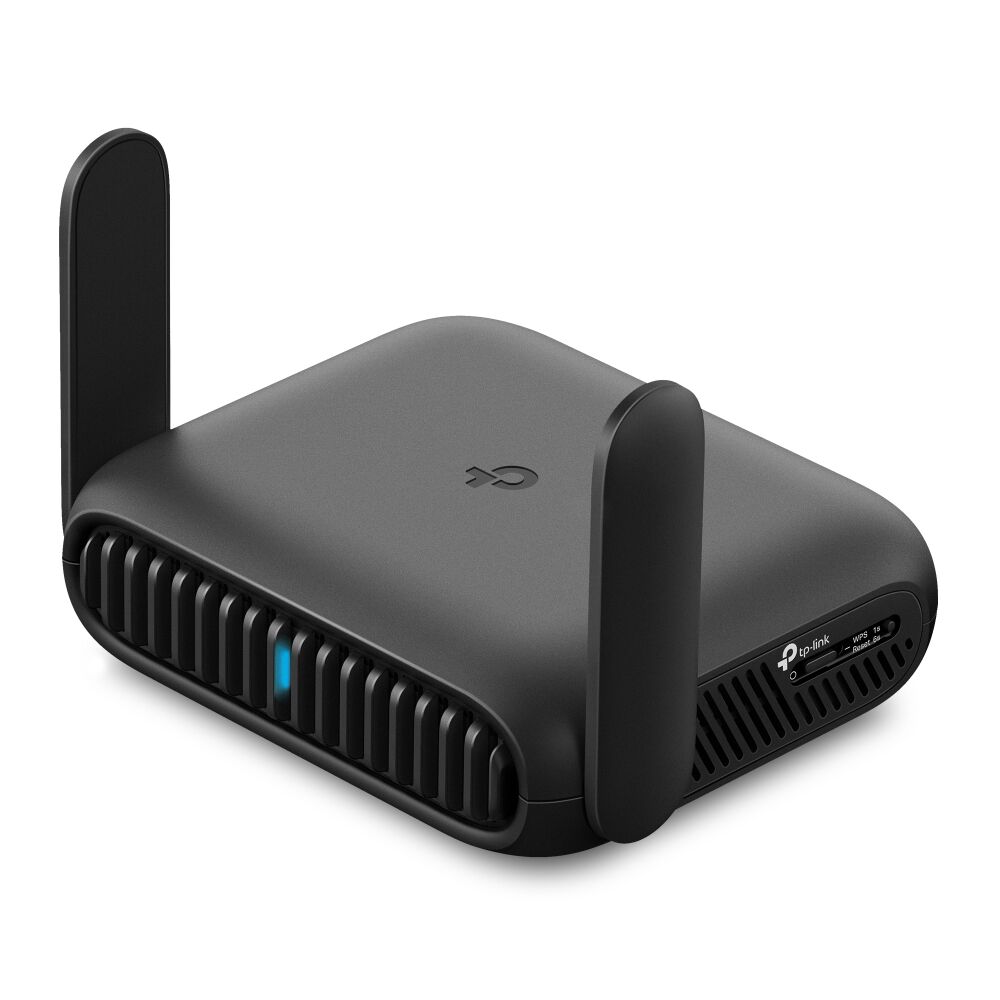

Portable and Durable Design: TL-WR3602BE is a pocket-sized travel router compactly designed for your next trip or adventure. Its small size is designed for travel-friendly storage.
Enjoy Reliable Network Anywhere: Supporting multiple modes (Router / USB Tethering / 3G-4G USB Modem / Hotspot / Access Point / Range Extender / Client), TL-WR3602BE allows you to create Wi-Fi in various scenarios at home, hotel rooms or on the road. **
Easily Access Your Files From Anywhere: With support for connecting external hard drives via USB 3.0, you can easily backup and share files on your private network.
24/7 Secure Surfing with VPN Encryption: Supporting OpenVPN and WireGuard®, TL-WR3602BE can keep your network private and secure from anywhere in the world, whether you‘re working remotely abroad, or browsing on the public Wi-Fi.
Power It with a Power Bank: With a Type-C interface, you can flexibly turn it into a mobile router with a power bank.*

(TL-WR3602BE)

WIRELESS
Standards and Protocols	Wi-Fi 7
WiFi Speeds	5 GHz: 2882 Mbps 2.4 GHz: 688 Mbps
WiFi Capacity	High Dual-Band Allocate devices to different bands for optimal performance Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth
Working Modes	Router Mode USB Tethering Mode 3G/4G/5G USB Modem Mode Hotspot Mode (WISP Mode) Access Point Mode Range Extender Mode Client Mode

SECURITY
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	• OpenVPN Server • PPTP VPN Server • L2TP VPN Server • Wireguard VPN Serve
VPN Client	Open VPN Client • PPTP VPN Client • L2TP VPN Client • Wireguard VPN Client
WiFi Encryption	WPA2-PSK WPA3-Personal WPA/WPA2-Enterprise

HARDWARE

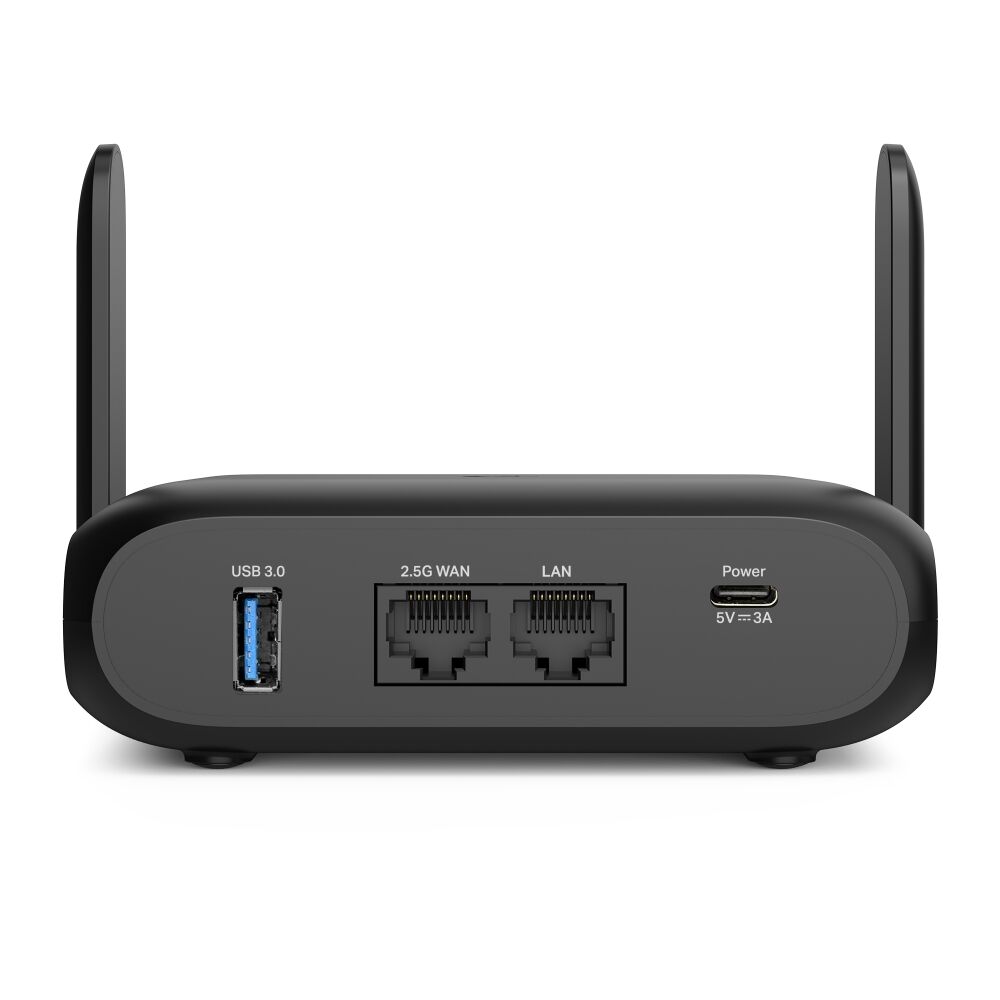

Ethernet Ports	2.5× Gigabit WAN Port 1× Gigabit LAN Port
USB Support	1× USB 3.0 Port
Buttons	Customizable Button: Supports Power On/Off, LED Control, and VPN Activation
Power	5V/3A，External DC power adapter

SOFTWARE FEATURES
Quality of Service	QoS by Device
WAN Type	Dynamic IP Static IP PPPoE PPTP L2TP
Management Features	Tether App Webpage
DHCP	DHCP Server DHCP Client List Address Reservation
Protocols	IPv4 IPv6

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP
Certifications	FCC, CE
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity	2.4GHz 11b 1M:-96dBm 11n HT20M MCS7:-73dBm 11n HT40M MCS7:-70dBm 5GHz 11a 6M:-93dBm 11ax HE20M MCS11:-63dBm 11ax HE40M MCS11:-60dBm 11ax HE80M MCS11:-59dBm
