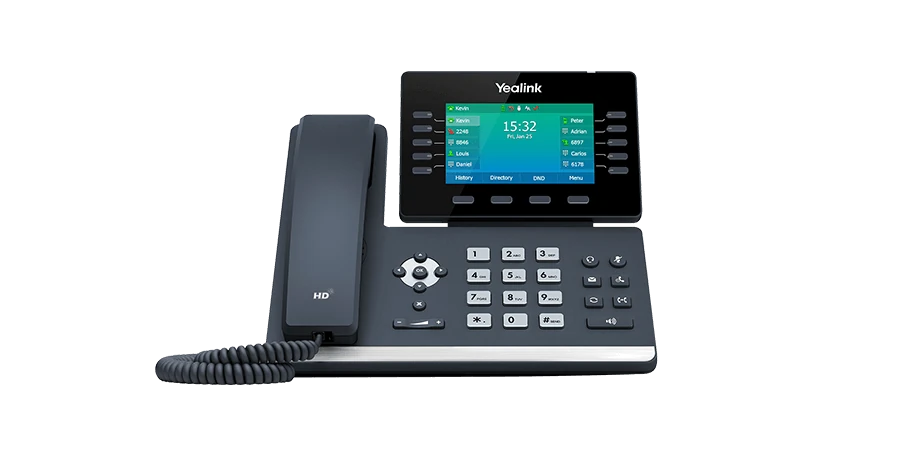

Yealink SIP-T54W 16 Line IP HD Phone with HD voice, Dual Gig Ports, Built in Bluetooth and WiFi

Quick answer

What is the Yealink SIP-T54W?

The Yealink SIP-T54W is a standards-based business VoIP phone designed for professionals, managers, reception staff and other users with a moderate to high call load.

It supports up to 16 SIP accounts, 10-way audio conferencing, wired or wireless headsets, Gigabit Ethernet, PoE and up to three optional Yealink EXP50 expansion modules.

Key business features

Built for Productive, High-Quality Business Calling

HD

Yealink Optimal HD Voice

HD handset and speaker audio, supported wideband codecs and full-duplex hands-free calling improve everyday call clarity.

AS

Acoustic Shield

Multiple microphones help reduce background distractions so the person at the other end hears your voice more clearly.

16

Up to 16 SIP Accounts

Suitable for users managing multiple lines, departments, extensions or shared business identities.

Wi-Fi

Built-in Dual-Band Wi-Fi

Connect through 2.4GHz or 5GHz Wi-Fi where running a network cable is not practical.

BT

Bluetooth Connectivity

Connect a compatible Bluetooth headset, synchronise mobile contacts and support Bluetooth calling.

USB

Flexible USB Port

Use compatible USB headsets, USB recording, an EHS40 adapter or up to three EXP50 expansion modules.

Clearer conversations

Yealink Acoustic Shield Reduces Office Distractions

Acoustic Shield technology uses multiple microphones to create a virtual barrier between the speaker and surrounding noise sources.

Helps reduce background conversations and office noise
Improves clarity for remote participants
Works alongside Yealink Smart Noise Filtering
Useful for open offices, reception desks and home offices
Supports a HAC handset for hearing-aid compatibility

Expand when required

Headsets, Recording and Expansion Modules

The built-in USB 2.0 port makes the T54W a scalable business phone rather than a fixed desktop endpoint.

Connect compatible wired or wireless USB headsets
Record calls to a compatible USB flash drive
Add up to three Yealink EXP50 expansion modules
Program up to 180 paperless DSS keys with three EXP50 modules
Use an optional DD10K dongle for supported DECT handsets

Recommended users

Who Should Choose the SIP-T54W?

E

Executives

Premium desktop calling with wireless headset and multi-line support.

M

Managers

Handle multiple calls, extensions and conferencing from one device.

R

Reception

Add EXP50 modules for more visible and programmable line keys.

O

Open Offices

Acoustic Shield helps improve voice pickup in busy environments.

H

Home Offices

Dual-band Wi-Fi and Bluetooth reduce desk cabling and clutter.

SIP platform compatibility

Designed for Standards-Based VoIP Systems

The SIP-T54W is commonly deployed with hosted VoIP services and SIP-compatible phone systems. Exact features and auto-provisioning support depend on the provider and firmware configuration.

3CX

Yeastar

FreePBX

BroadSoft

Hosted SIP

Teams SIP Gateway*

Before ordering: Most SIP phones work with many hosted VoIP providers and IP-PBX platforms, but provisioning, licence and feature support can vary. Check with your phone-service provider first. For Microsoft Teams, confirm current SIP Gateway eligibility and configuration requirements.

Product video

Yealink SIP-T54W Unboxing

Technical specifications

Yealink SIP-T54W Specifications

Display	4.3-inch 480 × 272-pixel adjustable colour LCD with backlight
VoIP Accounts	Up to 16 SIP/VoIP accounts
Conferencing	Up to 10-way audio conferencing
Audio	Yealink Optimal HD Voice, HD handset, HD speaker, Acoustic Shield, Smart Noise Filtering and full-duplex speakerphone with AEC
Bluetooth	Built-in Bluetooth 4.2 for compatible headsets, mobile contact synchronisation and Bluetooth calling
Wi-Fi	Built-in dual-band 2.4GHz/5GHz Wi-Fi, IEEE 802.11a/b/g/n, up to 433Mbps
Ethernet	Dual-port Gigabit Ethernet
Power	IEEE 802.3af PoE, Class 3; optional Yealink 5V/2A AC adapter
USB	1 × USB 2.0 for USB recording, compatible USB headsets, EHS40 and EXP50 expansion modules
Expansion Modules	Supports up to 3 × Yealink EXP50 modules, providing up to 180 paperless DSS keys
DECT Expansion	Supports optional Yealink DD10K dongle and up to 4 compatible DECT handsets
Phonebook	Local phonebook with up to 1,000 entries; XML and LDAP remote phonebook support
Line Keys	10 line keys with LEDs, programmable for up to 27 features across a three-page view
Headset Connections	RJ9 headset port, USB headset support and compatible Bluetooth headset support
Security	SIP v1/v2, SRTP, TLS 1.3, HTTPS, WPA2/WPA3, secure boot, OpenVPN, 802.1X and AES256 configuration-file encryption
Wall Mounting	Wall mountable with optional accessory
Operating Temperature	-10°C to 50°C
Colour	Classic Grey
Package Contents	Yealink SIP-T54W phone, handset and cord, Ethernet cable, stand and quick-start guide. Power adapter is optional.

Common questions

Yealink SIP-T54W FAQs

Does the Yealink SIP-T54W support Wi-Fi?

Yes. It has built-in dual-band 2.4GHz and 5GHz Wi-Fi, so no separate Wi-Fi dongle is required.

Does the T54W support Bluetooth headsets?

Yes. Built-in Bluetooth 4.2 supports compatible Bluetooth headsets and mobile contact synchronisation.

How many SIP accounts does the T54W support?

It supports up to 16 VoIP or SIP accounts.

Can the T54W use an EXP50 expansion module?

Yes. It supports up to three Yealink EXP50 expansion modules through the USB port.

Does the Yealink T54W include a power adapter?

Not necessarily. It supports Power over Ethernet, and the external Yealink AC adapter is optional. Check the exact package contents before ordering.

Can it record calls?

Yes. The built-in USB 2.0 port supports call recording to a compatible USB flash drive, subject to platform, firmware and legal requirements.

Does the T54W work with 3CX?

The T54W is a standards-based SIP phone commonly used with platforms such as 3CX. Confirm supported firmware and provisioning with your system administrator or provider.

Can the T54W work with Microsoft Teams?

It may be used through supported SIP Gateway deployments where the tenant, firmware and licensing meet Microsoft's current requirements. It is not a native Android Teams phone.
