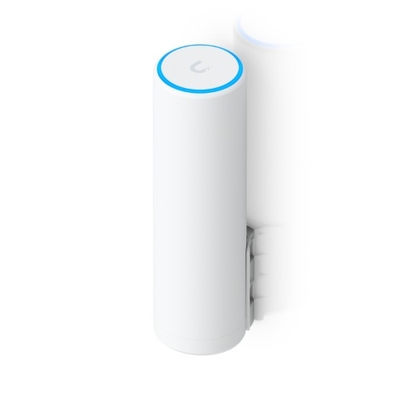

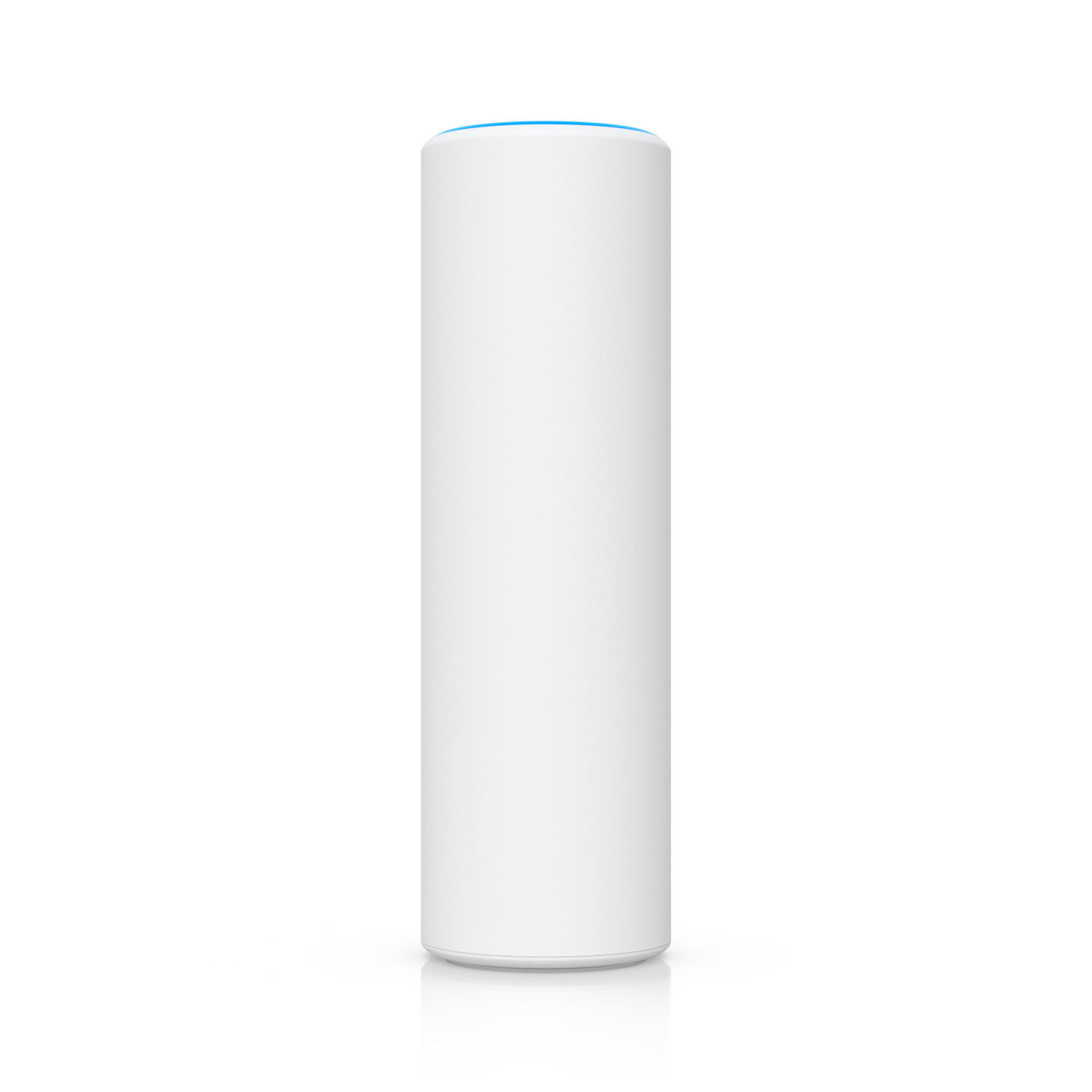

Ubiquiti U7-Mesh, Compact Indoor/Outdoor WiFi 7 AP, Integrated Long-Range Antenna System.


Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.

WiFi 7, Dual-radio 2.4 / 5 GHz, 4 spatial streams
Antenna Type: Directional, Omnidirectional
140 m² (1,500 ft²) Coverage
Power Method: PoE

(U7-Mesh)

Dual-Antenna Mesh Performance
Directional 5 GHz backhaul plus an omni antenna for reliable mesh links and local client coverage at the same time.

MLO Ready
Multi-Link Operation support for improved latency and resiliency.

2.5 GbE PoE RJ45
Multi-gig uplink capacity maintains consistent performance in high-traffic deployments.

IPX6 Rated
IPX6-rated protection supports outdoor deployments when installed with the included outdoor mount.

Dimensions
⌀48.5 x 159.5 mm (⌀1.9 x 6.3")
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
200+
Uplink
2.5 GbE

Mounting
Wall, Pole, Table stand (Mounts included)
Weatherproofing
IPX6 (Installed with the outdoor mount)
Power Method
PoE

MIMO

5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate

5 GHz
4.3 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)
Antenna Gain

5 GHz
Omnidirectional: 6 dBi Directional: 10 dBi
2.4 GHz
3 dBi
Max. TX Power

5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates

802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Hotspot Portal

Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN

Max. Power Consumption
13W
Includes PoE Adapter
Supported Voltage Range
42.5–57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
313 g (11 oz)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate
LEDs

System
W/B
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing

Application Requirements

UniFi Network
Version 10.1.85 and later
Mobile App
UniFi iOS™: Version 10.32.1 and later Android™: Version 10.35.1 and later
SKU U7-Mesh
Brand UBIQUITI
Shipping Weight 1.0000kg

Manufacturer Warranty: 1 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti U7-Mesh, Compact Indoor/Outdoor WiFi 7 AP, Integrated Long-Range Antenna System.

Model # U7-Mesh

  • SKU: U7-Mesh

$363.00
$380.00
SAVE $17.00 (4%)
Sold Out
NO ETA FROM AUSTRALIAN SUPPLIERS FOR NOW!
