Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.



(U7-LR)

General Information

Feature Description
Dimensions Ø175.7 x 43 mm (Ø6.9 x 1.7")
WiFi Standard WiFi 7
Spatial Streams 5
Coverage Area 160 m² (1,750 ft²)
Max. Client Count 300+
Uplink 2.5 GbE

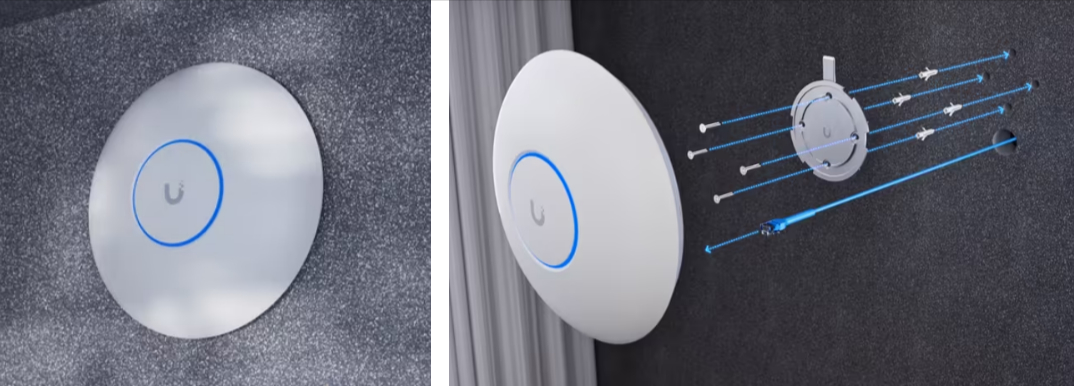

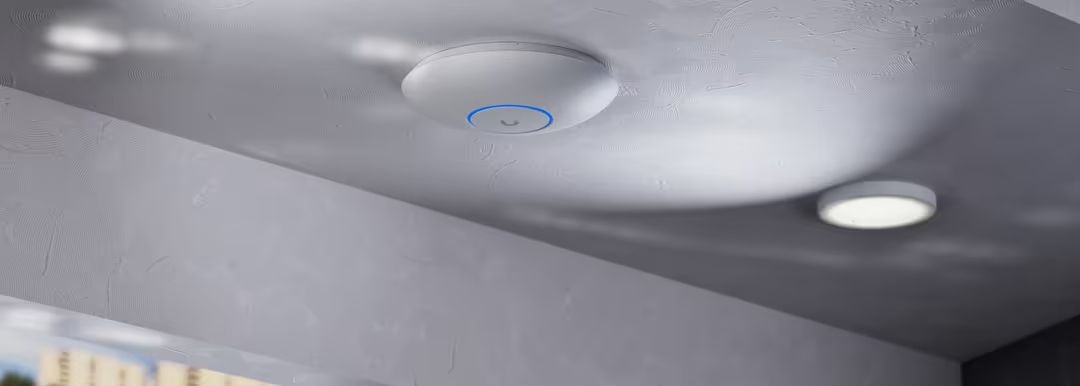

Mounting Ceiling, Wall (Plastic Mounting Plate included)
Power Method PoE

Performance

Category Feature Description
MIMO 5 GHz 3 x 3 (DL/UL MU-MIMO)
  2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 5 GHz 4.3 Gbps (BW160)
  2.4 GHz 688 Mbps (BW40)
Antenna Gain 5 GHz 6 dBi
  2.4 GHz 4 dBi
Max. TX Power 5 GHz 27 dBm
  2.4 GHz 26 dBm

Supported Data Rates

WiFi Version Data Rate Range
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13, NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11, NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9, NSS1/2/3, VHT 20/40/80/160)
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

Wireless Features

Feature Supported
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Advanced Radio Management ✓
Passpoint (Hotspot 2.0) ✓

Captive Portal Features

Feature Supported
Custom Branding Landing Page ✓
Voucher Authentication ✓
Payment-Based Authentication ✓
External Portal Server Support ✓
Password Authentication ✓
Guest Network Isolation ✓
Private Pre-Shared Key (PPSK) ✓
WiFi Speed Limiting ✓
Client Device Isolation ✓
WiFi Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic RADIUS-assigned VLAN ✓

Hardware Specifications

Feature Description
Max. Power Consumption 14W
Includes PoE Adapter —
Supported Voltage Range 42.5—57V DC

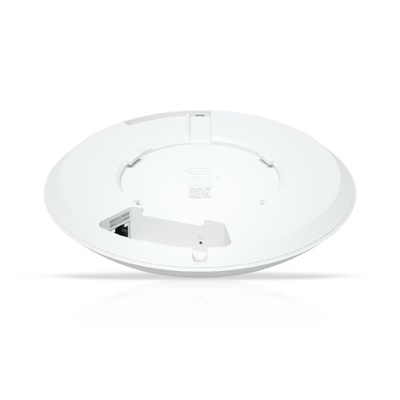

Networking Interface (1) 2.5 GbE RJ45 port
Weight 448 g (15.8 oz)
Enclosure Material Polycarbonate, aluminum alloy
Mount Material Polycarbonate, galvanized steel (SGCC)
LEDs System (White/Blue)
Channel Bandwidths HT/VHT/HE/EHT 20/40/80/160 MHz
Certifications CE, FCC, IC
NDAA Compliant ✓
Operating Temperature -30 to 50°C (-22 to 122°F)
Operating Humidity 5 to 95% noncondensing

Software Requirements

Feature Minimum Version
UniFi Network App Version 9.0.114 and later
iOS App Version 10.20.2 and later
Android App Version 10.21.7 and later



SKU U7-LR
Barcode # 810177161929
Brand UBIQUITI
Shipping Weight 0.4400kg

Manufacturer Warranty : 1 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti U7 Long-Range, Compact, Ceiling-mount WiFi 7 AP, 5 Spatial Streams, Extended Signal Range, Cover Up to160m², 300+ Devices, Uplink 2.5GbE

Model # U7-LR

  • SKU: U7-LR

$294.00
In Stock
IN STOCK
