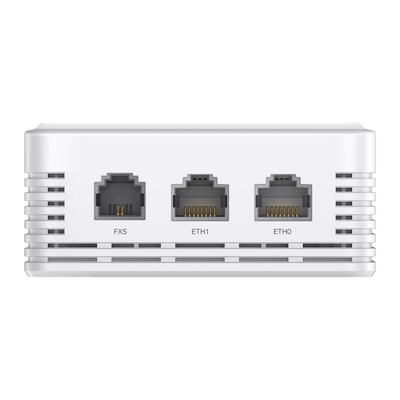

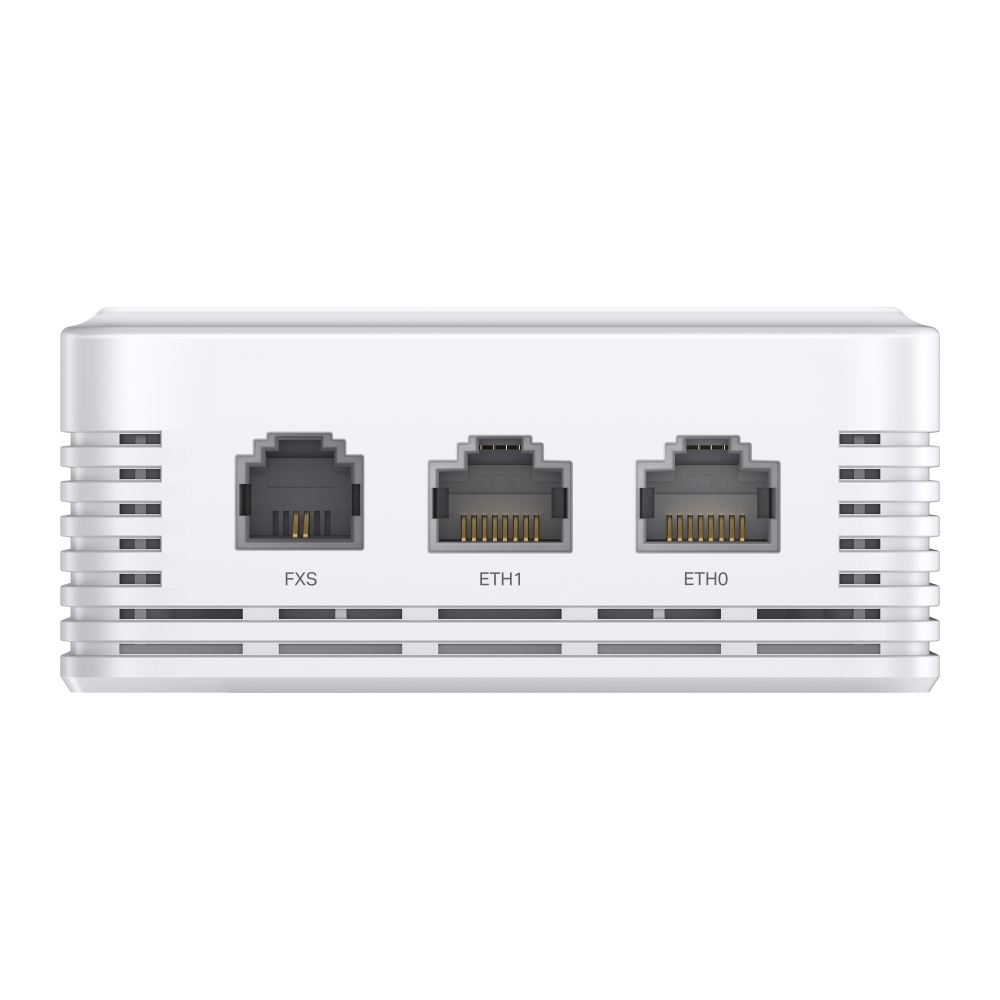

HARDWARE FEATURES Interface • 1x GPON Port • 1x FXS Port • 2x Gigabit RJ45 Ports GPON Interface • Port Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) • Fiber Type: 9/125 um Single mode • Max. Cable Length: 20 km Button • Reset • LED Power Supply 100–240V~ 50/60Hz, 0.5A Power Consumption 12.2W Weight 320g Dimensions ( W x D x H ) 5.6 × 3.4 × 1.5 in (143 × 86 × 37.6 mm) Antenna Type Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6.5 dBi Mounting Wall Mounting (Kits included) WIRELESS FEATURES Coverage 50?(600ft²)** Concurrent Clients 120+* Wireless Standards IEEE 802.11 a/b/g/n/ac/ax Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: 1201 Mbps† • 2.4 GHz: 574 Mbps Wireless Functions • 2×2 (2.4G & 5G) MU-MIMO‡ • HE80 (80 MHz Bandwidth)‡ • OFDMA‡ • Seamless Roaming § • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP Wireless Security • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <24 dBm(5 GHz, band3, EIRP) • FCC: <21 dBm (2.4 GHz) <21 dBm (5 GHz) MANAGEMENT Omada App Yes Centralized Management • Omada Hardware Controller (OC300, OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog System Log SSH Yes Web-based Management Yes Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller. OTHERS Certification CE, FCC, RoHS, IC Package Contents • EAP615GP-Wall • Wall Mounting Kit • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
