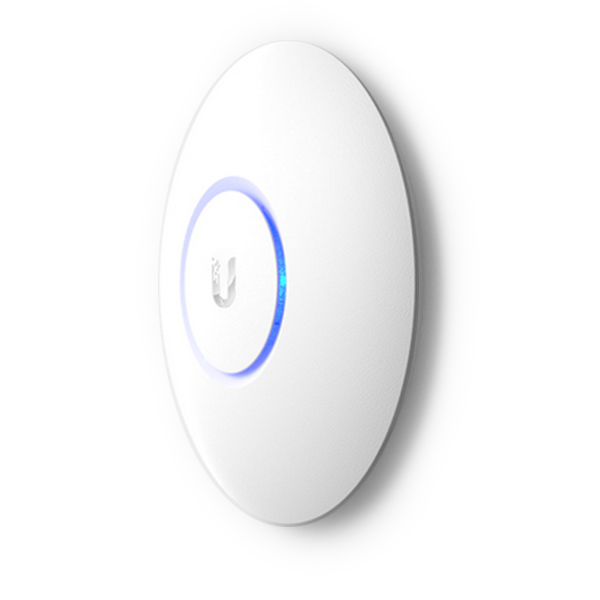

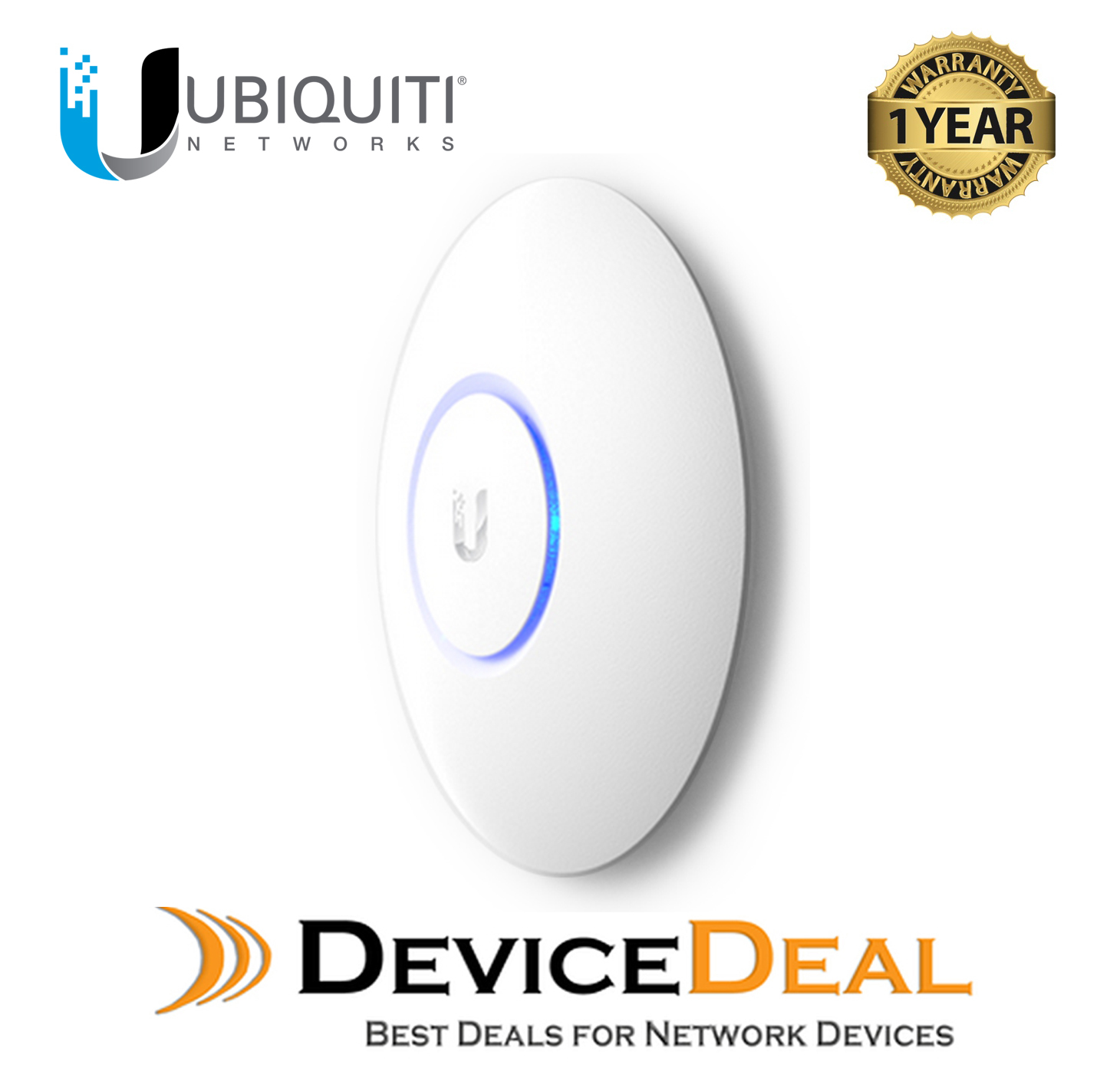

Ubiquiti UniFi AC Pro V2 Indoor & Outdoor AP, 2.4GHz @ 450Mbps, 5GHz @ 1300Mbps, 1750Mbps Total, Range Up 122m | POE Adapter Included

802.11ac PRO Access Point

The UniFi AC Pro AP features the latest Wi-Fi 802.11ac, 3x3 MIMO technology in a refined industrial design and is ideal for deployment of maximum‑performance wireless networks.



Up to 5X Faster with Dual-Radio 3x3 11AC MIMO Technology

The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.

Designed for Optimal RF Performance

The newly redesigned UniFi Controller optimizes RF performance:

Versatile Design

The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use.

Scalable Enterprise Wi-Fi Management

The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.



Ubiquiti Networks UAP-AC-PRO 802.11ac Dual-Radio Access Point - 802.11 a/b/g/n/ac - 2x 10/100/1000 Ethernet Ports - 1x USB 2.0 Port - 3x Dual-

Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi - 48V, 0.5A PoE Gigabit Adapter - 1 Year Warranty

The UniFi UAP-AC-PRO WiFi Access Point from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. This AP has a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. This WiFi system includes UniFi Controller software that can be installed on a PC, Mac or Linux machine within the network and is easily accessible through a standard web browser. Using this software, your enterprise WiFi network can be quickly configured and administered without any technical training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

This AP supports the 802.11ac WiFi standard with speeds of up to 1300Mb/s in the 5GHz radio band, and up to 450Mb/s in the 2.4GHz radio band. The system offers simultaneous dual band operation with 3 x 3 MIMO technology for each band. It has a range of up to 400' and 2 Gigabit Ethernet ports. Unlike previous UAP units, the UAP-AC-PRO has option of band steering (it will push clients to the less congested 5GHz spectrum) and also has a built-in spectral analyser that will help with choosing the right WiFi channel. The UAP-AC-PRO also allows for wireless uplink.

Easy customization options for guest portals include: authentication, hotspot setup, and the ability to use your own external portal server. You can also use UniFi's rate limiting for guest portal/hotspot package offerings to apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. The UniFi AP includes hotspot functionality (with built-in hotspot manager for voucher creation, guest management, payment refund, full customisation, and branding of portal pages) and built-in support for billing integration using major credit cards and built-in support for voucher-based authentication.

A single UniFi Controller running in the cloud can manage multiple sites, multiple, distributed deployments, and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portals, and administrator read/write, and read-only accounts.

The unit can be powered from included PoE adapter as well as the Ubiquiti Unifi Switch PoE (sold separately).

Technical Specifications:

• Networking Interface: (2) 10/100/1000 Ethernet Ports
• Antennas: (3) Dual-Band Antennas, 3 dBi Each
• it is weatherproof, indoor or outdoor
• Max TX Power: 2.4GHz: 22 dBm - 5GHz: 22 dBm
• Buttons: Reset
• Wifi Standards: 802.11 a/b/g/n/ac
• Power Method: Passive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC)
• Maximum Power Consumption: 9W, (20W with optional accessory)
• BSSID: Up to Four Per Radio
• Power Save: Supported
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Mounting: Wall and Ceiling

Ubiquiti UAP-AC-PRO UniFi AP AC PRO

Build your Wi-Fi network with the UniFi® ac Pro Access Point, part of the Ubiquiti Networks® UniFi Enterprise WiFi System. The UniFi AC Pro Access Point, is an indoor/outdoor, high-performance, 802.11ac dual-band access point, capable of speeds up to 1750 Mbps with a range of up to 122 meters.

Features:

• Simultaneous Dual-Band 3x3 MIMO
• 5 GHz Band with Speeds of up to 1300 Mbps
• 2.4 GHz Band with Speeds of up to 450 Mbps
• Range up to 122 meters (400 feet)
• 802.3af PoE / 802.3at PoE+ Compatible
• (2) Gigabit Ethernet Ports

The Ubiquiti Unifi UAP-AC-PRO UniFi Access Point Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 3 x 3 MIMO technology for each band. It has a range of up to 120m and two Gigabit Ethernet ports. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall, using the included mounting hardware.

The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

UniFi AP UAP-AC-PRO

Save Money and Save Time. The UniFi UAP-AC-PRO AP comes bundled with a non-dedicated software controller that can be deployed on an on-premise PC, Mac, or Linux machine, in a private cloud, or using a public cloud service.

Wi-Fi 802.11ac MIMO Technology The 802.11ac MIMO Technology offers Gigabit speeds and range up to 120m.

Intuitive UniFi Controller Software Install, configure, and manage all of the Ubiquiti UniFi APs with the intuitive and user-friendly UniFi controller user interface.

Expandable. Build wireless networks as big or small as needed. Start with one or more and expand to thousands, while maintaining a single unified management system.

Controller Ubiquiti UniFi Controller. Use the UniFi controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

Analytics. You can use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Guest Portal/Hotspot. Support Easy customisation options for guest portals include authentication, hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for guest portal/hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. The UniFi AP includes hotspot functionality. It includes built-in support for billing integration using major credit cards, and built-in support for voucher-based authentication. It also includes a built-in hotspot manager for voucher creation, guest management, payment refund, full customisation, and branding of hotspot portal pages.

Multi-Site Management. A single UniFi Controller running in the cloud can manage multiple sites, multiple, distributed deployments, and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portals, and administrator read/write, and read-only accounts.

WLAN Groups. The UniFi controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.

Maps. Upload map images of your location for a visual representation of each wireless network.

Statistics. UniFi organises and visualises network traffic in clear and easy-to-read graphs.

Extend Your Coverage. With the UniFi controller software running in an NOC or in the cloud, administrators can extend and centrally manage the wide areas of indoor and outdoor coverage, using any combination of UniFi APs.

Easy Mounting. Sleek wall or ceiling mount design (all accessories included).

Design UniFi UAP-AC-PRO has an industrial design with an LED provisioning ring or square, which provides administrator location tracking and alerts for each device.

Power over Ethernet (PoE) Power over Ethernet (PoE) functionality allows both power and data to be carried over a single Ethernet cable to the device.

The unit can be powered from Ubiquiti TOUGHSwitch PoE PRO and Edge Switches and Unifi Switches or any af/at switch (sold separately).
