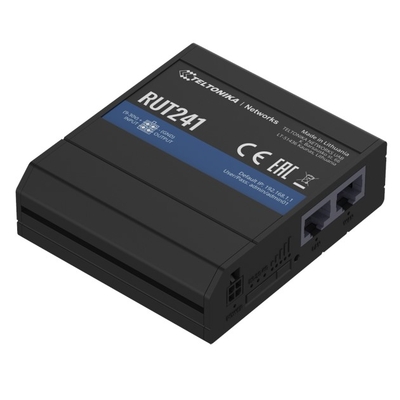

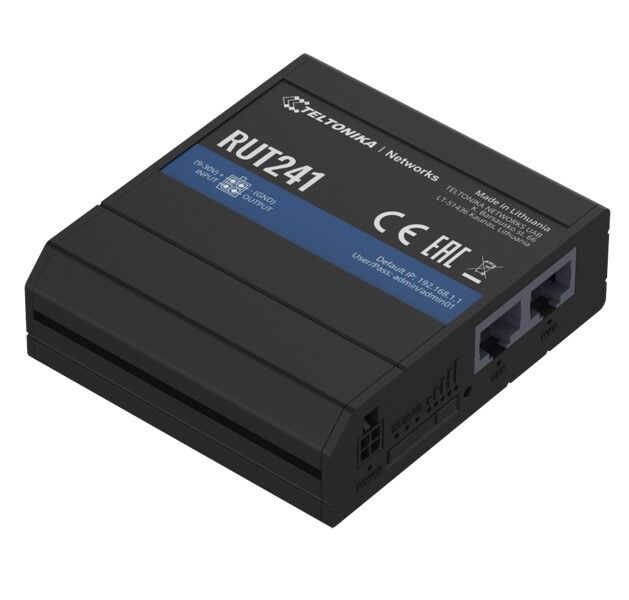

RUT241

Name: Teltonika Industrial Cellular Router, Instant LTE Failover, Compact and Powerful Industrial 4G LTE Router/Firewall, PSU included
Brand: TELTONIKA
SKU: RUT241
Price: 314 AUD
Availability: InStock

INDUSTRIAL 4G eSIM™ ROUTER

The RUT241 is a compact, industrial-grade cellular router designed for reliable and versatile connectivity in IoT and M2M applications. RUT241 features rugged design, multiple connection interfaces including 4G LTE, Wi-Fi, and two Ethernet ports, as well as full compatibility with Teltonika’s Remote Management System (RMS). With support for automatic WAN failover and advanced RutOS software, the RUT241 enables continuous connectivity and solution automation through its digital inputs and outputs. RUT241 includes eSIM™ functionality based on the SGP.22 architecture, allowing up to seven eSIM™ profiles alongside a physical SIM card—easily managed via WebUI and RMS—offering even greater flexibility for global deployment. A non-eSIM™ version is also available - see the order code for details.

CONNECTIVITY

4G LTE (Cat 4), 3G, 2G

eSIM™

Seamless connectivity with eSIM™ SGP.22

Wi-Fi

Wireless Access Point with Hotspot functionality

RMS

For easy & convenient eSIM™ profile management

4G Router for Photo Booth-to-server Data Transfer

Category	Feature	Description
Mobile	Mobile module	4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
	3GPP Release	Release 10/11 depending on the hardware version
	eSIM*	Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
	SIM switch*	1 x 2FF SIM and 1 x eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
	Status	IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
	SMS	SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
	USSD	Supports sending and reading Unstructured Supplementary Service Data messages
	Block/Allow list	Operator block/allow list (by country or separate operators)
	Multiple PDN	Possibility to use different PDNs for multiple network access and services
	Band management	Band lock, Used band status display
	SIM PIN code management	SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
	APN	Auto APN
	Bridge	Direct connection (bridge) between mobile ISP and device on LAN
	Passthrough	Router assigns its mobile WAN IP address to another device on LAN
Wireless	Wireless mode	802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
	Wi-Fi security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
	SSID/ESSID	SSID stealth mode and access control based on MAC address
	Wi-Fi users	Up to 50 simultaneous connections
	Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
	Wireless MAC filter	Allowlist, blocklist
	Wireless QR code generator	Once scanned, a user will automatically enter your network without needing to input login information
	TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device
Ethernet	WAN	1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
Ethernet	LAN	1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Network	Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
	Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
	VoIP passthrough support	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
	Connection monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
	Firewall	Port forward, traffic rules, custom rules, TTL target customisation
	Firewall status page	View all your Firewall statistics, rules, and rule counters
	Ports management	View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
	Network topology	Visual representation of your network, showing which devices are connected to which other devices
	Hotspot	Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
	DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
	QoS / Smart Queue Management (SQM)	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
	DDNS	Supported >25 service providers, others can be configured manually
	DNS over HTTPS	DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
	Network backup	Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
	Load balancing	Balance Internet traffic over multiple WAN connections
	SSHFS	Possibility to mount remote file system via SSH protocol
	Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history
Security	Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
	Firewall	Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
	Attack prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
	VLAN	Port and tag-based VLAN separation
	Mobile quota control	Mobile data limit, customizable period, start time, warning limit, phone number
	WEB filter	Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
	Access control	Flexible access control of SSH, Web interface, CLI and Telnet
	SSL certificate generation	Let's Encrypt and SCEP certificate generation methods
	802.1x	Port-based network access control server
VPN	OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
	OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
	IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
	GRE	GRE tunnel, GRE tunnel over IPsec support
	PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
	Stunnel	Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
	DMVPN	Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
	SSTP	SSTP client instance support
	ZeroTier	ZeroTier VPN client support
	WireGuard	WireGuard VPN client and server support
	Tinc	Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
OPC UA	Supported modes	Client, Server
OPC UA	Supported connection types	TCP
MODBUS	Supported modes	Server, Client
	Supported connection types	TCP
	Custom registers	MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
	Supported data formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER	Protocol	HTTP(S), MQTT, Azure MQTT
DATA TO SERVER	Data to server	Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway	Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3	Supported modes	Station, Outstation
DNP3	Supported connection	TCP
DLMS/COSEM	DLMS Support	DLMS - standard protocol for utility meter data exchange
	Supported modes	Client
	Supported connection types	TCP
API	Teltonika Networks Web API (beta) support	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation:https://developers.teltonika-networks.com
Monitoring & Management	WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
	FOTA	Firmware update from server, automatic notification
	SSH	SSH (v1, v2)
	SMS	SMS status, SMS configuration
	Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
	TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
	MQTT	MQTT Broker, MQTT publisher
	SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
	JSON-RPC	Management API
