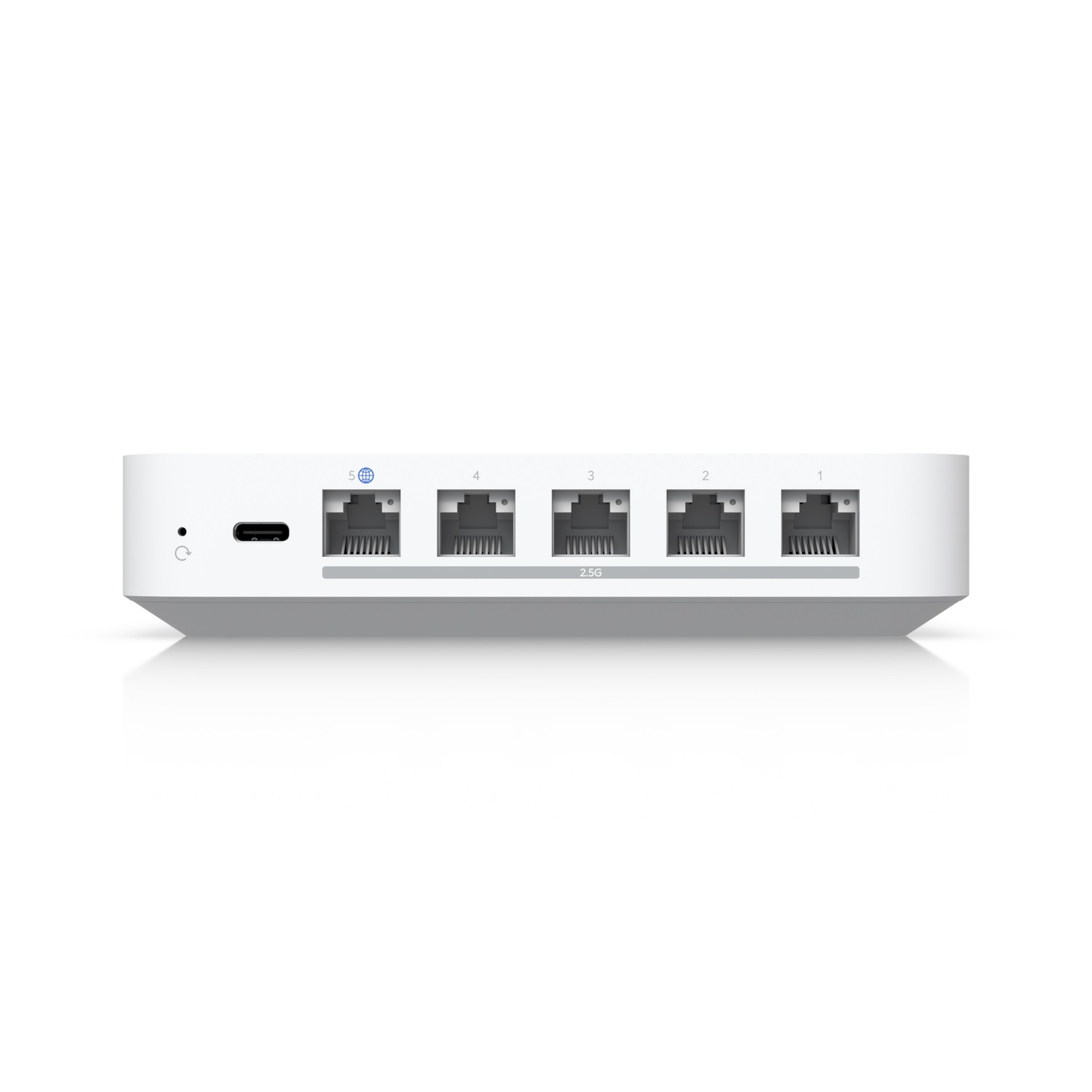

Ubiquiti Cloud Gateway Max, Compact 2.5G With 30+ UniFi device/300+ Client Support, 1.5 Gbps IPS Routing, 512GB NVMe SSD Included
Model # UCG-MAX
-
SKU: UCG-MAX
- Pick Up Available
- Australian Warranty
- Checkout Securely
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.
Includes full UniFi application suite for device management
Manages 30+ UniFi devices and 300+ clients
1.5 Gbps routing with IDS/IPS
Multi-WAN load balancing
512 GB NVMe SSD storage for NVR
0.96" LCM status display
USB-C powered (adapter included)
Key Features:
- 2.5 Gbps Routing Capability: Ensures fast and reliable data transfer, essential for operations that require high bandwidth.
- IDS/IPS Security: Adds an extra layer of protection against intrusions and malicious attacks, keeping your network secure.
- Multi-WAN Load Balancing: Optimizes internet traffic distribution, enhancing connection reliability and preventing downtime.
- Compact Design: A sleek 0.96" LCM status display provides real-time monitoring and quick status checks, all within a minimal footprint.
- USB-C Powered: Offers ease of use and compatibility with contemporary power standards.
The UCG-MAX is the ideal solution for growing enterprises, combining powerful features with a user-friendly interface to ensure your network operates smoothly and securely.
(UCG-MAX)
| Cloud Gateway Series | ||||
|---|---|---|---|---|
| Overview | ||||
| Dimensions | 307.9 x 203.5 x 43.7 mm Wall/Stand mounted |
212.8 x 127.6 x 30 mm | 141.8 x 127.6 x 30 mm | 141.8 x 127.6 x 30 mm |
| UniFi Applications Protect, Access, Talk, Connect |
||||
| Managed UniFi Devices | 50+ | 50+ | 30+ | 30+ |
| Managed Cameras | (15) HD, (8) 2K, (5) 4K | (15) HD, (8) 2K, (5) 4K | (15) HD, (8) 2K, (5) 4K | |
| Simultaneous Users | 500+ | 500+ | 300+ | 300+ |
| IDS/IPS Throughput | 5 Gbps | 5 Gbps | 2.3 Gbps | 1 Gbps |
| Networking & Ports | ||||
| Default WAN Ports | (1) 10G SFP+ (1) 10 GbE RJ45 |
(1) 2.5 GbE RJ45 | (1) 10G SFP+ (1) 10 GbE RJ45 |
(1) 2.5 GbE RJ45 |
| Port Layout: 2.5 GbE | 4 (2 PoE+++, 2 PoE+) | 4 (2.5G/1G/100M) | 5 (2.5G/1G/100M) | 1 (2.5G/1G/100M) |
| Integrated WiFi | WiFi 7 (802.11be) | |||
| Hardware & Power | ||||
| NVR Storage | 128 GB microSD pre-installed | Selectable NVMe SSD (Up to 2TB) | Selectable NVMe SSD (Up to 2TB) | |
| PoE Budget | 270W (DC Input) | 30W | ||
| Max. Power Consumption | 28W (Excl. PoE) | 29.4W (Excl. PoE) | 16.1W | 6.2W |
| Power Method | DC Input / ATX Power | DC Jack (54V) | USB-C (5V, 5A) | USB-C (5V, 3A) |
| Processor | Quad-core A73 @ 2.2 GHz | Quad-core A73 @ 2.2 GHz | Quad-core A53 @ 1.5 GHz | Quad-core A53 @ 1.5 GHz |
| Weight | 2.4 kg (5.3 lb) | ~700 g | ~500 g | 520 g (1.1 lb) |
| Certifications | CE, FCC, IC | CE, FCC, IC, SRRC, Anatel | CE, FCC, IC, Anatel, SRRC | CE, FCC, IC, Anatel, SRRC |
Mechanical
Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight 519 g (1.1 lb)
Enclosure material Polycarbonate
Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System memory 4 GB DDR4
On-board storage 512 GB NVMe SSD
Management interface Ethernet
Bluetooth
Networking interface LAN:
(4) 1/2.5 GbE RJ45 ports
WAN:
(1) 1/2.5 GbE RJ45 port
IDS/IPS throughput 1.5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method USB type C (5V DC/5A)
Supported voltage range 100–240V AC
Max. power consumption 16.1W
LCM display 0.96" status display
Button Factory reset
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet Green: link/activity
Application Requirements
Mobile app UniFi iOS™ and Android™: Version 10.17.2 and later
| SKU | UCG-MAX |
| Barcode # | 810084697221 |
| Brand | Ubiquiti |
| Shipping Weight | 1.2000kg |
| Shipping Width | 0.141m |
| Shipping Height | 0.030m |
| Shipping Length | 0.127m |
| Shipping Cubic | 0.000537210m3 |
Manufacturer Warranty : 1 Year Manufacturer Warranty
