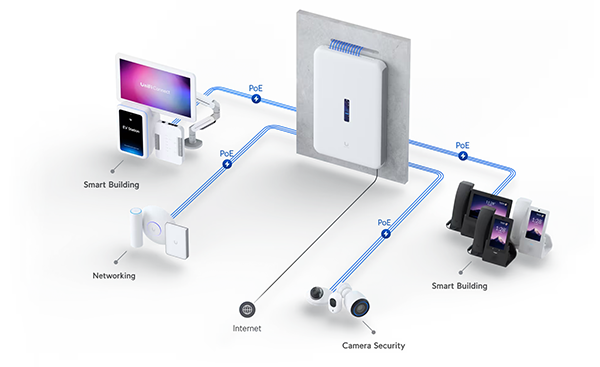

Wall-mountable UniFi Cloud Gateway with a built-in WiFi 6 access point, PoE switching, and full UniFi application support.

Integrated Enterprise WiFi6 (4x4 MIMO)

Full UniFi OS and UniFi application support

3.5+ Gbps routing

(1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports

(1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports

4.7" touchscreen for management

Integrated 128 GB SSD & pre-installed 512 GB microSD card

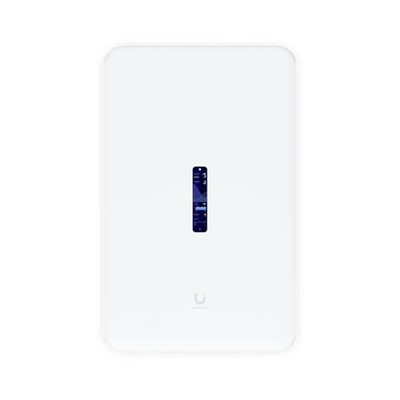

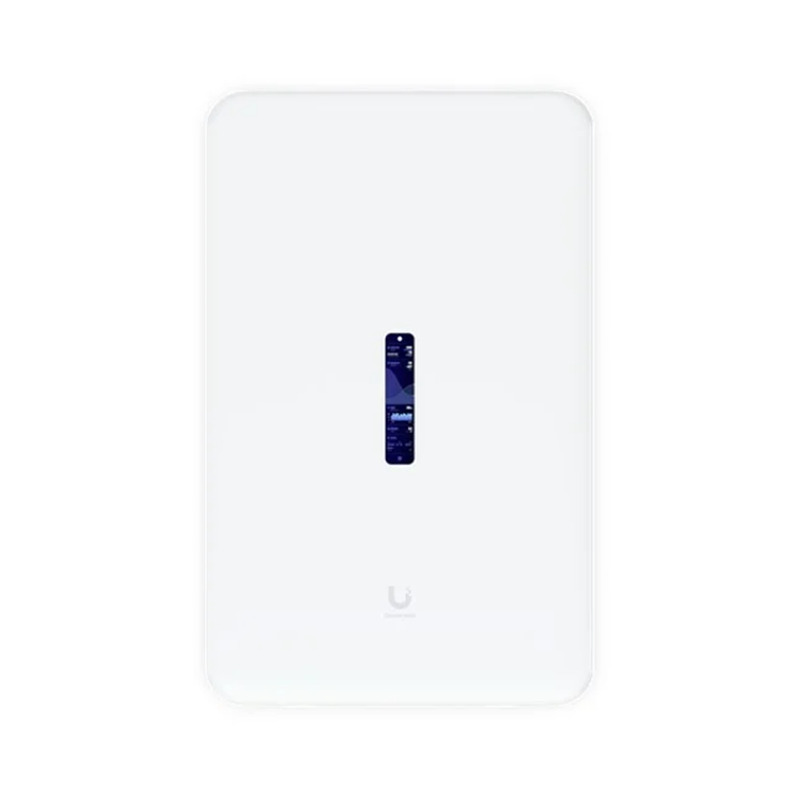

Ubiquiti UniFi Dream Wall All-in-One Internet Gateway

  • Dimensions: 549 x 342 x 62 mm
  • Processor: Quad-Core ARM Cortex-A57
  • System Memory: 4GB DDR4
  • Storage: 16GB eMMC, Intergrated 128GB SSD, Pre-Installed 512GB MicroSD Card
  • Management Interface: Ethernet, Bluetooth, WiFi
  • Networking Interface: 17x LAN GbE RJ-45, 1x WAN 2.5 GbE - SFP / PoE Ports
  • Max Power Consumption: 532W

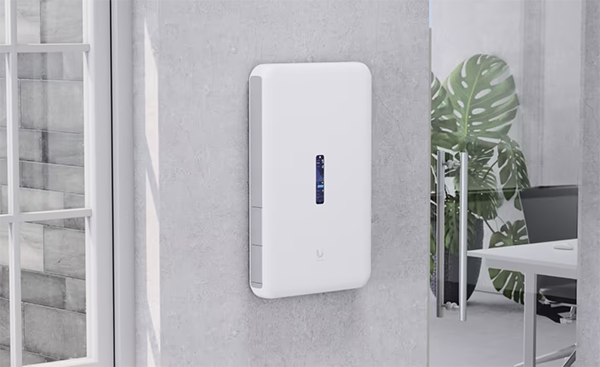

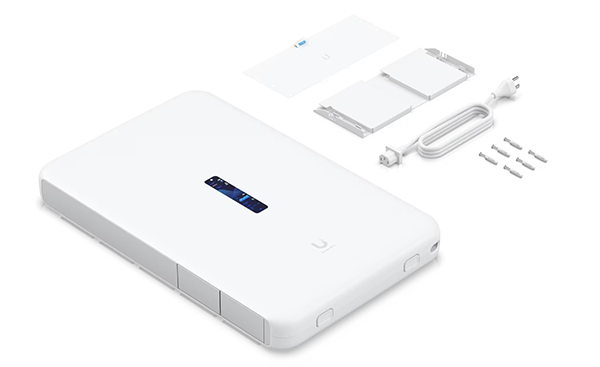

  • Wall Mount Included
  • WiFi 6 Standards

Ubiquiti UniFi Dream Wall All-in-One Access Point

Ubiquiti UniFi Dream Wall All-in-One Access Point

Ubiquiti UniFi Dream Wall All-in-One Access Point

Ubiquiti UniFi Dream Wall All-in-One Access Point

Ubiquiti UniFi Dream Wall All-in-One Access Point

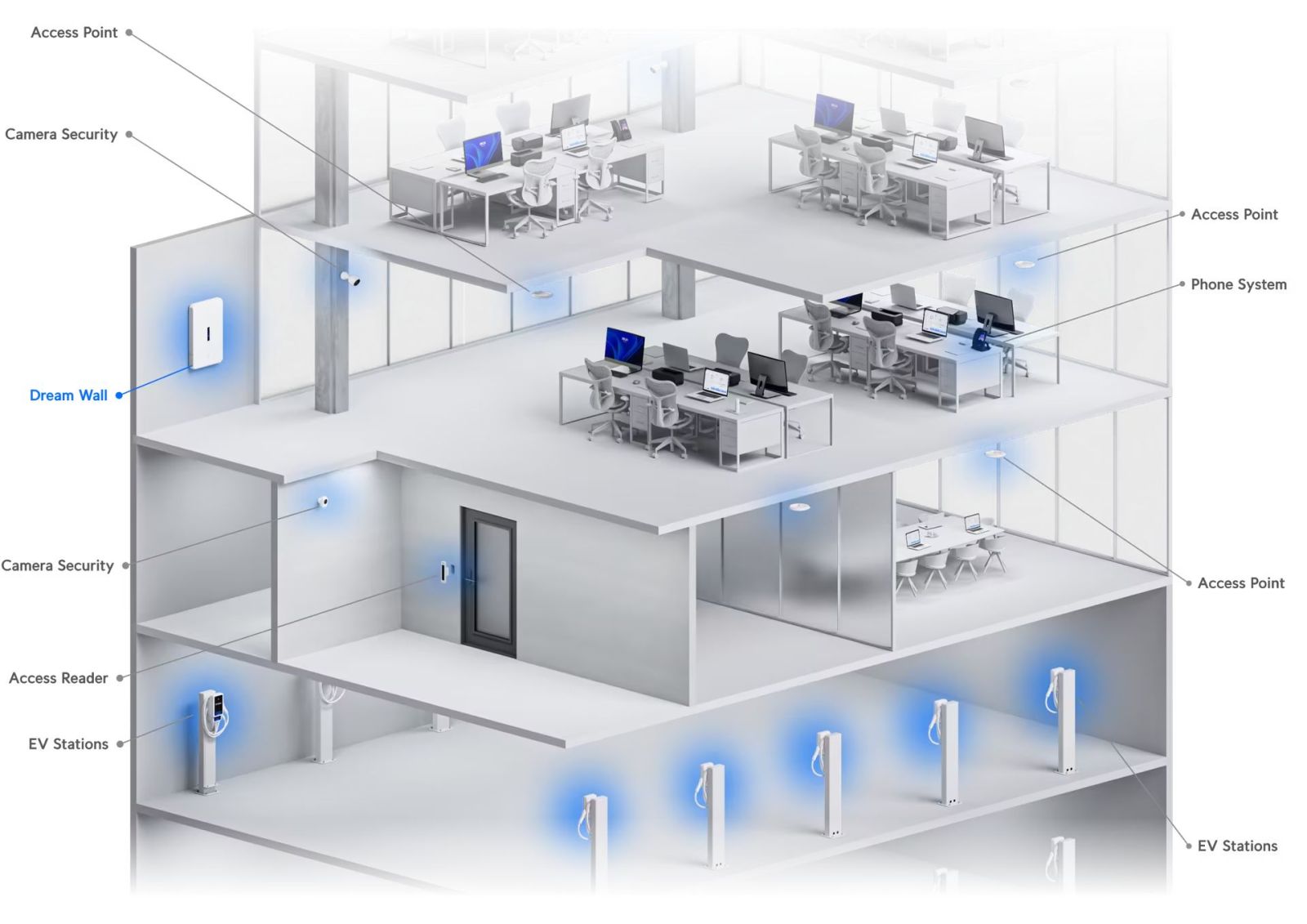

Wall-mountable UniFi Gateway Console with a built-in high-speed access point, network video recorder, and PoE switch.

Integrated Enterprise WiFi6 (4x4 MIMO)

Full UniFi OS and UniFi application support

3.5+ Gbps routing

(1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports

(1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports

4.7" touchscreen for management

Integrated 128 GB SSD & pre-installed 512 GB microSD card



Dream Wall

Wall-mountable gateway firewall with an integrated WiFi access point, PoE switching, and full UniFi application support.

3.5+ Gbps IDS/IPS throughput

Integrated Enterprise WiFi 6 (4x4 MIMO)

(1) 2.5 GbE RJ45 WAN port

(1) 10G SFP+ WAN port

(1) 10G SFP+ LAN port

(4) PoE++ GbE RJ45 LAN ports

(4) PoE+ GbE RJ45 LAN ports

(4) PoE GbE RJ45 LAN ports

(4) GbE RJ45 LAN ports

4.7” touchscreen for management

128 GB SSD to record detections

Pre-installed 512 GB microSD card for NVR





(UDW)

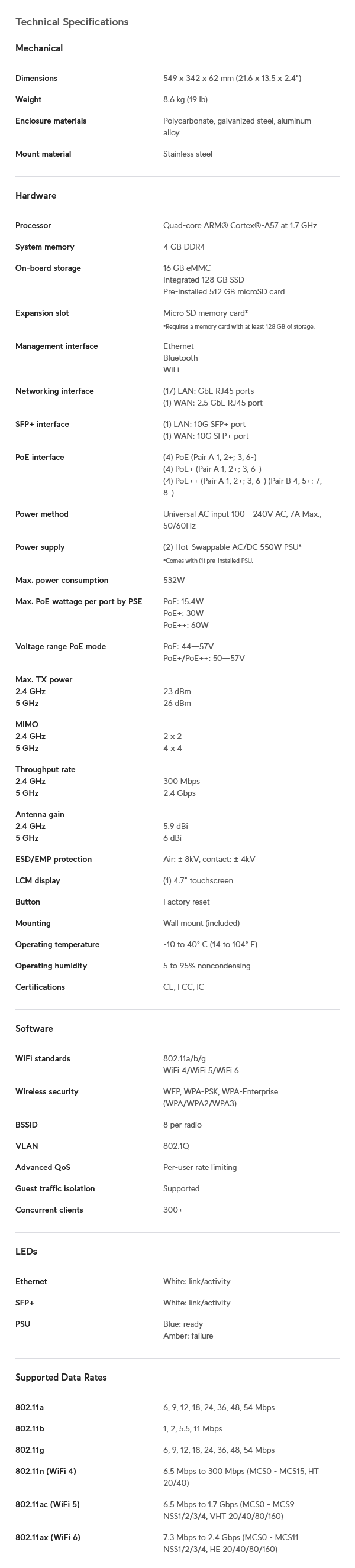

Mechanical

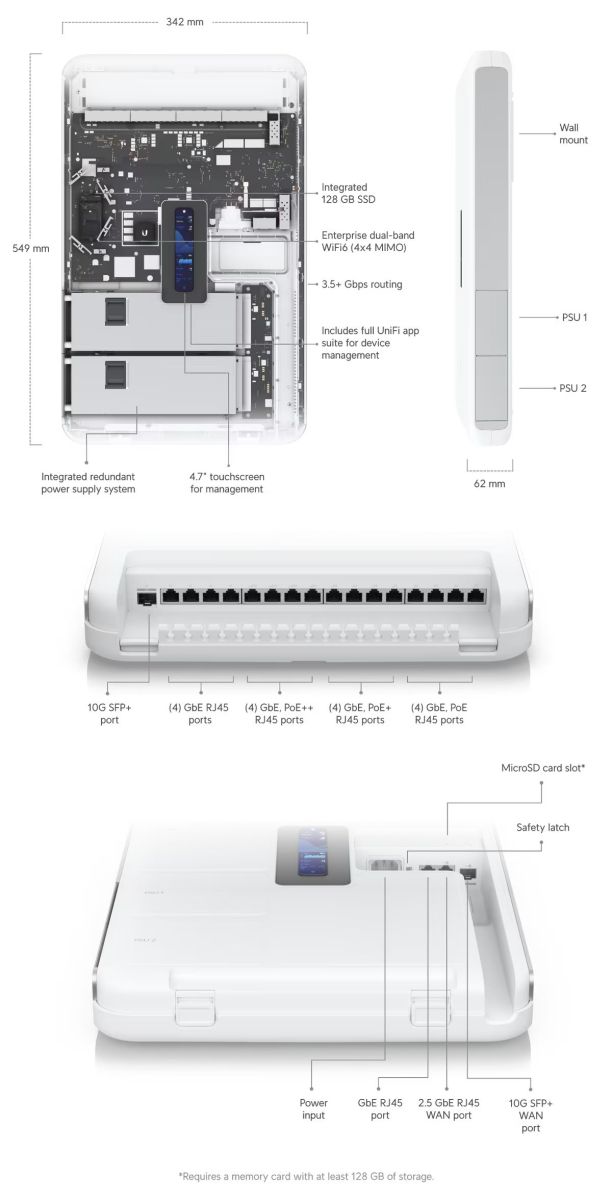

Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
Weight 8.6 kg (19 lb)
Enclosure materials Polycarbonate, galvanized steel, aluminum alloy
Mount material Stainless steel
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC
Integrated 128 GB SSD
Pre-installed 512 GB microSD card
Expansion slot Micro SD memory card*
*Requires a memory card with at least 128 GB of storage.
Management interface Ethernet
Bluetooth
WiFi
Networking interface (17) LAN: GbE RJ45 ports
(1) WAN: 2.5 GbE RJ45 port
SFP+ interface (1) LAN: 10G SFP+ port
(1) WAN: 10G SFP+ port
PoE interface (4) PoE (Pair A 1, 2+; 3, 6-)
(4) PoE+ (Pair A 1, 2+; 3, 6-)
(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power method Universal AC input 100—240V AC, 7A Max., 50/60Hz
Power supply (2) Hot-Swappable AC/DC 550W PSU*
*Comes with (1) pre-installed PSU.
Max. power consumption 532W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+/PoE++: 50—57V
Max. TX power
2.4 GHz
5 GHz

23 dBm
26 dBm
MIMO
2.4 GHz
5 GHz

2 x 2
4 x 4
Throughput rate
2.4 GHz
5 GHz

300 Mbps
2.4 Gbps
Antenna gain
2.4 GHz
5 GHz

5.9 dBi
6 dBi
ESD/EMP protection Air: ± 8kV, contact: ± 4kV
LCM display (1) 4.7" touchscreen
Button Factory reset

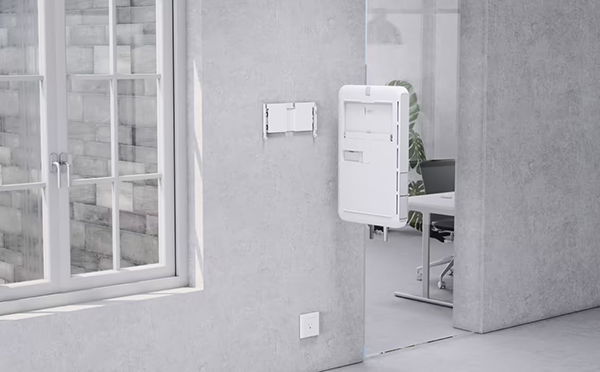

Mounting Wall mount (included)
Operating temperature -10 to 40° C (14 to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and UID VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
LEDs
Ethernet White: link/activity
SFP+ White: link/activity
PSU Blue: ready
Amber: failure
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
SKU UDW
Barcode # 810010079572
Brand Ubiquiti
Shipping Weight 4.0000kg

Manufacturer Warranty: 1 Year Manufacturer Warranty
