5.5 million PPS
7.5Gbps
IPsec up to 2.2Gbps with AES128
Overclock up to 2GHz

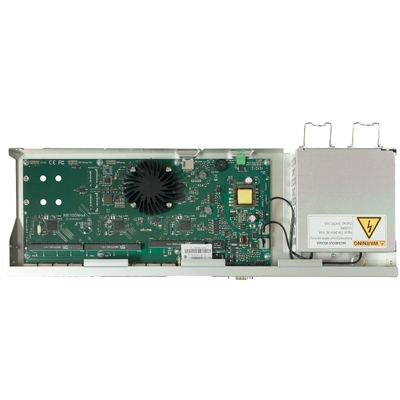

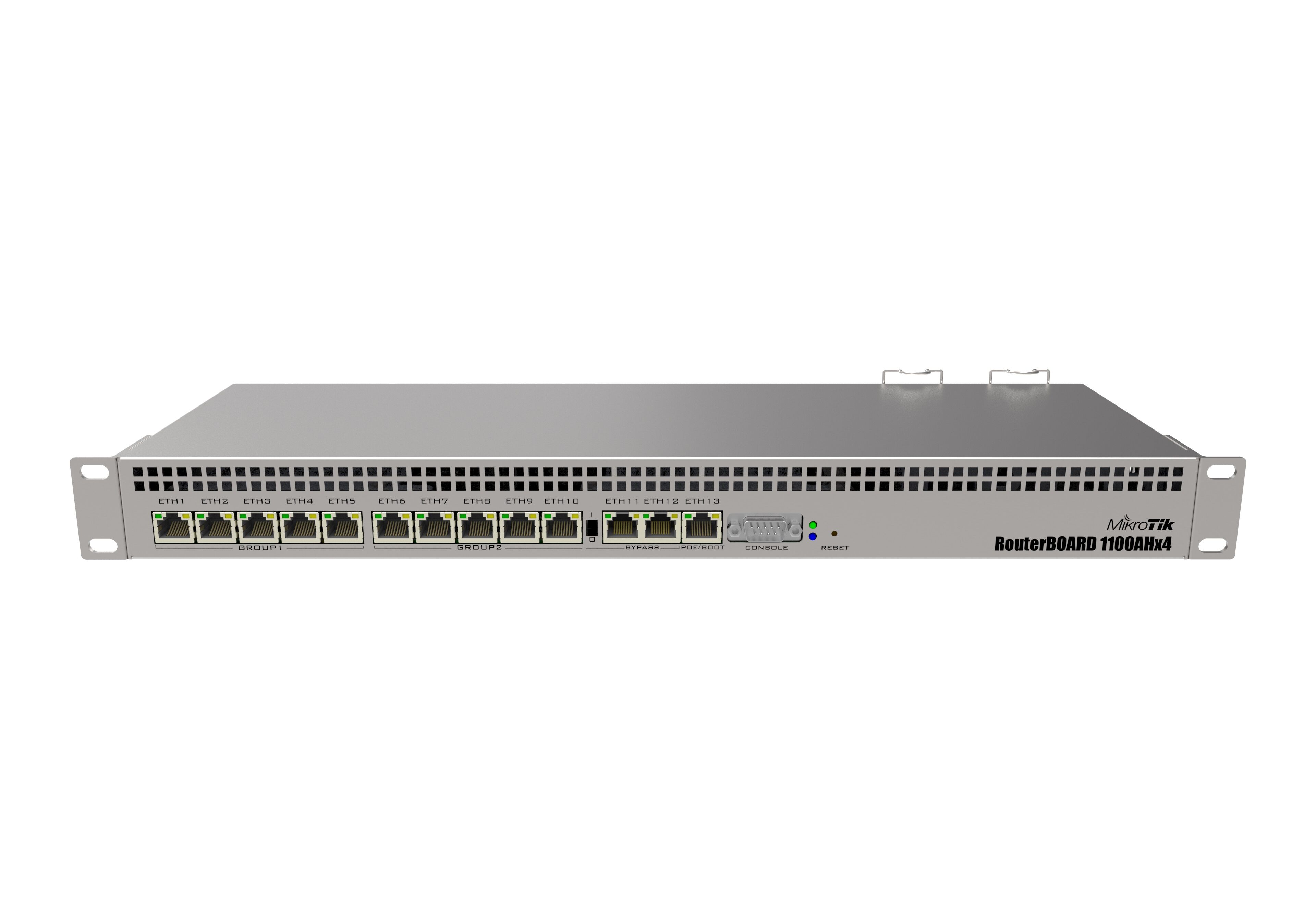

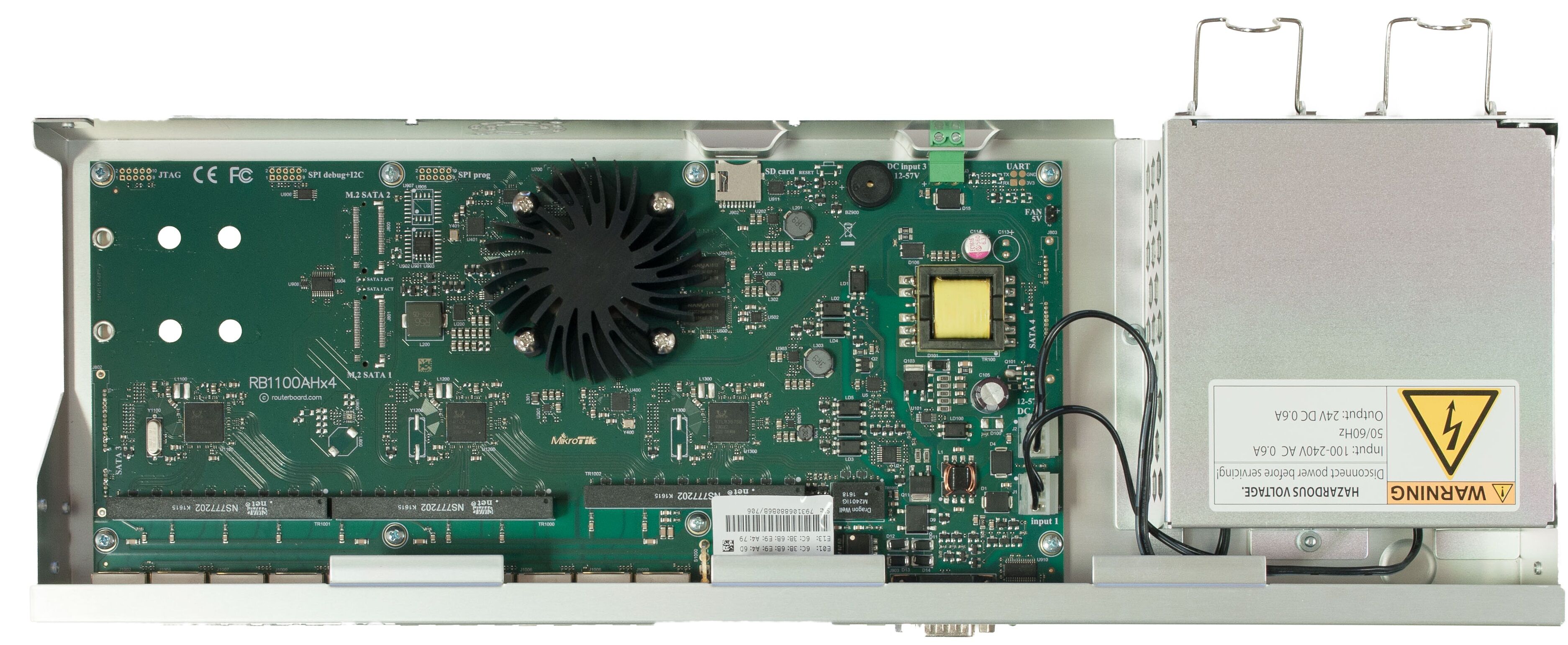

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

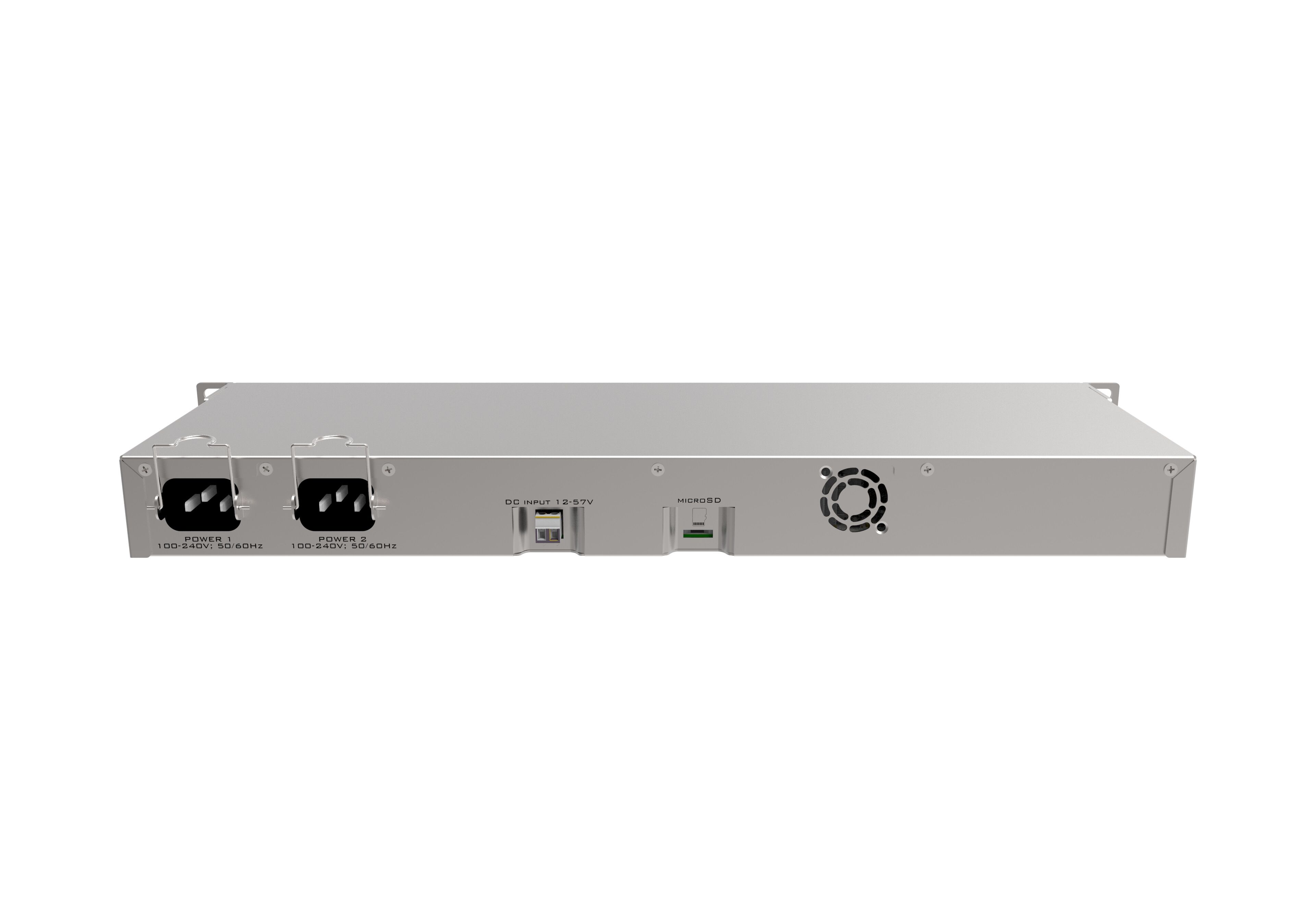

The router features two IEC failover power connectors, supports passive or 802.3at/af PoE input and has a DC telecom power connector for -48V DC powering.

It uses passive cooling and is absolutely quiet.

(RB1100AHx4)

Specifications
Product code	RB1100x4
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1.4 GHz
Switch chip model	RTL8367
Dimensions	443 x 148 x 44 mm
RouterOS license	6
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
IPsec hardware acceleration	Yes
Tested ambient temperature	-40°C to 70°C
Powering
Number of AC inputs	2
Number of DC inputs	2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage	-48, 12-57 V
AC input range	100-240
Max power consumption	20 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	20-57 V
Ethernet
10/100/1000 Ethernet ports	13
Peripherals
Memory card type	microSD
Serial console port	RS232
Memory Cards	1
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20
Other
Mode button	Yes
PCB temperature monitor	Yes
Current Monitor	Yes
Voltage Monitor	Yes
Beeper	Yes
