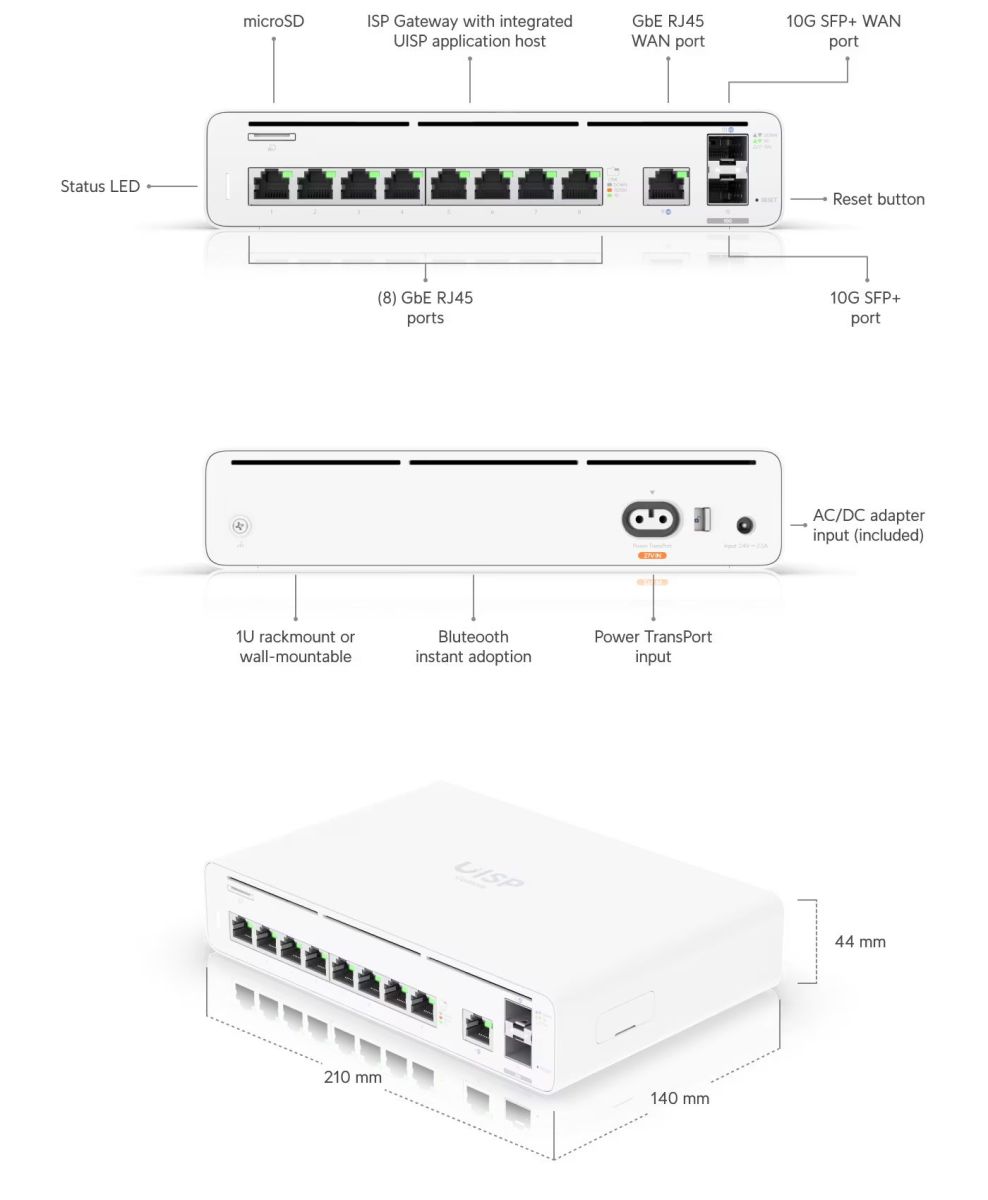

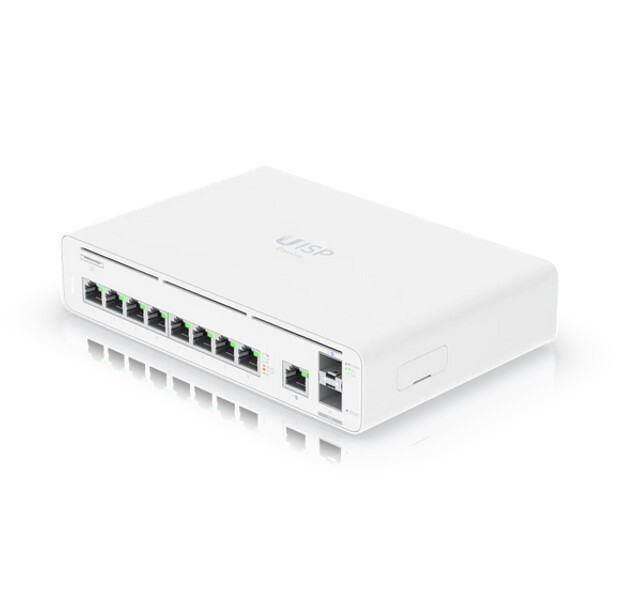

Ubiquiti UISP-Console UISP Host Console with an integrated switch and Multi-gigabit Ethernet Gateway

UISP host console with an integrated switch and multi-gigabit Ethernet gateway.

(9) GbE RJ45 ports

(2) 10G SFP+ ports

Up to 8,500 Mbps NAT throughput*

Powered by an external AC/DC adapter (included)

Additional Power TransPort input for DC redundancy

1U rack or wall-mountable (kits included)

*Up to 2,250 Mbps with QoS enabled; up to 7,500 Mbps with IP Accounting enabled.

(UISP-CONSOLE)

Mechanical
Dimensions 210.4 x 140.2 x 43.7 mm (8.3 x 5.5 x 1.7")
Weight 1.5 kg (3.2 lb)
Enclosure materials SGCC steel, polycarbonate
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory 4 GB DDR4
Onboard flash storage 16 GB eMMC
Onboard storage 128 GB SSD
Card slot (1) microSD
Networking interface (8) LAN: GbE RJ45 ports
(1) LAN: 1/10G SFP+ port

(1) WAN: GbE RJ45 port
(1) WAN: 1/10G SFP+ port
Management interface Ethernet In-band
Bluetooth
Power method (1) External AC/DC adapter
(1) Power TransPort DC input 27V DC, 1.5A
Power supply 24V DC, 2.5A power adapter (included)
Supported voltage range 24—28V DC
Max. power consumption 30W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
RJ45 data ports Speed/link/activity
SFP+ data ports Speed/link/activity
SKU UISP-CONSOLE
Barcode # 810010077455
Brand Ubiquiti
Shipping Weight 2.7400kg

Manufacturer Warranty: 1 Year Manufacturer Warranty
