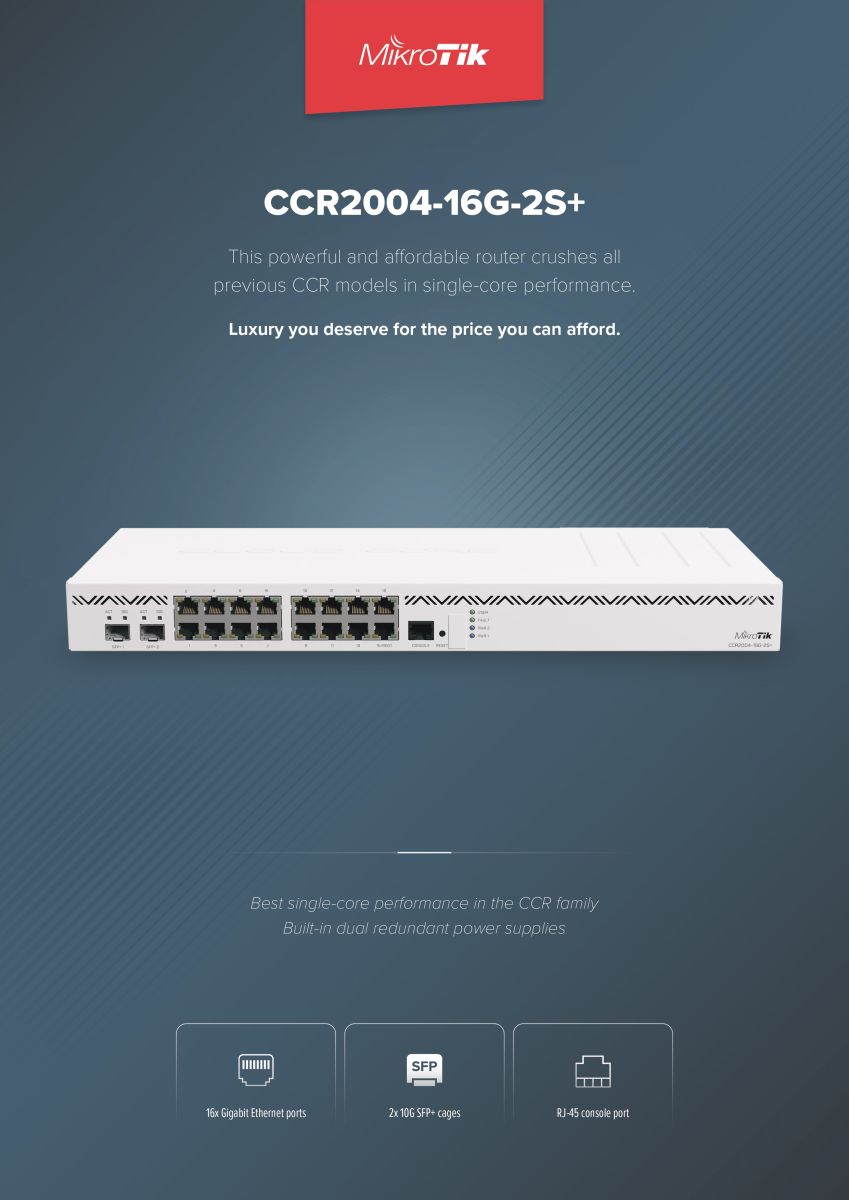

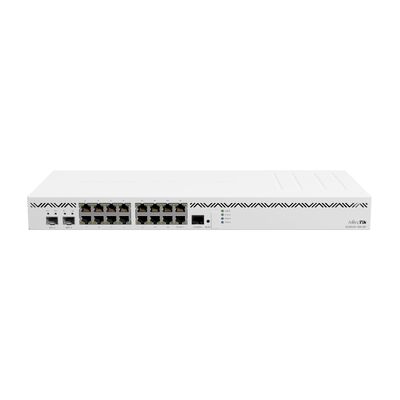

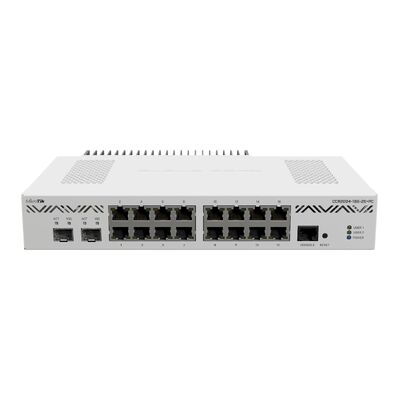

CCR2004-16G-2S+This powerful and affordable router crushes all previous CCR models in single-core performance. 16x Gigabit Ethernet ports, 2x10G SFP+ cages, active cooling and the best single-core performance per watt & best overall performance per watt among all the CCR devices.

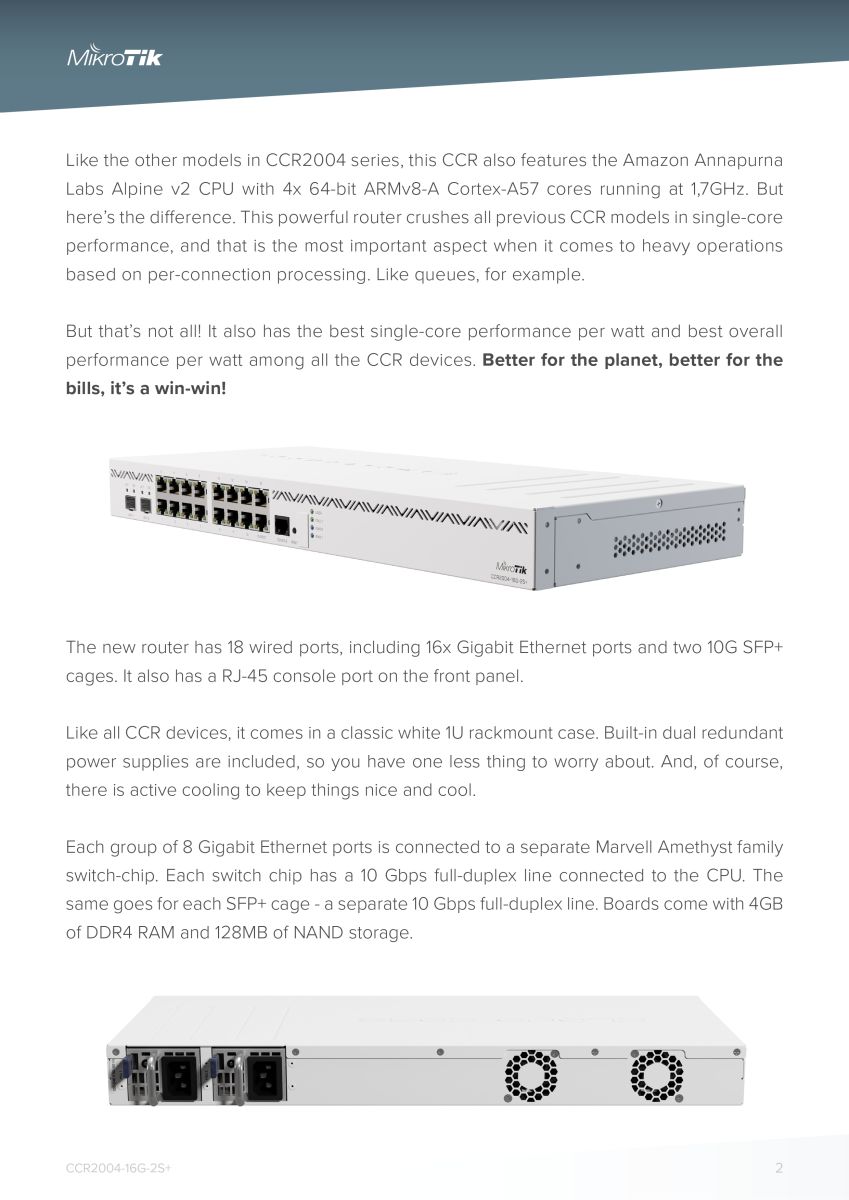

Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win!

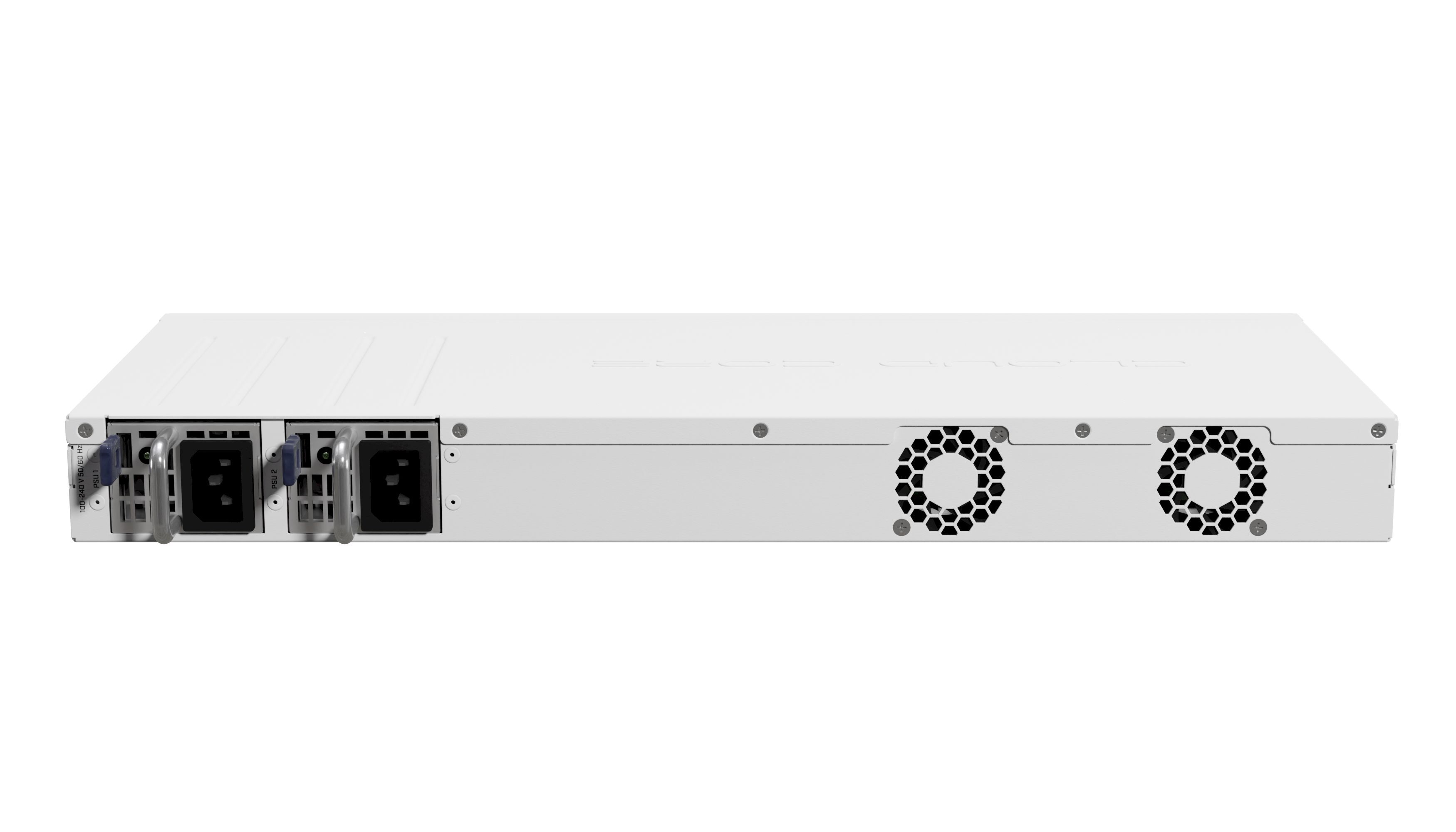

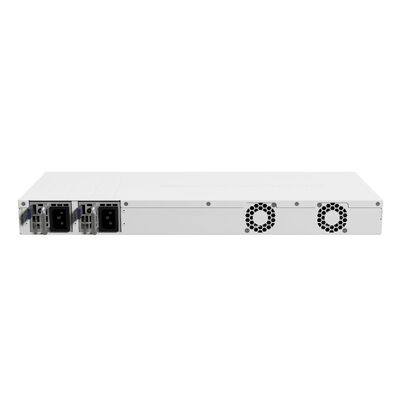

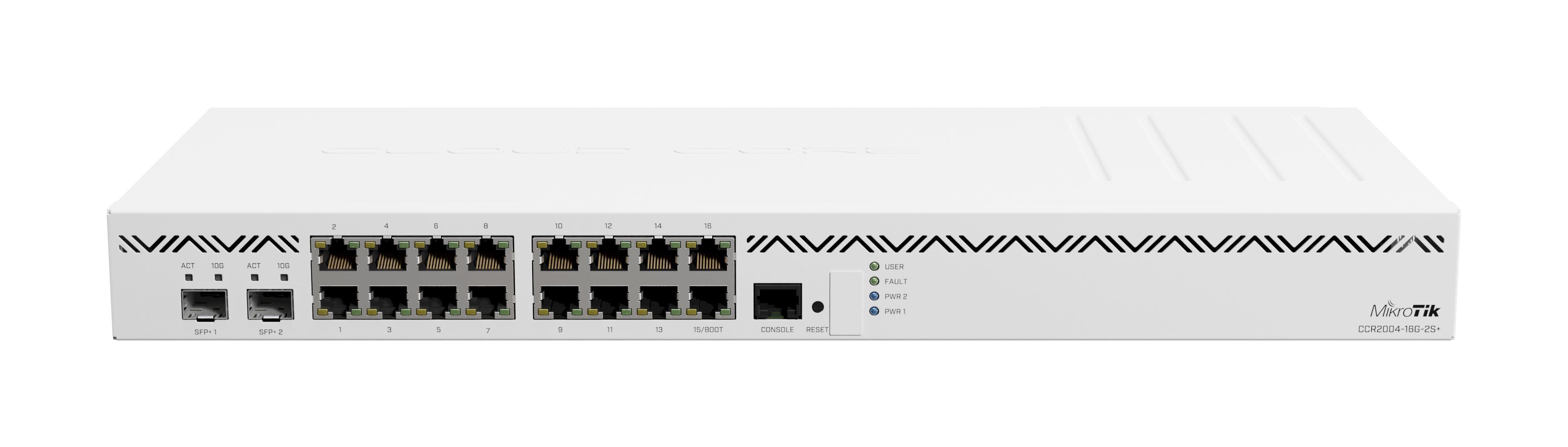

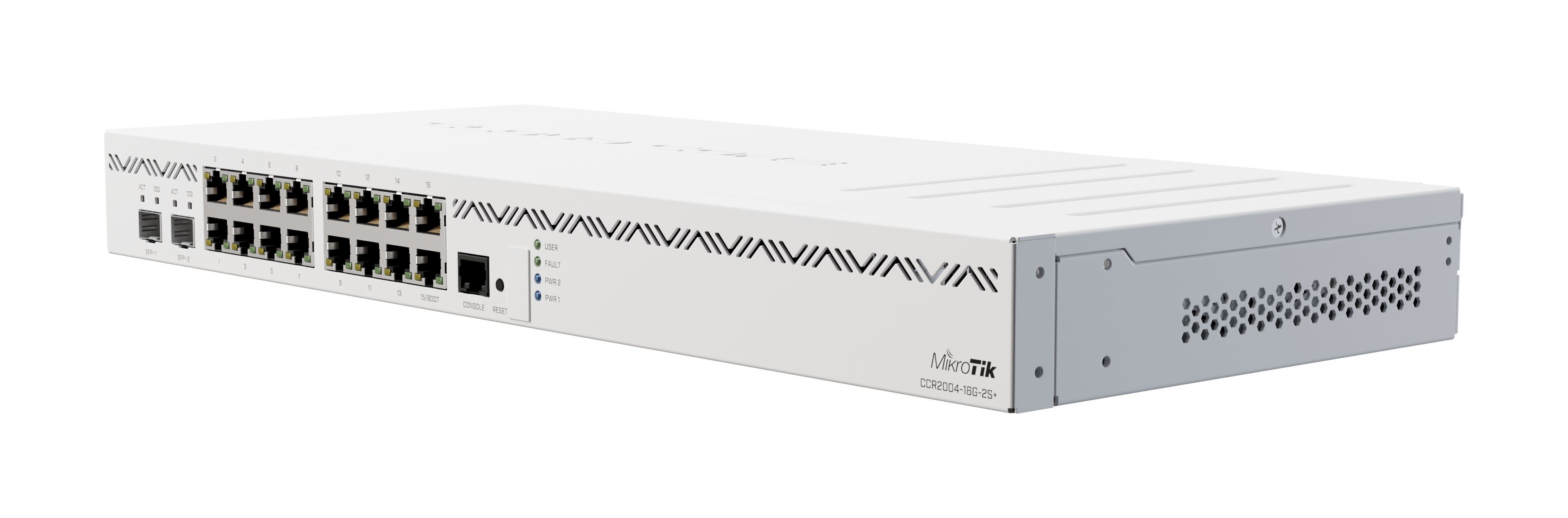

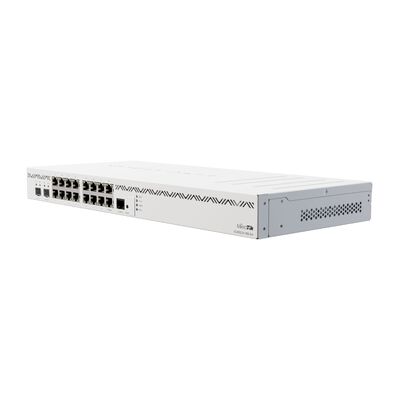

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.

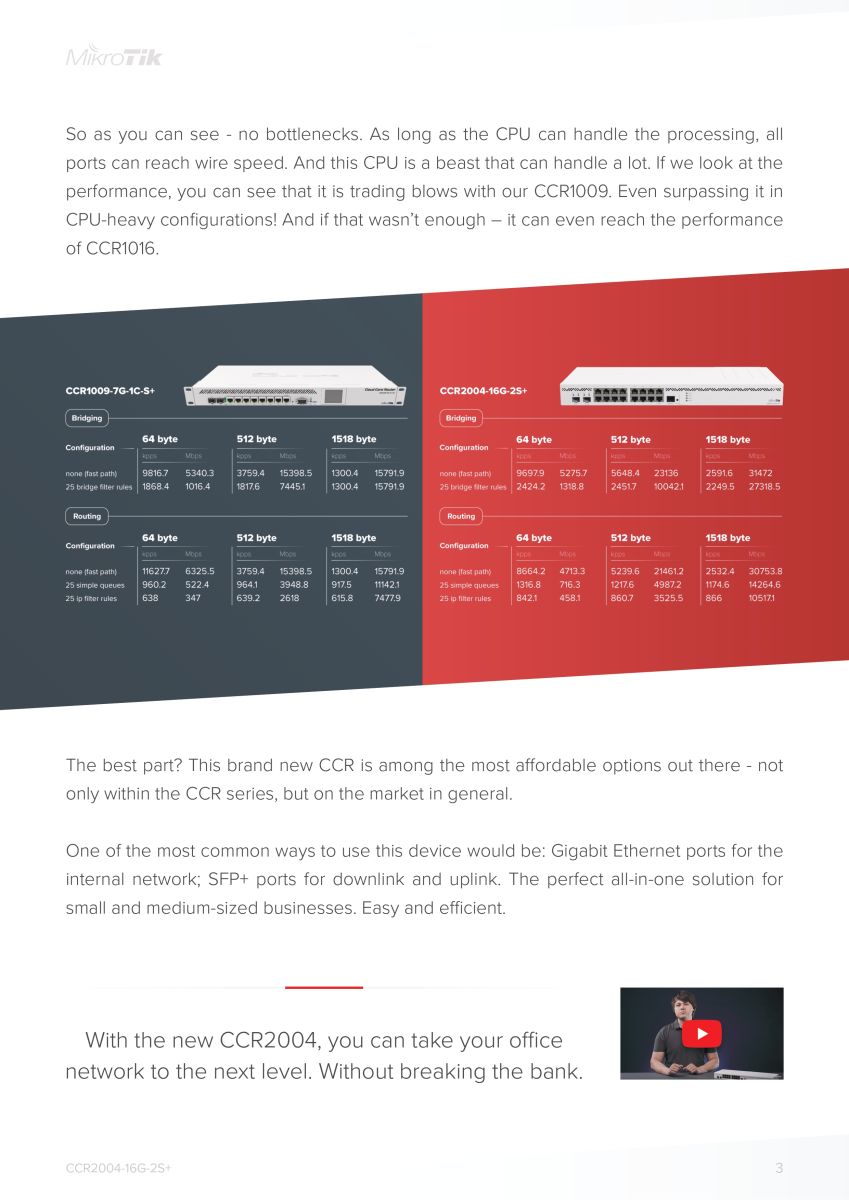

So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. Even surpassing it in CPU-heavy configurations! And if that wasn’t enough – it can even reach the performance of CCR1016.

The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general.One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.

With the new CCR2004, you can take your office network to the next level. Without breaking the bank.

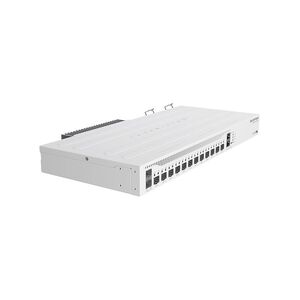

The Connectivity Router - your best companion when it comes to SFP+ and SFP28 management. 10 and 25 Gbps ports in a single device to make your life easier. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime. With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations.4x CPU Core1.7GHz CPU DDR4 RAM - RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC1x 1G Ethernet Ports 12x 10G SPF+ Ports2x 25G SFP28 PortsMax power consumption 49WRouterOS L6Single Tunnel speed (AES-128-CBC + SHA1) - 3,4Gbit/s

(CCR2004-16G-2S)

Specifications

Details
Product code CCR2004-16G-2S+
Architecture ARM 64bit
CPU AL32400
CPU core count 4
CPU nominal frequency 1700 MHz
Switch chip model 88E6191X
Dimensions 443 x 210 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 4 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes

Powering

Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 50-60
Max power consumption 48 W
Max power consumption without attachments 35 W
Cooling type 2 fans

Ethernet

Details
10/100/1000 Ethernet ports 16

Fiber

Details
SFP+ ports 2

Peripherals

Details
Serial console port RJ45

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20
SKU CCR2004-16G-2S
Barcode # 4752224007704
Brand MIKROTIK
Shipping Weight 2.4000kg

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

MikroTik CCR2004-16G-2S+ 1U RM, 16xGbit LAN 2xSFP cage, 2xSFP+ cage, 4 Core 1.7GHz CPU, 4GB, Dual P/S

Model # CCR2004-16G-2S+

  • SKU: CCR2004-16G-2S

$780.00
$849.00
SAVE $69.00 (8%)
In Stock
