Ubiquiti UA-G2-SK-PRO UniFi Access Gen 2 Pro Starter Kit - Comprehensive UniFi Access Starter Kit - UniFi Dream Machine Pro required
Model# UA-G2-SK-PRO
-
SKU: UA-G2-SK-PRO
- Pick Up Available
- Australian Warranty
- Checkout Securely
**Requires UDM-PRO or UCK-G2-PLUS

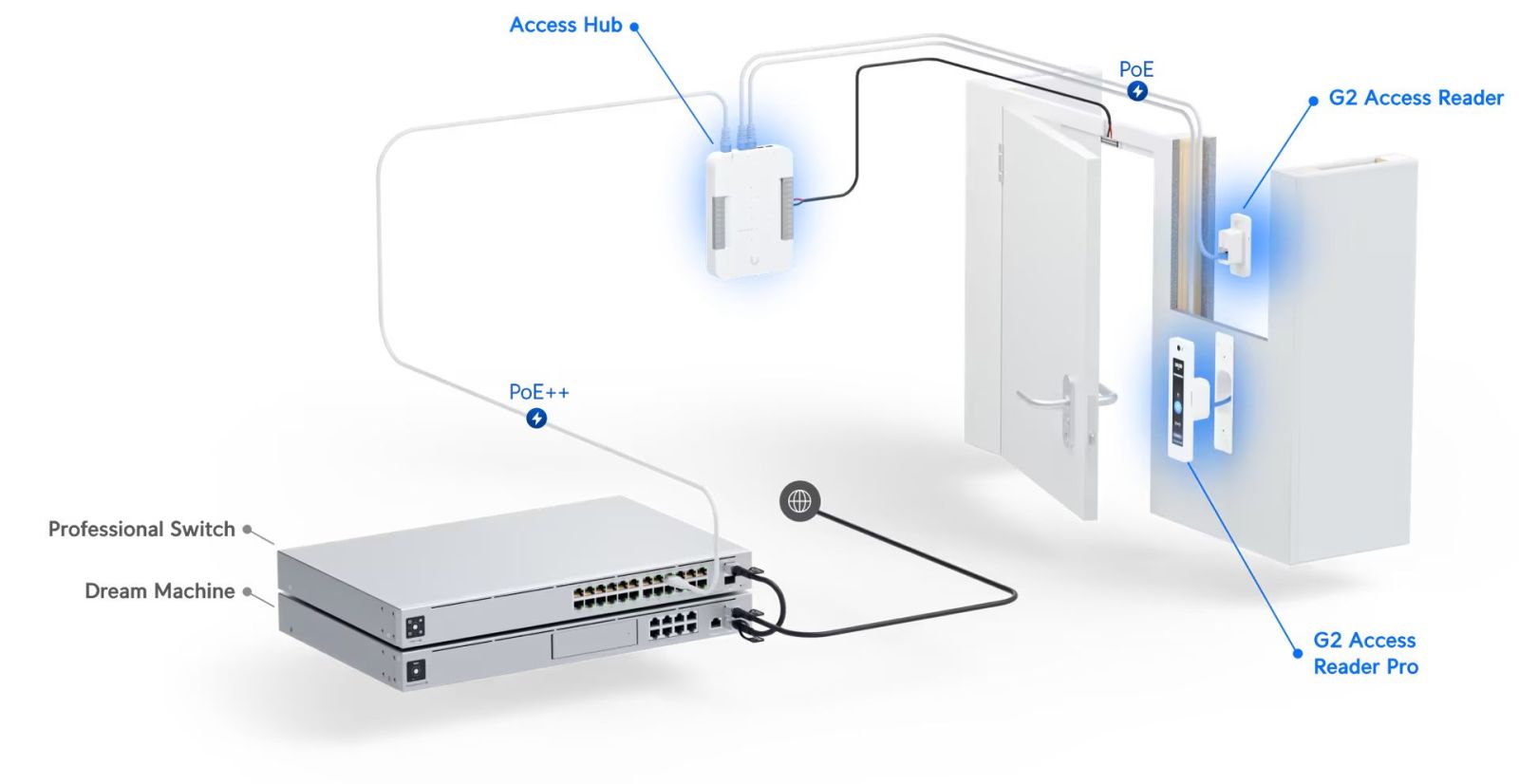

UniFi Access Starter Kit contains everything you need to set up the next generation, state-of-the-art access control system for your business. Compatible with most Electric Bolts/Strikes and Magnetic Locks, the UniFi Access Starter Kit is easily installed with minimal effort and offers the convenience of the UniFi Access Controller, which allows you to easily manage users, visitors, schedules, and access policies. The UniFi Access Starter kit is powered by native PoE technology,
Starter Kit Contents:
1x UniFi Access Hub
1x UniFi Access Reader Pro
1x UniFi Access Reader Lite
1x UniFi Access Card
Note: UniFi Dream Machine Pro is required to run UniFi Access
.jpg)
** NOTE - To install this equipment you must be a Licensed Security Installer & Cabler OR the installation work should be contracted out to a licensed installer. Please check the laws & regulations for your state. Installing this equipment without proper licenses may be illegal in some states. **
(4).jpg)

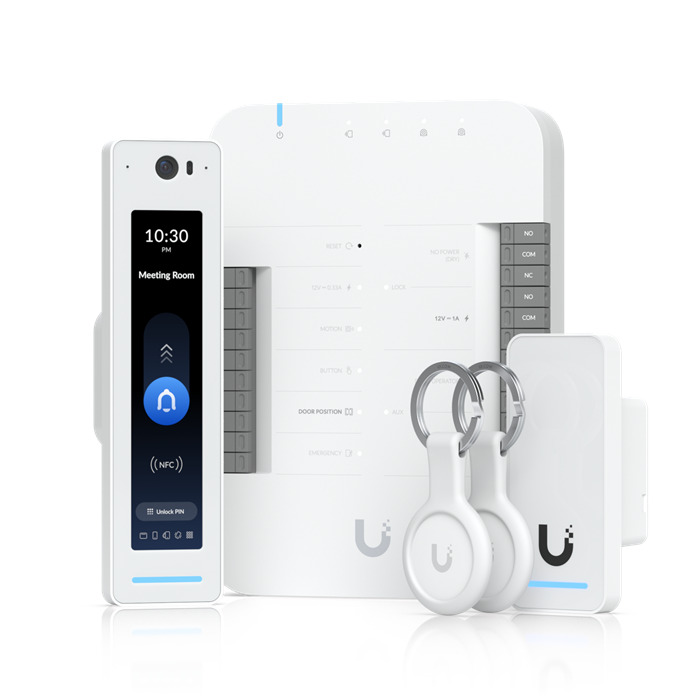

Ubiquiti UA-G2-SK-PRO UniFi Access 2nd-Generation Single Door Starter Kit Professional
UniFi Access G2 Starter Kit Professional
UA-G2-SK-Pro
(1) UniFi Access Door Hub
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
(2) Lock terminals (12V and Dry)
(2) AUX terminals for an external siren and automatic door opener
(4) Additional inputs (sensors and buttons)
Connect and power using PoE++
Connect to two UniFi Access readers and one UniFi Protect camera
(1) Access Reader G2 Professional
Second-generation NFC card reader and intercom.
Unlock using an NFC card or UniFi Identity mobile app
Doorbell for unlock with video of visitor and two-way intercom
Video works at ADA-compliant mounting height
PIN unlocking on the screen
Connects to UniFi Access Hub using PoE
IP55 rain resistance (-10 to 45° C)
-
(1) Access Reader G2 for door exit or entrance for additional door
Compact, second-generation NFC card reader and request-to-exit device that supports hand-wave door unlocking.
Unlock using an NFC card or UniFi Identity mobile app
Additional handwave unlock functionality
Entry and exit greeting messages
Connects to UniFi Access Hub using PoE
IP55 weather resistance (-30 to 45° C)
(2) UniFi Access pocket key fob
Highly secure NFC smart fob that uses multi-layer encryption, including proprietary UniFi Access security protocols.
Multi-layer encryption
Waterproof, IP54-rated casing
UA Pockets per pack
(UA-G2-SK-PRO)
Key Features
- 1 x UniFi Access Hub
- 1 x UniFi Access Reader G2 Professional
- 1 x UniFi G2 Reader, 2 x Pocket Keyfobs
- Network Single Door Controller
- Hub Powered by 802.3bt PoE++ Switch
- NFC Card Reader with 1.2" Read Range
- MIFARE 13.56 MHz Technology
- 12MP Camera
- Secured Entry via Keyfobs
- IP55-Rated Readers
Technical Specifications
| UA-Hub-Door Mechanical |
|||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") | ||||||||||||||||||||||||
| Weight | 363 g (12.8 oz) | ||||||||||||||||||||||||
| Enclosure material | Polycarbonate | ||||||||||||||||||||||||
| Mounting material | Polycarbonate | ||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||
| Networking interface | (5) 10/100/1000 Base-T
|
||||||||||||||||||||||||
| Power method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950/62368 LPS/PS2 PSU |
||||||||||||||||||||||||
| Max. power consumption | Without PoE output: 30W With PoE output: 50W |
||||||||||||||||||||||||
| PoE input | 50V DC, 1A | ||||||||||||||||||||||||
| PoE output | PoE passthrough, (4) PoE, 50V DC, total 20W | ||||||||||||||||||||||||
| Button | (1) Factory-reset | ||||||||||||||||||||||||
| LEDs | System: white/blue Output relays: white |
||||||||||||||||||||||||
| Digital input | Request to exit/request to enter/remote release/door position sensor | ||||||||||||||||||||||||
| Dry output relay | Lock: 30V DC, 1A Aux: 30V DC, 1A |
||||||||||||||||||||||||
| Powered output relay | Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A |
||||||||||||||||||||||||
| Operating environment | Indoor use only | ||||||||||||||||||||||||
| Operating temperature | 0 to 40° C (32 to 104° F) | ||||||||||||||||||||||||
| Operating humidity | 5 to 95% noncondensing | ||||||||||||||||||||||||
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
||||||||||||||||||||||||
| UL 294 statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
||||||||||||||||||||||||
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 | ||||||||||||||||||||||||
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 | ||||||||||||||||||||||||
| Document number, and issue date and/or revision level | UA-Hub-Door002, V01 | ||||||||||||||||||||||||
| Wiring Information | |||||||||||||||||||||||||
| Typical installation (Shielded) |
|
||||||||||||||||||||||||
| Wiring gauge requirements (AWG) |
|
||||||||||||||||||||||||
| PoE cabling requirements | The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm2) for horizontal or riser cable. | ||||||||||||||||||||||||
| LEDs | |||||||||||||||||||||||||
| PoE in | Steady blue: Adopted/device is ready Steady white: Pending adoption Blinking white/blue: Upgrading firmware |
||||||||||||||||||||||||
| PoE out | Off: Not connected or no data link Steady blue: Connected and data link on |
||||||||||||||||||||||||
| UA-G2-Pro Mechanical |
|||||||||||||||||||||||||
| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") | ||||||||||||||||||||||||
| Weight | 136 g (4.8 oz) | ||||||||||||||||||||||||
| Enclosure material | Polycarbonate, glass | ||||||||||||||||||||||||
| Mount material | Aluminum alloy | ||||||||||||||||||||||||
| Mounting | Wall, gang box | ||||||||||||||||||||||||
| Weatherproofing | IP55 | ||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||
| Networking interface | (1) 10/100/1,000 MbE RJ45 port | ||||||||||||||||||||||||
| Connectivity | BLE 4.2 NFC |
||||||||||||||||||||||||
| Power method | PoE | ||||||||||||||||||||||||
| Supported voltage range | 48V DC | ||||||||||||||||||||||||
| Max. power consumption | 6W | ||||||||||||||||||||||||
| ESD/EMP protection | Air: ±15kV, contact: ±8kV | ||||||||||||||||||||||||
| Sensor | ToF sensor | ||||||||||||||||||||||||
| Camera | 4000 x 3000, 12 MP, 30 FPS | ||||||||||||||||||||||||
| Microphone | Yes | ||||||||||||||||||||||||
| Speaker | (1) 4 ohm, 1.5W | ||||||||||||||||||||||||
| LEDs | R/G/B/W Flash |
||||||||||||||||||||||||
| Button | (1) Factory-reset | ||||||||||||||||||||||||
| NFC frequency | 13.56 MHz | ||||||||||||||||||||||||
| NFC read range | < 30 mm | ||||||||||||||||||||||||
| NFC standards | ISO 14443A, 14443B, 15693 | ||||||||||||||||||||||||
| NFC technology | NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire |
||||||||||||||||||||||||
| Operating temperature | -10 to 45° C (14 to 113° F) | ||||||||||||||||||||||||
| Operating humidity | 5 to 90% noncondensing | ||||||||||||||||||||||||
| Certifications | CE, FCC, IC | ||||||||||||||||||||||||
| UA-G2 Mechanical |
|||||||||||||||||||||||||
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") | ||||||||||||||||||||||||
| Weight | 82 g (2.9 oz) | ||||||||||||||||||||||||
| Enclosure material | Polycarbonate, glass | ||||||||||||||||||||||||
| Mounting | In wall, gang box | ||||||||||||||||||||||||
| Weatherproofing | IP55 | ||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||
| Networking interface | (1) 10/100 MbE RJ45 port | ||||||||||||||||||||||||
| Connectivity | BLE 4.1 | ||||||||||||||||||||||||
| Power method | PoE | ||||||||||||||||||||||||
| Supported voltage range | 48V DC | ||||||||||||||||||||||||
| Max. power consumption | 5W | ||||||||||||||||||||||||
| ESD/EMP protection | Air: ±15kV, contact: ±8kV | ||||||||||||||||||||||||
| Sensors | Proximity sensor | ||||||||||||||||||||||||
| Speaker | (1) 8 ohm, 0.7W | ||||||||||||||||||||||||
| LEDs | R/G/B/W | ||||||||||||||||||||||||
| Button | (1) Factory-reset | ||||||||||||||||||||||||
| NFC frequency | 13.56 MHz | ||||||||||||||||||||||||
| NFC read range | < 30 mm | ||||||||||||||||||||||||
| NFC standards | ISO 14443A, 14443B, 15693 | ||||||||||||||||||||||||
| NFC technology | NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire |
||||||||||||||||||||||||
| Operating temperature | -30 to 45° C (-22 to 113° F) | ||||||||||||||||||||||||
| Operating humidity | 5 to 90% noncondensing | ||||||||||||||||||||||||
| Certifications | CE, FCC, IC | ||||||||||||||||||||||||
| UA-Pocket Mechanical |
|||||||||||||||||||||||||
| Dimensions | 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29") | ||||||||||||||||||||||||
| Weight | 16 g (0.56 oz) | ||||||||||||||||||||||||
| Enclosure material | Polycarbonate, stainless steel | ||||||||||||||||||||||||
| Weatherproofing | IP54 | ||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||
| NFC frequency | 13.56 MHz | ||||||||||||||||||||||||
| NFC technology | ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol |
||||||||||||||||||||||||
| Operating temperature | -10 to 45° C (14 to 113° F) | ||||||||||||||||||||||||
| Operating humidity | 10 to 90% noncondensing | ||||||||||||||||||||||||
| Certification | CE | ||||||||||||||||||||||||
| SKU | UA-G2-SK-PRO |
| Barcode # | 810084691830 |
| Brand | Ubiquiti |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.082m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.004132800m3 |
