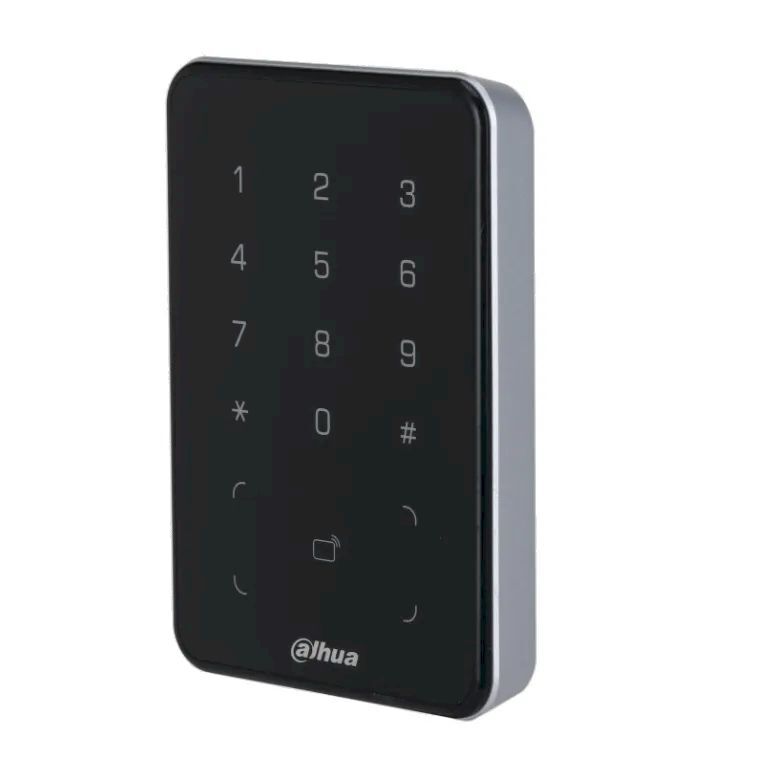

Dahua ASR2101A-ME MIFARE Access Control Reader - DHI-ASR2101A-ME
Model # DHI-ASR2101A-ME
-
SKU: DHI-ASR2101A-ME
- Pick Up Available
- Australian Warranty
- Checkout Securely
Access Reader > PC material, acrylic panel and IP66, suitable for indoor and outdoor use > Support contactless recognition of IC card (Mifare card) and ID card in two frequencies > Support card/password unlock > Support RS485 and Wiegand communication > Support buzzer and indicator prompt > Support anti-tampering alarm > The built-in watchdog can detect and control abnormal operation status of the equipment and perform recovery processing to ensure the long- term operation of the equipment > All connection ports have overcurrent and overvoltage protection
(DHI-ASR2101A-ME)
Basic Product Type Card reader Buzzer Yes Casing PC/acrylic panel Function Unlock Mode Card swiping/password Multiple unlocking modes Card Type IC/ID card Performance Response Time 0.1 s Card Reading Distance 0 cm5 cm (0"1.97") Port RS-485 1 channel Wiegand 1 output channel Alarm Tamper Alarm Yes General Power Supply 12V 0.5A DC Protection IP66 (silicon sealant is needed, see the manual) Power Consumption Standby ? 0.9W, working ? 1.7W Product Dimensions 123 mm × 86 mm × 15 mm (4.84" × 3.38" × 0.59") (L × W × H) Packaging Dimensions 185 mm × 163 mm × 71 mm (7.28" × 6.41 × 2.80") (L × W × H, 1 in inner carton) 578 mm × 383 mm × 349 mm (22.76" × 15.08" × 13.74") (L × W × H, carton) Operating Temperature 30°C to +70°C (22°F to +158°F) Operating Humidity 5%RH95% (non-condensing) Operating Environment Indoor; outdoor Gross Weight 0.35 kg (0.77 lb) Installation Surface mount Certifications CE; FCC
| SKU | DHI-ASR2101A-ME |
| Model # | 1.0.01.25.11240-0014 |
| Barcode # | 6939554942204 |
| Brand | DAHUA |
| Shipping Weight | 0.6000kg |
Manufacturer Warranty
