Ubiquiti G3 Intercom, Indoor/Outdoor Intercom Terminal For Managing Residential & Commercial Building Entry Requests With Touch Pass Support
Model # UA-G3-Intercom
-
SKU: UA-G3-Intercom
Stock Availability
🟢Live
(Click & Collect Available)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support
Tech Specs: Click Here
Installation Guide: Click Here
Description:
Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
Features:
•Unlock using Apple Wallet or an NFC card or UniFi Identity mobile app, face unlock and Touch Pass*
•Directory and doorbell to request entry
•Pairs with multiple UniFi Intercom Viewers for remote access control
•Connects to UniFi Access Hub series using PoE
•Weatherproof (outdoor exposed -30 to 60° C)
•*10 free 1-year Apple Touch Passes included.
.jpg)
(UA-G3-Intercom)
| Specification | Details |
|---|---|
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| Integrated Camera | Yes |
| Access Methods | NFC Card & Keyfob, PIN, Apple/Google Wallet, Mobile Unlock |
| Intercom & Doorbell | Two-Way Intercom & Doorbell Access |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive Attack: Level ILine Security: Level IEndurance: Level IStandby Power: Level I |
| Weatherproofing | IP65 |
| Weight | Device: 965 g (2.1 lb)Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum Alloy, UV-stabilized Polycarbonate, Glass |
| Mount Material | Powder-coated Stainless Steel |

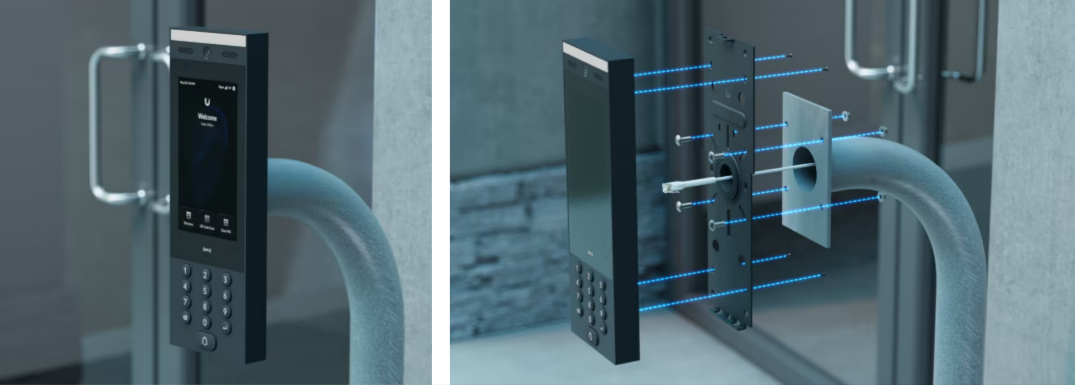

| Mounting Options | Wall Mount, Gooseneck Adapter (Included)Optional: Surface Angle, Flush Mount, Sunshield Kit |
| Indoor/Outdoor Use | Yes |
| Operating Temperature | Device: -30 to 60°C (-22 to 140°F)Display: -25 to 60°C (-13 to 140°F) |
| Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) GbE RJ45 Port |
| Connectivity | BLE 4.2, NFC |
| Power Method | PoE (UL 294 Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU) |
| Power Consumption | Max. 13W |
| Supported Voltage | 48V DC |
| Sensors | Proximity Sensor, ALS Sensor |
| Display | 7" (177 mm) Capacitive Multi-touch, 1024 x 600 px, Max 1000 nits, Portrait Orientation |
| Audio | Microphone and Speaker |
| NFC Frequency & Range | 13.56 MHz, < 30 mm (1.18") |
| NFC Technologies Supported | ISO/IEC 14443A/B, 15693, 18092 (Ecma 340), MIFARE Classic/DESFIRE, Sony FeliCa™, NFC Forum Tags T1–T5, ECP 2.0 |
| LEDs | Amber |
| Buttons | (1) Factory-reset |
| PoE Cabling Requirements | Min. Cat 5e, Patch Cord: 26 AWG, Horizontal Cable: 24 AWG |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Grade Assignment (CAN/ULC) | Grade I |
| Product Info | UA-G3-Intercom, V01 |
| Management Software | UniFi Access |
| SKU | UA-G3-Intercom |
| Barcode # | 810177161622 |
| Brand | UBIQUITI |
| Shipping Weight | 1.0000kg |
Manufacturer Warranty : 1 Year Manufacturer Warranty
