View PDF BrochureUbiquiti UniFi Access Lock Electric - Intergrated fail-secure elecric lock - UA-Lock-Electric
Model# UA-Lock-Electric
-
SKU: UA-Lock-Electric
- Pick Up Available
- Australian Warranty
- Checkout Securely

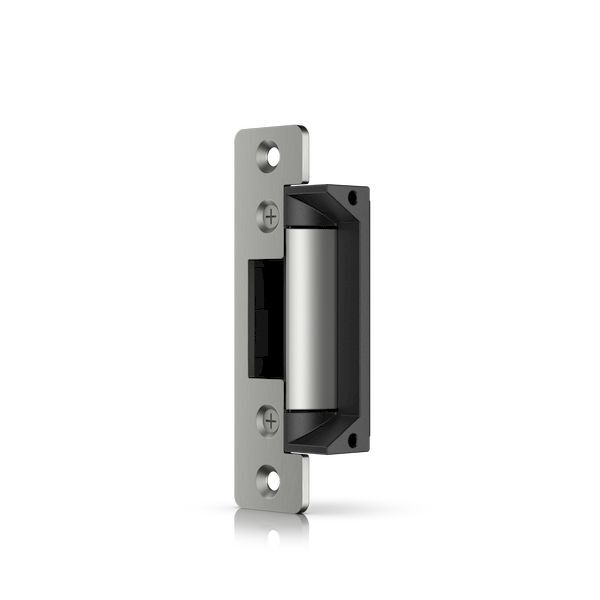

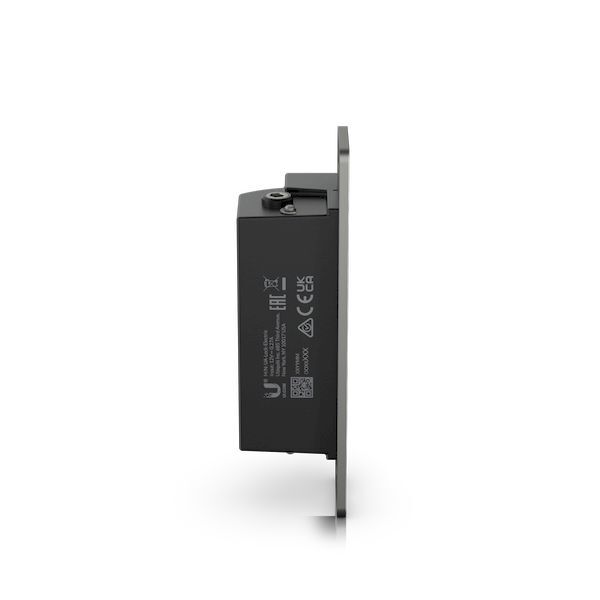

Fail-secure electric strike lock that connects to a UniFi Access Hub (UA Hub).
Holds up to 1,200 kg (2,645 lb)
Can be installed on an aluminum, steel, or wooden door frame
ANSI-compliant design
Installation Tutorial
(UA-Lock-Electric)
| Mechanical | |
|---|---|

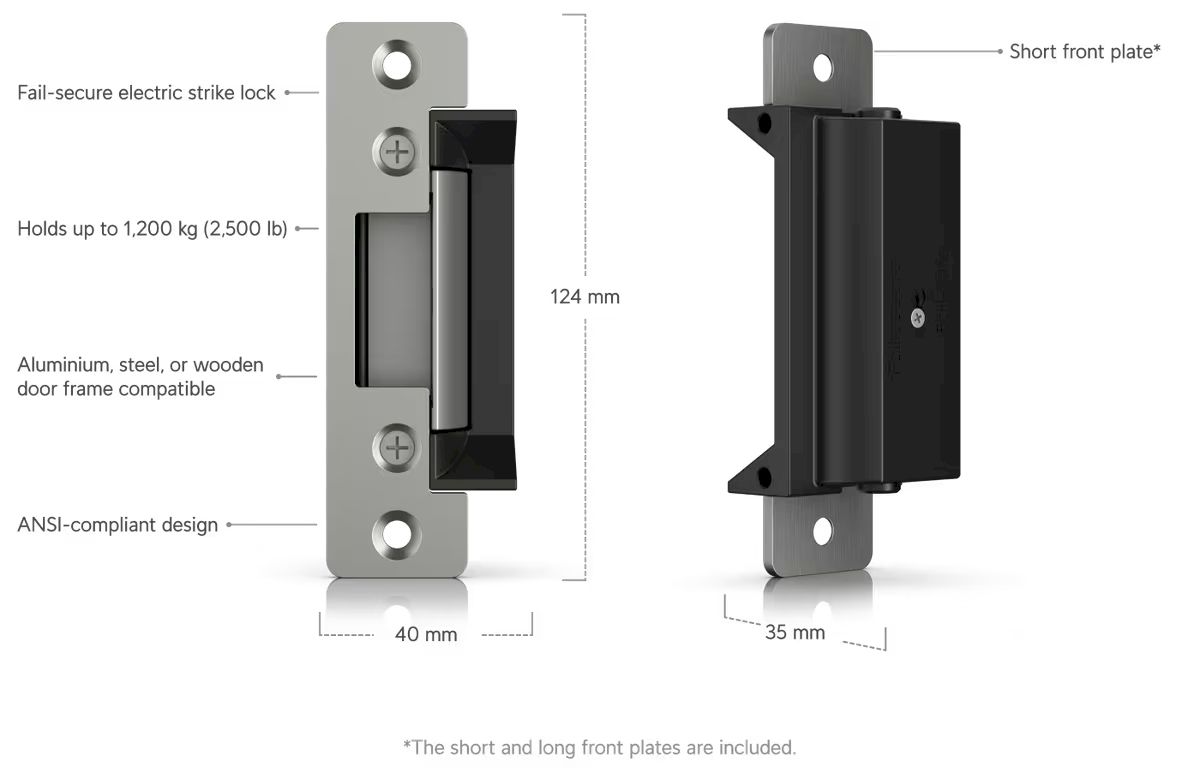

| Dimensions | Lock body: 80 x 40 x 35 mm (3.15 x 1.57 x 1.38") Short front plate: 124 x 32 x 3 mm (4.88 x 1.26 x 0.12") Long front plate: 202 x 36 x 3 mm (7.95 x 1.42 x 0.12") |
| Weight | Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz) |
| Enclosure materials | Lock body: zinc alloy Front plate/latches: stainless steel |
| Hardware | |
| Voltage | 12VDC |
| Current power | 400mA ±10% |
| Wiring connection | Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM |
| Lock type | Fail secure lock Single door |
| Lock holding force | 1,200 kg (2,645 lb) |
| Suitability | Wooden Steel Aluminum |
| Screw terminal | + and - |
| Operating temperature | -10 to 45° C (14 to 113° F) |
| Operating humidity | 5 - 90% noncondensing |
| Certifications | FCC, IC, CE |
| SKU | UA-Lock-Electric |
| Barcode # | 810010076496 |
| Brand | Ubiquiti |
| Shipping Weight | 0.5000kg |
