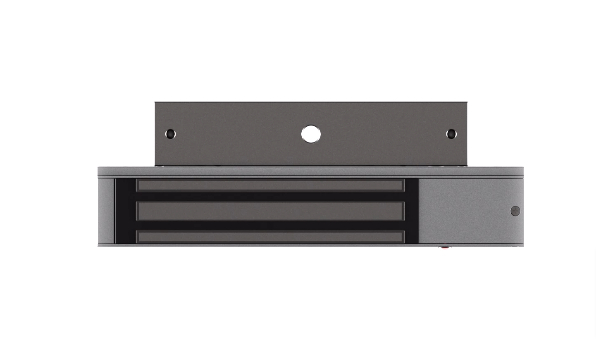

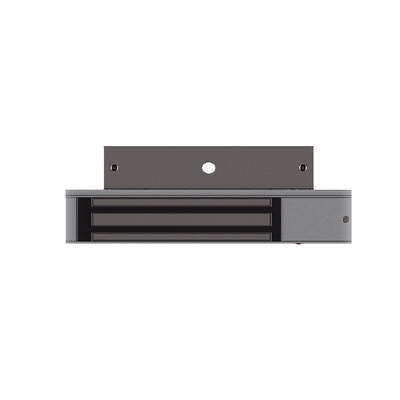

Ubiquiti UA-Lock-Magnetic-540kg Magnetic Lock
Model # UA-Lock-Magnetic-540kg
-
SKU: UA-Lock-Magnetic-540kg
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ubiquiti UA-Lock-Magnetic-540kg Magnetic Lock
Compatibility:
UA-G2-SK-Pro
UA-G2-SK
EAH-8
UA-Hub
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.
Holds up to 270 kg or 540 kg (600-1,200 lb)
Can be installed on a wide variety of door types*
*— Access Lock Magnetic 270kg: All types including full glass
— Access Lock Magnetic 540kg: All types excluding full glass
(UA-Lock-Magnetic-540kg)
| Mechanical | |
|---|---|
| Dimensions | UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ) Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ) Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4") UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6") Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2") Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6") |
| Weight | UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Install plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg (3.1 lb) |
| Enclosure material | Device/brackets: aluminum Armature: steel |
| Hardware | |
| Voltage | 12V DC |
| Current power | UA-Lock-Magnetic-270kg: 800mA ±10% UA-Lock-Magnetic-540kg: 500mA ±10% |
| Wiring connection | Connect below terminals to UA-Hub: Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub) Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub) DPS/+ (DPS+ on UA-Hub) DPS/-(DPS-onUA-Hub) |
| Lock type | Fail safe lock Single door |
| Holding force | UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb) |
| LED | Green: unlocked Red: locked |
| Suitability | UA-Lock-Magnetic-270kg: wooden/metal/glass door UA-Lock-Magnetic-540kg: wood/metal door |
| Mounting accessories | UA-Lock-Magnetic-270kg L bracket : door thickness < 42 mm (< 1.7"), outward opening door Z bracket: used with L bracket for inward opening door U bracket: used with glass door UA-Lock-Magnetic-540kg L bracket: door thickness < 42 mm (< 1.7"), outward opening door Z bracket: used with L bracket for inward opening door |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| SKU | UA-Lock-Magnetic-540kg |
| Brand | Ubiquiti |
| Shipping Weight | 1.0000kg |
