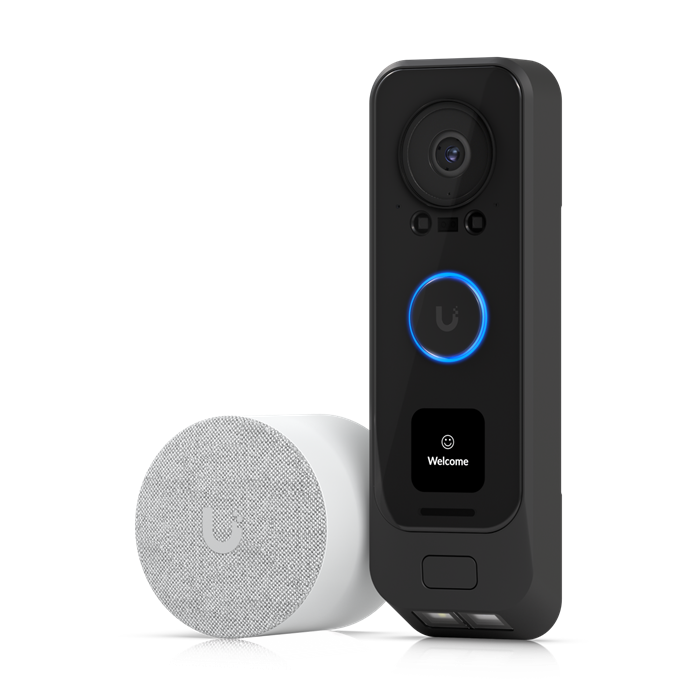

Ubiquiti UniFi Protect G4 Doorbell Pro PoE Kit,5MP CMOS Camera,Night Mode IR Up To 20ft, PoE Power, Includes PoE Chime, WeatherProof IPX4r



Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.

Improved HDR and low-light performance

Programmable welcome display and secondary package-detection camera

AI event detections

Connect and power using PoE

Integrated 2-way audio

Includes PoE Chime

Weather-resistant (outdoor covered)



(UVC-G4-Dbell-Pro-PoE-KIT)

Mechanical

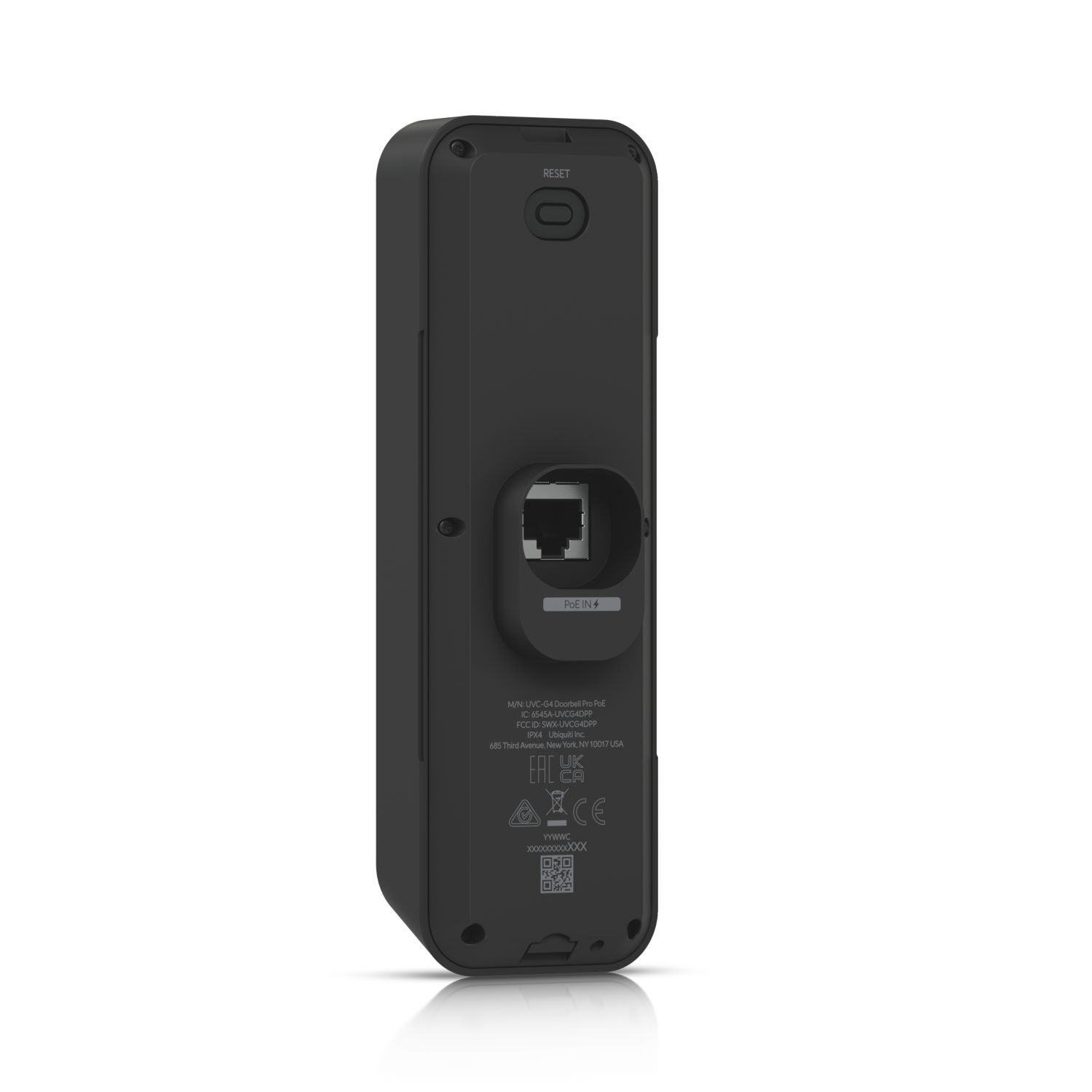

Dimensions UVC-G4 Doorbell Pro
Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")
Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")
Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")
On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")

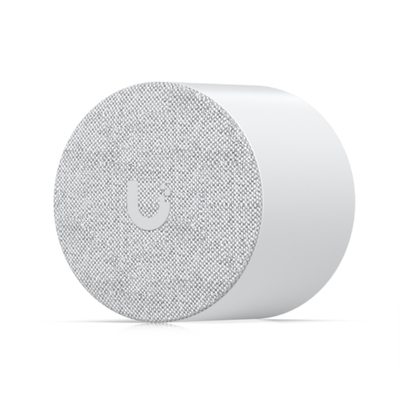

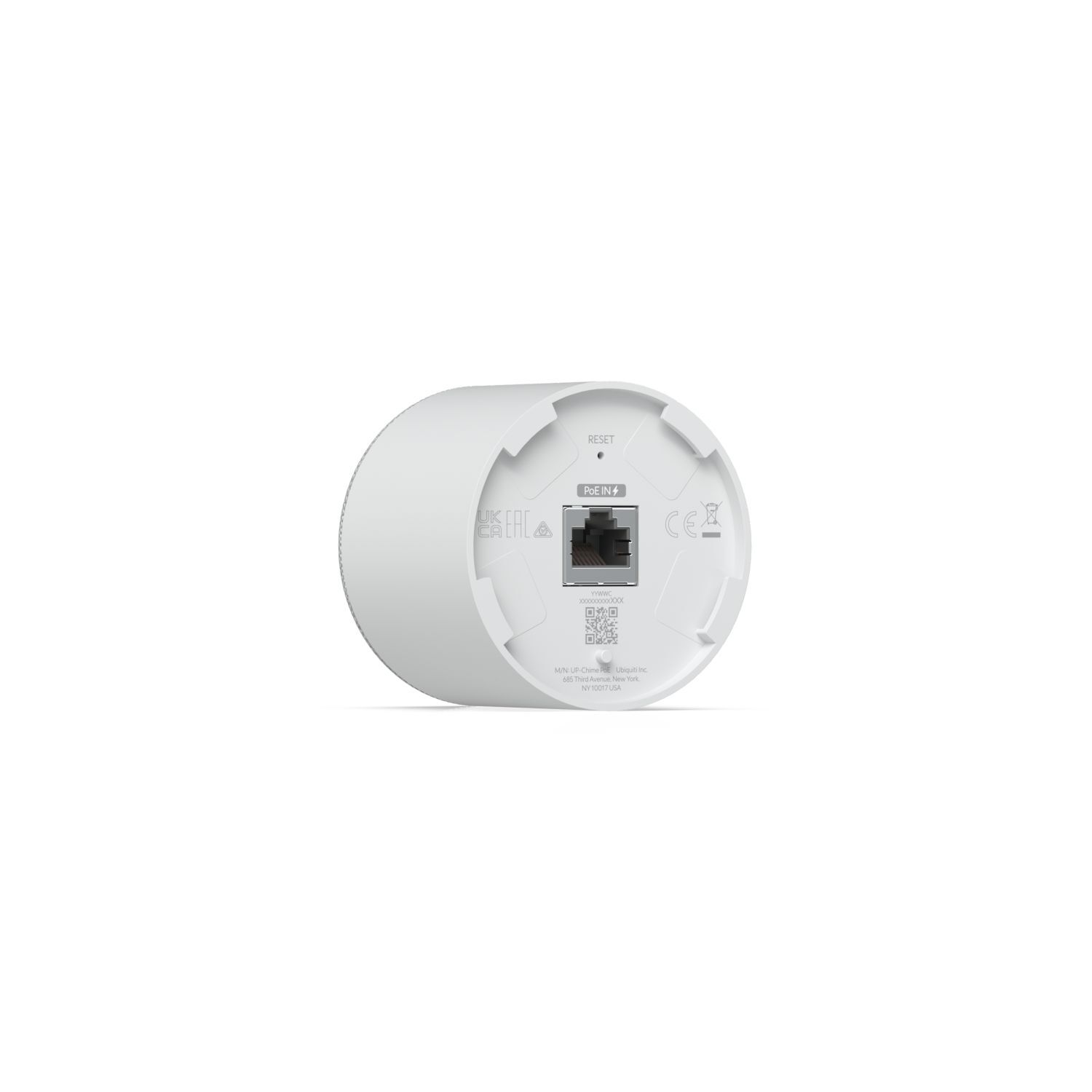

UP-Chime PoE
Device: Ø62 x 54 mm (Ø2.5 x 2.1")
In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")
On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
Weight UVC-G4 Doorbell Pro
Device: 264 g (9.3 oz)
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
On-wall mount: 53 g (1.9 oz)

UP-Chime PoE
Device: 158 g (5.6 oz)
In-wall mount: 91 g (3.2 oz)
On-wall mount: 28 g (1 oz)
Enclosure material Aluminum alloy, polycarbonate
Mount material Wall mount: aluminum alloy
Wedge: polycarbonate
On-wall mount: polycarbonate
Chime mout: polycarbonate, zinc alloy
Weatherproofing IPX4 (UVC-G4 Doorbell Pro)
Color Black
White
Optics
Sensor Main camera: 5MP CMOS

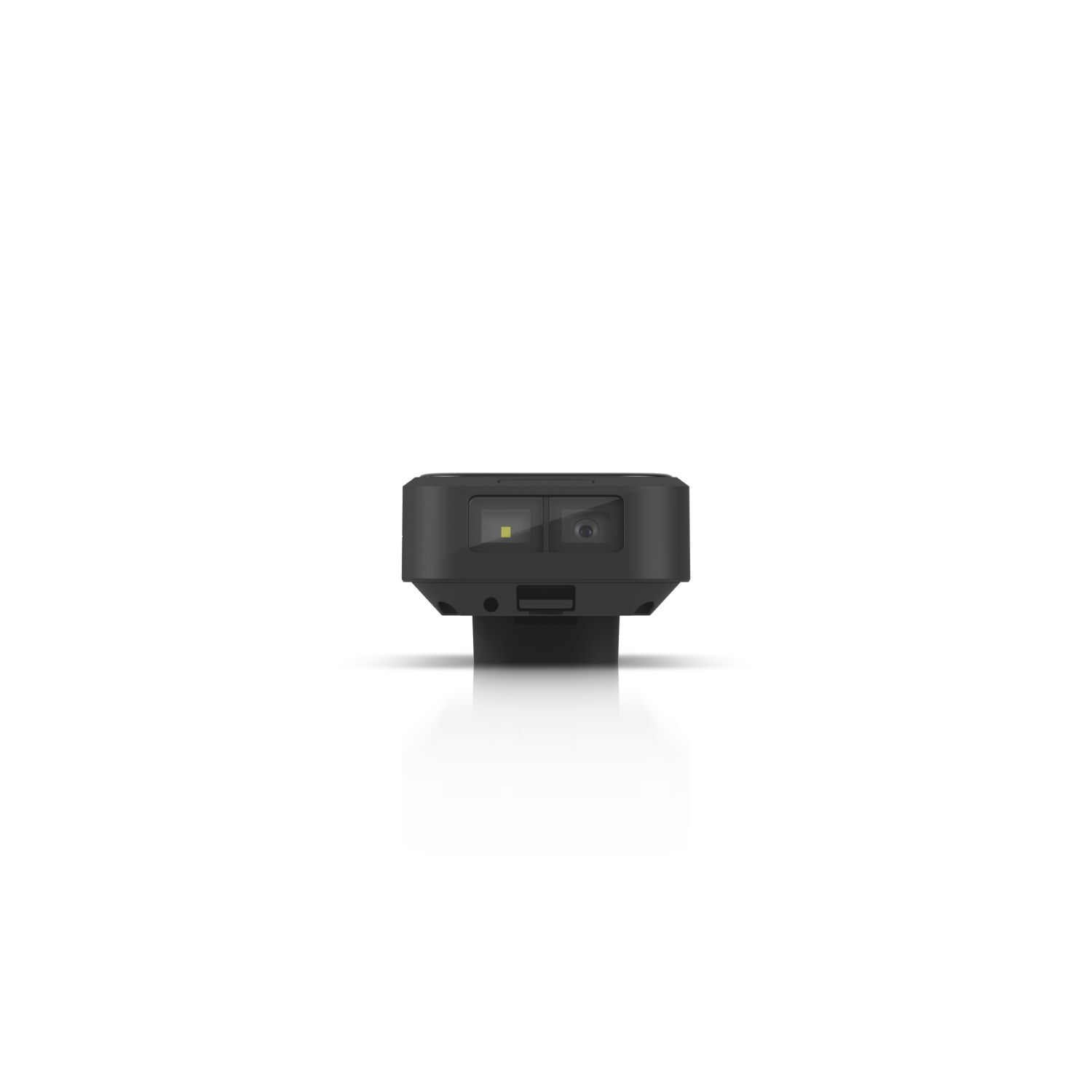

Package camera: 8MP CMOS
Lens Fixed focal length
View angle Main camera: H: 138°, V: 114°, D: 155° (LDC On)
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode Built-in IR LED illumination and IR cut filter
Video
Resolution Main camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3)
Max. frame rate 30 FPS
System
Processor Quad-core Arm® Cortex®-A53 based chip
Networking interface UVC-G4 Doorbell Pro: GbE RJ45 port
UP-Chime PoE: 10/100 MbE port
Power method PoE
Supported voltage range UVC-G4 Doorbell Pro: 37—57V DC
UP-Chime PoE: 44–57V DC
Max. power consumption UVC-G4 Doorbell Pro: 7W
UP-Chime PoE: 3.5W
LED Link/activity
Buttons (1) Ring button
(1) Factory reset
Ambient operating temperature UVC-G4 Doorbell Pro: -30 to 40º C (-22 to 104º F)
UP-Chime PoE: 0 to 40° C (32 to 104° F)
Ambient operating humidity UVC-G4 Doorbell Pro: 0 to 90% noncondensing
UP-Chime PoE: 10 to 90% noncondensing
Certifications CE, FCC, IC
Audio
Microphone Yes (Can be disabled for the Doorbell)
Speaker Yes
Buzzer Yes (UP-Chime PoE)
Software
UniFi OS application UniFi Protect
Mobile app UniFi Protect iOS™ and Android™
SKU UVC-G4-Dbell-Pro-PoE-KIT
Barcode # 810084691113
Brand Ubiquiti
Shipping Weight 2.0000kg

Manufacturer Warranty: 1 Year Manufacturer Warranty
