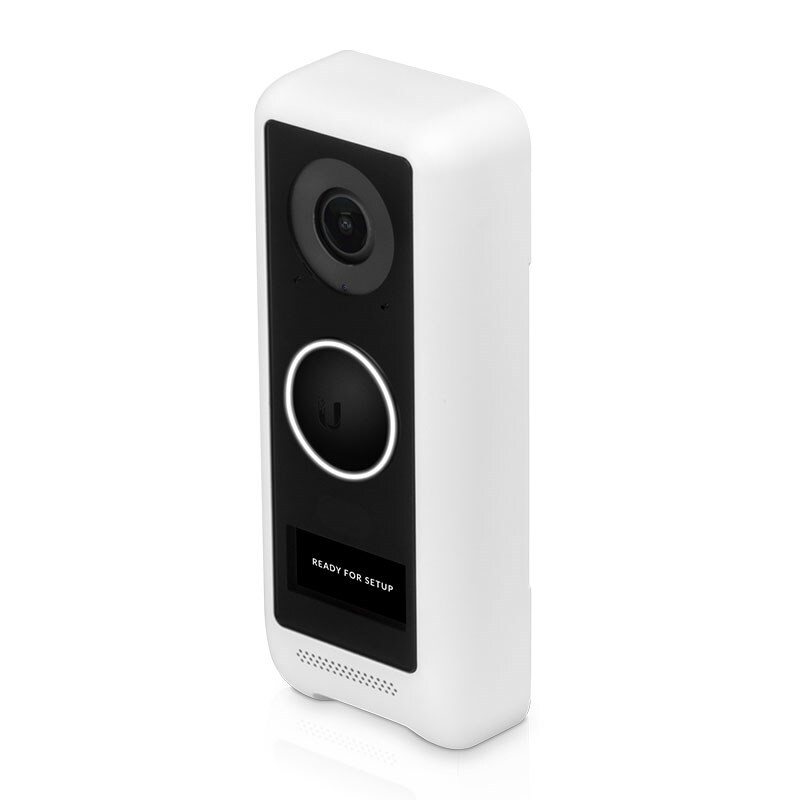

Ubiquiti UniFi Protect G4 Doorbell, 2MP Video W/ Night vision, 30 FPS, PIR Sensor, Built In Display - Requires UCK-G2-PLUS or UDM-PRO
Model # UVC-G4-DOORBELL
-
SKU: UVC-G4-DOORBELL
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ubiquiti Networks UVC-G4-DOORBELL Unifi Protect G4 Doorbell - Processor: Ambarella Advanced Image Processing SoC - Memory: 512MB, 256MB (Flash) - Sensor: 5MP CMOS Sensor - Resolution: 1600x1200 @30 FPS (4:3) - Lens Type: Fixed Focal Length - Power Supply: 16-24VAC, 20VA - Network: 802.11ac Wi-Fi - Mount Materials: Aluminium Alloy Flat Wall Mount, Polycarbonate 20° Wedge Mount, Polycarbonate Enclosure - IR LED Illumination and IR Cut Filter - IPX4 Weatherproof Rating
(UVC-G4-DOORBELL)
| Mechanical | |
|---|---|
| Dimensions | 118.3 x 46.8 x 25.8 mm (4.7 x 1.8 x 1") |
| Weight | Without mount: 130 g (4.59 oz) With flat wall mount: 178 g (6.28 oz) With 20° wedge mount: 200 g (7.05 oz) |
| Enclosure material | Polycarbonate |
| Mount materials | Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate |
| Weatherproofing | IPX4 |
| Optics | |
| Sensor | 5MP CMOS sensor |
| Lens | Fixed focal length |
| View angle | H: 138°, V: 114°, D: 155° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Resolution | 2MP 1600 x 1200 (4:3) |
| Max. frame rate | 30 FPS |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | 802.11a/b/g/n/ac WiFi Bluetooth™ 4.2 |
| Max. power consumption | 12W |
| Power requirements | 16—24V AC, 1.25A max., 50/60 Hz |
| Supported voltage range | 16—24V AC |
| LED | Link/activity |
| Buttons | (1) Ring button (1) Factory reset |
| Mounting | Flat wall, 20° wedge (Included) |
| Ambient operating temperature | -10 to 40º C (14 to 104º F) |
| Ambient operating humidity | 0 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | Yes |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
| Compatible Mechanical Chimes | |
| Manufacturer Broan-NuTone Broan-NuTone Heath Zenith Craftmade Broan-NuTone Newhouse Hardware |
Model LA126WH LA11WH SL-2735 CTPW-RG LA39WH CHM3D |
| Compatible Digital Chimes | |
| Manufacturer Broan-NuTone IQ AMERICA IQ AMERICA |
Model LA600WH DW-2850 DW-2840 |
| Transformer Specifications (EU Version) | |
| Input rating (5, 6) | 230V, 50/60Hz |
| Output rating (1, 4) | 16V AC, 15VA |
| Ambient operating temperature | -5 to 35 º C (23 to 95º F) |
| SKU | UVC-G4-DOORBELL |
| Barcode # | 810010075208 |
| Brand | UBIQUITI |
| Shipping Weight | 1.7000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.110m |
| Shipping Length | 0.160m |
Manufacturer Warranty : 1 Year Manufacturer Warranty
