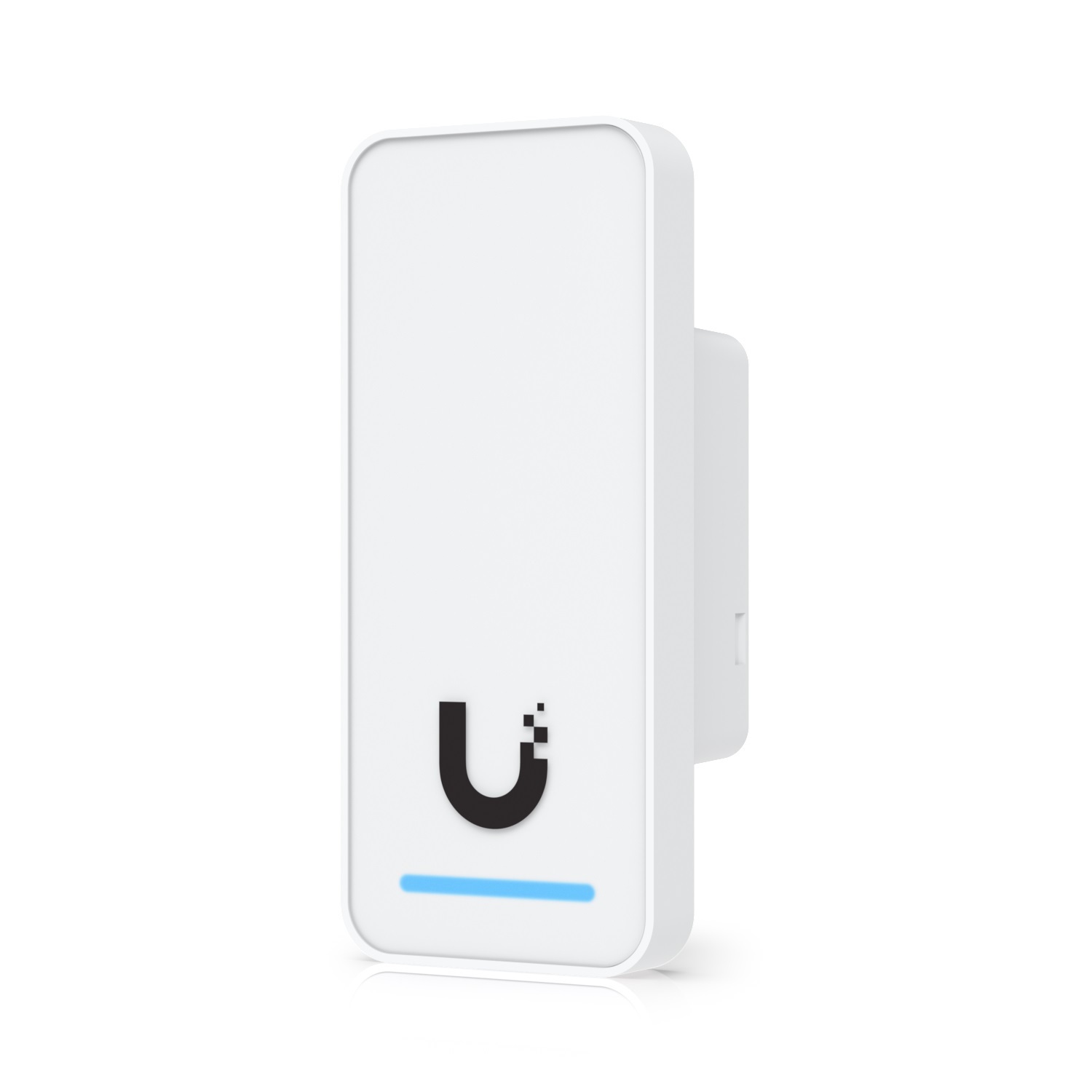

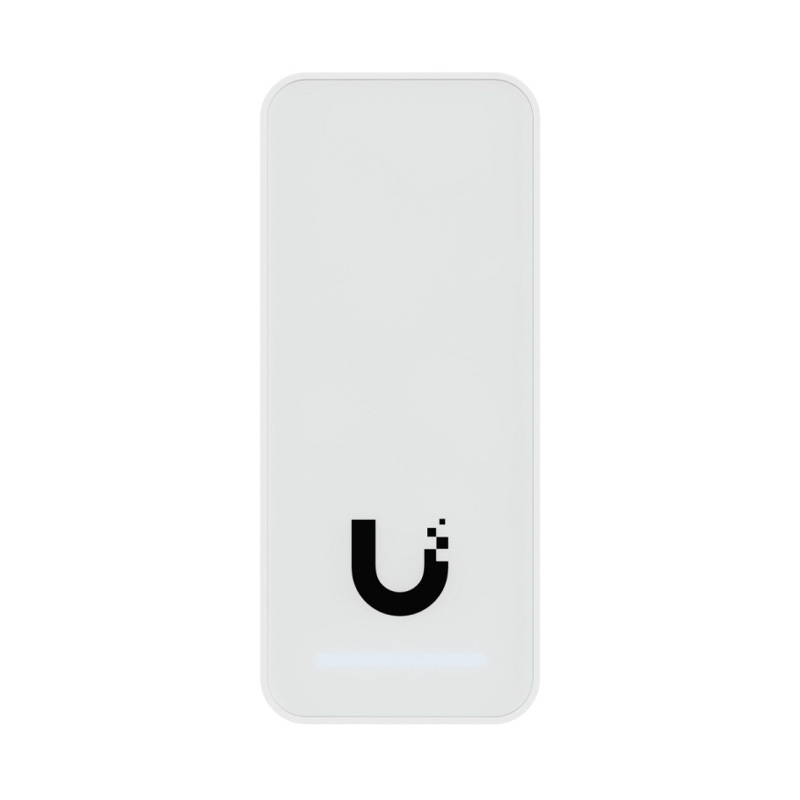

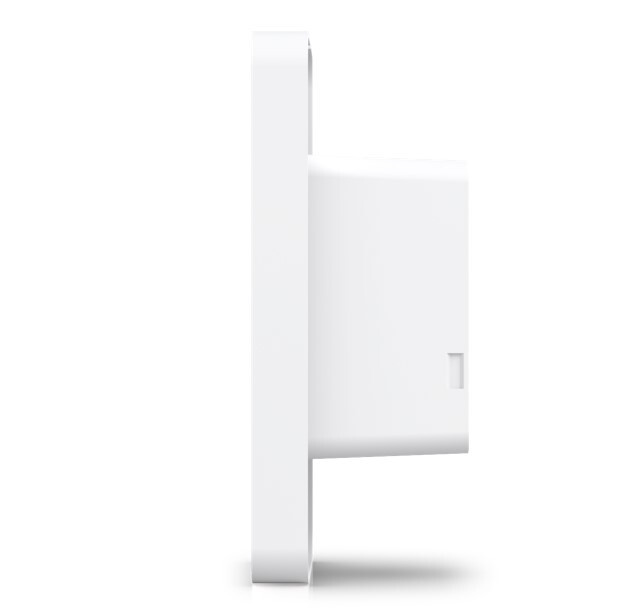

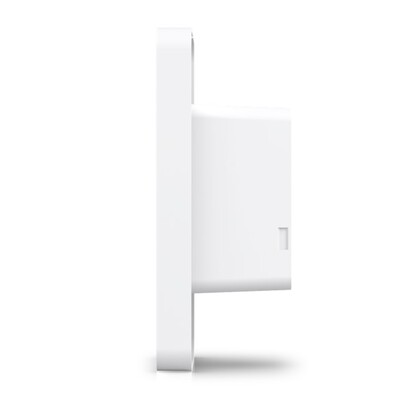

Ubiquiti UniFi Access Reader G2 - Material: Polycarbonate, glass - Weatherproofing: IP55 - Connectivity: BLE 4.1 - Power method: PoE - Management: UniFi Access Version 1.5.9 and later - UA-G2



Compact, second-generation NFC card reader and request-to-exit device that supports hand-wave door unlocking.

Unlock using an NFC card or UniFi Identity mobile app

Additional handwave unlock functionality

Entry and exit greeting messages

Connects to UniFi Access Hub using PoE

IP55 weather resistance (-30 to 45° C)

(UA-G2)

Mechanical
Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight 82 g (2.9 oz)
Enclosure material Polycarbonate, glass
Mounting In wall, gang box
Weatherproofing IP55
Hardware

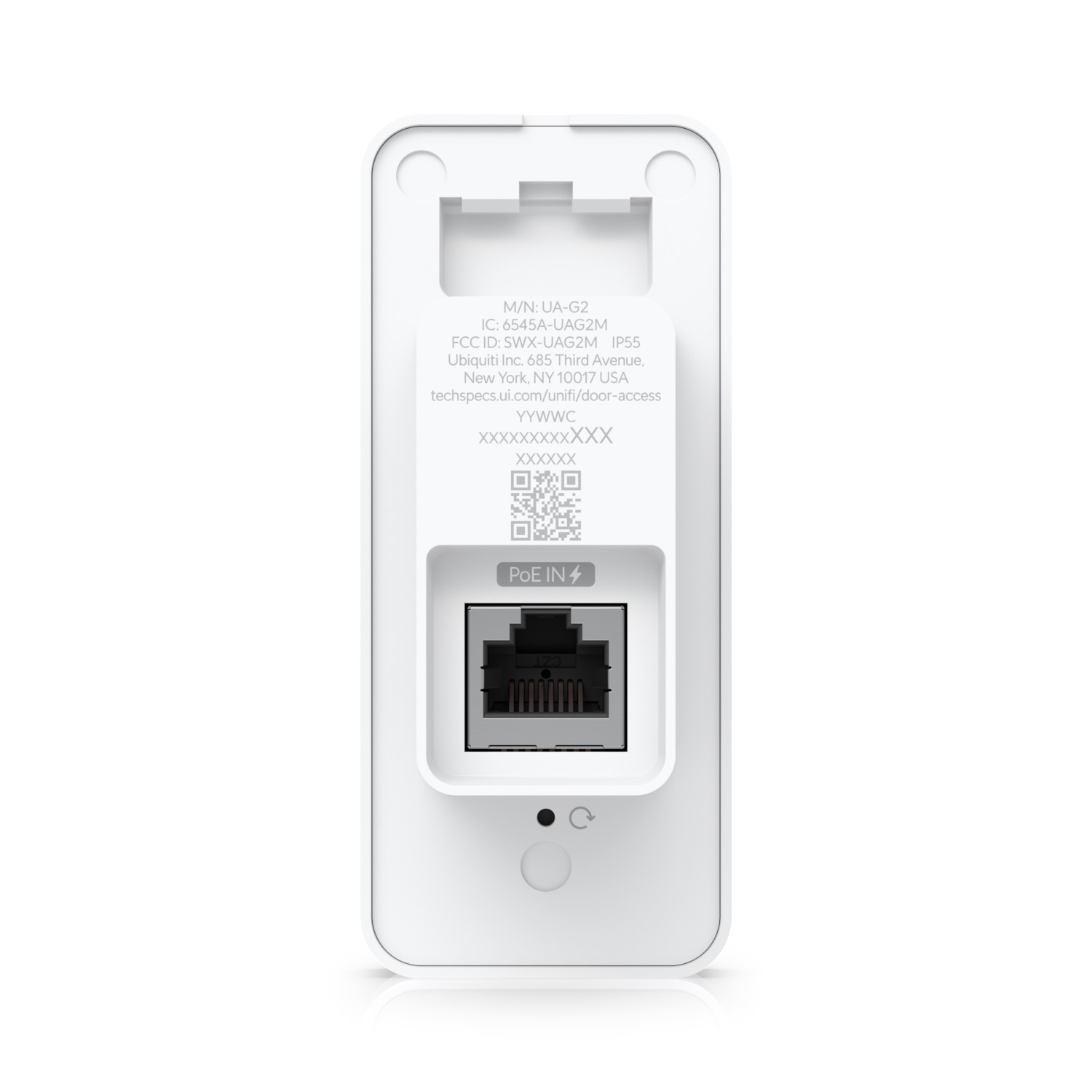

Networking interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
Power method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range 48V DC
Max. power consumption 5W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Speaker (1) 8 ohm, 0.7W
LEDs Steady white: Pending adoption
Steady blue: Adopted
Alternating white/blue: Firmware updating
Strobing red: Emergency lockdown
Steady green: Emergency evacuation
(2) Rapid flashing blue: NFC credential authenticated
(2) Rapid flashing red: NFC credential authentication failed
Breathing blue: Ready to register NFC cards
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating environment Outdoor use
Ambient operating temperature -30 to 45° C (-22 to 113° F)
Ambient operating humidity 5 to 90% noncondensing
Software information The software version of a product can be checked at https://unifi.ui.com
UL 294 level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-G2/UA-G2-Black, V02
Software
Management application UniFi Access: Version 1.5.9 and later
SKU UA-G2
Barcode # 810084691663
Brand Ubiquiti
Shipping Weight 1.0000kg

Manufacturer Warranty: 1 Year Manufacturer Warranty
