Ubiquiti UniFi Access Reader Lite, UA-Reader Lite NFC/ Bluetooth Reader, PoE Powered, Built-in Security Element Chip
Model # UA-Reader Lite
-
SKU: UA-Reader-Lite
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ubiquiti UniFi Access Reader Lite
Description: A convenient door access scanner supporting NFC reader and handwave door unlocking.
SKU: UA-Reader Lite
Tech Specs: Click Here
Installation Guide: Click Here
Features
• Unlock using an NFC card or UniFi Identity mobile app
• Additional handwave unlock functionality

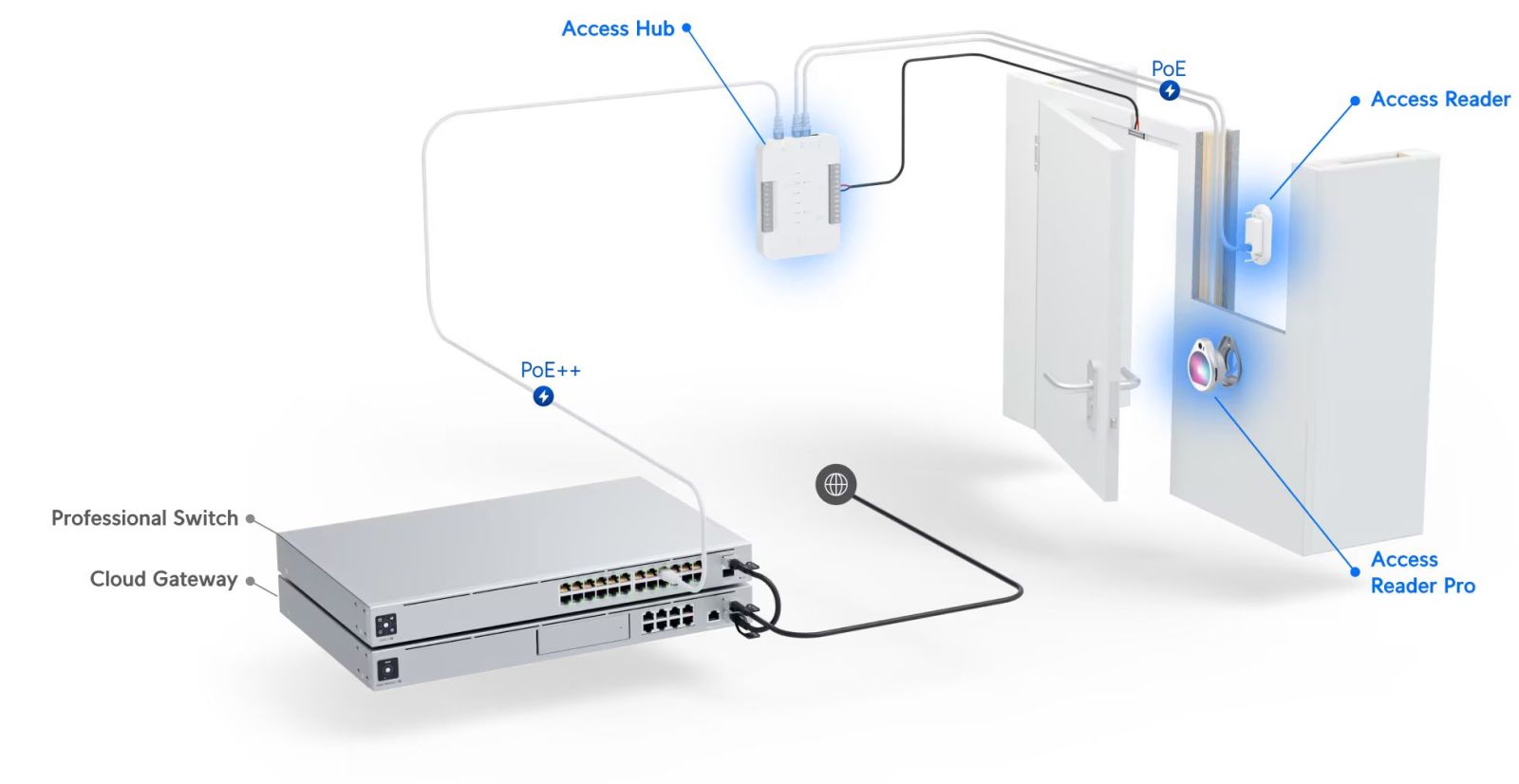

• Connects to UniFi Access Hub using PoE
(UA-Reader-Lite)
Key Features
- NFC Card Reader
- MIFARE 13.56 MHz Technology
- 1.2" Read Range
- 12MP Camera
- Two-Way Talk
- PoE Power via UniFi Access Hub
- Bluetooth Low-Energy 4.2 Connectivity
- 1000M Ethernet Connectivity
- ADA-Compliant Mounting Height for Video
- IP55 Rated for Water & Dust Protection

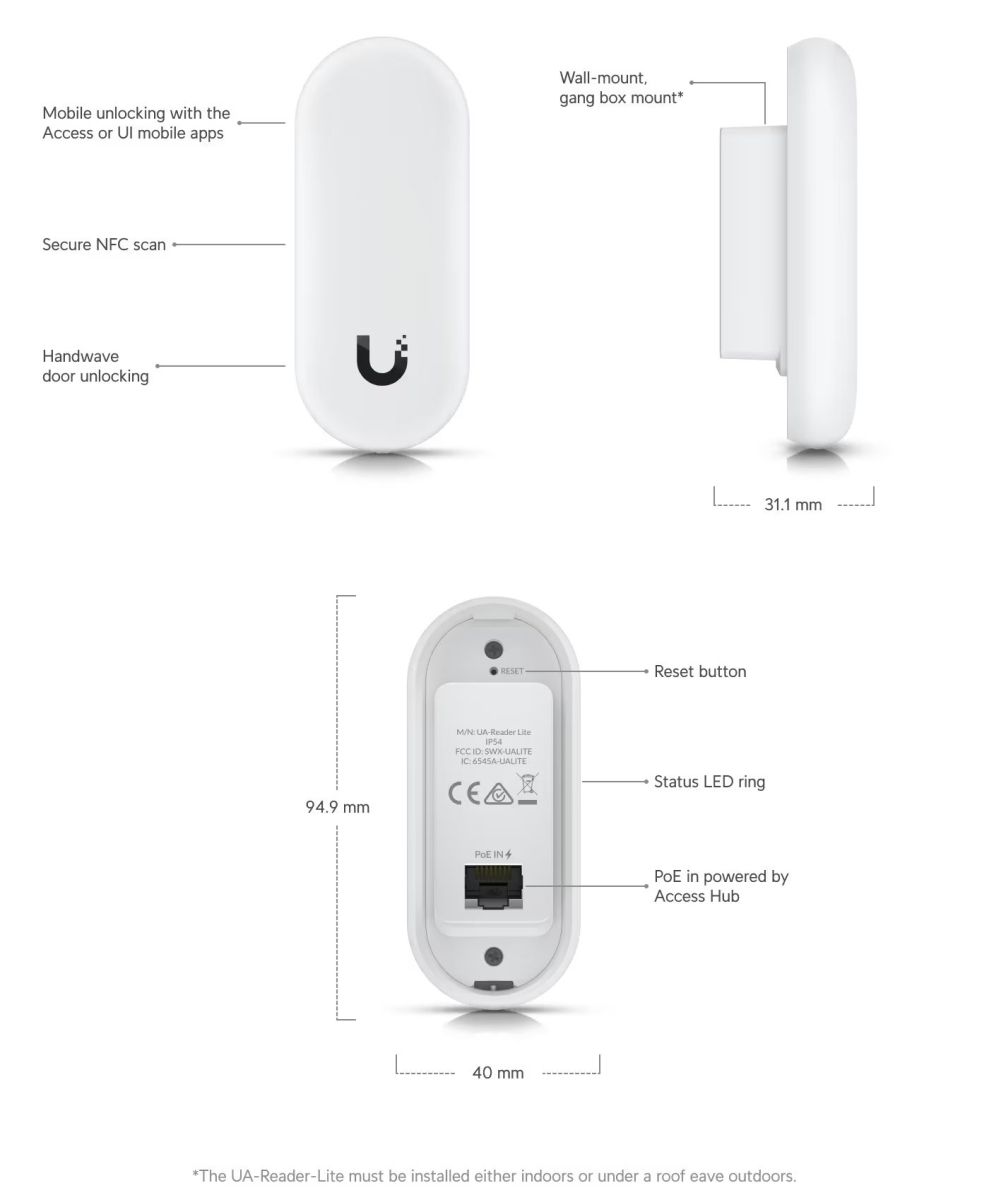

| Mechanical | |
|---|---|
| Dimensions | 94.9 x 40 x 31.1 mm (3.7 x 1.6 x 1.2") |
| Weight | 67 g (2.4 oz) |
| Enclosure material | Polycarbonate |
| Mounting options | Wall-mount, gang box mount* *The UA-Reader Lite must be installed either indoors or under a roof eave outdoors. |
| Weatherproofing | IP54 |
| Hardware | |
| Networking interface | 10/100 MbE |
| Max. power consumption | 6W |
| Power method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported voltage range | 44–57V DC |
| Button | (1) Factory reset |
| LEDs | White/Blue |
| Connectivity | Ethernet, BLE 4.1 |
| NFC frequency | 13.56 MHz |
| NFC reading range | <30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC Tag 1, 2, 3, 4, 5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Operating environment | Outdoor use |
| Ambient operating temperature | -20 to 40° C (-4 to 104° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Software information | The software version of a product can be checked at https://unifi.ui.com |
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Reader Lite, V02 |
| LED | |
| System | Steady blue: Adopted/device is ready Steady white: Pending adoption Blinking white/blue: Upgrading firmware |
| Software | |
| Management application | UniFi Access: Version 1.5.9 and later |
| SKU | UA-Reader-Lite |
| Barcode # | 810010076816 |
| Brand | Ubiquiti |
| Shipping Weight | 1.0000kg |
Manufacturer Warranty: 1 Year Manufacturer Warranty
