DC-to-DC PoE conversion
The TP-DCDC-2456G-VHP converts the stated 18-36VDC DC input for delivery through its integrated PoE output.

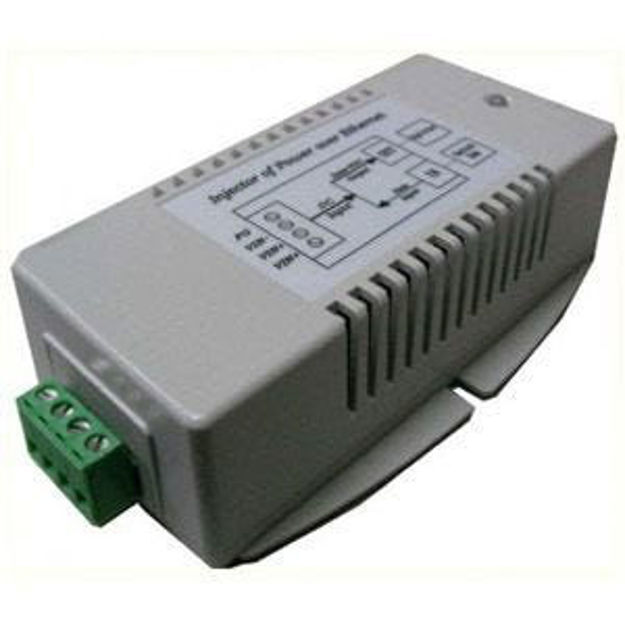

Tycon Power TP-DCDC-2456G-VHP 18-36VDC to 56V 70W 4-Pair Gigabit Passive PoE Injector
Model # TP-DCDC-2456G-VHP
-
SKU: TP-DCDC-2456G-VHP
$251.10
Stock Availability
🟢Live
In Stock · 5+ available
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
Tycon Power TP-DCDC-2456G-VHP
Tycon Power TP-DCDC-2456G-VHP 18-36VDC to 56V 70W 4-Pair Gigabit Passive PoE Injector
The Tycon Power TP-DCDC-2456G-VHP accepts 18-36VDC and provides 56V 70W passive PoE across all four Ethernet pairs with Gigabit data support.
18-36VDC input 56V passive PoE 70W output 4-pair power Gigabit data
Product highlights
Features and capabilities
Verified product information is organised below to support faster comparison and more confident installation planning.
PoE output
The output is specified as 56VDC passive PoE.
Power capacity
The exact-model output rating is stated as 70W.
Ethernet data path
The supported data rate is identified as Gigabit Ethernet.
4-pair (8-wire) power delivery
The PoE output uses 4-pair (8-wire) according to the exact product information.
Dual DC inputs
Two DC inputs are provided for connecting two power sources, such as primary and backup sources.
Electrical protection
Short-circuit, over-current and reverse/over-voltage protection.
Low self-consumption
Official product information states self-consumption below 2W.
?
Authorised reseller and manufacturer warranty
DeviceDeal is an authorised reseller of Tycon Power. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms, eligibility requirements and product assessment.
Frequently asked questions
Before you buy
What does the TP-DCDC-2456G-VHP do?
The Tycon Power TP-DCDC-2456G-VHP accepts 18-36VDC and provides 56V 70W passive PoE across all four Ethernet pairs with Gigabit data support.
What DC input range is required?
The specified DC input is 18-36VDC.
What PoE output is provided?
The output is 56VDC passive PoE with a stated maximum of 70W.
What network speed is supported?
The product information identifies Gigabit Ethernet data support.
How many Ethernet pairs carry PoE power?
The product is specified for 4-pair (8-wire) power delivery.
Can two DC power sources be connected?
Yes. Two DC inputs are provided for primary and backup power-source arrangements.
What warranty applies?
DeviceDeal is an authorised reseller of Tycon Power. This product is covered by the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms and product assessment. A specific warranty duration is not stated in the verified information.
(TP-DCDC-2456G-VHP)
Technical specifications
Tycon Power TP-DCDC-2456G-VHP 18-36VDC to 56V 70W 4-Pair Gigabit Passive PoE Injector
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-DCDC-2456G-VHP |
| Product type | DC-to-DC PoE injector / converter |
| PoE output ports | 1 |
| Power and PoE | |
| DC input | 18-36VDC |
| PoE output voltage | 56VDC |
| PoE output type | passive PoE |
| Maximum output power | 70W |
| Powered pairs | 4-pair (8-wire) |
| Networking | |
| Network data rate | Gigabit Ethernet |
| Protection and construction | |
| Dual DC inputs | Yes |
| Input/output isolation | Yes |
| Protection features | Short-circuit, over-current and reverse/over-voltage protection. |
| Operating temperature | -40°C to 70°C |
| Efficiency and operation | |
| Self-consumption | Less than 2W, according to official source information |
| SKU | TP-DCDC-2456G-VHP |
| Brand | TYCON POWER |
| Shipping Weight | 0.5000kg |
DeviceDeal authorised reseller
Tycon Power manufacturer warranty
DeviceDeal is an authorised reseller of Tycon Power. TP-DCDC-2456G-VHP is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturers current terms, eligibility requirements and product assessment.
Warranty coverageApplicable manufacturer warranty
Proof of purchaseRetain the DeviceDeal tax invoice or order record.
AssessmentClaims are reviewed under the manufacturers warranty process.
Warranty service does not guarantee automatic approval, replacement or on-site support. Please keep the product model and serial details available when requesting assistance.
