Wide DC input
Accepts 11-60VDC and supports positive or legacy -48VDC telecom input because the input and output are isolated.

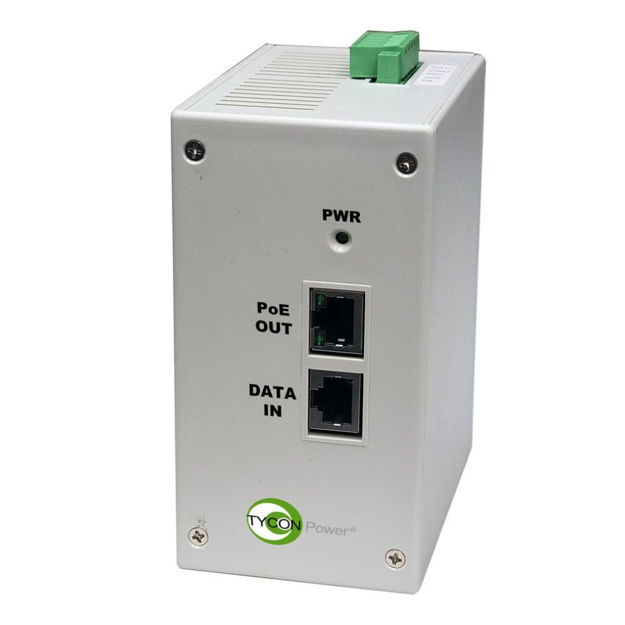

Tycon Power TPDIN-1256GD-BT 11-60VDC to 56V 90W 5GbE IEEE 802.3bt DIN-Rail PoE Injector
Model # TPDIN-1256GD-BT
-
SKU: TPDIN-1256GD-BT
Don't pay: $640.00
$634.00
SAVE $6.00 (1%)
Stock Availability
🟢Live
In Stock · 10+ available
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
Tycon Power • TPDIN-1256GD-BT
Tycon Power TPDIN-1256GD-BT 11-60VDC to 56V 90W 5GbE IEEE 802.3bt DIN-Rail PoE Injector
The TPDIN-1256GD-BT converts a wide 11-60VDC input into a 56V 90W IEEE 802.3bt PoE output with data passthrough up to 5Gbps. Its isolated, fanless DIN-rail design supports industrial and telecom power systems.
11-60VDC input 56V 90W 802.3bt Up to 5Gbps DIN-rail mounting
Product highlights
Key supplied and exact-model details for the TPDIN-1256GD-BT.
High-power IEEE PoE
Provides a 56V 90W IEEE 802.3bt output.
Multi-gigabit data
Supports data passthrough up to 5Gbps.
Dual power sources
Two DC inputs support primary and backup power arrangements.
Industrial installation
Uses a locking connector for wire up to 12AWG and mounts to standard DIN rail.
Fanless operation
Natural airflow cooling avoids a mechanical fan.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Frequently asked questions
Helpful answers based on the supplied and exact-model product information.
What input voltage does the TPDIN-1256GD-BT accept?
It accepts 11-60VDC and can also work with isolated -48VDC telecom input.
What PoE output does it provide?
It provides 56V IEEE 802.3bt PoE at up to 90W.
What network speed is supported?
The exact product page states data passthrough up to 5Gbps.
Can two DC sources be connected?
Yes. Dual inputs allow primary and backup source arrangements.
How is the injector mounted?
It is designed for standard DIN-rail mounting and can also be wall mounted.
What warranty applies?
DeviceDeal is an authorised Tycon Power reseller. The applicable Tycon Power manufacturer warranty applies, subject to the manufacturers terms and product assessment.
(TPDIN-1256GD-BT)
Technical specifications
Tycon Power TPDIN-1256GD-BT
| Product Details | |
|---|---|
| Brand | Tycon Power |
| Model | TPDIN-1256GD-BT |
| Product Type | Industrial DC-to-DC PoE injector |
| Input and Output | |
| Input Voltage | 11-60VDC |
| Supported Negative Input | -48VDC supported through isolated conversion |
| PoE Output | 56VDC IEEE 802.3bt |
| Maximum PoE Output | 90W |
| Power Inputs | Dual DC inputs |
| Networking | |
| Maximum Data Rate | Up to 5Gbps |
| Protection | Data-path surge protection |
| Physical and Environmental | |
| Operating Temperature | -40°C to +70°C |
| Mounting | DIN rail or wall installation |
| Cooling | Fanless natural airflow |
| Input Connector | Locking type, accepts wire up to 12AWG |
| Grounding | FG chassis/earth-ground terminal |
| SKU | TPDIN-1256GD-BT |
| Brand | TYCON POWER |
| Shipping Weight | 1.0000kg |
DeviceDeal authorised reseller
Tycon Power manufacturer warranty
DeviceDeal is an authorised reseller of Tycon Power. The TPDIN-1256GD-BT is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Manufacturer warranty The applicable Tycon Power manufacturer warranty applies. No unverified warranty duration has been stated.
Keep your proof of purchase Retain your DeviceDeal tax invoice or order record to support a warranty request.
Assessment process Eligibility and the available remedy are determined under Tycon Power’s warranty terms and product assessment process.
Warranty approval, replacement, repair or other remedy is not automatic and is not represented as on-site service.
