Ubiquiti Pro XG 10 PoE, 1U,Professional-grade 10-port, Layer 3 Etherlighting PoE+++ Switch,(10) 10 GbE and (2) 10G SFP+ Ports,
Model # USW-Pro-XG-10-PoE
-
SKU: USW-Pro-XG-10-PoE
Stock Availability
🟢Live
(Click & Collect Available)
- Pick Up Available
- Australian Warranty
- Checkout Securely

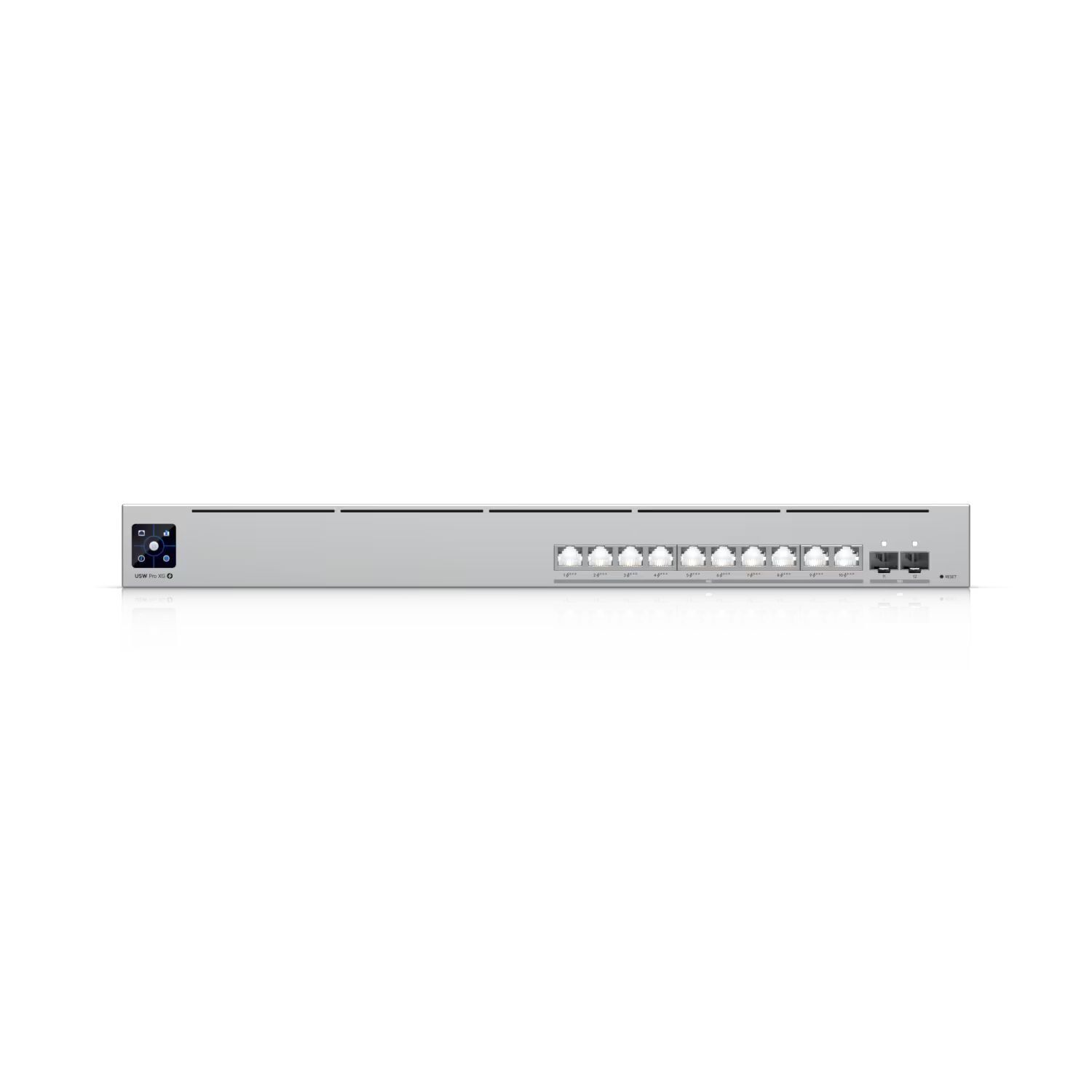

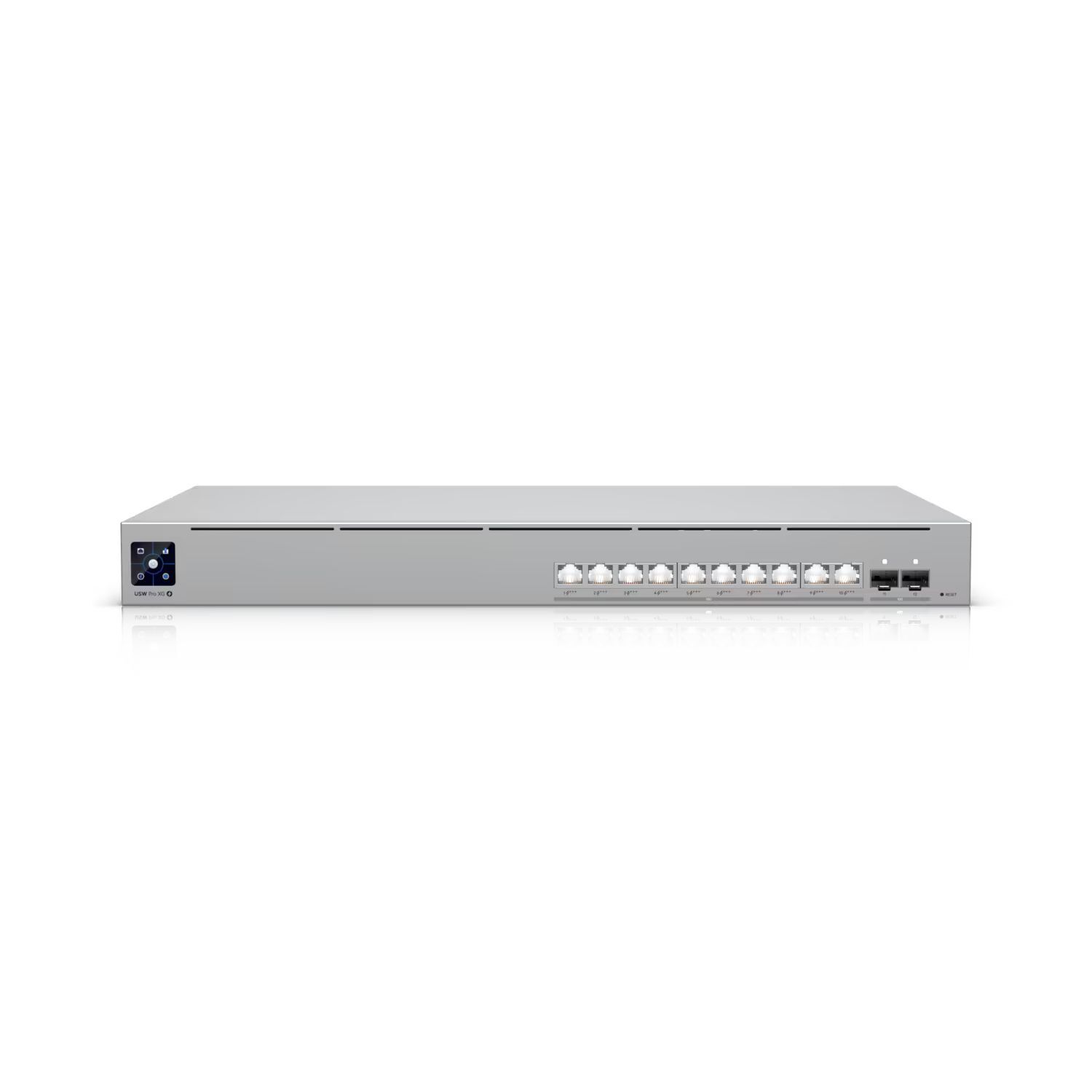

Ubiquiti USW-Pro-XG-10-PoE UniFi professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE (2) 10G SFP+ ports.
Product Code: USW-Pro-XG-10-PoE
Unifi 1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(10) 10 GbE PoE+++ ports
(2) 10G SFP+ ports
DC power backup ready**
400W total PoE availability
(USW-Pro-XG-10-PoE)
Dimensions
442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Port Layout
10 GbE RJ45
10 (All PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
400W
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)
Etherlighting™
✓
Switching Capacity
240 Gbps
Total Non-Blocking Throughput
120 Gbps
Forwarding Rate
179 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
ARP Entries
12,000
IPv4 Routes
12,000
Packet Buffer Size
2 MB
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
PoE Ports
PoE+++
10
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
65W (Excluding PoE output) 520W (Including PoE output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 4.6 kg (10.14 lb) With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2"")
LCM Display
1.3" touchscreen
ESD/EMP Protection
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP+
✓
LEDs
RPS
✓
System
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC
Application Requirements
UniFi Network
Version 9.1.120 and later
| SKU | USW-Pro-XG-10-PoE |
| Barcode # | 810177160458 |
| Brand | UBIQUITI |
| Shipping Weight | 4.7000kg |
Manufacturer Warranty : 2 Year Manufacturer Warranty
