Name: Ubiquiti UniFi Network, Switch, 8-Port, POE 120W, (6) GbE PoE+ Ports, (2) GbE PoE++ Ports, (2) 10G SFP+ Ports, Layer 3, Wall Mount,
Brand: UBIQUITI
SKU: USW-PRO-8-POE
Price: 544.5 AUD
Availability: InStock

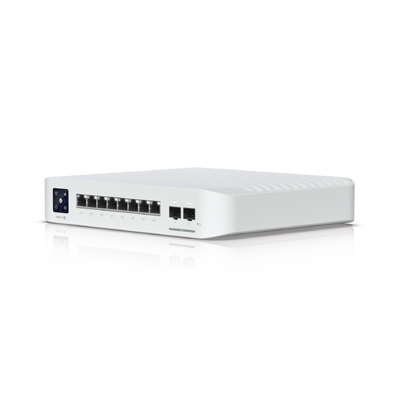

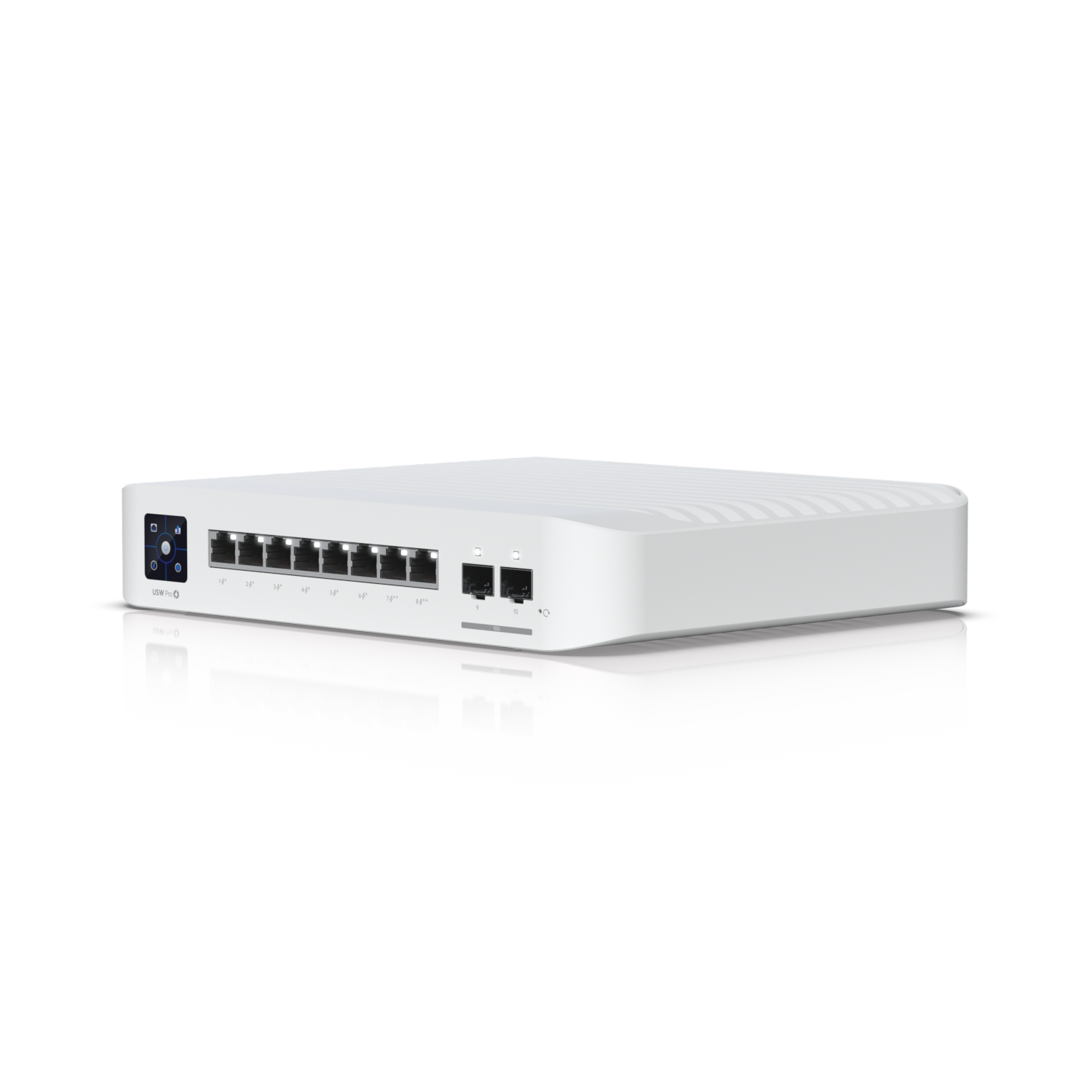

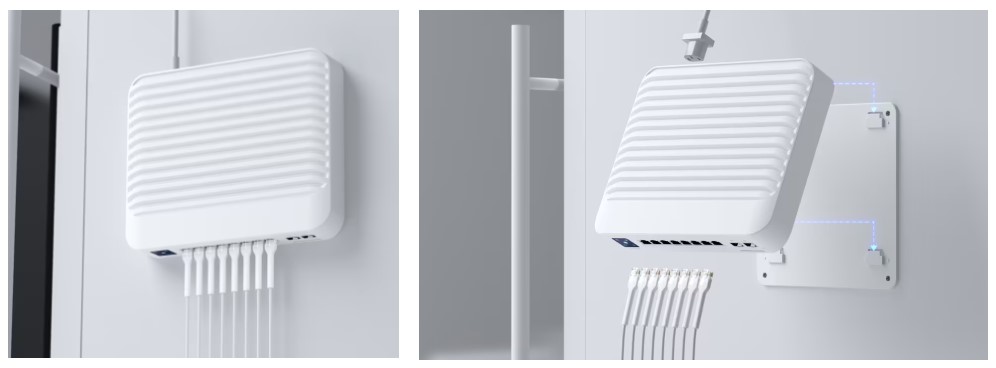

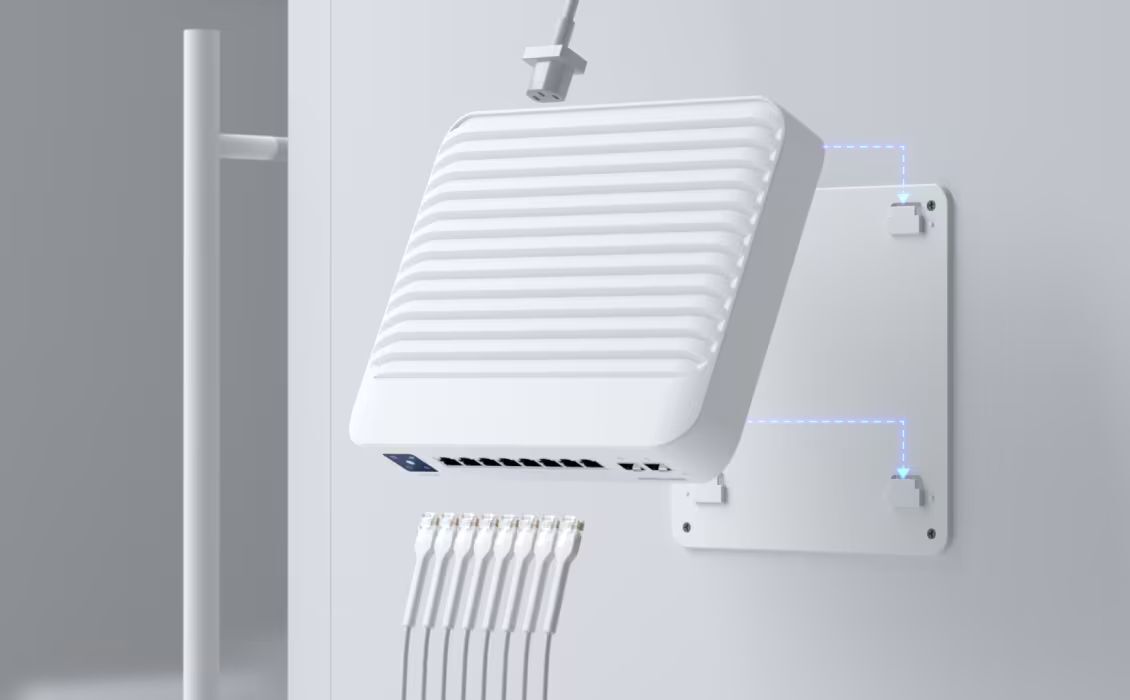

Ubiquiti UniFi Network, Switch, USW-Pro-8-POE, 8-Port, POE 120W, (6) GbE PoE+ Ports, (2) GbE PoE++ Ports, (2) 10G SFP+ Ports, Layer 3, Wall Mount

An 8-port, Layer 3 switch with PoE+ and PoE++ output.

(6) GbE PoE+ ports

(2) GbE PoE++ ports

(2) 10G SFP+ ports

120W total PoE availability

_{Note: Managed with UniFi Network Application version 7.5.176 and later.}

(USW-PRO-8-POE)

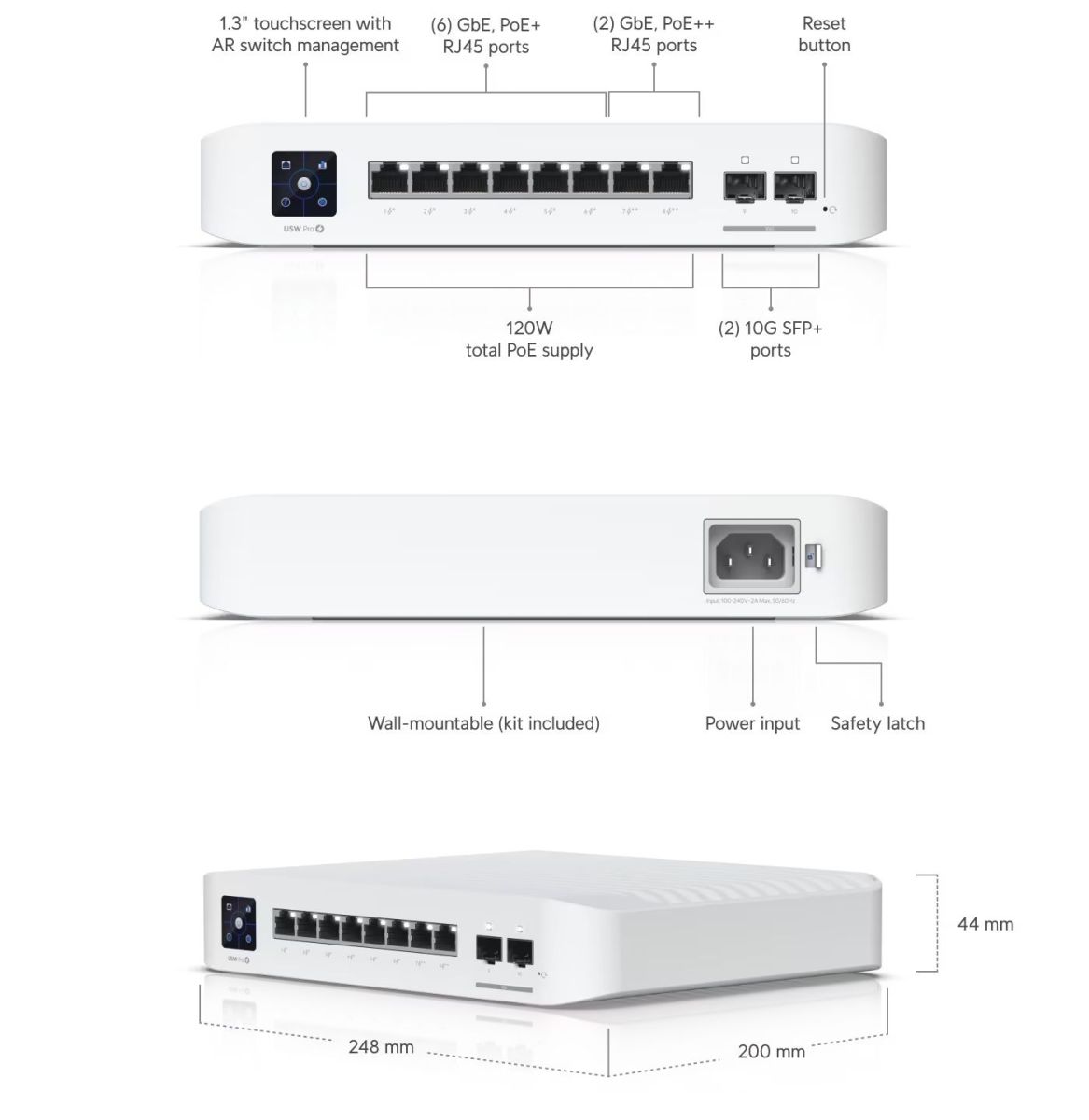

Technical Specifications

Mechanical
Dimensions	200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight	2.1 kg (4.6 lb)
Enclosure materials	Plastic, metal
Mount material	Plastic
Hardware
Management interface	Ethernet In-Band

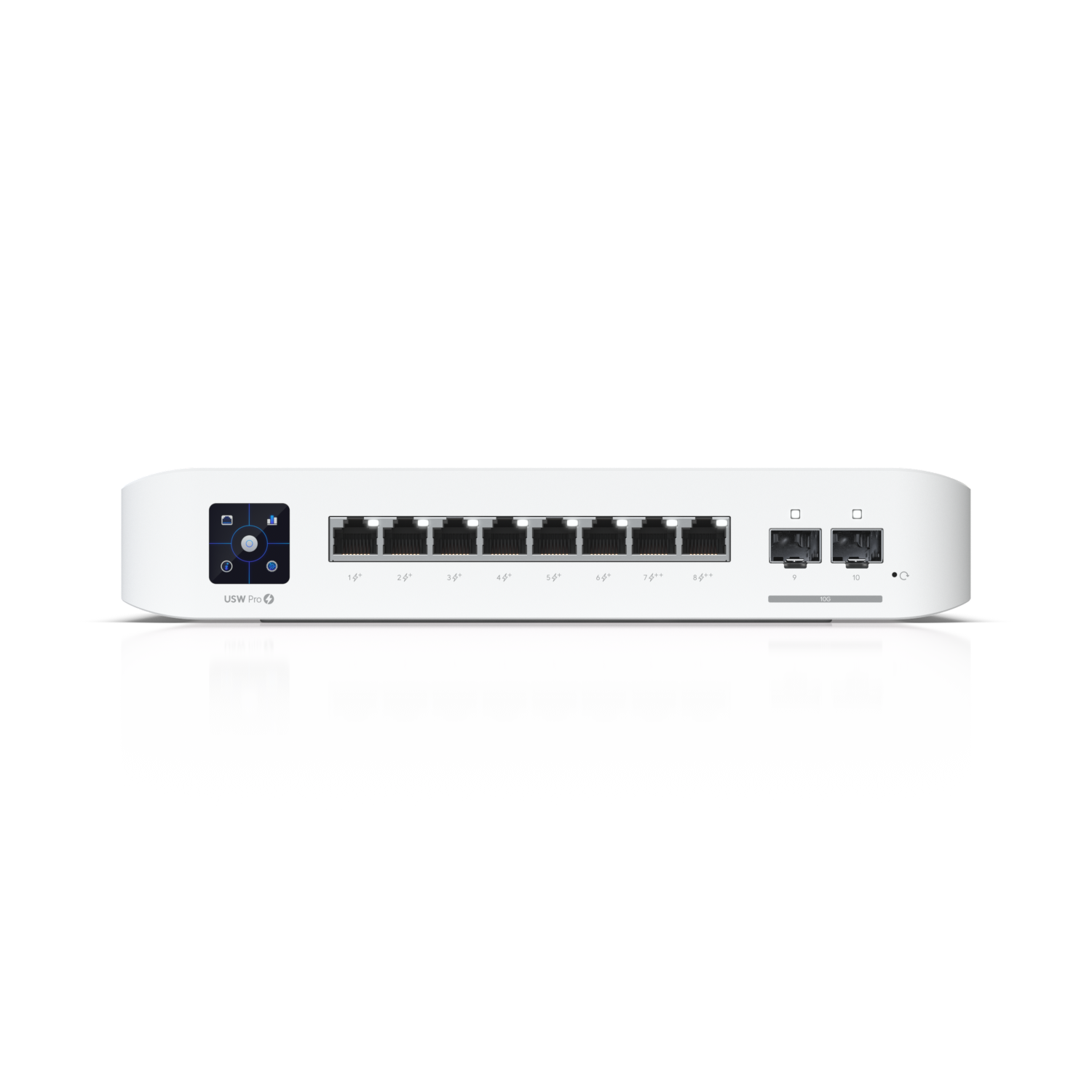

Networking interface	(8) GbE RJ45 ports (2) 10 Gbps SFP+ ports
PoE interface	(6) PoE/PoE+ (Pins 1, 2+; 3, 6-) (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	28 Gbps
Switching capacity	56 Gbps

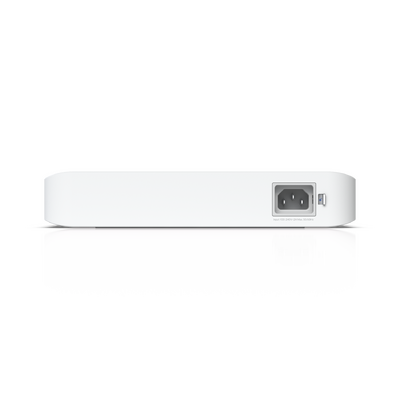

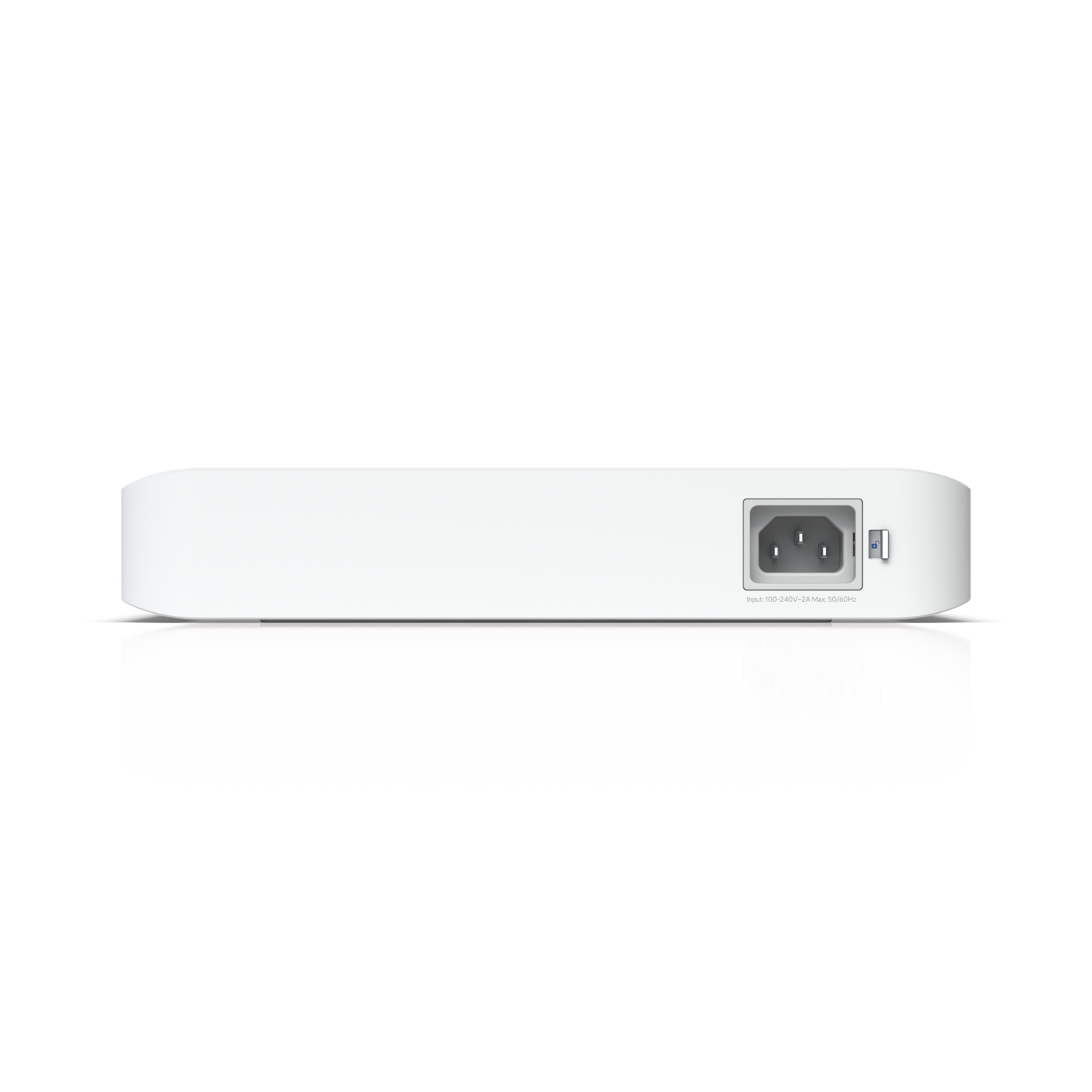

Power method	Universal input, 100—240V AC, max. 2A
Power supply	AC/DC, internal
Supported voltage range	100—240V AC
Max. power consumption	30W (Excluding PoE output)
Total available PoE	120W
Max. PoE wattage per port by PSE	PoE: 15W PoE+: 30W PoE++: 60W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V PoE++: 50—57V
LCM display	(1) 1.3" touchscreen
LEDs	RJ45 ports: link/activity
Button	Factory reset
Operating temperature	-5 to 45° C (23 to 113° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Application Requirements
UniFi Network	Version 7.5.176 and later

SKU	USW-PRO-8-POE
Barcode #	810084692875
Brand	UBIQUITI
Shipping Weight	4.0000kg
Shipping Width	0.270m
Shipping Height	0.080m
Shipping Length	0.550m
Shipping Cubic	0.010913000m3
