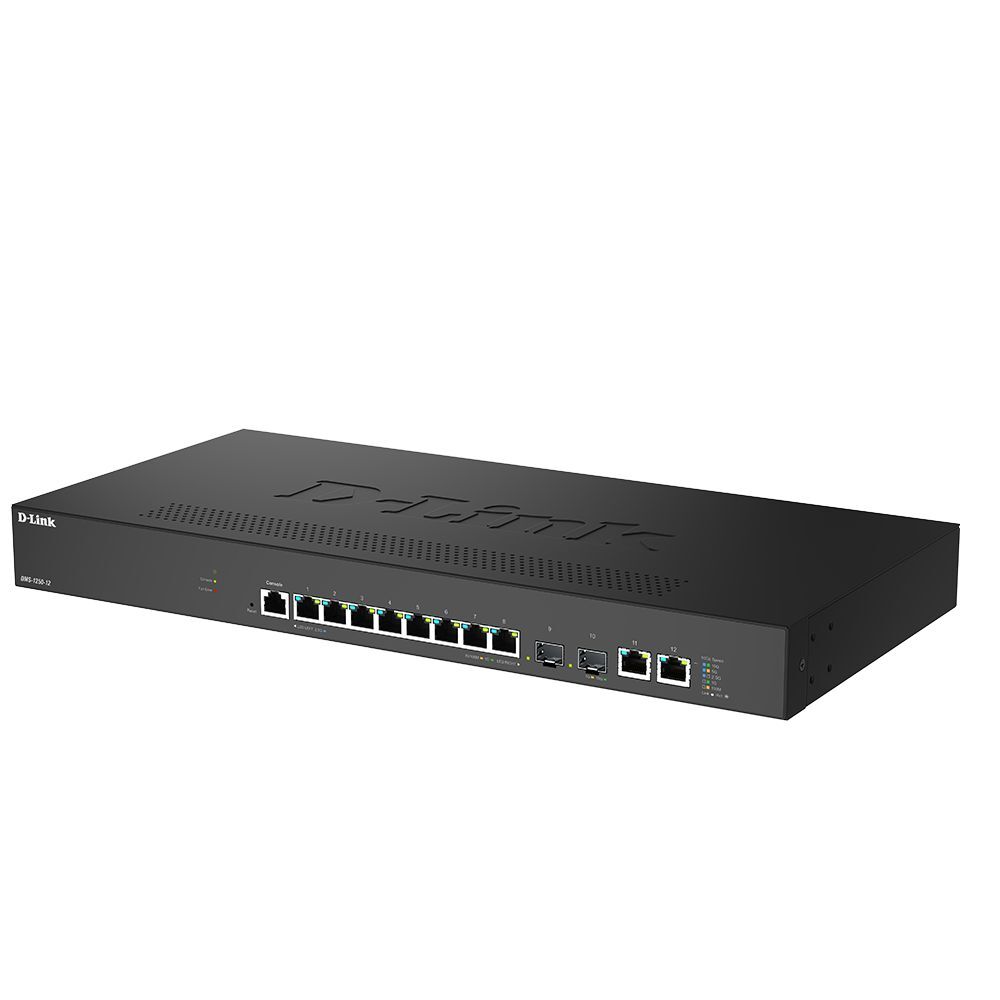

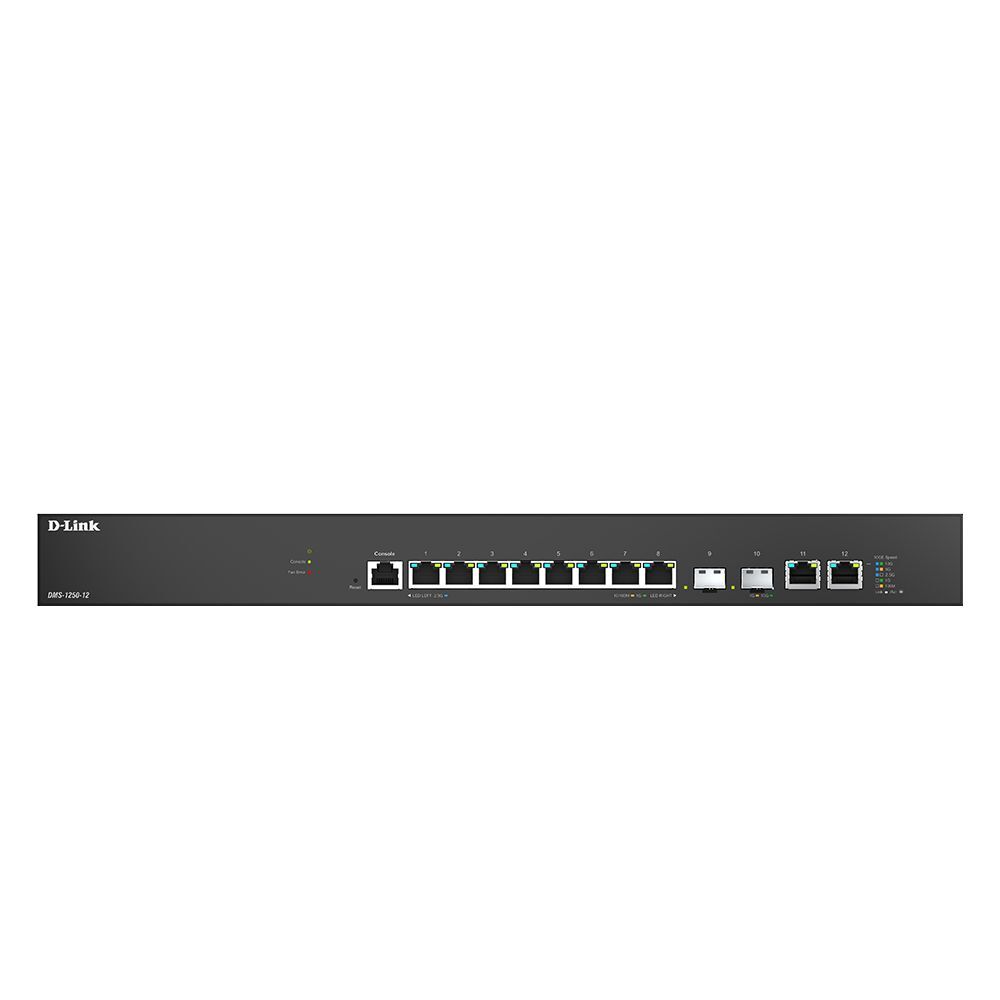

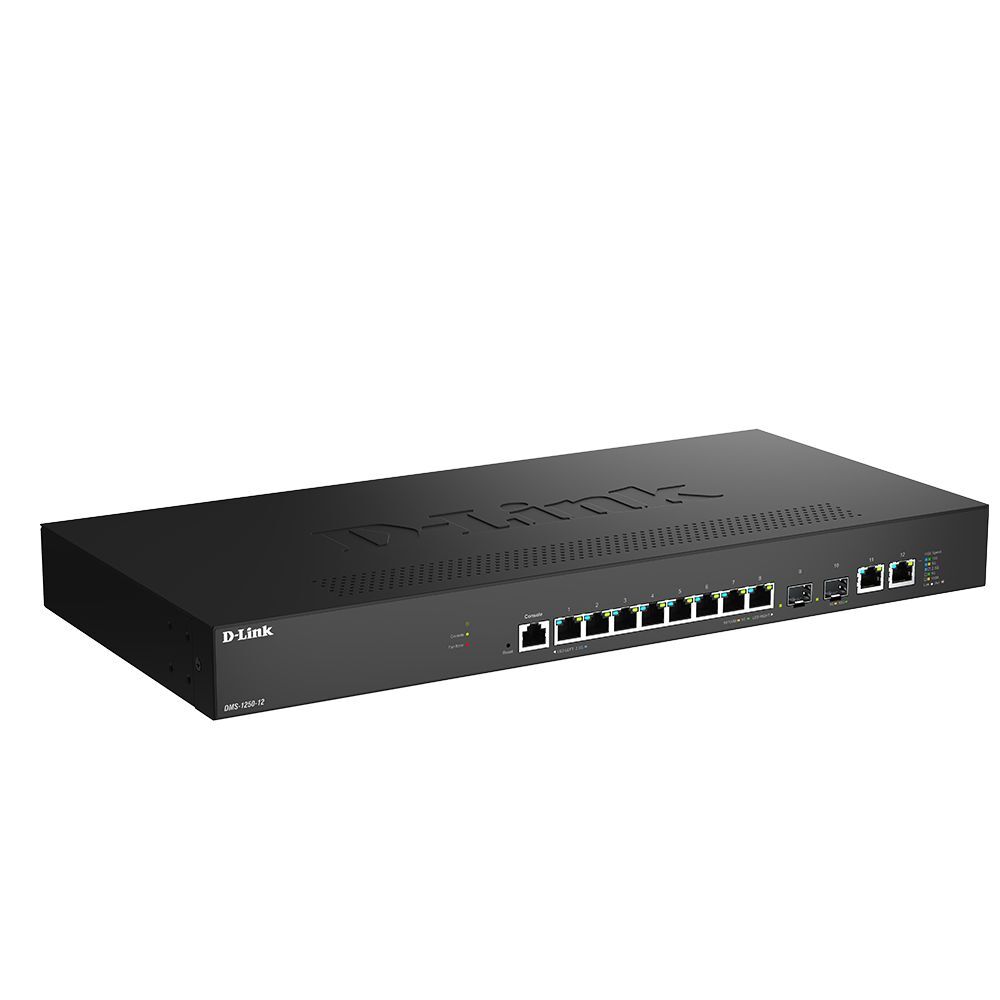

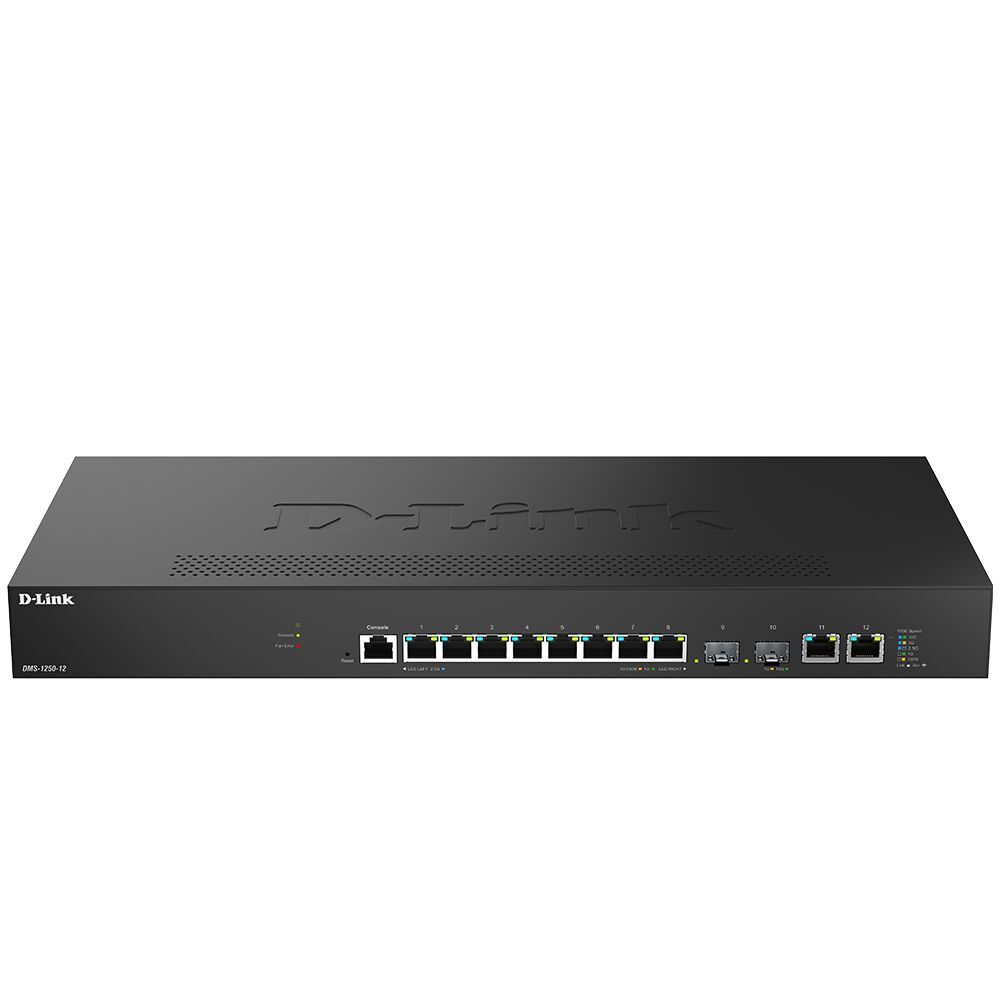

D-Link DMS-1250-12 12-Port Multi-Gigabit Smart Managed Switch

A Layer 2+ smart managed switch with eight 2.5G ports, two multi-Gigabit 10GBASE-T ports, two 10G SFP+ ports, 120Gbps switching and advanced management features.

Mixed multi-Gigabit ports

Combines eight 2.5G ports with two copper ports supporting speeds up to 10G.

Two 10G SFP+ ports

Adds compatible high-speed fibre connectivity.

Layer 2+ management

Includes IP routing, VLAN, security and traffic-control features.

Flexible high-speed connectivity

The twelve-port layout includes eight 2.5G copper ports, two 100/1000/2.5G/5G/10GBASE-T ports and two 10G SFP+ ports.

Layer 2+ network control

Static routing, Spanning Tree Protocol, link aggregation, IGMP Snooping and a 4K-group VLAN capacity are listed.

Voice and surveillance support

Automatic Voice VLAN and Surveillance VLAN functions are included in the supplied feature set.

Management and security

Web-based GUI, command-line interface, 802.1X access control, DHCP server screening, SNMP and cable diagnostics are stated.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised D-Link reseller. This product is supplied under the applicable D-Link manufacturer warranty.

Frequently asked questions

How many total ports are provided?

The switch provides twelve ports.

How many 2.5G ports are included?

Eight 2.5Gbps copper ports are listed.

How many multi-Gigabit 10GBASE-T ports are included?

Two copper ports support 100/1000/2.5G/5G/10GBASE-T speeds.

How many 10G SFP+ ports are included?

Two 10G SFP+ ports are provided.

What is the switching capacity?

A 120Gbps switching capacity is stated.

Does the switch provide PoE?

No. The supplied specifications list no PoE.

Which management interfaces are provided?

A web-based GUI and command-line interface are listed.

Does it support static routing?

Yes. Static routing is included.

Is the switch rack mountable?

Yes. 19-inch rack-mount support is stated.

What warranty applies?

The product is supplied under the applicable D-Link manufacturer warranty.

(DMS-1250-12)

D-Link DMS-1250-12 12-Port Multi-Gigabit Smart Managed Switch features

Twelve high-speed ports

Combines 2.5G, 10GBASE-T and 10G SFP+ connectivity.

120Gbps capacity

Provides the stated aggregate switching bandwidth.

Layer 2+ controls

Includes routing, VLAN and traffic-management functions.

GUI and CLI management

Supports both listed administration interfaces.

Confirm connected-device speeds, compatible 10G SFP+ modules, fibre requirements and the rack-mount installation before deployment.

D-Link DMS-1250-12 12-Port Multi-Gigabit Smart Managed Switch specifications

Product details

Model	DMS-1250-12
Product type	Layer 2+ multi-Gigabit smart managed switch
Total ports	12
2.5G copper ports	8
Multi-Gigabit 10GBASE-T ports	2
10G SFP+ ports	2
Switching capacity	120Gbps
PoE	No
Static routing	Yes
Web-based GUI	Yes
Command-line interface	Yes
VLAN capacity	4K groups
Voice VLAN	Yes
Surveillance VLAN	Yes
Jumbo frame	12K bytes
IGMP Snooping	Yes
Spanning Tree Protocol	Yes
Link aggregation	Yes
802.1X access control	Yes
DHCP server screening	Yes
SNMP	Yes
Cable diagnostics	Yes
Cooling	1 x 5-speed smart fan with Quiet Mode
Power supply	Built-in
Rack mountable	Yes
Dimensions	210 x 210 x 44mm

Warranty

Coverage	Applicable D-Link manufacturer warranty

SKU	DMS-1250-12
Barcode #	790069476631
Brand	D-LINK
Shipping Weight	3.3000kg
