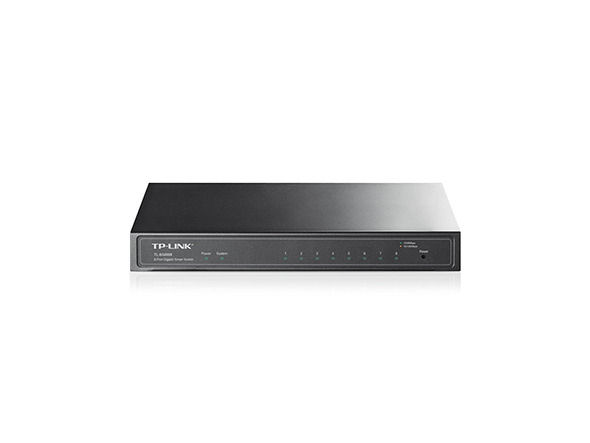

TP-Link TL-SG2008 8-Port Gigabit Smart Switch - 8x 10/100/1000Mbps RJ45 Ports - 3 Year Warranty

Overview

What This Product Does

TP-LINK Gigabit Smart Switch TL-SG2008 is equipped with 8 gigabit RJ45 ports. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.
TP-LINK’s 8-Port Gigabit Smart Switch TL-SG2008 is especially designed for the small and medium business networks that require efficient network management. TL-SG2008 comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.

  • Gigabit Ethernet connections on all ports provide full speed of data transferring
  • Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • WEB/CLI managed modes, SNMP, RMON bring abundant management features
  • Innovative energy-efficient technology saves up to 65% of power consumption

Advanced QoS Features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Abundant Layer 2 Features

For more application of layer 2 switches, TL-SG2008 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP; Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

TL-SG2008 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.

Features

Layer 2 Features

  • Static Link Aggregation/ Link Aggregation Control Protocol (LACP)
  • Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
  • STP/RSTP/MSTP
  • IGMP Snooping

Quality of Service

  • 4 priority queues
  • Support IEEE 802.1P
  • DSCP QoS
  • Rate limit feature

Security Strategies

  • Access Control List (L2~L4 ACL)
  • Port Security
  • Storm Control
  • SSL and SSH encryptions

Management

  • Web-based GUI
  • Command Line Interface(Telnet)
  • SNMP v1/v2c/v3
  • RMON (1, 2, 3, 9 group)

Specifications

(TL-SG2008)



Device Type Gigabit Smart Switch
Dimensions 209 x 126 x 26mm
Features
Network Ports 8x 10/100/1000Mbps RJ45 Ports
(Auto-Negotiation/Auto MDI/MDIX)
OTHERS Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Package Contents TL-SG2008
Power Adapter
Quick Installation Guide
Resource CD
Rubber Feet
Product TP-Link TL-SG2008 8-Port Gigabit Smart Switch
Standards Compliance CE, FCC, RoHS
Weight Weight
Ports Type RJ45
Optional Accessories (Sold Seperately)
Data Tranfer Rates Gigabit
SKU TL-SG2008
Barcode # 6935364021788
Brand TP-Link
Shipping Weight 1.0000kg
Manufacturer Warranty
3 Years Limited Warranty
Manufacturer Contact Info
http://www.tp-link.com.au
1300 875 465
