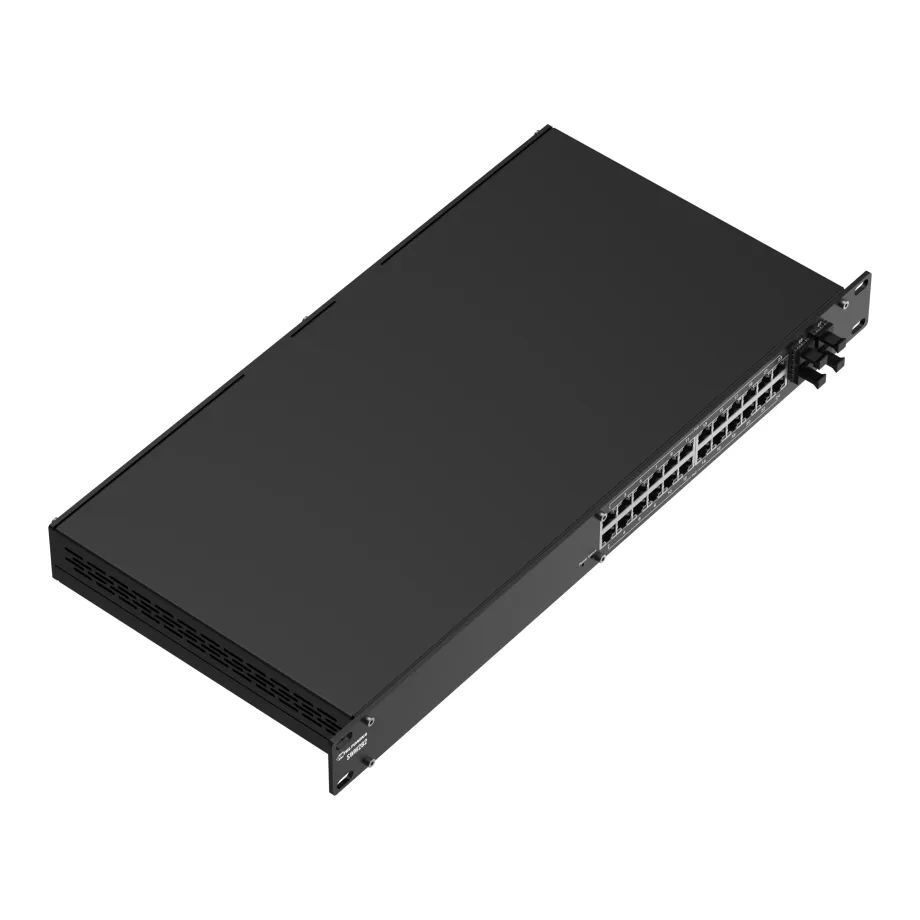

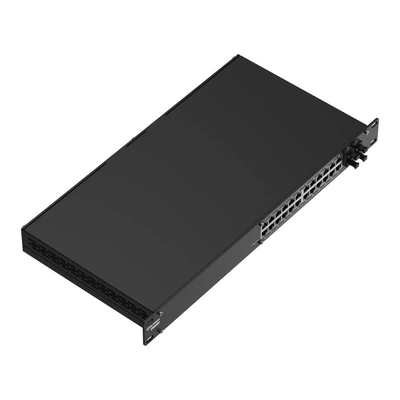

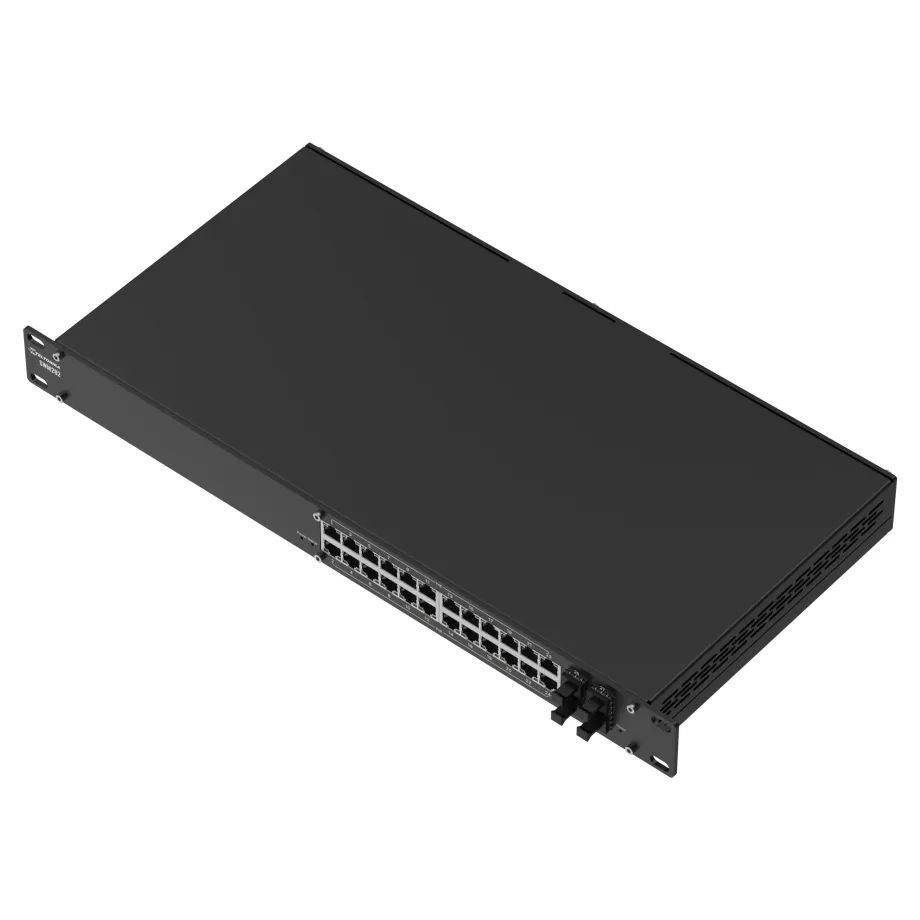

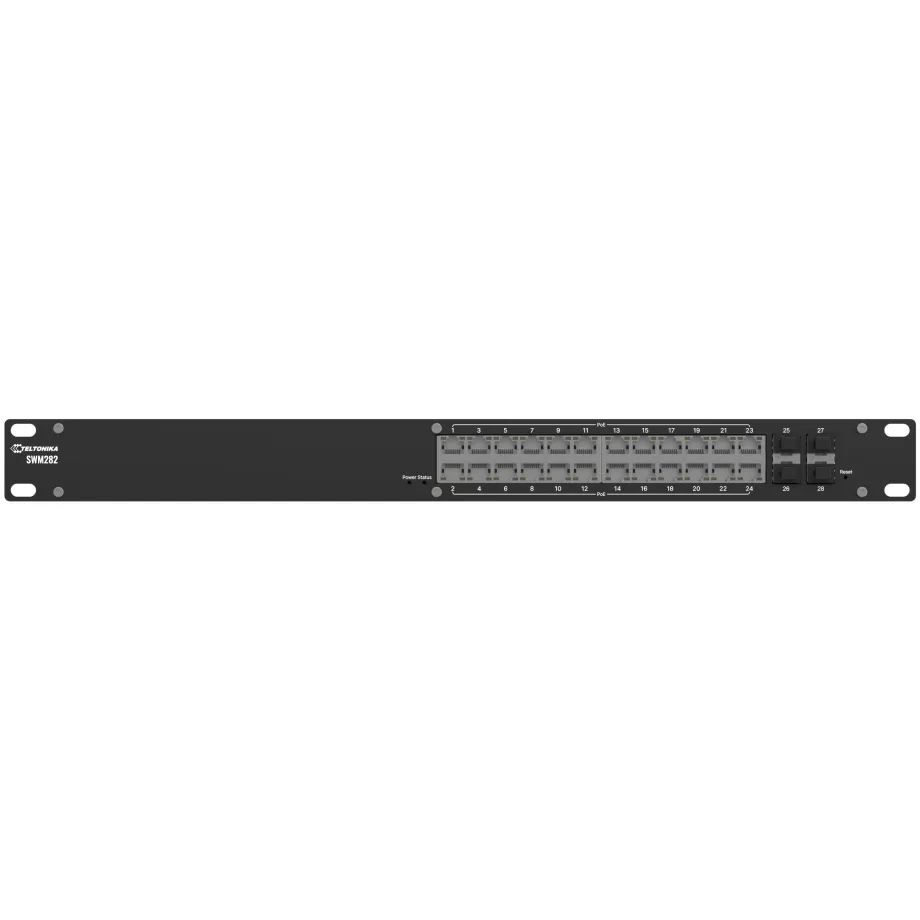

SWM282 PoE+ Managed Switch
The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.
PoE+
Deliver power and data through 24 PoE+ ports with up to 30W per port.
L2+
Advanced routing protocols & VLAN segmentation for complex deployments.
Cloud-Enabled
Shipped with 2 years of RMS Management for remote configuration and monitoring.
Protocols
Profinet, MRP, and EtherNet/IP supported for mixed industrial environments.
(SWM282)
Technical Specifications
Interfaces
| Ethernet |
24 x RJ45 ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fiber |
4 x SFP ports |
| IEEE 802.3 Standards |
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
Industrial Protocols
| Profinet |
Class B conformance (optional) |
| EtherNet/IP |
Yes |
| MRP |
Client role, Manager role |
| SNMP |
v2, v3 |
| LLDP |
Yes |
Network Management
| Features |
802.1p CoS, 802.1x port access control, 802.1Q VLAN |
| Routing |
Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP) |
| L2 Features |
Loop protection, VLAN, STP/RSTP, forwarding table |
| L3 Features |
Static IPv4/IPv6 routing, DHCPv6 client, static IPv6 addressing |
| DHCP |
Server, client, static leases with MAC wildcards |
| Port Settings |
Enable/disable, link speed, isolation, PoE management, EEE (802.3az), port mirroring |
QoS & Traffic
| QoS |
Port, DSCP, 802.1p, TOS priority |
| Scheduling |
SP / WFQ / WRR |
| Bandwidth Control |
Rate limiting, storm control |
| Traffic Shaper |
Port-based shaping |
Diagnostics
| Tools |
Cable diagnostic, ping, traceroute, nslookup |
| Ping Reboot |
Restart PoE on specific port |
Security
| Authentication |
PAM (pre-shared key), Radius, TACACS+, IP/login attempt blocking |
| VLAN |
Port VLAN separation |
| 802.1x |
Client and server support |
| MAC Filtering |
Allow specific MACs, block or disable unauthorized |
API
| Web API |
Teltonika Networks Web API (beta). Docs |
System Characteristics
| CPU |
Realtek, single-core, 500 MHz, MIPS-4KEc |
| RAM |
128 MB DDR3 |
| Flash |
16 MB serial flash |
Firmware / Configuration
| OS |
TSWOS (OpenWrt-based Linux) |
| Management |
Web UI, FOTA, RMS |
| Features |
FW update, profiles, backup, keep settings, factory reset |
| Development |
SDK, Package Manager, Busybox shell, Lua, C, C++ |
Performance
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
83.33 Mpps |
| Packet Buffer |
512 KB |
| MAC Table |
8K entries |
| Jumbo Frames |
Up to 10,000 bytes |
PoE+
| Ports |
1–24 |
| Standards |
IEEE 802.3af (Type 1), IEEE 802.3at (Type 2), Alternative A |
| Max Power per Port |
30 W |
| Total Budget |
300 W |
Power
| Connector |
C14 connector |
| Input Voltage |
100–240 VAC, 50/60 Hz |
| Consumption |
Idle: 9 W / Max: 330 W / PoE Max: 300 W |
Physical Interfaces
| Status LEDs |
1 x Power, 48 x ETH, 1 x Status, 4 x SFP |
| Reset |
Software reset button |
| Other |
1 x Grounding screw |
Mechanical
| Casing |
Anodized aluminum housing and panels |
| Dimensions (W x H x D) |
483 x 44 x 234 mm |
| Weight |
2291 g |
| Mounting |
Rack mounting kit |
Environment
| Operating Temperature |
0 °C to 50 °C |
| Humidity |
10% – 90% non-condensing |
| Ingress Protection |
IP30 |
Regulatory
| Certifications |
CE, UKCA, CB, RCM, FCC, IC |
| SKU |
SWM282 |
| Barcode # |
4779051844050 |
| Brand |
Teltonika |
| Shipping Weight |
2.1000kg |
