PoE-powered operation
Runs from IEEE 802.3af, 802.3at, four-pair 60W or compatible 42-57V passive PoE input.
Tycon Power TP-SW3G 3-Port Gigabit 60W IEEE 802.3af/at PoE Extender Switch
Model # TP-SW3G
-
SKU: TP-SW3G
Don't pay: $287.00
$249.00
SAVE $38.00 (13%)
Stock Availability
🟢Live
In Stock · Call to confirm
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
Tycon Power • TP-SW3G

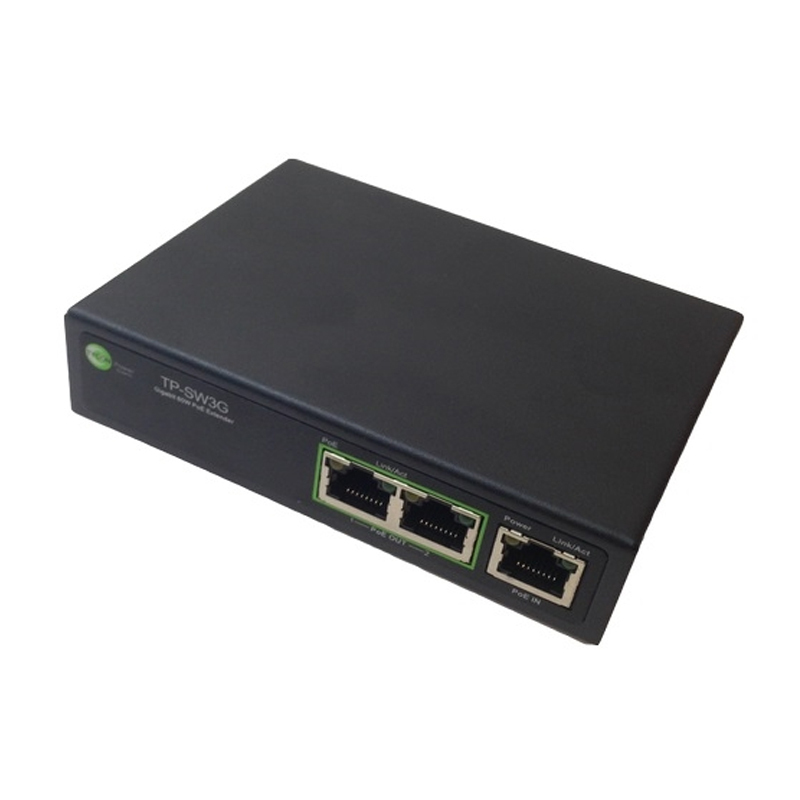

Tycon Power TP-SW3G 3-Port Gigabit 60W IEEE 802.3af/at PoE Extender Switch
The TP-SW3G is a three-port Gigabit PoE extender switch that accepts PoE on one port and provides two IEEE 802.3af/at powered outputs. It can extend Ethernet and PoE by another 100m without a local power supply.
3 Gigabit ports Two PoE outputs Up to 60W PoE input No local PSU required
Product highlights
Key supplied and exact-model details for the TP-SW3G.
Two powered outputs
Provides two Gigabit IEEE 802.3af/at PoE output ports.
Network extension
Extends Ethernet and PoE by up to another 100m per unit.
Cascading capability
Multiple units can be connected for longer effective distance, subject to the available power budget and load.
Surge protection
Includes 15kV protection across the Ethernet conductors.
Industrial design
Uses a conformal-coated metal enclosure for moisture resistance and wider-temperature use.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Frequently asked questions
Helpful answers based on the supplied and exact-model product information.
What does the TP-SW3G do?
It adds two Gigabit PoE outputs and extends Ethernet and PoE by another 100m without a local power supply.
How is it powered?
It is powered through its PoE input port using compatible IEEE or passive PoE.
How many PoE outputs are provided?
Two Gigabit IEEE 802.3af/at output ports are provided.
Can more than one extender be used?
Yes, but the practical number and total distance depend on cable loss, the incoming PoE budget and connected-device demand.
Does it support Gigabit Ethernet?
Yes. All three ports support Gigabit data.
What warranty applies?
DeviceDeal is an authorised Tycon Power reseller. The applicable Tycon Power manufacturer warranty applies, subject to the manufacturers terms and product assessment.
(TP-SW3G)
Technical specifications
Tycon Power TP-SW3G
| Product Details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-SW3G |
| Product Type | PoE-powered Gigabit extender switch |
| Ports and Networking | |
| Total Ports | 3 × Gigabit RJ45 |
| PoE Input Ports | 1 |
| PoE Output Ports | 2 |
| Network Speed | 10/100/1000Mbps |
| Cable Category | Category 5 or higher |
| PoE | |
| Accepted Input | IEEE 802.3af, IEEE 802.3at, four-pair 60W or 42-57V passive PoE |
| Output Compatibility | IEEE 802.3af/at |
| Maximum Output per Port | Up to 30W |
| Maximum Stated Input Power | 60W |
| Range and Environment | |
| Additional Range | Up to 100m per extender |
| Cascading Reference | Up to about 300m effective distance depending on load and power source |
| Surge Protection | 15kV |
| Operating Temperature | -30°C to +60°C |
| Housing | Metal |
| SKU | TP-SW3G |
| Brand | TYCON POWER |
| Shipping Weight | 0.3700kg |
