Five 2.5G ports
Provides multi-Gigabit connections for compatible wired devices.
D-LINK DMS-105 5-Port Multi-Gigabit Desktop Switch (Metal Housing)
Model # DMS-105
-
SKU: DMS-105
- Pick Up Available
- Australian Warranty
- Checkout Securely
D-Link product

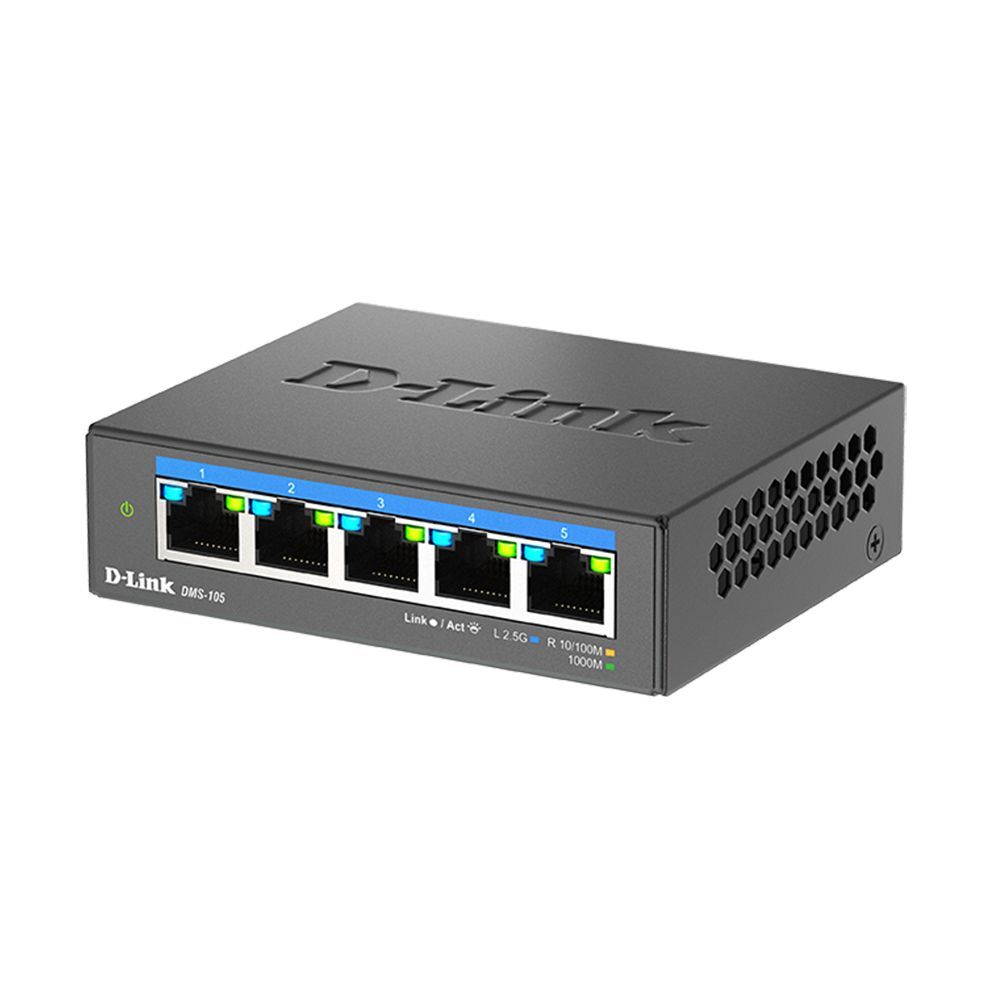

D-Link DMS-105 5-Port 2.5G Multi-Gigabit Desktop Switch
A compact unmanaged desktop switch with five 2.5Gbps Ethernet ports, 25Gbps switching capacity, 802.1p Quality of Service, Energy-Efficient Ethernet and passive cooling.
25Gbps switching capacity
Delivers the stated aggregate switching bandwidth.
Compact silent operation
Uses passive cooling in a 100.5 x 82 x 28mm desktop housing.
Multi-Gigabit desktop access
Five Ethernet ports support 10Mbps, 100Mbps, 1Gbps and 2.5Gbps connection speeds.
Unmanaged plug-and-play design
The DMS-105 requires no web interface, cloud management or separate licence.
Traffic and energy features
IEEE 802.1p Quality of Service and IEEE 802.3az Energy-Efficient Ethernet are listed.
Compact SOHO installation
The metal-housed switch is identified for small office and home office environments, with passive cooling and a desktop form factor.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated one-year D-Link manufacturer warranty.
Frequently asked questions
How many Ethernet ports are provided?
The switch provides five RJ45 ports.
What speeds are supported?
The ports support 10Mbps, 100Mbps, 1Gbps and 2.5Gbps Ethernet.
What is the switching capacity?
A 25Gbps switching capacity is stated.
What packet-forwarding rate is listed?
The stated forwarding rate is 18.16mpps.
Is the switch managed?
No. It is an unmanaged switch without a web-based GUI.
Does it provide PoE?
No. Zero PoE ports are listed.
Does it include SFP ports?
No. Zero SFP ports are provided.
Which traffic feature is supported?
IEEE 802.1p Quality of Service is stated.
What are the dimensions?
The stated dimensions are 100.5 x 82 x 28mm.
What warranty is supplied?
A one-year D-Link manufacturer warranty is stated.
(DMS-105)
D-Link DMS-105 5-Port 2.5G Multi-Gigabit Desktop Switch features
Five multi-Gigabit ports
Connects compatible devices at speeds up to 2.5Gbps.
25Gbps capacity
Provides the stated switching bandwidth.
QoS and energy efficiency
Includes IEEE 802.1p and IEEE 802.3az support.
Compact unmanaged design
Offers silent plug-and-play desktop connectivity.
Confirm that connected devices and cabling support 2.5Gbps Ethernet before deployment.
D-Link DMS-105 5-Port 2.5G Multi-Gigabit Desktop Switch specifications
Product details
| Model | DMS-105 |
|---|---|
| Product type | Unmanaged multi-Gigabit desktop switch |
| RJ45 ports | 5 |
| Port speed | 10/100Mbps/1G/2.5G |
| Switching capacity | 25Gbps |
| Maximum forwarding rate | 18.16mpps |
| Management | Unmanaged |
| Web-based GUI | No |
| PoE ports | 0 |
| SFP ports | 0 |
| Quality of Service | IEEE 802.1p |
| Energy-Efficient Ethernet | IEEE 802.3az |
| Form factor | Desktop |
| Cooling | Passive |
| Stackable | No |
| Operating temperature | 0°C to 40°C |
| Dimensions | 100.5 x 82 x 28mm |
| Cloud managed | No |
| Licence required | No |
Warranty
| Coverage | 1-year manufacturer warranty |
|---|
| SKU | DMS-105 |
| Barcode # | 790069470578 |
| Brand | D-LINK |
| Shipping Weight | 1.0000kg |
