QNAP 5-port unmanaged 2.5GbE switch

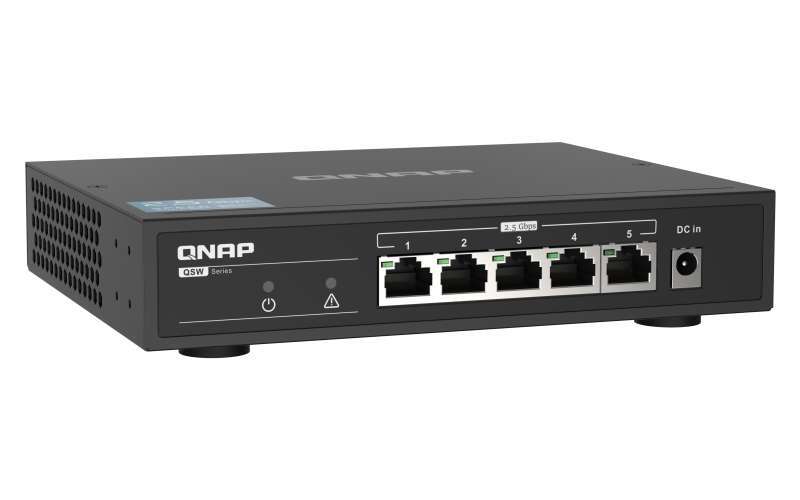

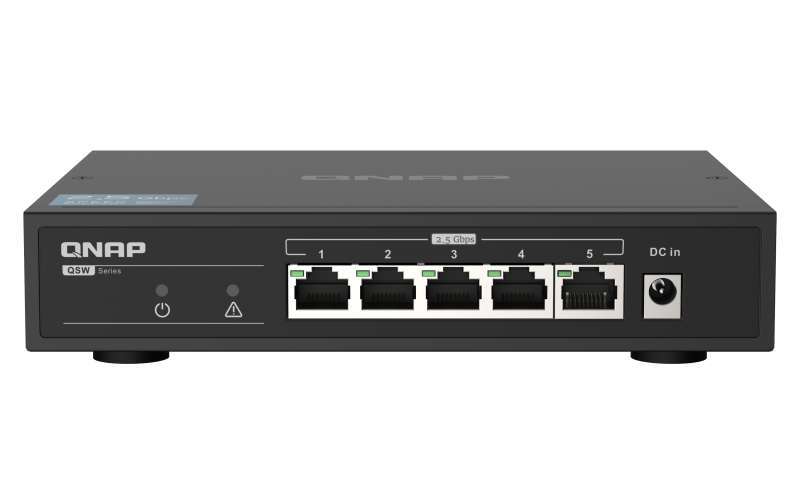

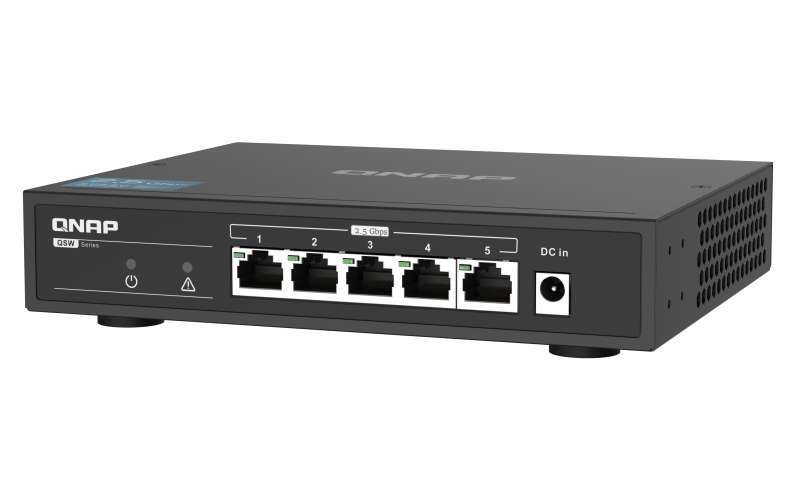

QNAP QSW-1105-5T 5-Port 2.5GbE Unmanaged Desktop Switch

A compact plug-and-play switch with five 2.5GbE RJ45 ports that automatically negotiate 2.5G, 1G and 100M connections.

Network ports5 × 2.5GbE RJ45

Port speeds2.5G / 1G / 100M

Switching capacity25Gbps

CoolingFanless

Straightforward 2.5GbE network upgrade

The unmanaged QSW-1105-5T requires no switch configuration. Each port selects the highest mutually supported speed, helping 2.5GbE, Gigabit and Fast Ethernet devices share the same desktop network.

Compact switching performance

Five 2.5GbE RJ45 ports with automatic 2.5G, 1G and 100M negotiation.
25Gbps switching capacity and 12.5Gbps total non-blocking throughput.
16K MAC address table and 9K jumbo-frame support.
Fanless desktop design with per-port speed, link and activity indicators.
Maximum power consumption is listed as 12W.

Source review

The supplied specification cell includes unrelated NAS memory-module and sound-level notes. Those statements were excluded from customer-facing content. No warranty duration was supplied.

Frequently asked questions

Answers below are based only on the supplied product information for QSW-1105-5T.

Is the QSW-1105-5T a managed switch?

No. It is an unmanaged plug-and-play switch and does not require switch configuration.

How many network ports does it provide?

It provides five 2.5GbE RJ45 ports.

Which network speeds are supported?

Each port supports automatic negotiation between 2.5G, 1G and 100M.

What are the switching capacity and throughput?

The supplied specifications list 25Gbps switching capacity and 12.5Gbps total non-blocking throughput.

Is the QSW-1105-5T fanless?

Yes. The supplied specifications list a fanless desktop design.

What warranty applies to the QSW-1105-5T?

The product is supplied under QNAP manufacturer warranty, but no duration was confirmed in the supplied data.

(QSW-1105-5T)

Features and highlights

QNAP QSW-1105-5T 5-Port 2.5GbE Unmanaged Desktop Switch

Five 2.5GbE ports

Connects five compatible RJ45 devices at up to 2.5GbE.

Automatic negotiation

Selects 2.5G, 1G or 100M for each connected device.

Plug-and-play operation

Uses unmanaged switching with no configuration required.

Quiet desktop design

Fanless cooling supports silent operation in shared workspaces.

Key details to check before purchase

Switching capacity: 25Gbps
Total non-blocking throughput: 12.5Gbps
MAC address table: 16K
Jumbo frames: 9K

QNAP QSW-1105-5T 5-Port 2.5GbE Unmanaged Desktop Switch specifications

Technical information below is organised from the supplied product data.

Specification	Details
Product Details
Brand	QNAP
SKU	QSW-1105-5T
Product Type	5-port unmanaged 2.5GbE desktop switch
Management Type	Unmanaged
Form Factor	Desktop
Number of Ports	5
Network Interfaces and Performance
2.5GbE RJ45 Ports	5
Supported Port Speeds	2.5G / 1G / 100M
MAC Address Table	16K
Total Non-Blocking Throughput	12.5Gbps
Switching Capacity	25Gbps
Jumbo Frames	9K
Supported Standards
Ethernet Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBASE-T IEEE 802.3x Full-Duplex Flow Control
Power and Cooling
Power Supply	Adapter
Input Power Type	AC
Input Voltage Range	100240VAC, 50/60Hz
Maximum Power Consumption	12W
Fanless	Yes
Physical and Environmental
LED Indicators	Per port: Speed, link and activity Loop LED: Loop Per system: Power and status
Dimensions (H × W × D)	34 × 180 × 145mm
Net Weight	0.577kg
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	1090%, non-condensing
Compliance
Certifications	FCC, CE, BSMI, VCCI, LVD, CCC, KCC and AS/NZS
Electromagnetic Compliance	Class B

The supplied specification cell contains unrelated QNAP NAS memory-module and sound-level test notes; these were excluded.

No gross weight or warranty duration was supplied.

SKU	QSW-1105-5T
Model #	QSW-1105-5T
Barcode #	885022019601
Brand	QNAP
Shipping Weight	1.0000kg
Shipping Width	0.190m
Shipping Height	0.060m
Shipping Length	0.310m
