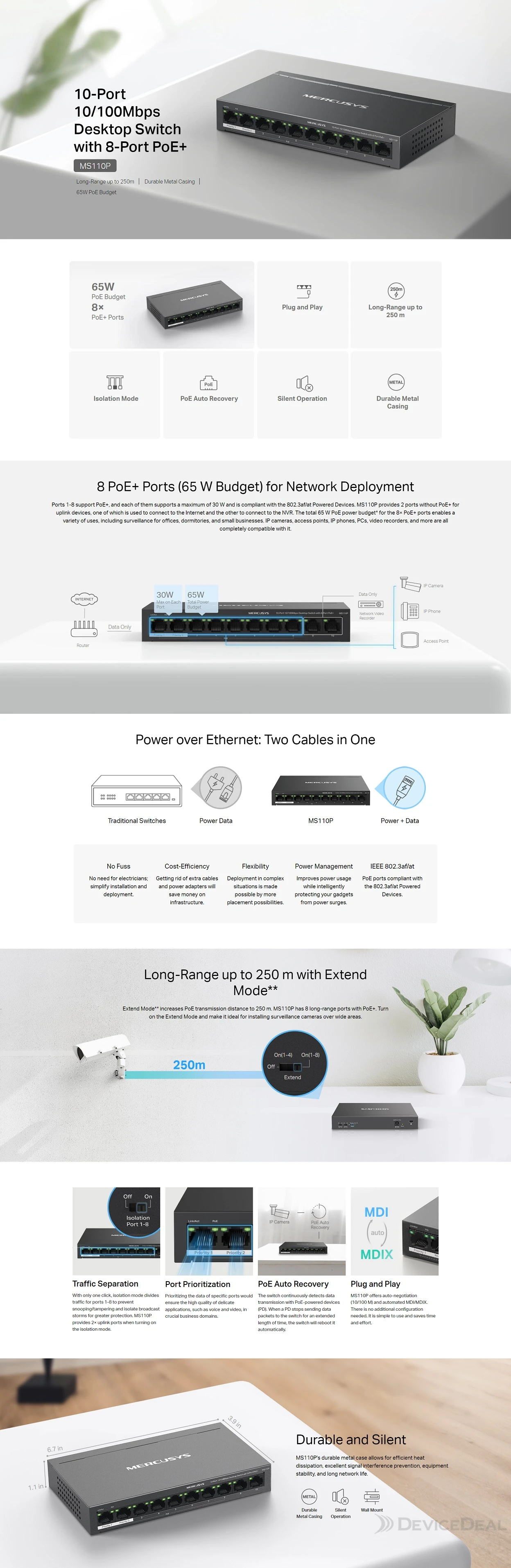

Mercusys MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports* 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR. Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode* Isolation Mode: One click to divide traffic for specific ports for stability and security Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs Durable Metal Casing: Allows for efficient heat dissipation and long network life Plug and Play: Simple to use and saves time and effort PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices


Dimensions (W X D X H)

171*98*27 mm

PoE Ports


Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W


10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

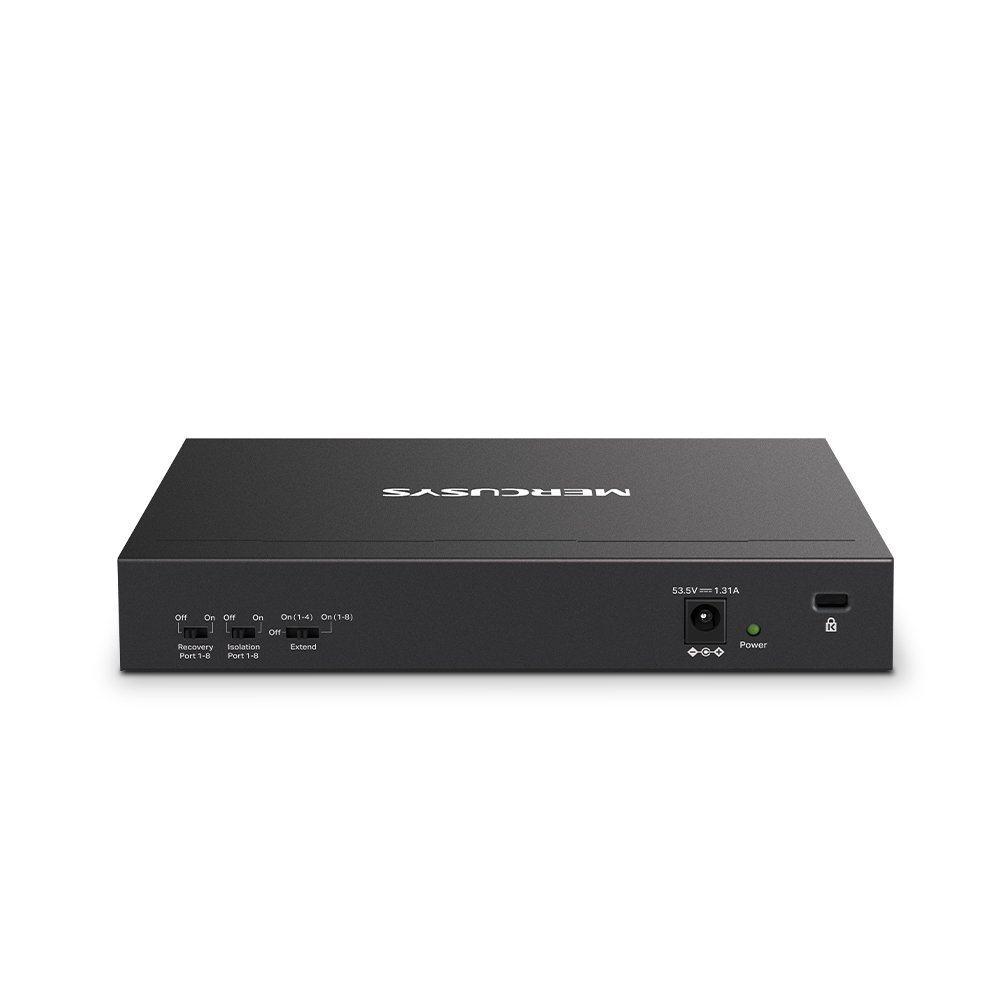

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame

 2 KB

Mac Address Table


Max Power Consumption

10.064 BTH/h ?no PD connected)

263.568 BTH/h?with 65W PD connected?

Barcode # 849439001192
Shipping Weight 57.0000kg

Manufacturer Warranty: 5 Years Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

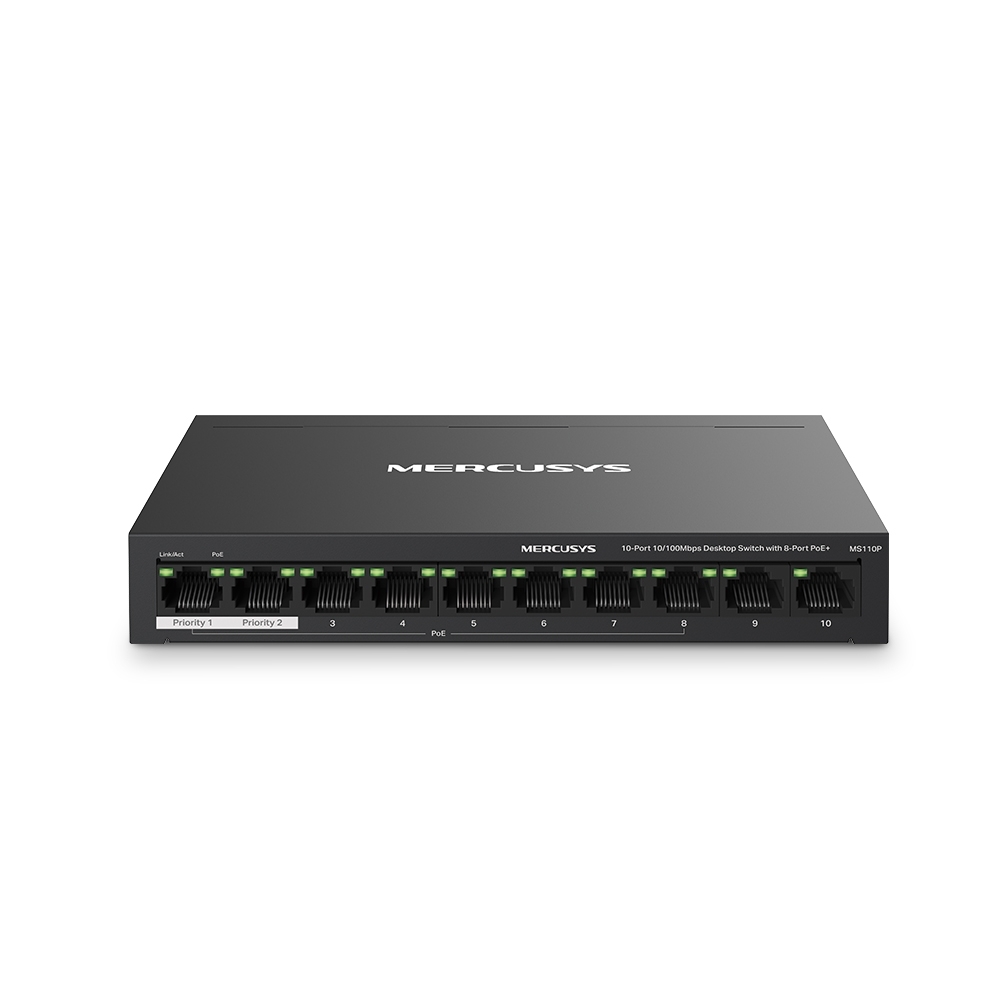

TP-Link Mercusys MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
