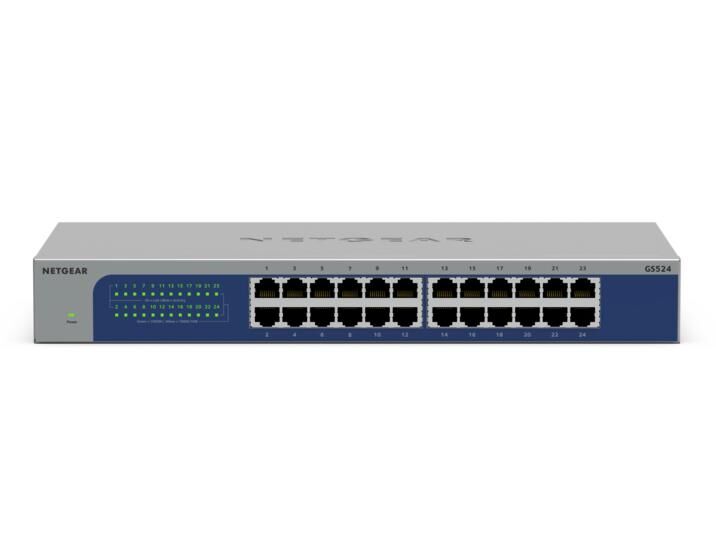

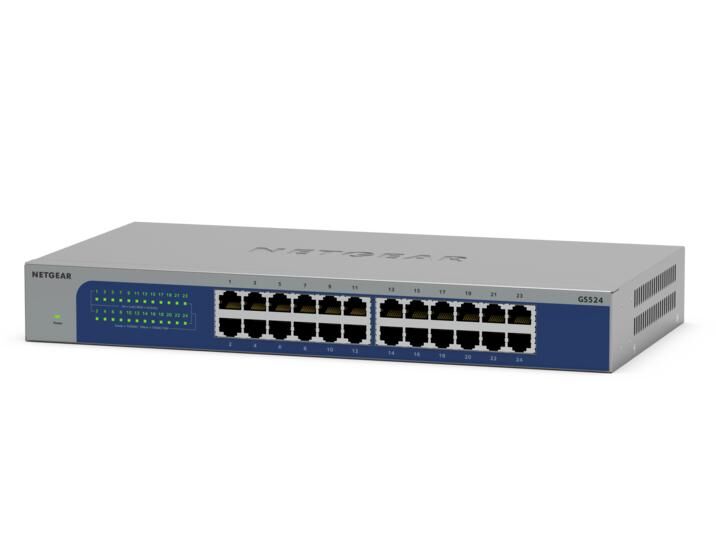

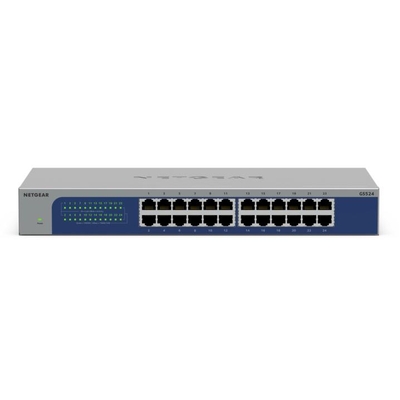

Gigabit Unmanaged Switch Series (GS524)

24-Port Gigabit Ethernet Unmanaged Switch

24 x Gigabit Ethernet ports
Energy Efficient Ethernet for maximum power savings
Fanless and silent
Desktop, wall or rack mount

Features

RELIABLE PERFORMANCE

Superior network performance at non-blocking rate delivers true gigabit speed with no compromise

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

PLUG-AND-PLAY

No software to install. No configuration needed. Zero maintenance required

SILENT OPERATION

The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

VERSATILE MOUNTING OPTIONS

Install your switch on your desktop, mount it to your wall, or add it to a standard 19 inch (44 mm) rack with the hardware provided in the box

METAL CASE

Durable and rugged case for long-lasting performance

(GS524)

Technical Specs

Speed : 10/100/1000Mbps Gigibit Ethernet
Number of Ports : 24
PoE ports : n/a
Total PoE Budget : n/a
Loop Detection : n/a
Short cable power saving : Yes
Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
Jumbo Frame Support : 9KB
Queue WRR Ratio : 1:2:4:8
MAC Table Size : 8K
Packet buffer size : 512.5KB
IEEE 802.1p QoS : Yes
Max Power Consumption : 12W
Operating Temperature : 0 to 50° C
MTBF (hours) : 1,016,877 hrs
FCC Class : A

Dimensions (WxDxH) : 328 x 169 x 43 mm (12.9 x 6.7 x 1.7in) Weight : 1.47kg (3.24lb)

SKU	GS524
Brand	NETGEAR
Shipping Weight	2.0000kg
Shipping Width	0.230m
Shipping Height	0.080m
Shipping Length	0.460m
Shipping Cubic	0.008464000m3
