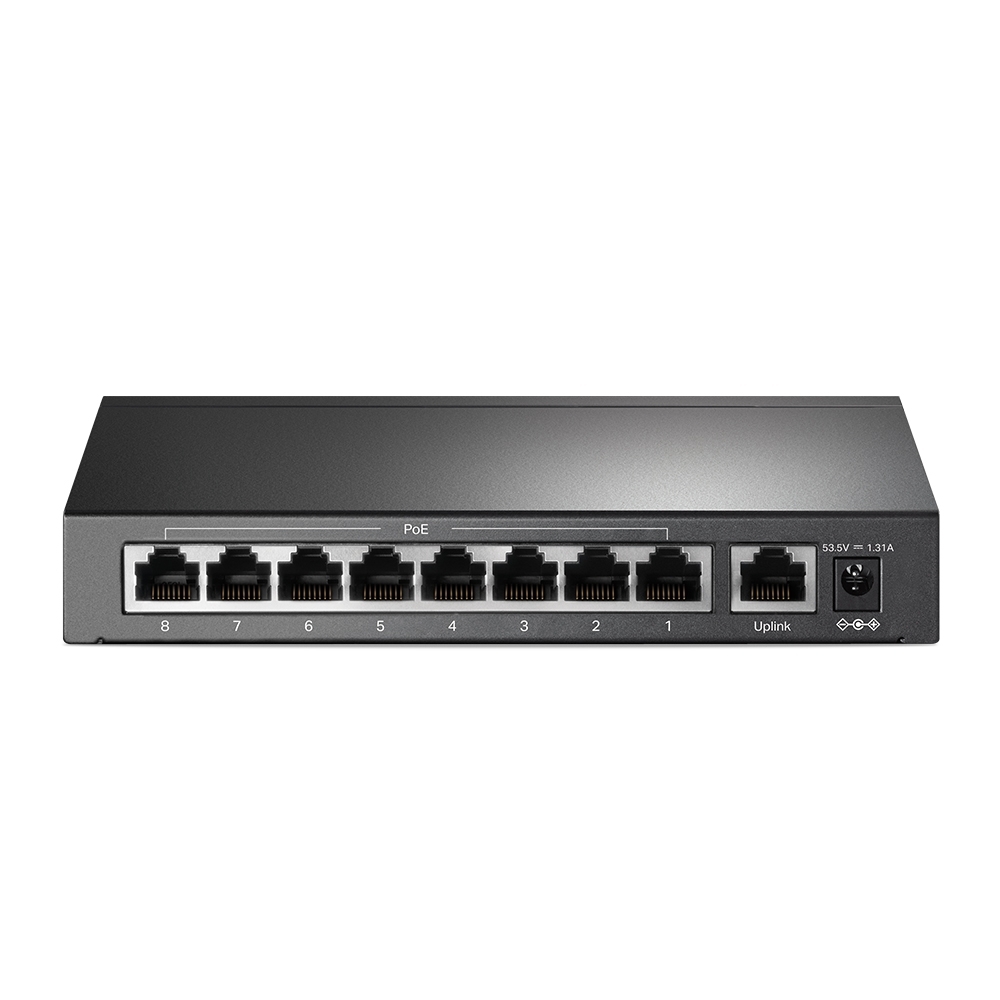

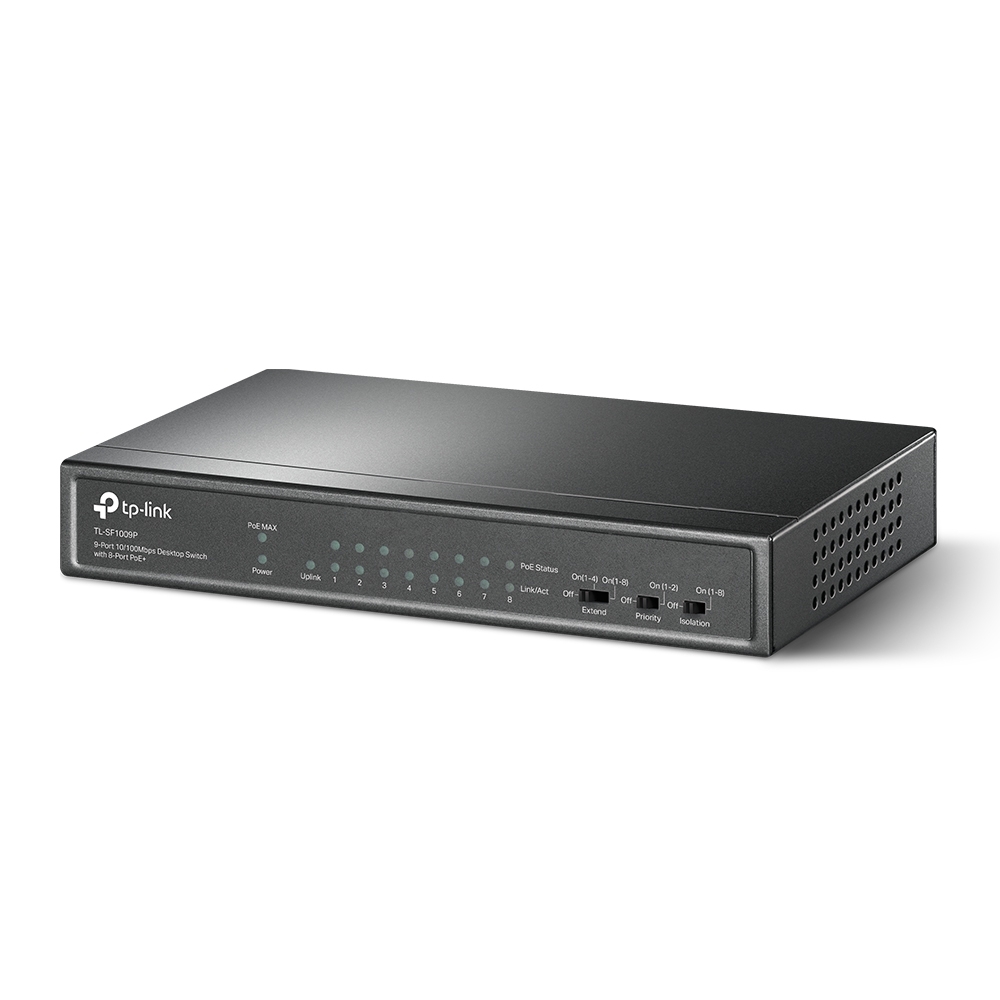

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
(TL-SF1009P)
| HARDWARE FEATURES |
| Interface |
• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity |
Fanless |
| Physical Security Lock |
Yes |
| External Power Supply |
External Power Adapter (Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate |
1.3392 Mpps |
| PoE Ports (RJ45) |
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W |
| Backbound Bandwidth |
1.8 Gbps |
| Mac Address Table |
2K |
| Jumbo Frame |
2 KB |
| Switching Capacity |
1.8 Gbps |
| Dimensions ( W x D x H ) |
6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max Power Consumption |
• 3.6 (220/50 Hz. no PD connected)
• 77.08 (220/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation |
• 12.28 BTU/h (no PD connected)
• 262.84 BTU/h (with 65 W PD connected) |
| SOFTWARE FEATURES |
| Transmission Method |
Store-And-Forward |
| Advanced Functions |
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Contents |
• TL-SF1009P
• Power Adapter
• Installation Guide |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
| SKU |
TL-SF1009P |
| Barcode # |
6935364052966 |
| Brand |
TP-LINK |
| Shipping Weight |
0.9300kg |
| Shipping Width |
0.066m |
| Shipping Height |
0.280m |
| Shipping Length |
0.224m |
Manufacturer Warranty: 5 Year Manufacturer Warranty
